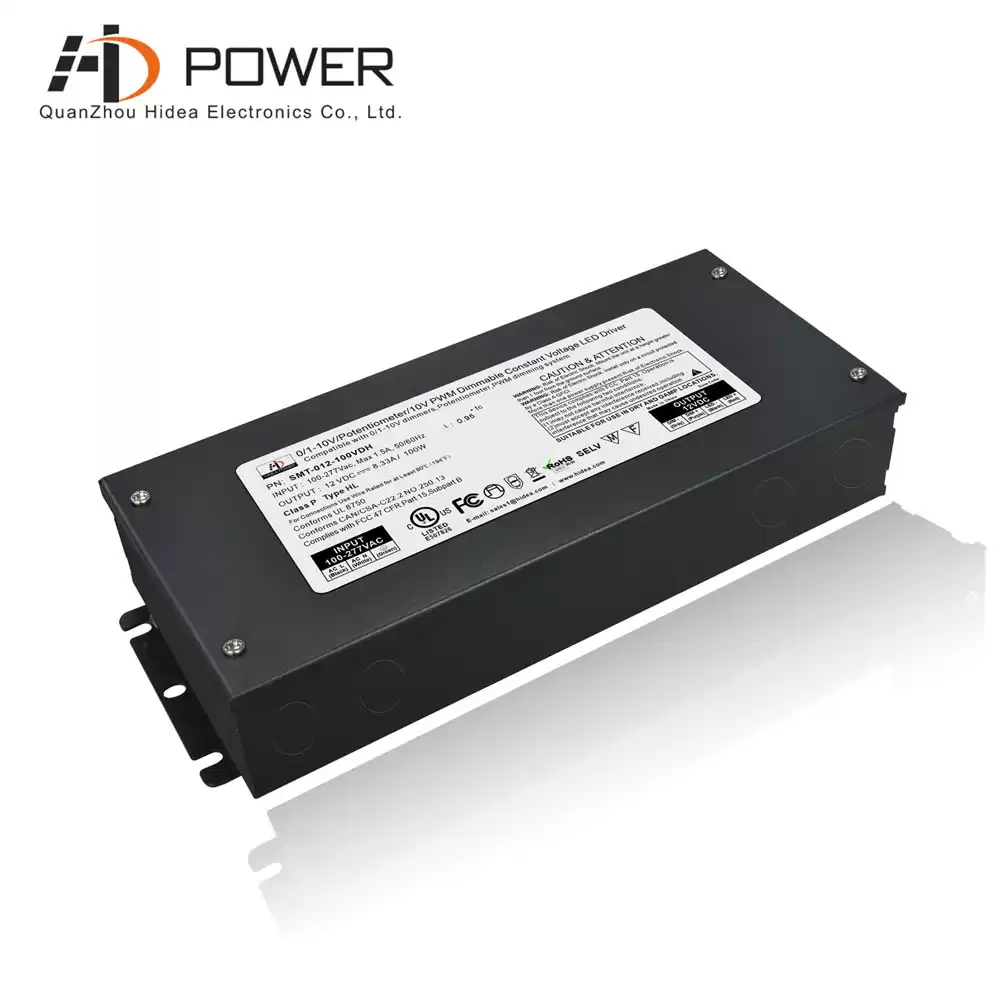

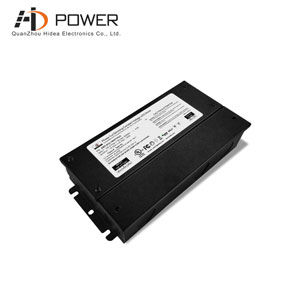

The 100w 12v led driver are Class P, type HL compliant. 2 version id provided. For this version, it is for dry and damp locations. For version 2, the waterproofing grade is improved. Suitable for wet location.
Specification
|
model
|
SMT-012-100VDH (1.0 version)
SMT-012-100VDHV2 (2.0 version)
|
SMT-024-096VDH (1.0 version)
SMT-024-096VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A (class 2 type)
|
|
Voltage Regulation
|
±0.5%
|
±0.5%
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.37Kg (1.0 version)
|
|
Size
|
1.0version:220*94.5*40mm(L*W*H)/2.0version:220*94.5*40mm(L*W*H)
|
|
packing
|
298x240x220mm / 10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
With compact design, the 0 10v dimming driver are quite quitable for under-cabinet LED lighting, especially widely used in North American.The high power factor and efficiency makes it unique in the market. We suggest Birddog Lighting LED rope light for matching.
Related Products
|
 This 100w led driver is an update version for wet location. The driver is compatible with ELV/MLV/ triac/phase dimmers.Meet UL safe standard.
Mode：SMT-012-100VTHV2
Dimming Mode : Triac Dimming
Output Power : 100W
intput voltage：100~277V AC
Size：220*94.5*40MM （L*W*H）
|
