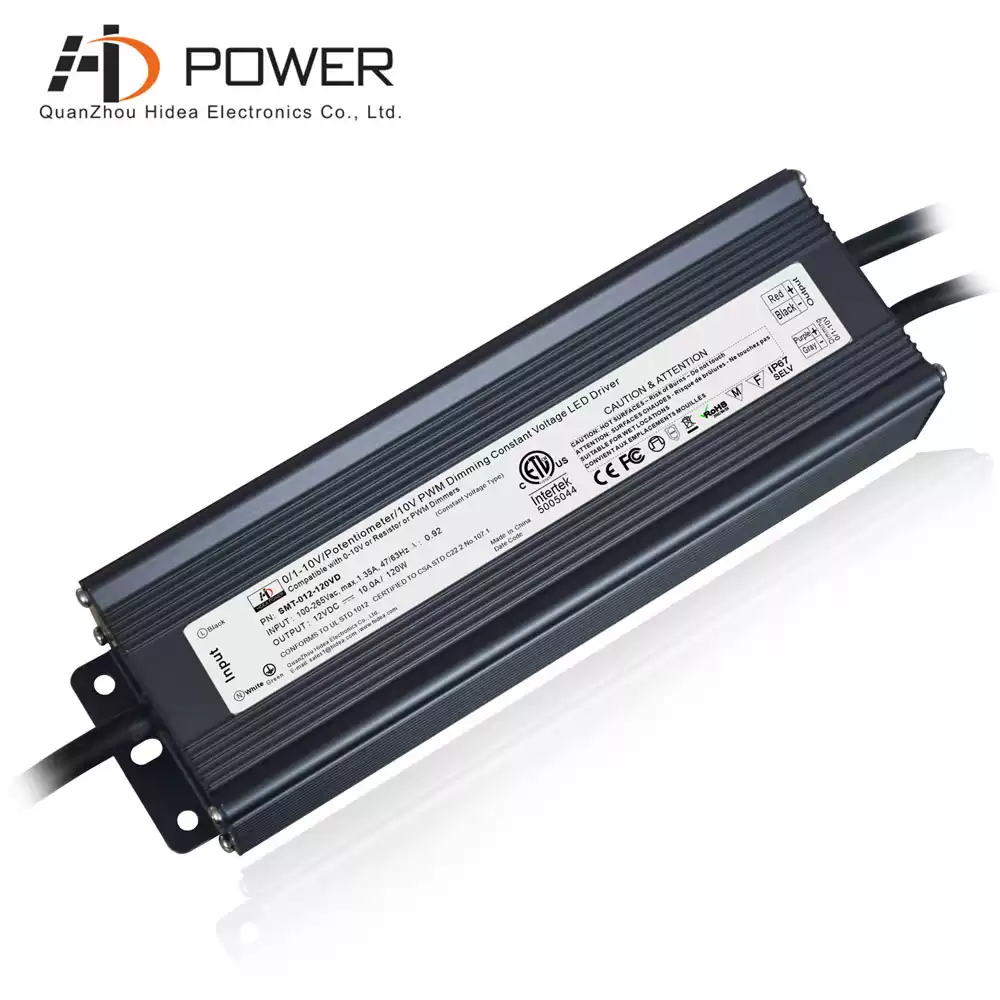

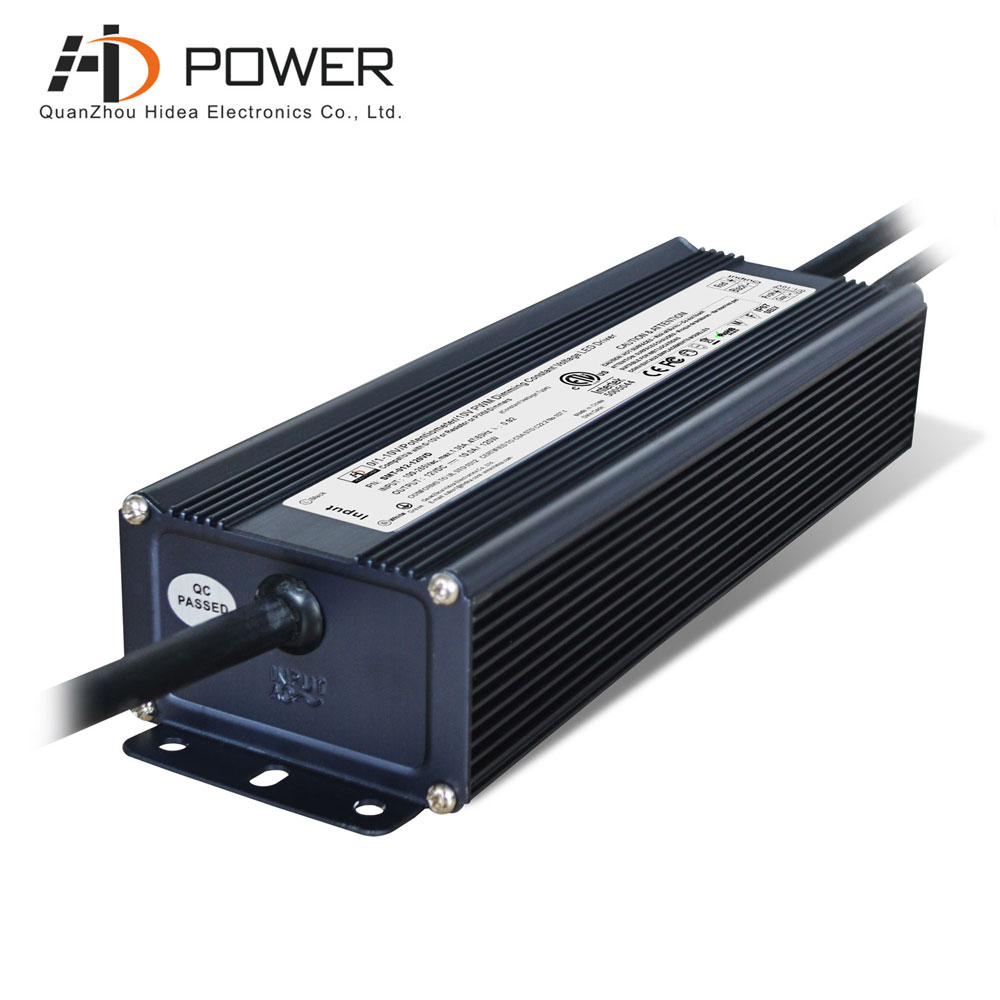

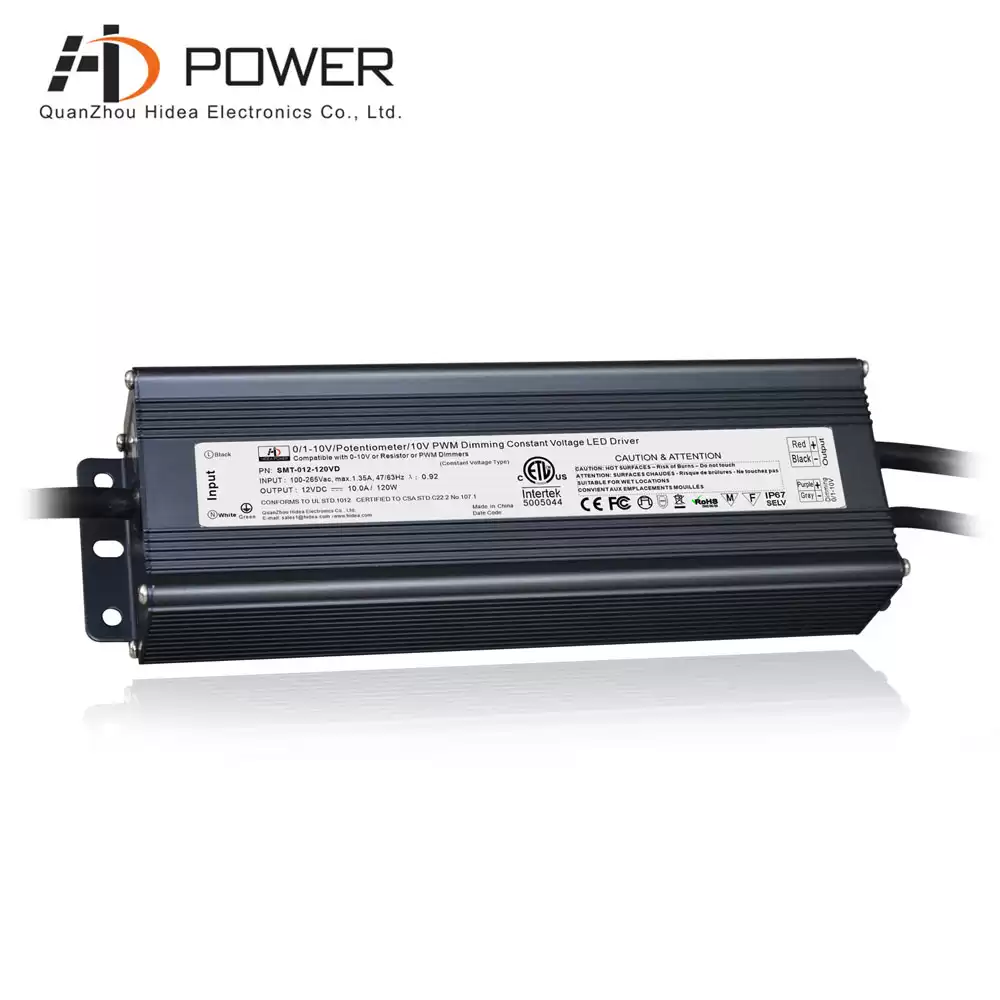

PWM output 12V 120W 0 10v dimmable led driver

0 10v dimmable led driver comes with power cord for easy Installation, universal dimming! works with any type of Leviton 0-10V Dimmers.


  • Weight1300g
  • CertificationETL
  • Size230*68.5*43mm
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)120W
  • Input Voltage100-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming Mode0-10V Dimming
  • Warranty3 Years

Universal voltage input accepts 100-265VAC, ETL/cETL certified approved 0 10v dimmable led driver for use on USLED any commercial tape lighting projects, 5 year warranty.

  Specification

Model SMT-012-120VD SMT-024-120VD
Output DC Voltage 12V 24V
Voltage Accuracy  ±0.5V
Rated current 0-1.0A 0-5.0A
Rated power 120W 120W
Ripple&noise Max. 200mVp-p 250mVp-p
Input Voltage Range 100-130VAC,170-265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) >0.90@110V ,220VAC
Full Load Efficiency(Typ.) >88%
AC Current(Typ.) 1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/265VAC
Leakage current ﹤0.25mA/110V,220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over voltage ≦315VAC
Over temperature 100℃±10℃  shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+60℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes
Safety&EMC Safety standards EN61347-2-13. IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance to EN55015,EN61000-3-2 (≧50%Load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
Others Weight 1.32Kg
Size 230*68.5*43mm(L*W*H)
packing 329*279*176mm/10pcs
Notes 1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Light Type

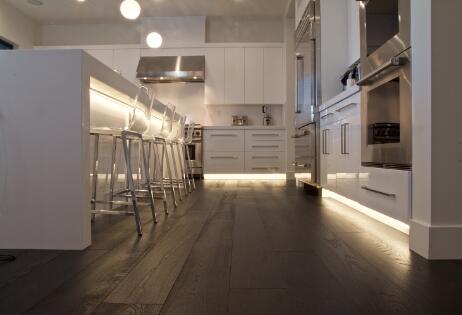

Prolighting low voltage 12v and 24v output led tape lighting for indoor task lighting and display lighting, can comply with Title 24 Part 6 JA8 requirements, also working well with 0 10v dimmable led driver.

  Related Products

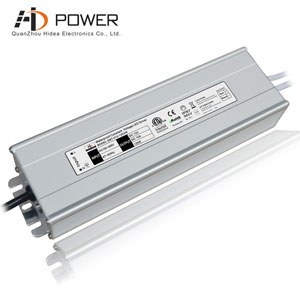

led transformer 120w 24vdcHardwired connections constant voltage waterproof ETL listed led driver 120w.
