PWM triac dimming 12v/24v led driver dimmable 0 10v led power supply 60W
277vac voltage input, built-in source PFC, typical power factor, pwm dimming led driver mode can achieve 0-100% flicker-free dimming, ultra-low load requirements, can run perfectly under 10-100% load
Specification
|
Model Number
|
SMT-12060-VTDHV3
|
SMT-24060-VTDHV3
|
SMT-36060-VTDHV3
|
SMT-48060-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
60W
|
60W
|
60W
|
60W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
5A
|
2.5A
|
1.66A
|
1.25A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
83%@120VAC 84%@277VAC
|
84% @ 120VAC 85% @277VAC
|
85% @ 120VAC 86% @277VAC
|
86% @ 120VAC 87% @277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
226.5x117.5x42.5mm (L*W*H) N.W: 1kg
|
|
Packing
|
10pcs/CTN G.W:11.2KG SIZE:275*255*250mm
|
Compatible Light Type

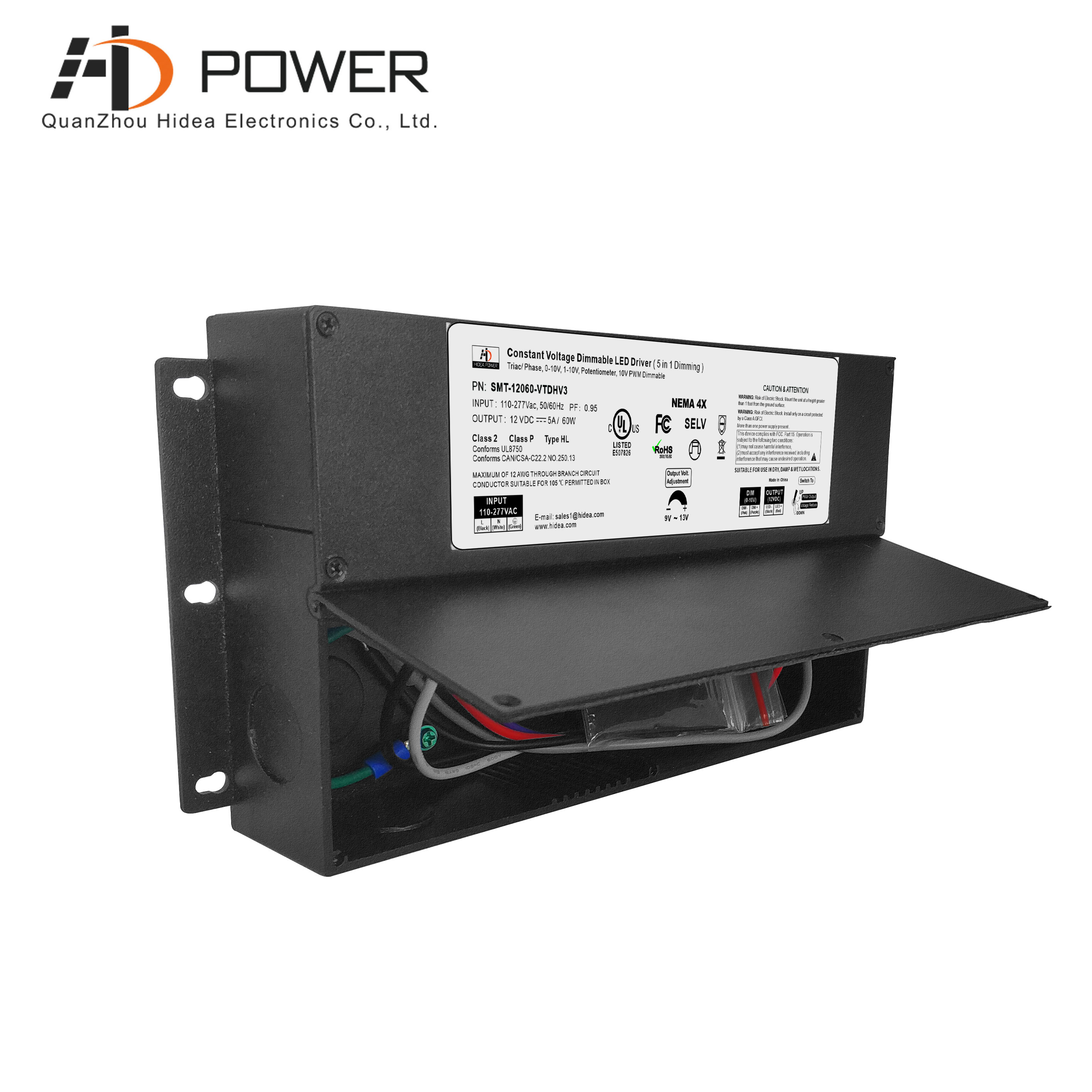

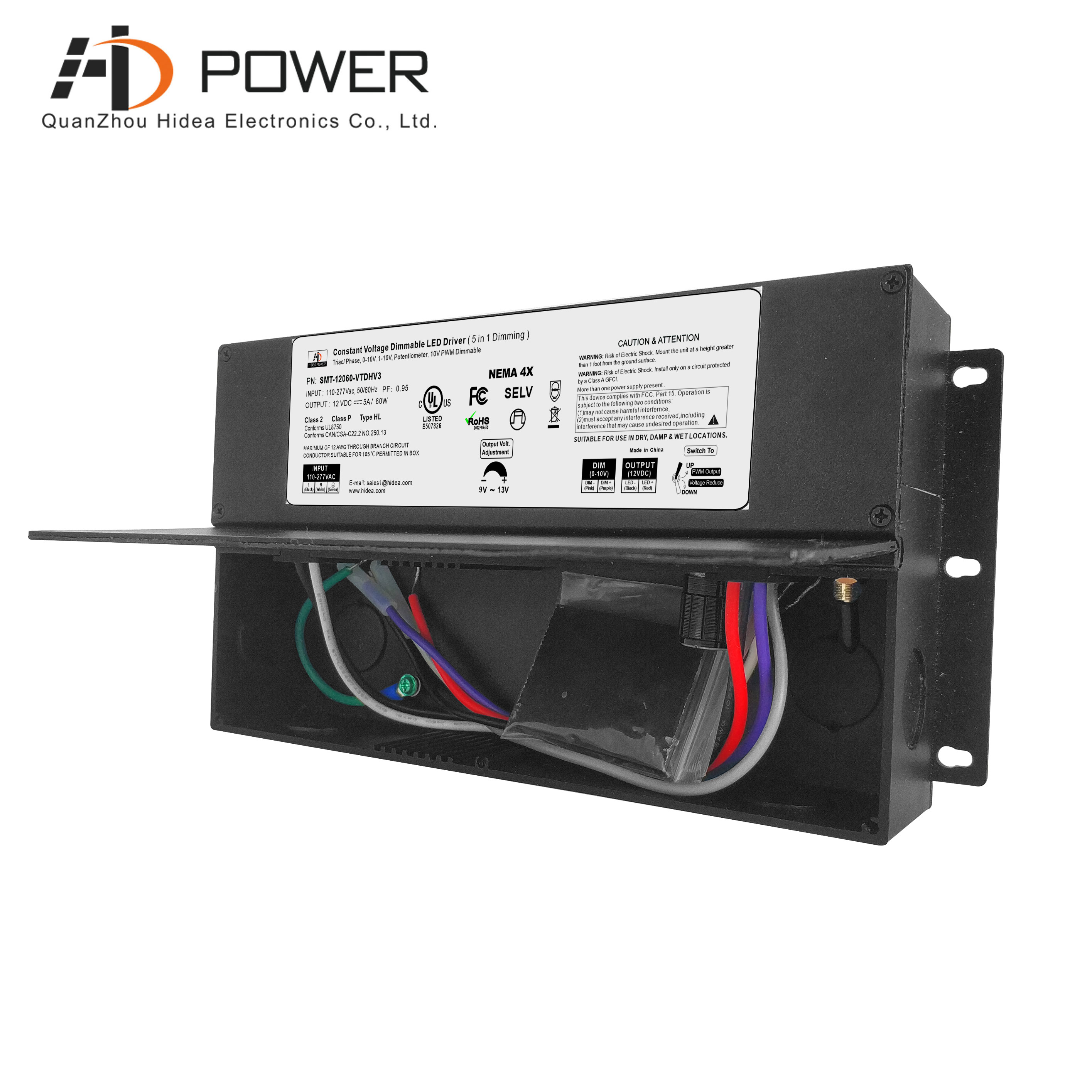

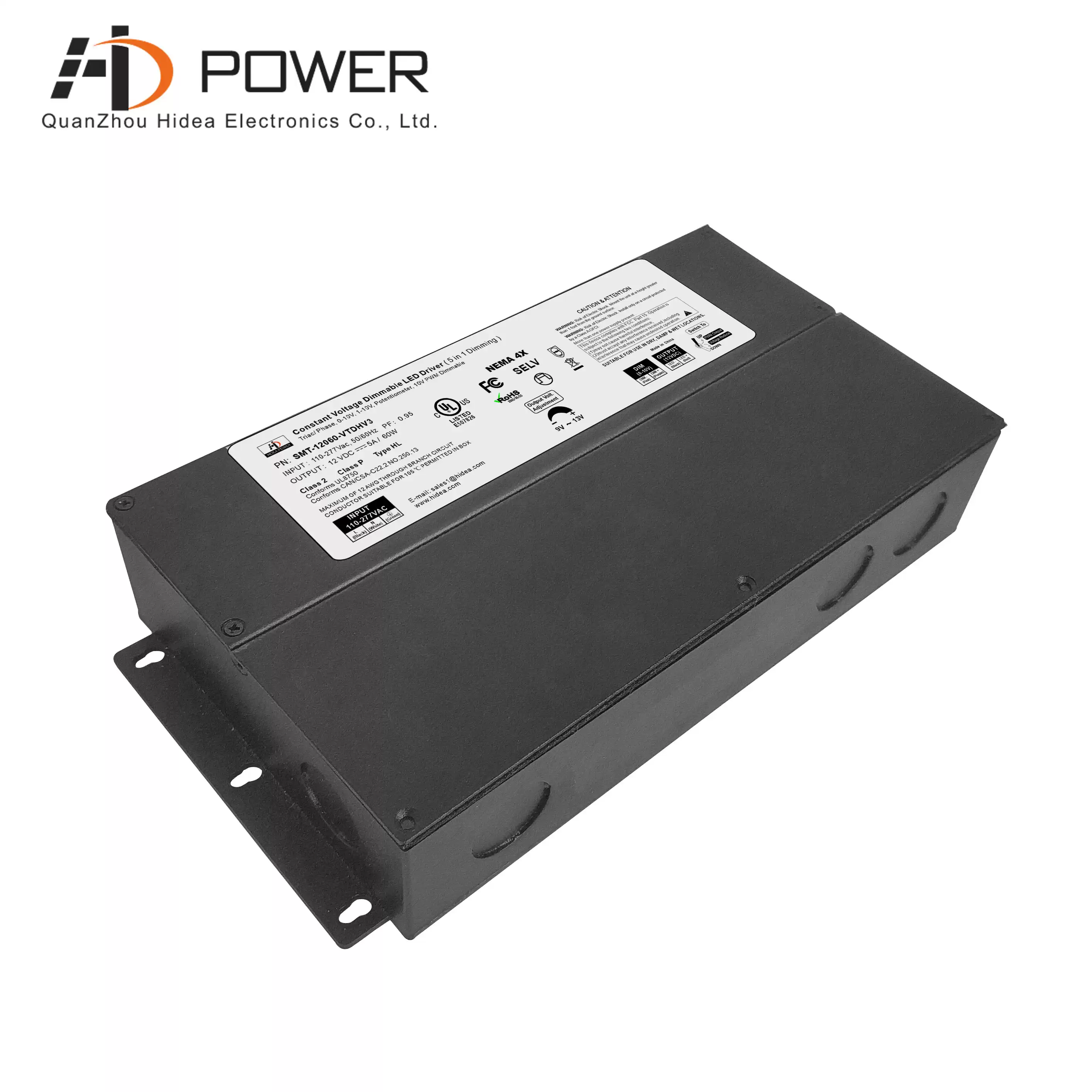

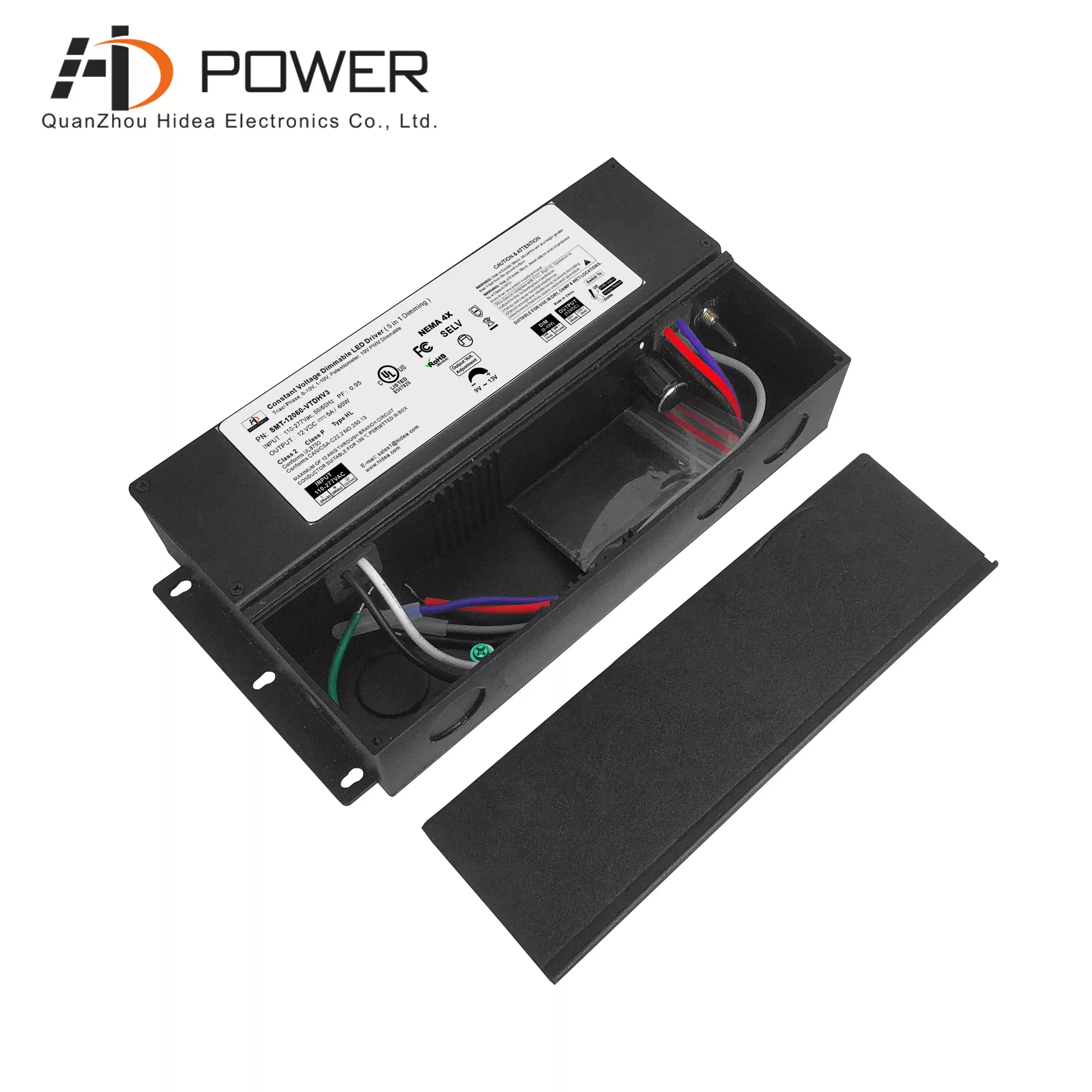

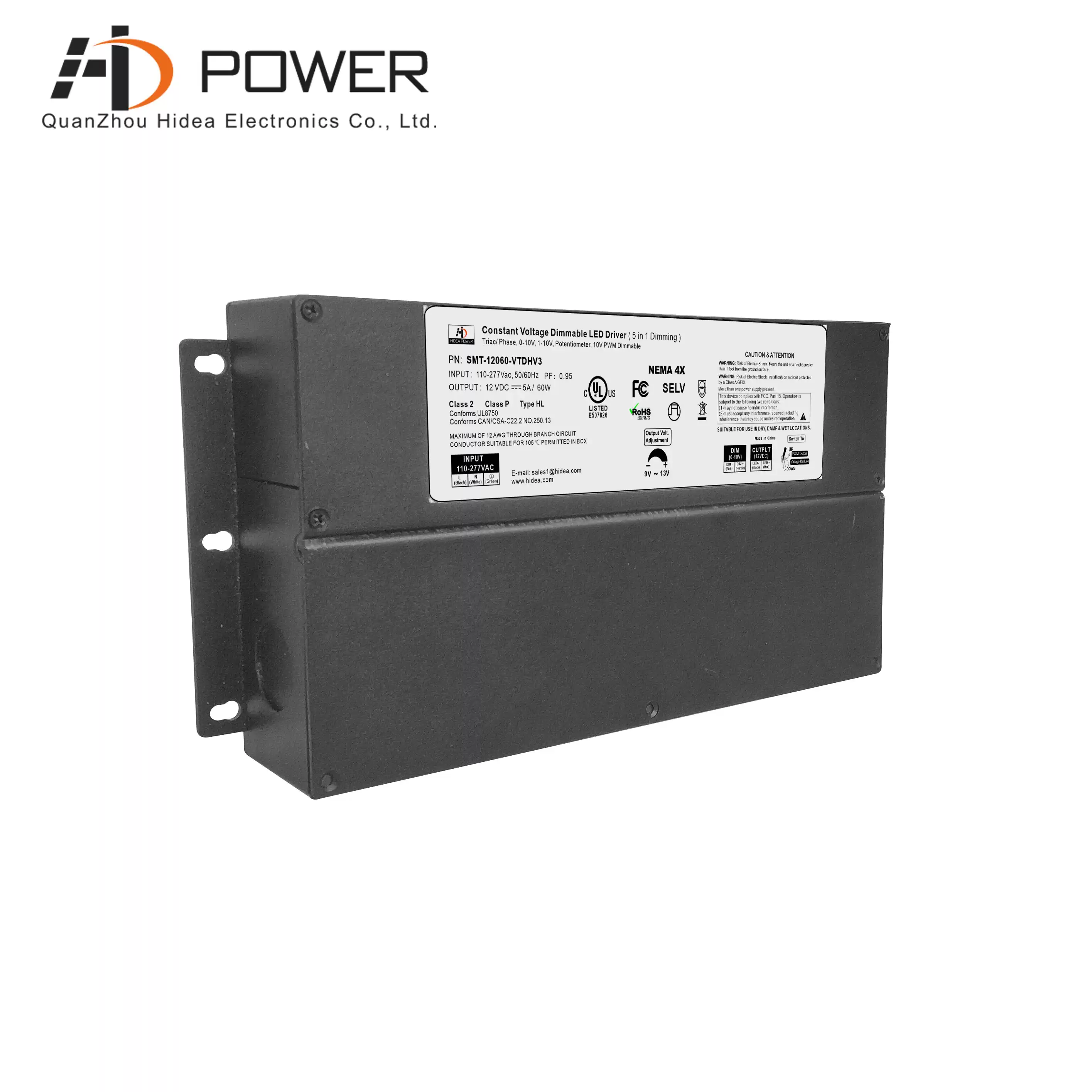

hidea power new triac & 0-10v 60W dimmable led driver has flexible wiring compartment, patented design of flip junction box, short circuit over temperature overload protection can well protect the life of the power supply
Related Products
|

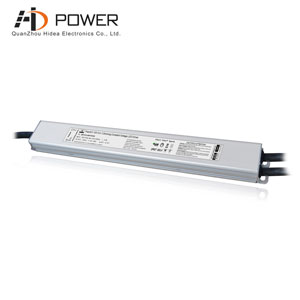

UL listed 277vac ultra-thin led driver 5 in 1 dimmable, suitable for installation in tight spaces
