UL 277vac to 12v/24v triac & 0-10v dimmable constant voltage led driver 30W

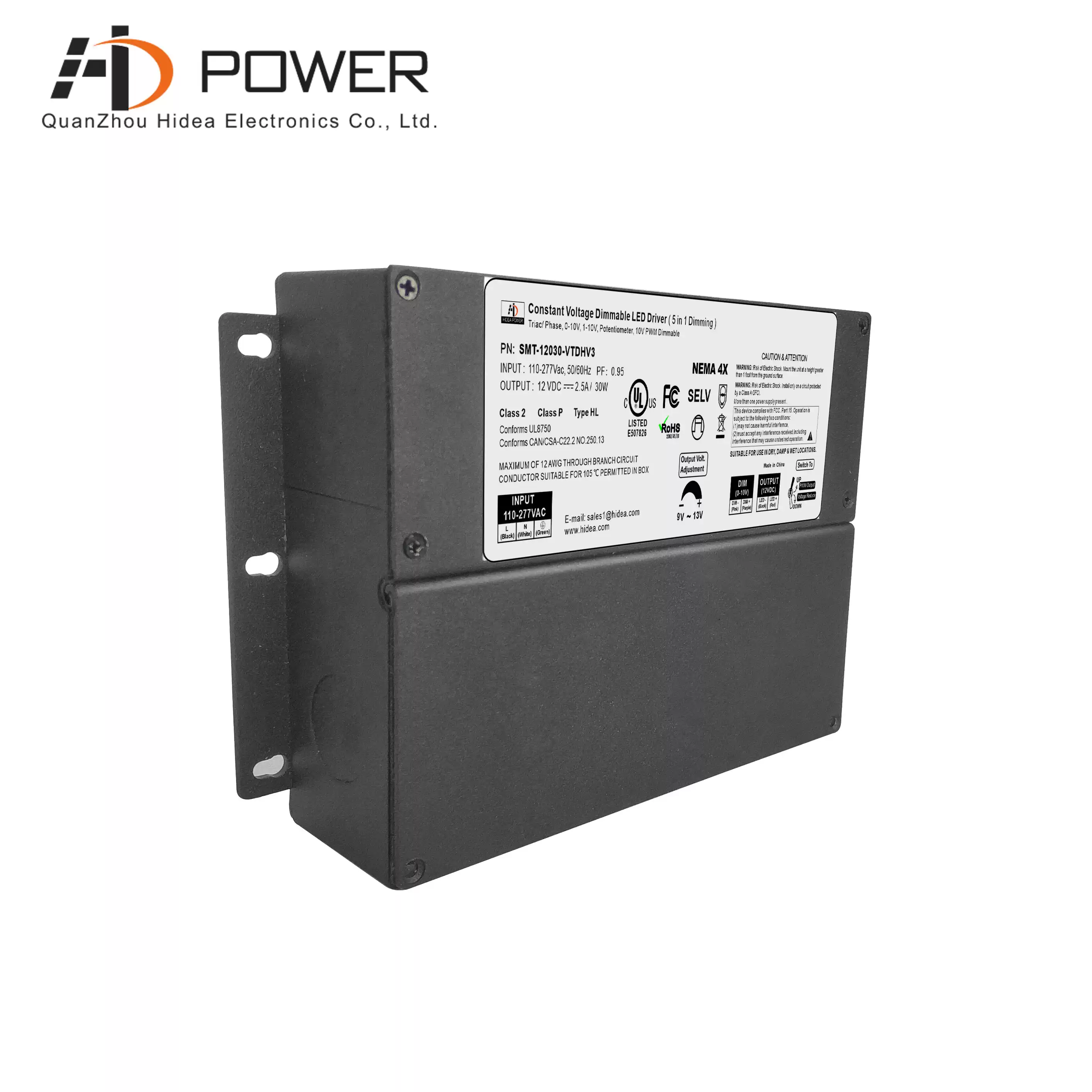

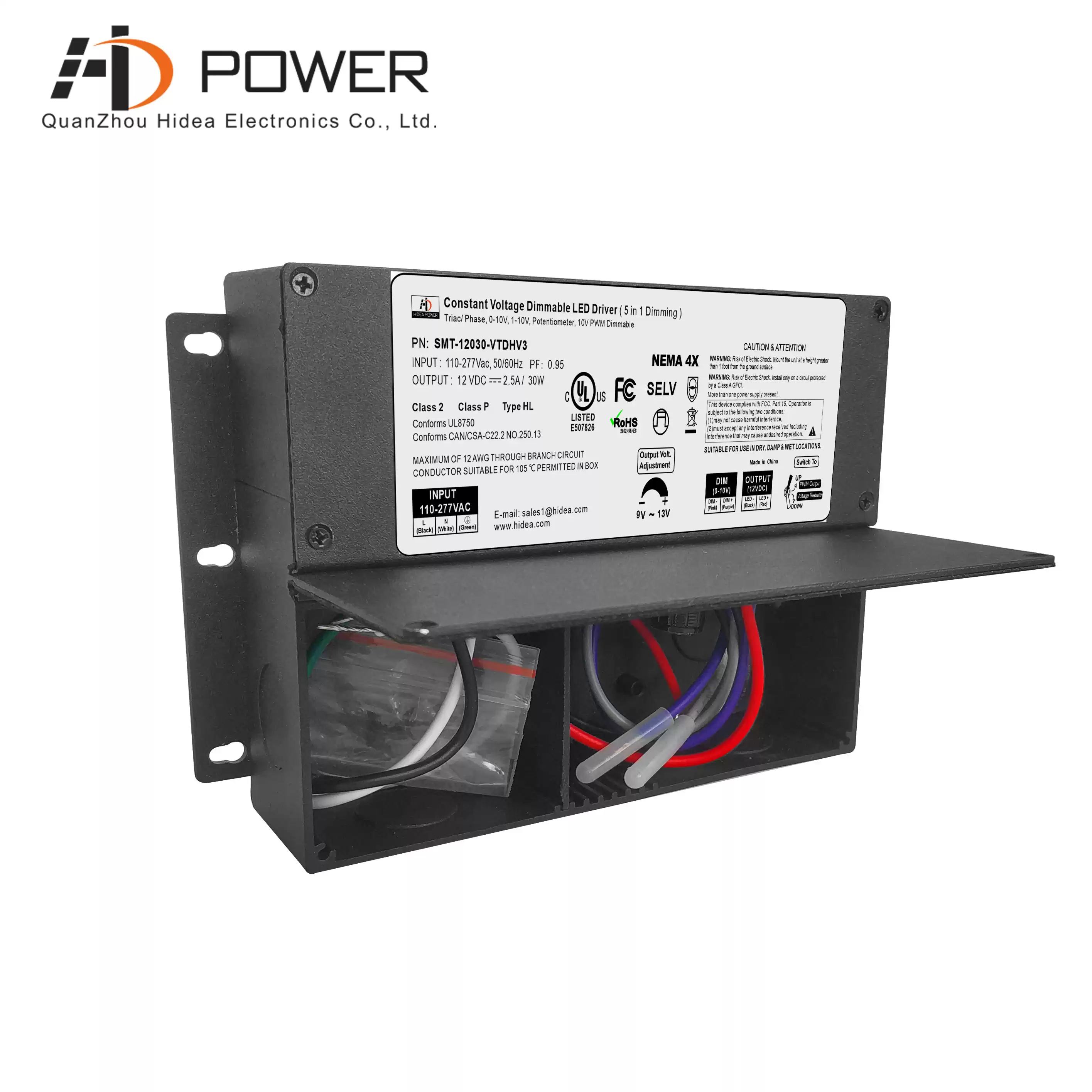

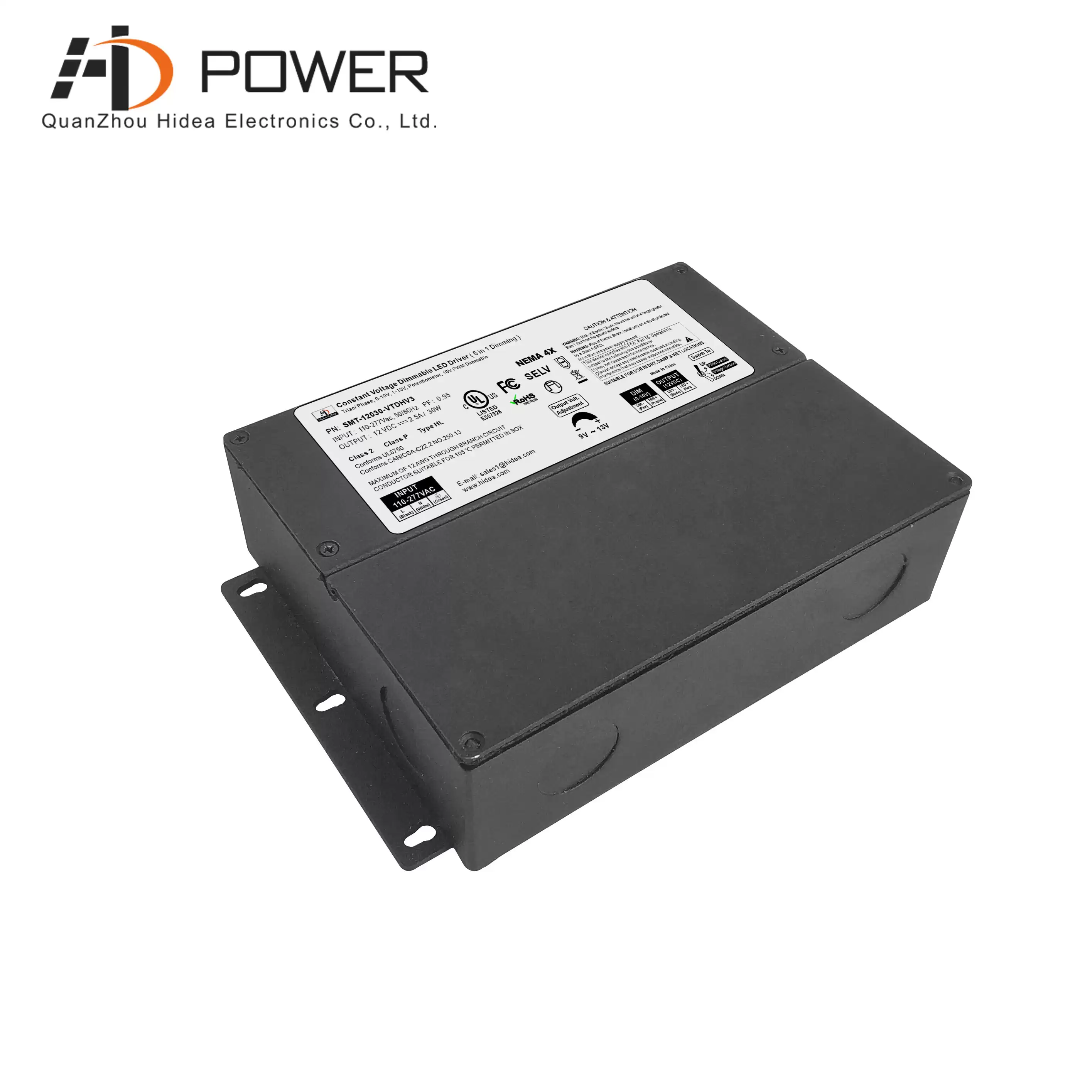

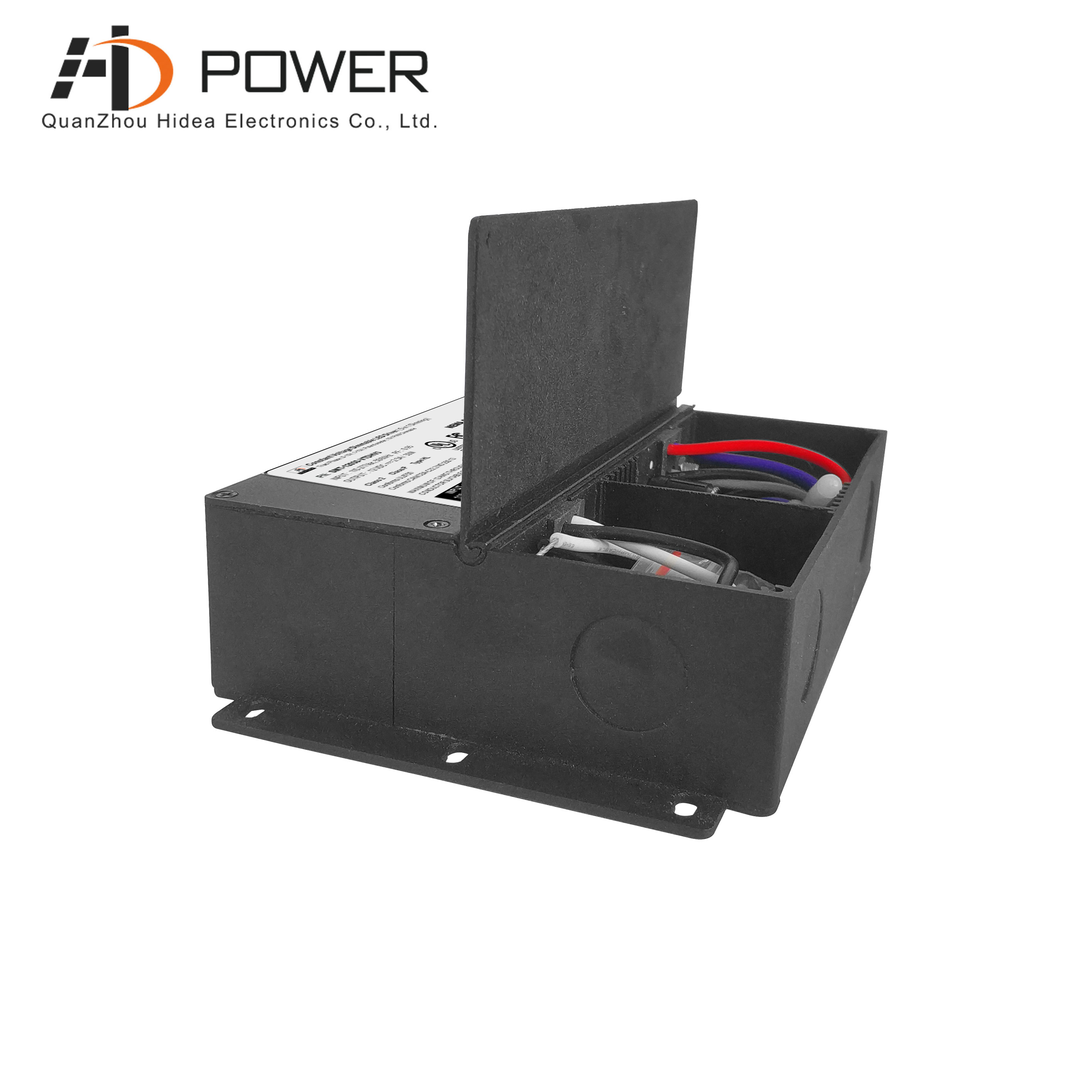

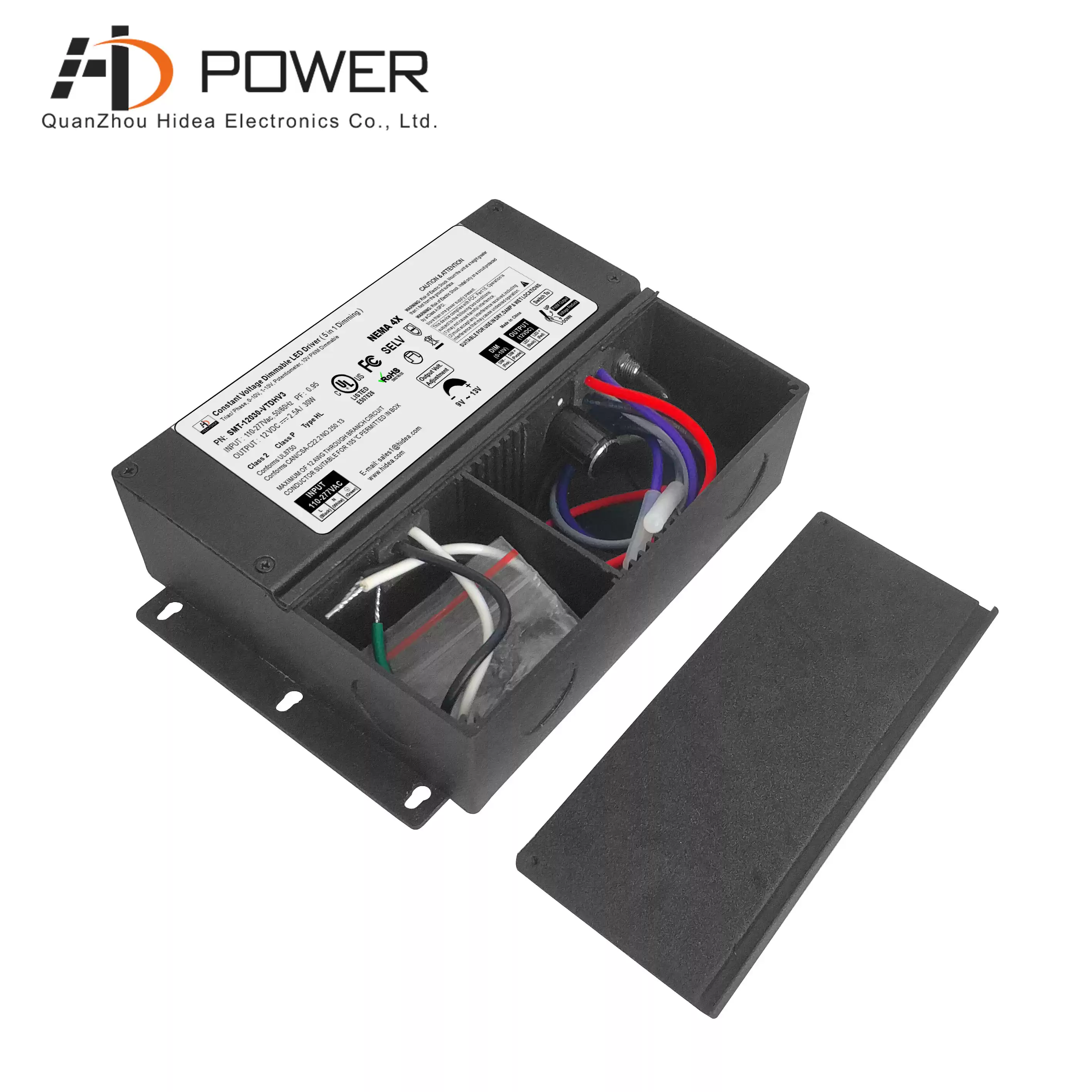

The 277vac input voltage 5 in 1 dimmable led driver has passed the UL certification, the patented design of the unique flip junction box, the flexible wiring compartment can be adjusted according to the user's needs, and can be suitable for indoor and outdoor lighting projects.
Specification
|
Model Number
|
SMT-12030-VTDHV3
|
SMT-24030-VTDHV3
|
SMT-36030-VTDHV3
|
SMT-48030-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
30W
|
|
Rated Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Rated Current
|
2.5A
|
1.25A
|
0.83A
|
0.625A
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
100-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.95 @120VAC 0.9 @277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
79% @ 120VAC 80% @277VAC
|
79% @ 120VAC80% @277VAC
|
80% @ 120VAC 81% @277VAC
|
81% @ 120VAC 82% @277VAC
|
|
AC Current(Typ.)
|
0.33A
|
|
Inrush Current(Typ.)
|
7A,50%,420us@120VAC; 12A,50%,480us@277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
≤120% Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
170.5x116x42mm (L*W*H) N.W: 0.85kg
|
|
Packing
|
20pcs/CTN G.W:18.3KG SIZE:420*255*250mm
|
Compatible Light Type
5 in 1 dimmable led driver for single channel dimmable led strip with short circuit, over temperature and overload protection, built-in knob to fine-tune the voltage, compatible with PWM and step-down output
Related Products
|

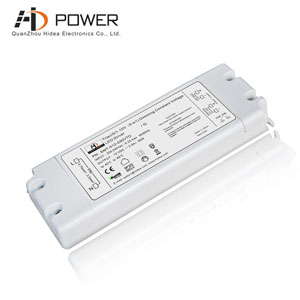

 UL certification 12V 30W LED DRIVER IP20 Plastic Shell 5 in 1 Dimming
