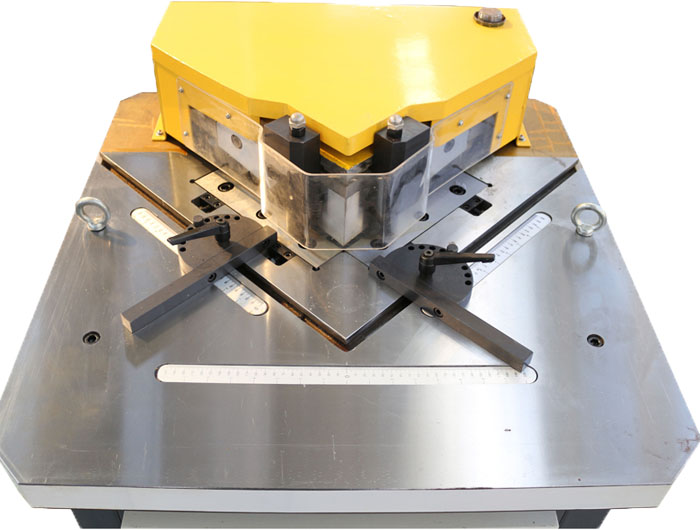

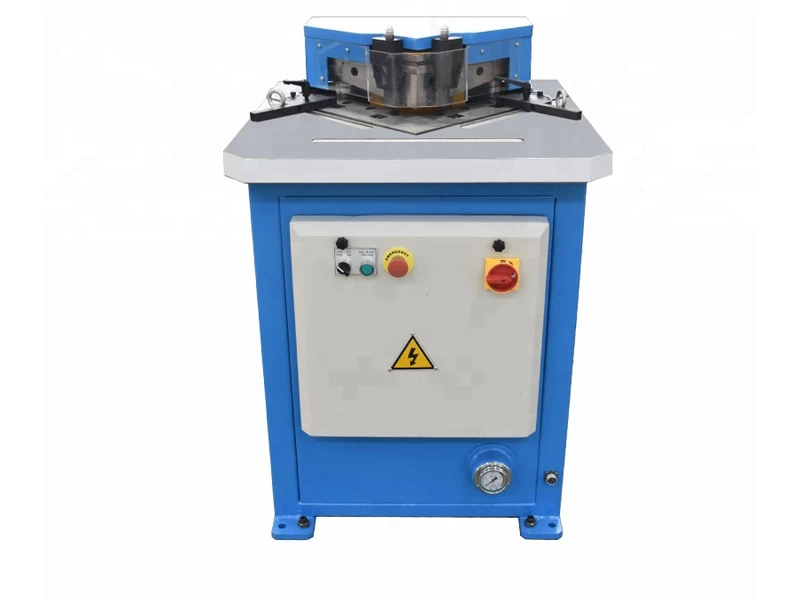

Product Item:Fixed Angle Hydraulic Corner Notcher Machine
Hydraulic Corner Cutting Machine Main Features:
1.Hydraulic bottom‐drive, Integral cast steel ensures the cutting accuracy and service life.
2.Fixed Angle Hydraulic Corner Notcher can fixed cutting angle of 90 degrees.
3.Variable angular position sizing device, visible and transparent safety shield.
4.Side column and central bearing auto‐lubrication, reducing maintenance requirements.
5.Single‐stage and multi‐stage operation functions are available for your choice.
6.Precise measurement ruler quick positioning, plate clamp can firmly fasten the workpiece to eliminate plate torque when cutting.
Hydraulic Corner Cutting Machine Technical Parameter:
|
No.
|
Model
|
Unit
|
3X200
|
4X250
|
6X250
|
8X300
|
10X300
|
|
1
|
Max. Plate
|
CS
|
mm
|
0.5‐3
|
0.5‐4
|
0.5x6
|
1.0‐8
|
1.0‐10
|
|
Thickness
|
SS
|
mm
|
0.5‐1.5
|
0.5‐2.0
|
0.5‐3.0
|
1.0‐4.0
|
1.0‐5.0
|
|
2
|
Max. Plate Length
|
mm
|
200
|
250
|
250
|
300
|
300
|
|
3
|
Cutting Angle Range
|
(°)
|
90
|
90
|
90
|
90
|
90
|
|
4
|
Travel Times
|
n/min
|
40
|
35
|
35
|
30
|
25
|
|
5
|
Worktable Height
|
mm
|
810
|
850
|
850
|
900
|
900
|
|
6
|
Motor Power
|
kw
|
3
|
4
|
4
|
5.5
|
5.5
|
|
|
Length
|
mm
|
810
|
910
|
910
|
950
|
1020
|
|
7
|
Outline Dimension
|
Width
|
mm
|
720
|
760
|
810
|
820
|
1190
|
|
|
Height
|
mm
|
980
|
1050
|
1050
|
1150
|
1190
|
|
8
|
Weight
|
KG
|
590
|
680
|
710
|
850
|
1120
|
Fixed Angle Hydraulic Corner Notcher Standard / Optional Configuration List:
|
No
|
Accessory
|
Brand
|
Other
|
|
1
|
Electric
|
ZHNT‐China
|
Standard
|
|
2
|
Motor
|
TEKONG‐Nanjing
|
|
3
|
Valve Block
|
TAIFENG‐China
|
|
4
|
Oil Pump
|
HANGFA‐Shanghai
|
|
5
|
Pedal Switch
|
People Appliance‐Shanghai
|
|
6
|
Electric
|
Schneider‐France
|
Optional
|
|
7
|
Motor
|
Siemens‐Germany
|
|
8
|
Valve Block
|
Bosch Rexroth‐Germany
|
|
9
|
Oil Pump
|
Sunny‐USA
|
|
10
|
Pedal Switch
|
KACON‐South Korea
|
