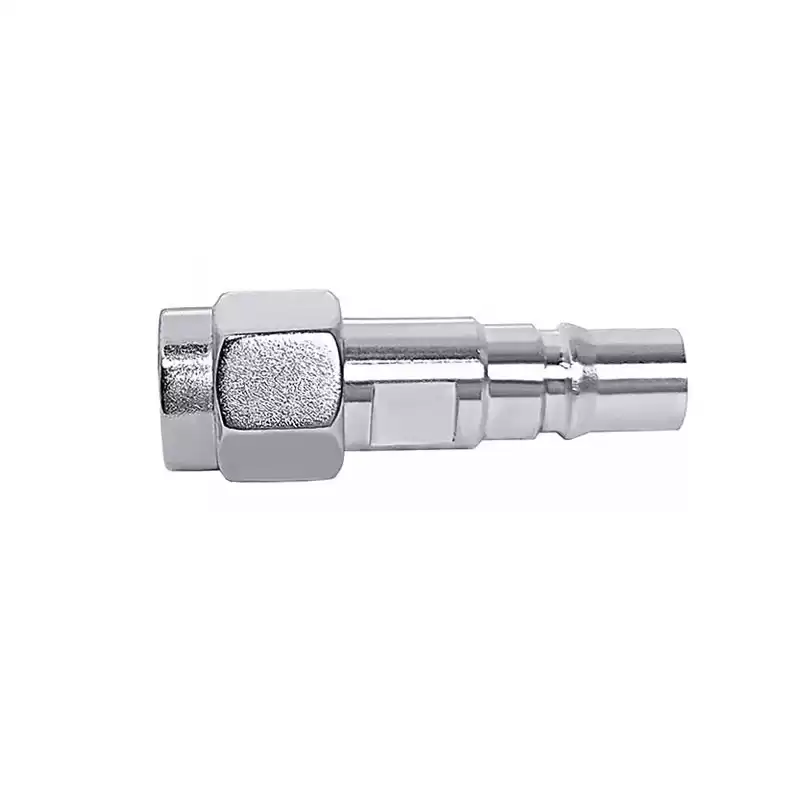

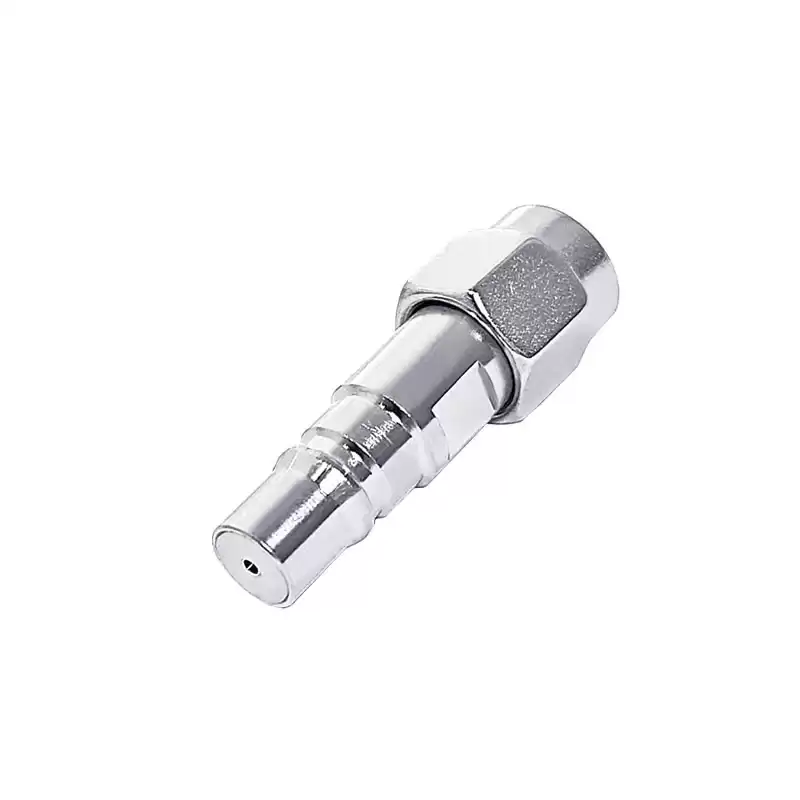

QMA Female to SMA Male RF Coaxial Connector Adaptor
The QMA Adapter has different QMA to SMA adapter gender, is a between series coaxial adapter. The QMA to SMA adapters has female to male, female to female, male to female or male to male gender varieties. This QMA female to SMA male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
QMA |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
SMA |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| ELECTRICAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Base stations
- Wireless LAN
- Broadcast systems
- Microwave Radio
- Radar equipment
- Satellite systems
