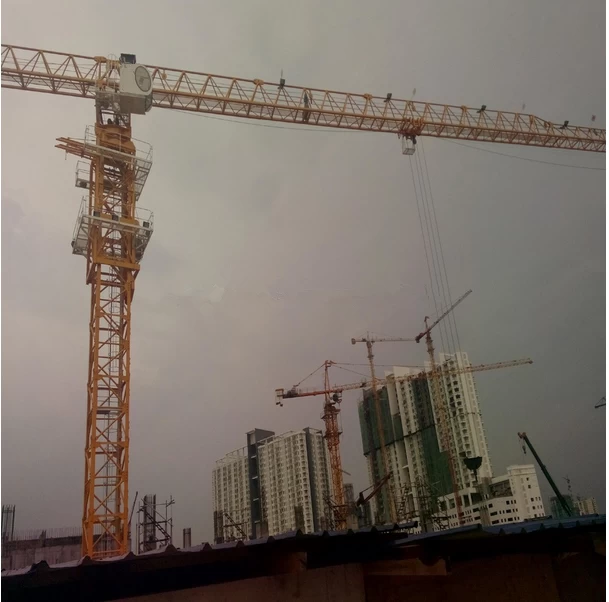

QTP125(TC6013) 8t New flattop Potain Tower Crane
1. Jib=60m, Max Load=8T; Tipload=1.3T
2. hydraulic tower crane/flat top topless construction tower crane,potain tower crane
3. China-made high quality tower crane, China good tower crane manufacturers with best price
4. high efficiency, new tower crane, CE approved, ISO and GOST certification, oversea service available
Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device 9): black box
Technical Parameters
| Model
|
TC6013
|
| Jib Length (M)
|
60
|
| Height (M)
|
46
|
| Max. Load (T)
|
8
|
| Tip Load (T)
|
1.3
|
| Main Material (mm)
|
135×135×12 Square steel tube
|
| Mast Section Dimension (m)
|
1.835×1.835 ×2.5
|
| Hoisting Speed (a=2)m/min
|
100/50/8.5
|
| Slewing Speed (r/min)
|
0-0.65
|
| Radius-changing Speed (m/min)
|
0-60
|
| Jacking-up Speed (m/min)
|
0.5
|
| Total Motor Power (kw)
|
67
|
| total weight(T)
|
54
|
| Counter weight (T)
|
19.08
|
| Base Form
|
Built-in Type
|
Why choose us
1.Cooperative professional tower crane manufactures in China
2.Exported to more than 30 countries with ISO9001&CE Certifications
3.Hydraulic self-climbing mechanism
4.Variable-frequency slewing mechanism
5.Varialbe-speed frequency PLC control System
6.Operation data display screen
7.Various safety devices
8.Safety monitoring system (Black Box)
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
