§ Compact, Low weight

§ Contain TETRA / LTE800 / CDMA850 / GSM900 /GSM1800UMTS2100/LTE2600 bands

§ Low PIM

§ High Reliability

§ Simple Installation

Electrical Specifications

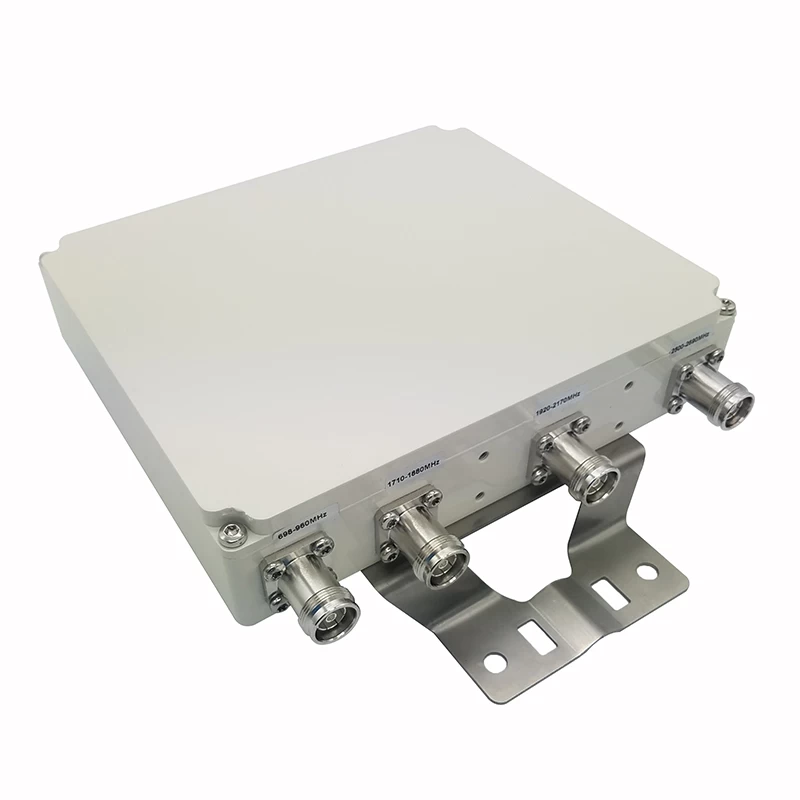

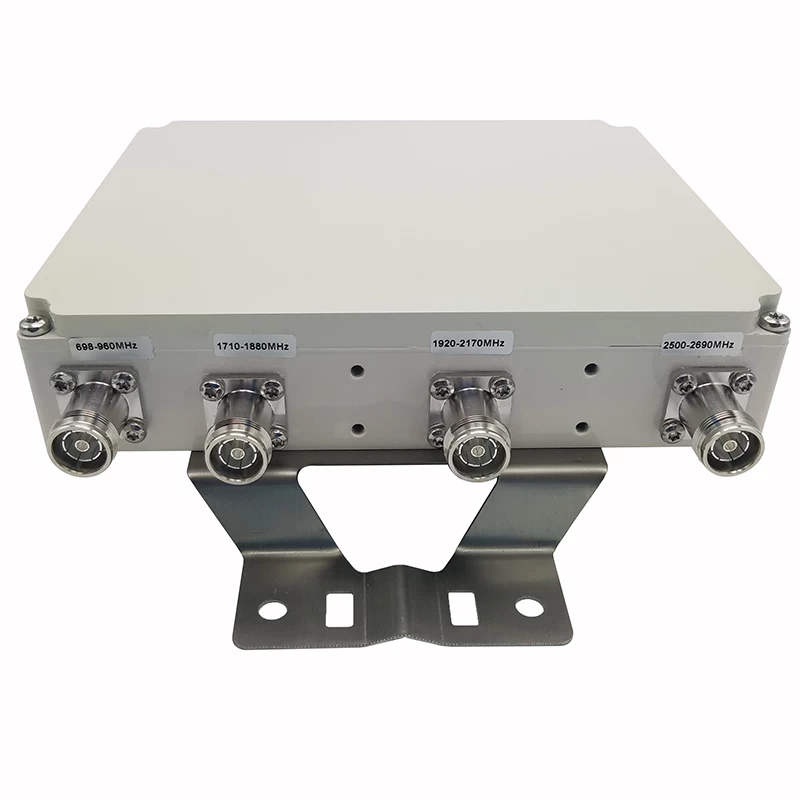

Frequency CH1: 698 to 960MHz CH2: 1710 to 1880MHz CH3: 1920 to 2170MHz CH4: 2500 to 2690MHz

VSWR ≤1.3

Insertion loss ≤0.5dB

Isolation 50dB minimum

Power handling 200 W Avg 1000W Peak

Intermodulation (3rd order) ≤-160dBc@2x43dBm

Impedance 50 W

Environmental Specifications

Operating temperature range -20°C to +60°C

Storage temperature range -40°C to +85°C

Relative humidity 5% - 95%

Barometric pressure 55 KPa -106KPa

Applications IP68

Mechanical Specifications

Connectors type 4.3-10 female

Weight(kg) 3.68

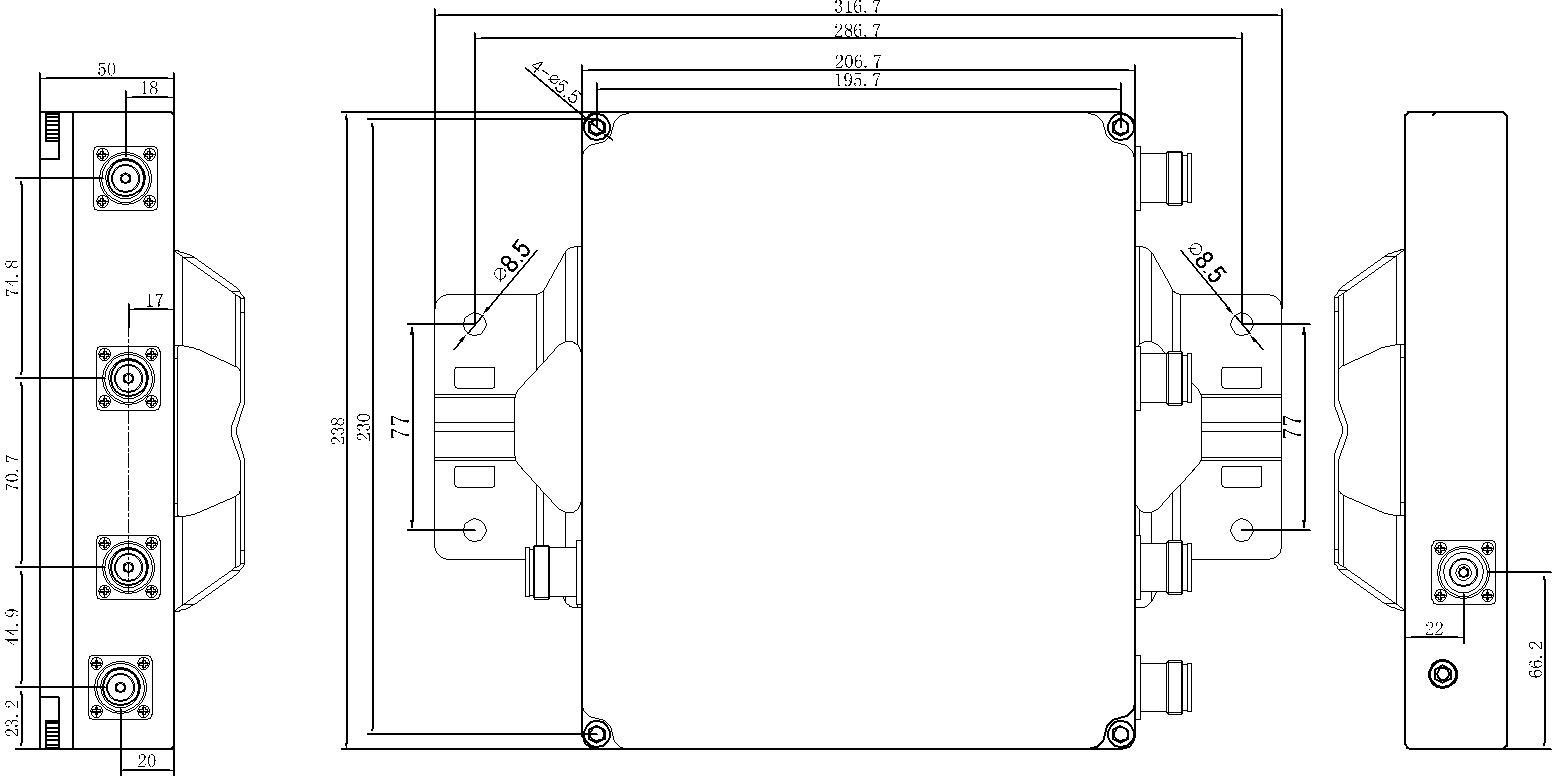

Outer Dimension(mm) 230*206*50

Packing 1Pce in box
