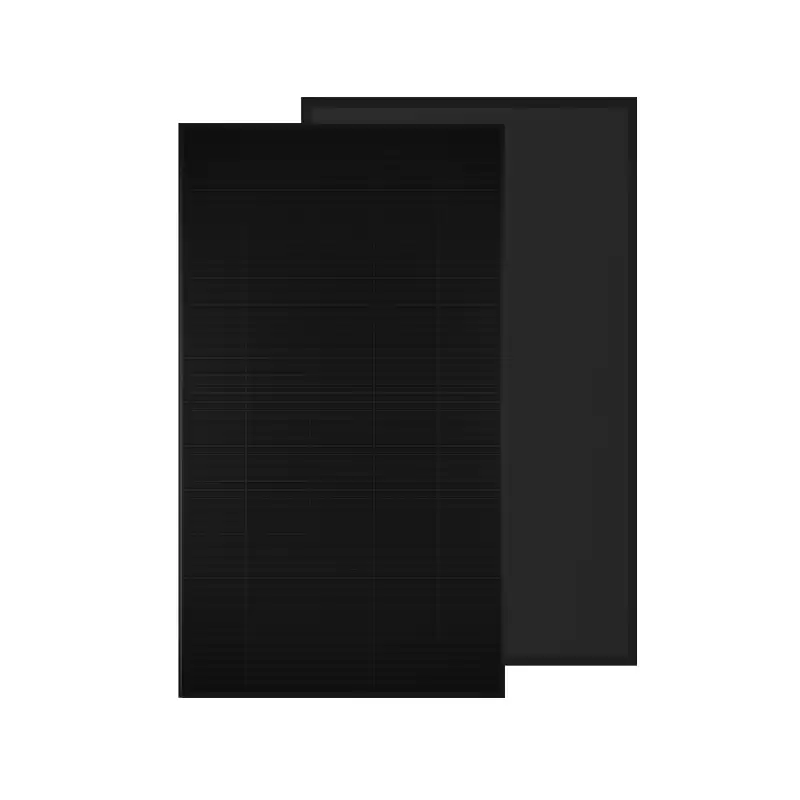

Product Description
*Shingled Technology:innovative structure, low -temperature adhesive bonding, high-density layout.
*Beautiful Apperance:deep black, uniform layout, better aesthetic.
*Compact Design:up to 440Wp output within 2㎡,perfect for residential rooftop.
*Low System Cost:high module effciency, reducing system cost.
*Low Shading Loss:full parallel arrangement brings high effective power generation hours.
|
Module Type
|
BSM420PMB7-46SC
|
BSM425PMB7-46SC
|
BSM430PMB7-46SC
|
BSM435PMB7-46SC
|
BSM440PMB7-46SC
|
|
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
STC
|
NMOT
|
|
Maximum Power(Pmax/W)
|
420
|
316
|
425
|
320
|
430
|
324
|
435
|
328
|
440
|
332
|
|
Operating Voltage(Vmp/V)
|
34.5
|
32.9
|
34.6
|
33.0
|
34.7
|
33.1
|
34.8
|
33.2
|
34.9
|
33.3
|
|
Operating Current(Imp/A)
|
12.19
|
9.62
|
12.30
|
9.70
|
12.39
|
9.79
|
12.50
|
9.88
|
12.60
|
9.97
|
|
Open-Circuit Voltage(VocA/)
|
41.6
|
39.7
|
41.7
|
39.8
|
46.8
|
39.9
|
46.9
|
40.0
|
47.0
|
40.1
|
|
Short-Circuit Current(Isc/A)
|
12.92
|
10.41
|
13.03
|
10.50
|
13.14
|
10.60
|
13.26
|
10.71
|
13.37
|
10.82
|
|
Module Efficiency(%)
|
21.1
|
21.4
|
21.7
|
21.9
|
22.2
|
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
