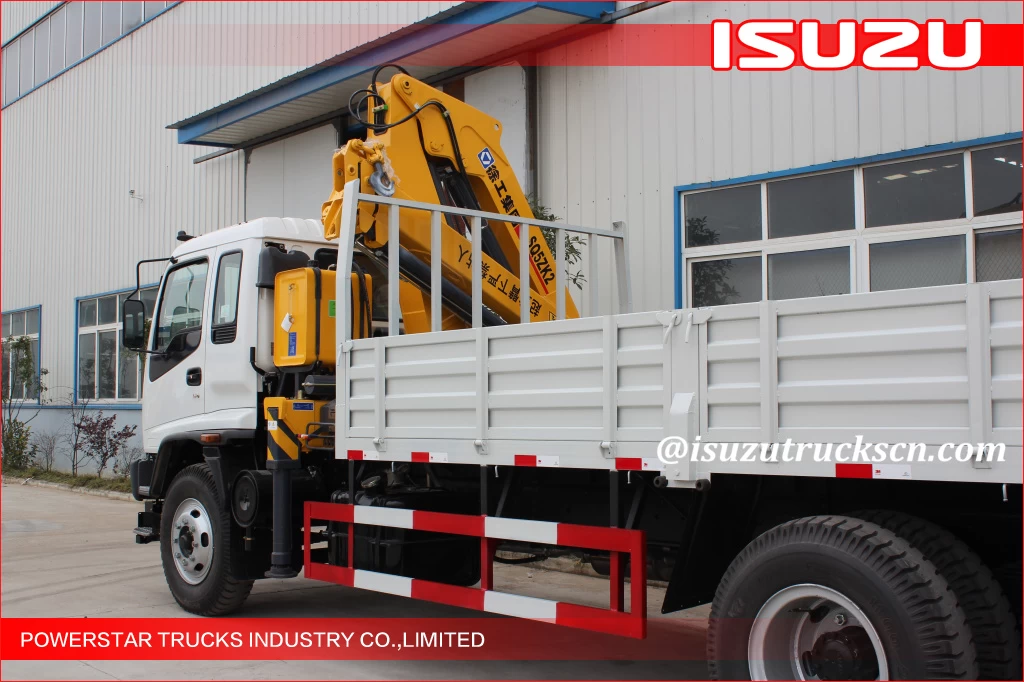

Quality Isuzu 25 Tons Commercial Knuckle Boom Truck Mounted Crane SQ25ZK6Q
Durable 25 Tons Commercial Knuckle Boom Truck Mounted Crane, 19m Lifting Height
- Name: Knuckle boom crane, Lorry mounted crane, Cargo truck crane, Truck loader crane, Hydraulic truck crane
- Max Lifting Capacity: 25 ton
- Max Lifting Moment: 62.5 t.m
- Max Oil Flow of Hydraulic System: 80 L/min
- Max. Lifting height: 19meters
- Brand: XCMG
- Crane Weight: 7945 kg
- Oil Tank Capacity: 300 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom cranes have the ability to stow within itself, folding into a small space out of the way freeing up valuable payload space.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Knuckle boom crane SQ25ZK6Q is lifting capacity is 25tons, moment is 62.5T.M.. This is the biggest truck mounted crane in China.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ25ZK6Q
|
Unit
|
Max Lifting Moment
|
62.5
|
t.m
|
Max Lifting Capacity
|
25000
|
kg
|
Recommend Power Needed At Recommend Oil Flow
|
50
|
kw
|
Max Oil Flow of Hydraulic System
|
80
|
L/min
|
Rated Pressure Of Hydraulic System
|
31.5
|
MPa
|
Oil Tank Capacity
|
300
|
L
|
Rotation Angle
|
(360°) All Rotation
|
.
|
Crane Weight
|
7945
|
kg
|
Installation Space
|
3000
|
mm
|
Choice of Chassis
|
ISUZU FVZ
|
SQ25ZK6Q Lifting capability diagram
|
Working radius(m)
|
2.5
|
4.22
|
5.93
|
7.74
|
9.59
|
11.48
|
13.43
|
15.45
|
Lifting capacity(kg)
|
25000
|
14000
|
9000
|
6500
|
5000
|
4000
|
3000
|
2500
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg
|
Spread
|
Fixed
|
2179mm
|
Single extension
|
2256-3556mm
|
Double extension
|
2212-4752mm
|
