Rack Independent UPS Modular 25-200kVA

Truly Modular UPS
Full UPS functioned UPS Module
25kVA - 200kVA
3/3, 3/1, 1/3, 1/1; 50/60Hz; BOTTOM/TOP feed
High Frequency MODULAR UPS
Modular,hot-swappable, field-replaceable STS, monitor, UPS module.




Overview

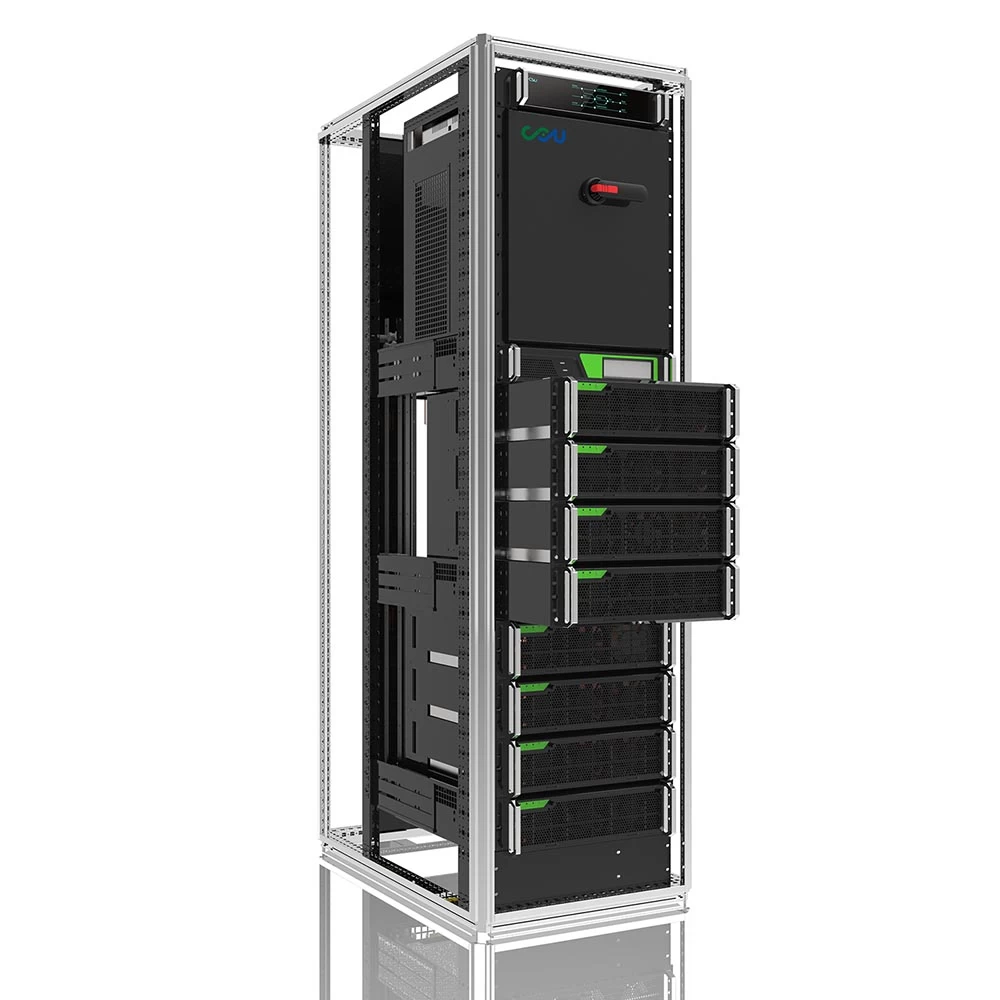

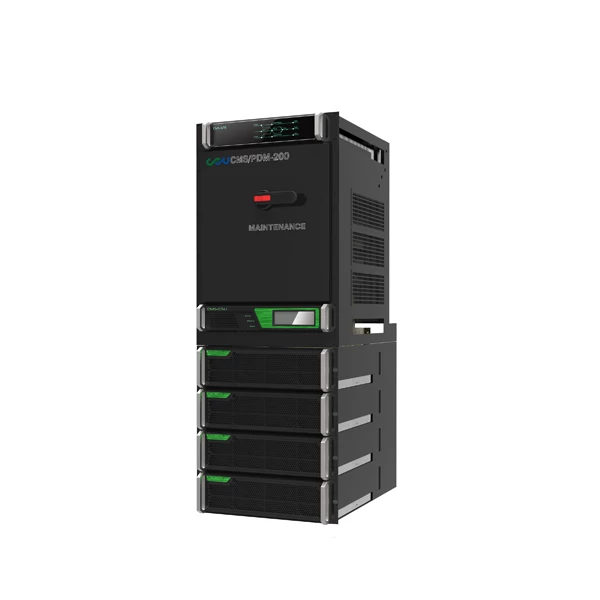

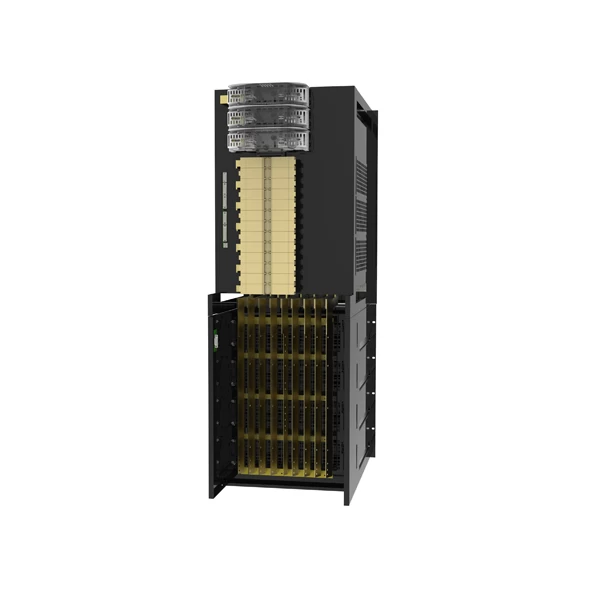

To facilitate in row UPS rack solutions, SCU has designed the CMS Rack independent UPS. It is a modular UPS including base unite, sub module frame, and UPS modules that fits into any 600x1000mm 42U 19 inch rack. Starting at 25kVA up to 200kVA this solution is easy to integrate into small and medium size computer room designs. This UPS solution enables you to integrate the full UPS into a HOT-COLD Corridor design of any particular brand. With just a few articles you are able to build or extend your UPS need. Follow the TIER1-4 electrical designs even for smaller and medium loads using SCU CMS Rack independent products. With base unit of 100 and 200kVA you never run low on power. Easy multiplying our ruggedized 25kVA modules to your need, not getting limited to single phase or three phase designs (or any combination of the two).
Feature
    1.Online hot swappable: all module online hot swappable, maintanance, expansion.
    2.Embedded standard cabinet: embedded 19 inch cabinet, easy installation.
    3.System redundant: System with online expansion function, according to the load dynamic expansion, to ensure system redundancy.
    4.Fault tolerance : power module share the load, with fault isolation function,great fault-tolerant.
    5.Flexible configuration: According to the actual need to configure the module and the module rack, the remaining space can be configured batteries, transformers, PDU, etc.
    6.T4 design: meet T4 degree demands even small datacenter.
    7.Multi output mode: could meet single phase or three pahse load demands.
Application
System integrators, SKD, Cabinet manufacturer, Small and medium-sized data center
