RACOR Fuel Water Separator Assembly 500FG 500FH
Fuel Water Separator Assembly 500FG Parameter：
|
Part Number
|
500FG, 500FH
|
|
Parts Name
|
Fuel Water Separator Assembly
|
|
Brand
|
RACOR
|
Fuel Water Separator Assembly 500FG Specifications:
|
Basic Models
|
500FG
|
|
Maximum Flow Rate:
(one unit online)
(two units online)
(three units online)
|
60 GPH (227 LPH)
N/A
N/A
|
|
Port Size
|
3/4”- 16 UNF (SAE J1926)
|
|
Min. Service Clearance
(above assembly)
(below assembly)
|
5.0 in. (12.7 cm)
2.0 in. (5.1 cm)
|
|
Replacement Element:
(2 micron)
(10 micron)
(30 micron)
|
(1 Per Assembly)
2010SM- OR
2010TM- OR
2010PM- OR
|
|
Height
|
11.5 in. (29.2 cm)
|
|
Depth
|
4.8 in. (12.2 cm)
|
|
Width
|
5.8 in. (14.7 cm)
|
|
Weight (dry)
|
4.0 lb (1.8 kg)
|
|
Clean Pressure Drop
|
0.25 PSI (1.7 kPa)
|
|
Maximum Pressure1
|
15 PSI (1 bar)
|
|
Water In Bowl Capacity
(per bowl)
|
3.7 oz (110 ml)
|
|
Available Options:2
(water detection kit)
(12 or 24 vdc heater)
(vacuum gauge)
|
Yes
Yes
Yes
|
|
Operating Temperature
|
--40oto +255oF /-40oto +121oC
|

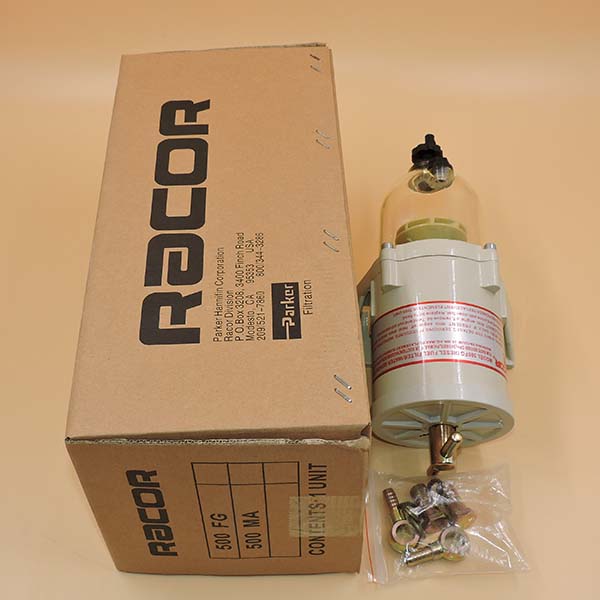

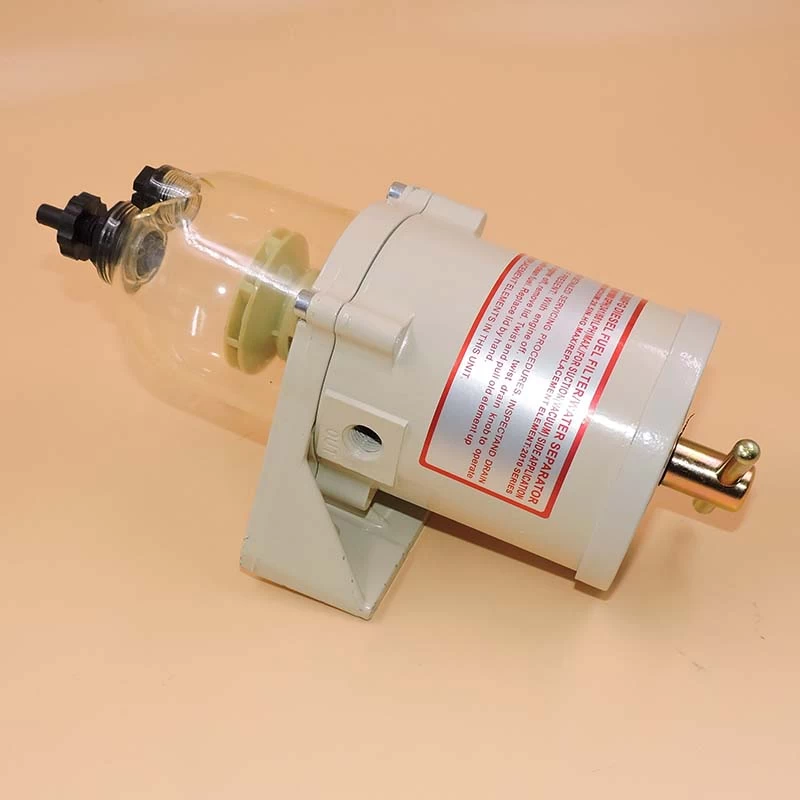

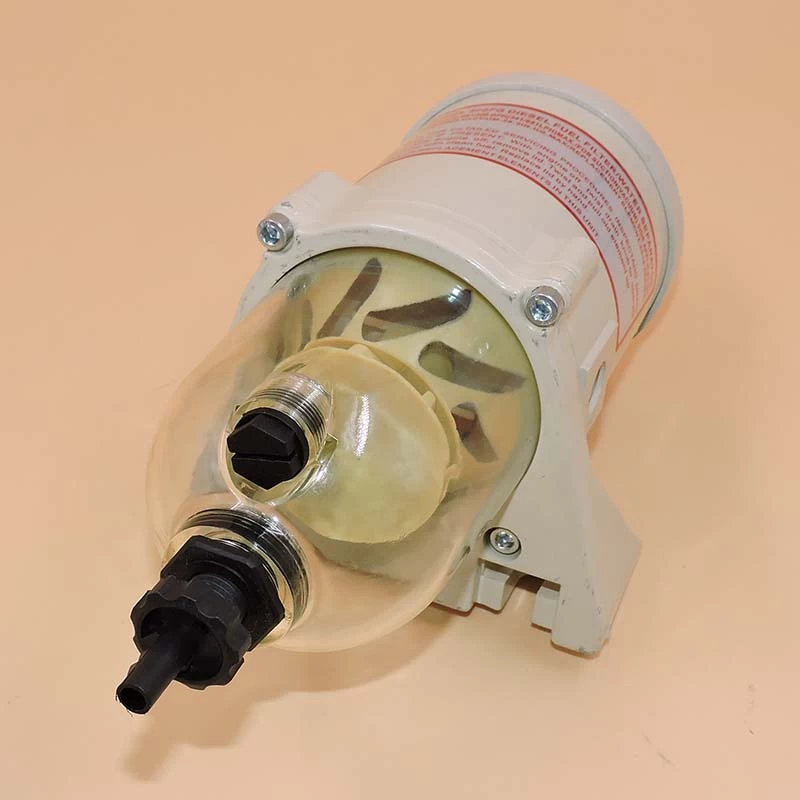

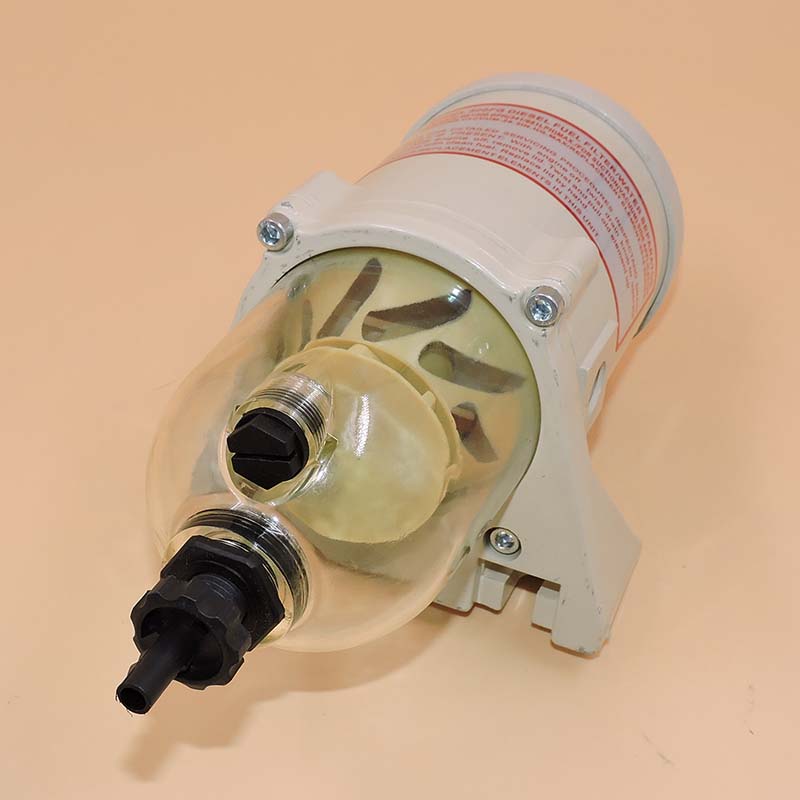

Fuel Water Separator Assembly 500FG Picture:
