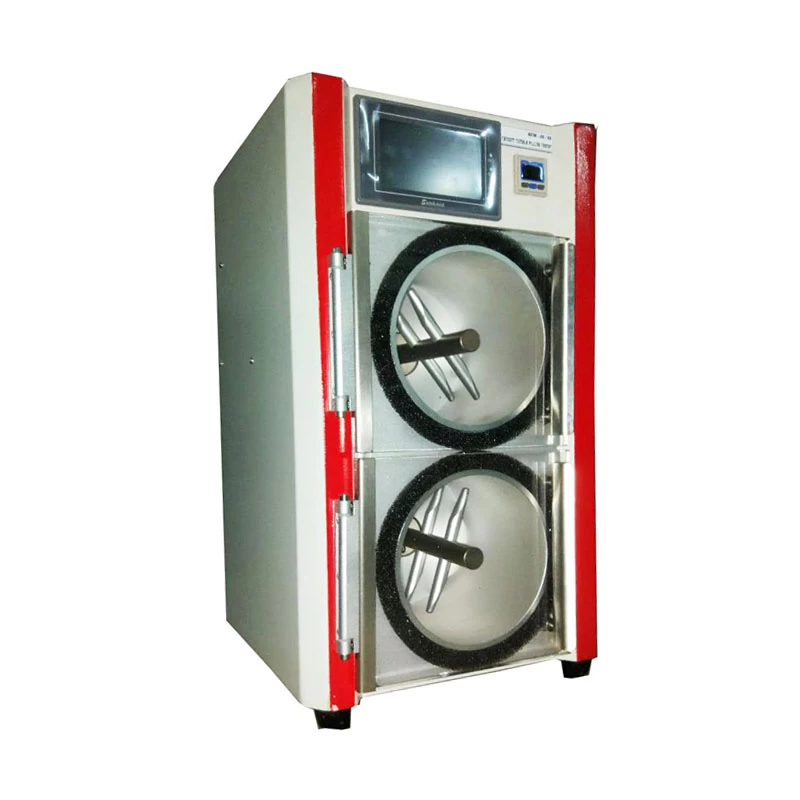

AG15B-Random Tumble Pilling Tester
Application Of Random Tumble Pilling Tester
Random Tumble Pilling Tester is used to determine the pilling and fuzzing characteristics of textile fabrics under the condition of free rolling friction in the cylinder. Imitate the friction effect in dress, test the pilling condition on the surface of the test specimen, evaluate the pilling resistance of the sample.
Feature Of Random Tumble Pilling Tester
-
Can replaceable different standard test rod
-
LED lighting in the test chamber for convenience of observation
-
Touch screen control, easy to operate, can start and stop with one key
-
DC motor direct drive test rod, supersilence working
Standards Of Random Tumble Pilling Tester
ISO 12945.3, ASTM D 3512, ASTM D 1375, JIS L1076, GB/T 4802.4, CAN CGSB 4.2
Key Specification Of Random Tumble Pilling Tester
|
Model
|
AG15B-1
|
AG15B-2
|
|
Working position
|
2position
|
4position
|
|
Control model
|
Touch
screen control
|
|
Tumble diameter
|
146mm
|
|
Tumble length
|
152mm
|
|
Cork Liner dimension
|
452×146×1.5mm
(L×W×H)
|
|
Rotation speed
|
1200r/min
|
|
Number of samples
|
3pcs
in each chamber
|
|
Stirring rod dimension
|
Length
121mm, φ19mm
|
|
Specimen size
|
105±2mm×105±2mm
|
|
Air compression
|
0.014-0.021Mpa
|
|
Dimensions
|
35×36×52cm
|
54×36×52cm
|
|
Dimensions
|
40kg
|
55kg
|
