RE-2X(st)H XLPE insulated shielded LSZH sheath electric cable
MAIN KEYWORDS
RE-2X(st)H cable, BS EN 50288-7 cable, LSZH electric cable.
PRODUCTS APPLICATION
Hante@ brand RE-2X(st)H XLPE insulated shielded LSZH sheath electric cable, these cables are designed to connect electrical instrument
circuits and provide communication services in and around
process plants (e.g. petrochemical industry etc.). Not suitable
for direct burial applications. For installations where fire, smoke
emissions and toxic fumes create a potential risk to life and
equipment.
These cables are designed to connect electrical instrument circuits and provide
communication services in and around process plant (e.g. Petrochemical industry etc.). Not
suitable for direct buried application

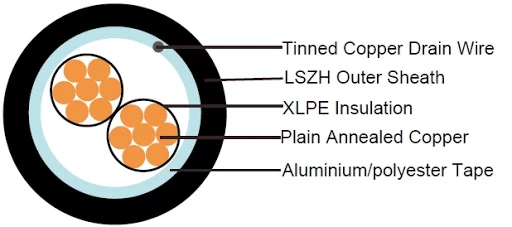

PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed copper wire, strand class 2.
---Insulated Material
XLPE (Cross-Linked Polyethylene)
---Insulated Color
1 core: natural color
2 cores: blue, brown & bare earth.
3
cores: brown, black, grey & bare earth.
4
cores: blue, brown, black, grey.
Pairs: white, black.
Numbered
triples: white, black, red.
---Collective Screen Material
Al/PET (Aluminium/Polyester Tape)
---Drain Wire Material
Tinned copper
---Sheath Material
LSZH (low smoke zero halogen)
PVC (Polyvinyl Chloride)
---Sheath Color
Black, blue, or others.
---Voltage Rate
300/500V, 450/750V.
---Operating Temperature
Fixed: -40°C to +80°C
Flexed: 0°C to +50°C
---Minimum Bending Radius
6 x overall diameter
---Production Standard
BS EN 50288-7, BS EN 50288-1, HD383
---Flame Retardant Standard
BS EN/IEC 60332-1-2,
BS EN /IEC 60332-3-24
---Production Delivery
Within 7-10 working days as soon as we
received the 30% deposit before the shipment.
---Packing Type
100 meters per roll, plastic reel, plywood
drum, wooden pallet, wooden drum or others.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Hante Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Hante Cable:
Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
---Hante Cable: it is
your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable
industry.
MAIN ADVANTAGE
HOT-SELLING PRODUCTS
RAW MATERIAL
PRODUCTION PROCESS
INSPECTION PROCESS
FREQUENTLY ASKED QUESTIONS
1. Are you the manufacturer or
trading company?
Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is
the professional in wire and cables manufacturer. We can control your
order from the first begining to the last. Welcome to visit Hante Cable,
we'll pick you up in Wuhan airport or high-speed Railways Station.
2. How can I get a sample to test your
quality?
Hante Cable can provide the free sample to you, but you will pay the express
charges.
3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200
meters; of cources, the MOQ can be negotiated. But in order to save the
shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires
should be more than 3000 meters, and the MOQ of power cable should be more than
500 meters.
4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls
kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote
your company.
