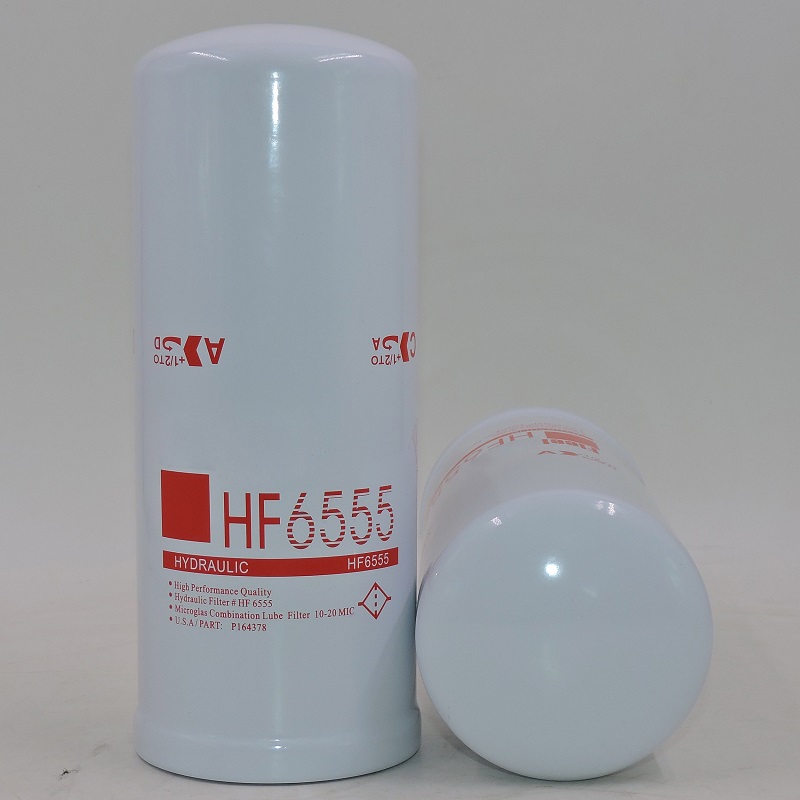

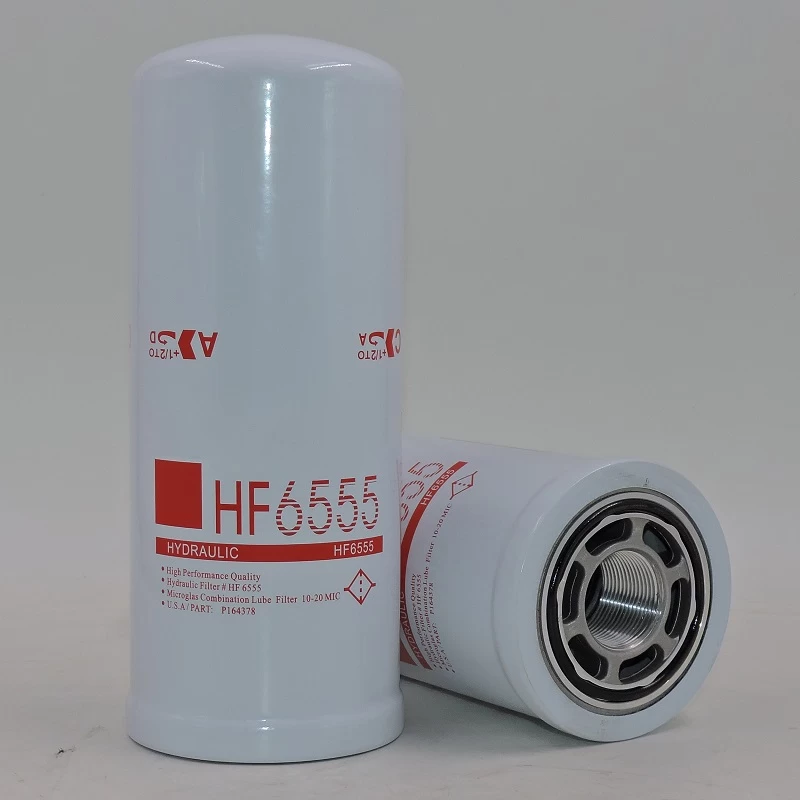

Replacement Fleetguard Hydraulic Filter HF6555
Cross Reference:
Donaldson P177047,P574000 Baldwin BT8850-MPG, Case D94236,N9025 Caterpillar 9T5916, Fiat 73144499, John Deere RE34958
The HF6555 Parameter：
|
Part Number
|
HF6555
|
|
Parts Name
|
Hydraulic Filter
|
|
Brand
|
Fleetguard
|
|
Overall Height
|
240.00 mm
|
|
Largest OD
|
97.94 mm
|
|
Seam OD
|
100.33 mm
|
|
Gasket OD
|
70.97 mm
|
|
Gasket ID
|
63.75 mm
|
|
Thread Size
|
1 3/8-12 UNF-2B
|
The HF6555 Advantage：
The function of hydraulic filter is to filter various impurities in hydraulic system. The main sources are the mechanical impurities remaining in the hydraulic system after cleaning, such as water rust, cast sand, welding slag, iron chips, coatings, paint skins and cotton chips, and impurities that enter the hydraulic system externally. Such as dust entering through the refueling port and dust ring; impurities produced by the working process, such as fragments formed by the hydraulic action of the seal, metal powder caused by relative wear by movement, colloid and asphaltene produced by the oxidation modification of the oil, Charcoal residue, etc
