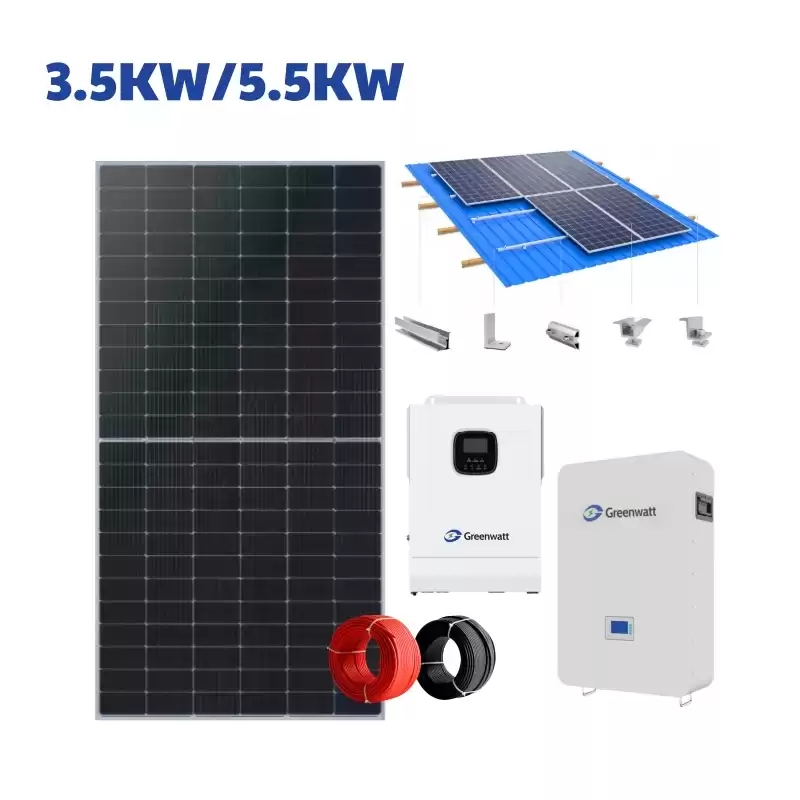

Residential Off Grid 3.5KW 5.5KW 10KW Home Solar Power Energy System with Backup

Key highlights: Self-sufficiency (no grid reliance), energy resilience (backup during outages), eco-friendly (zero emissions), and cost-effective long-term solution (avoid rising electricity tariffs)

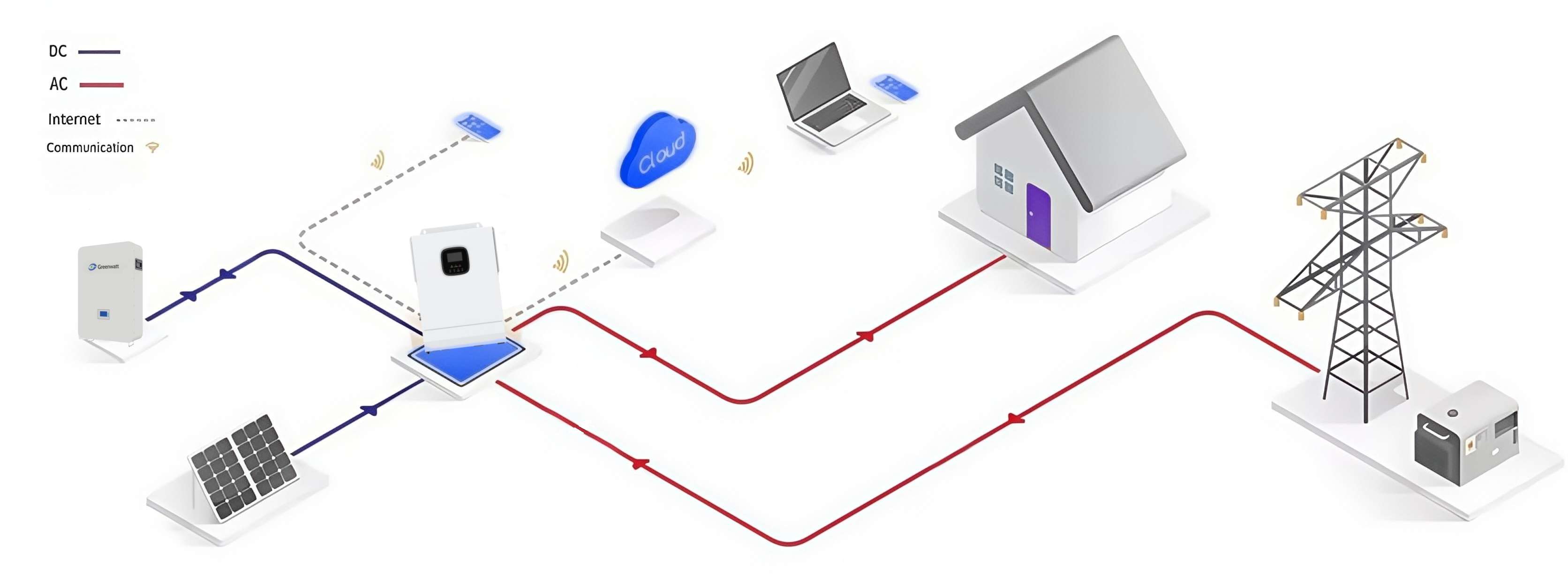

System Diagram

GREENWATT Solar off-grid systems empower energy independence by harnessing sunlight to generate and store electricity without grid connection. Combining solar panels, battery storage, and intelligent controllers, they deliver reliable power for remote areas or backup needs. This self-contained solution ensures continuous supply while reducing carbon footprint through clean energy utilization

System Configuration

 System Components

High Efficiency PV Module

* Max Power: 600W-750W

* Technology: TOPCon/HJT/Bifacial

* Low temperature coefficient

* Upto 24% Efficiency

* Low BOS cost & LCOE

* Warranty: 30 Years

* Full Certification

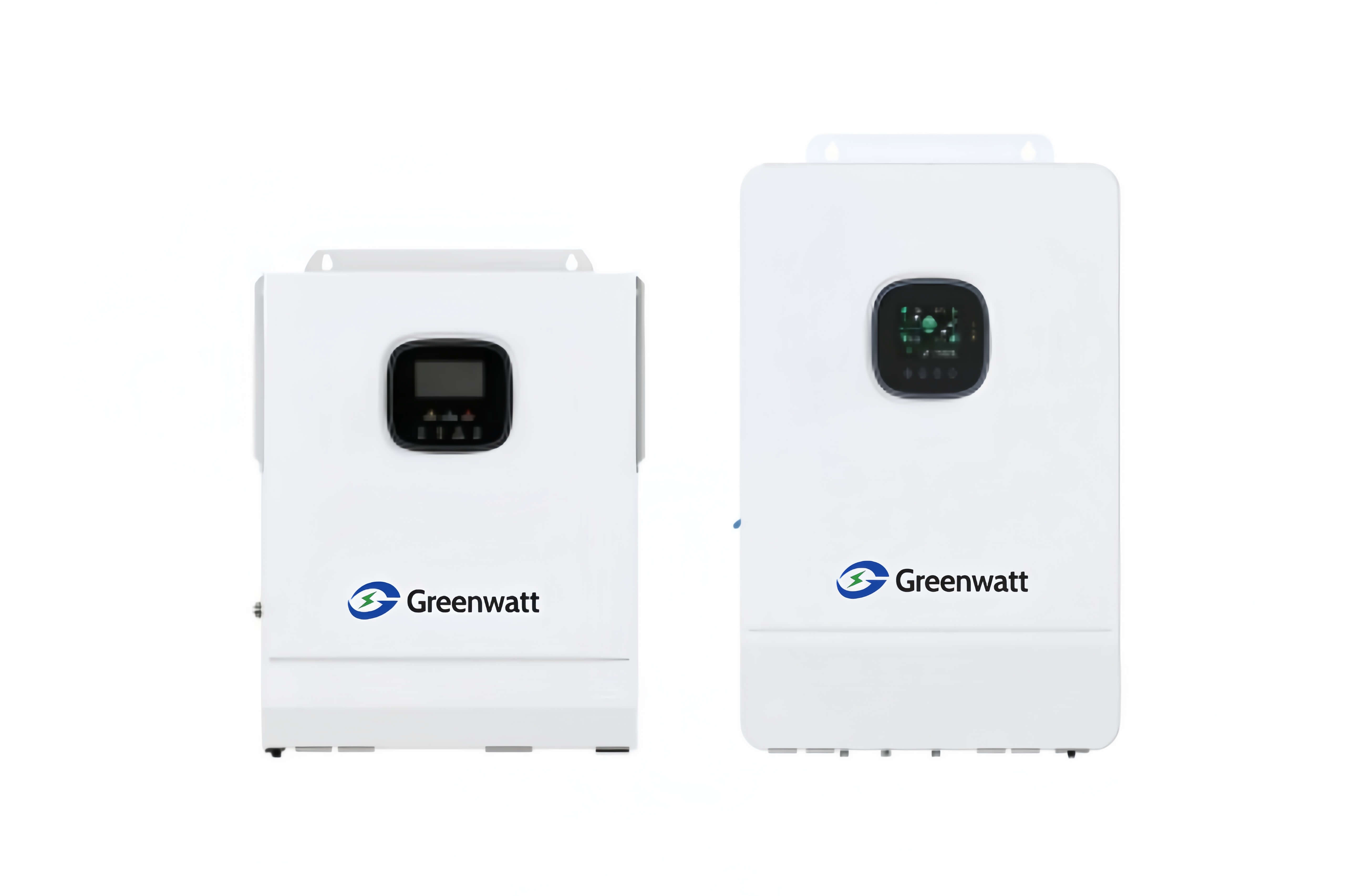

Smart Commercial Hybrid Inverter

* Up to 6 units in parallel
* Comprehensive protection
* Support Li-ion battery BMS dual activation
* Up to 99.9% MPPT tracking efficiency
* Max. PV charging current up to 100A/200A

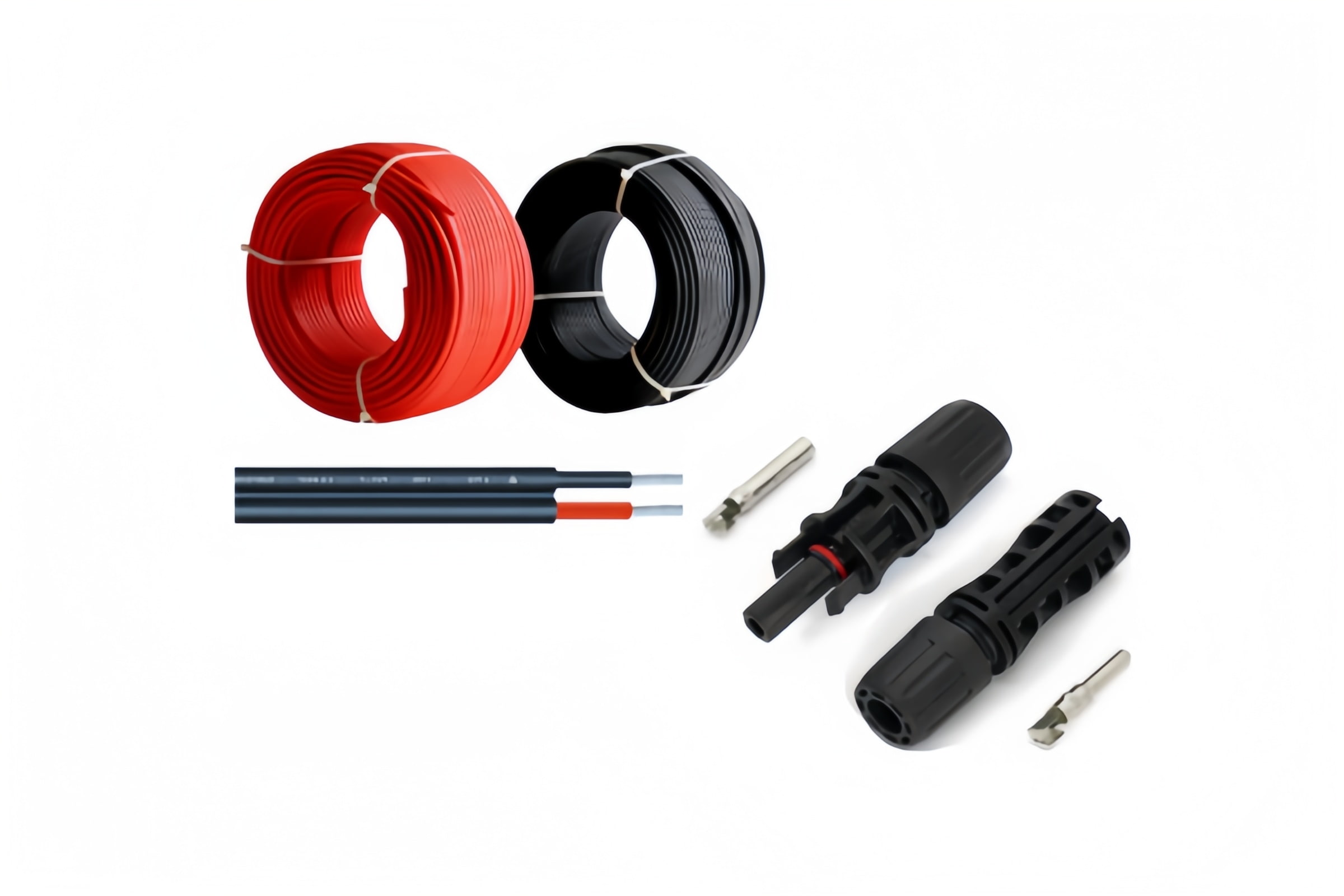

DC Cable & MC4 Connector

* Cross Section: 4mm2, 6mm2 Optional
* Rated Voltage:1000VDC/1500VDC
* Rated Current: 55A,70A
* Colors: Black For STD, Red Optional.
* Lifetime:30 Years

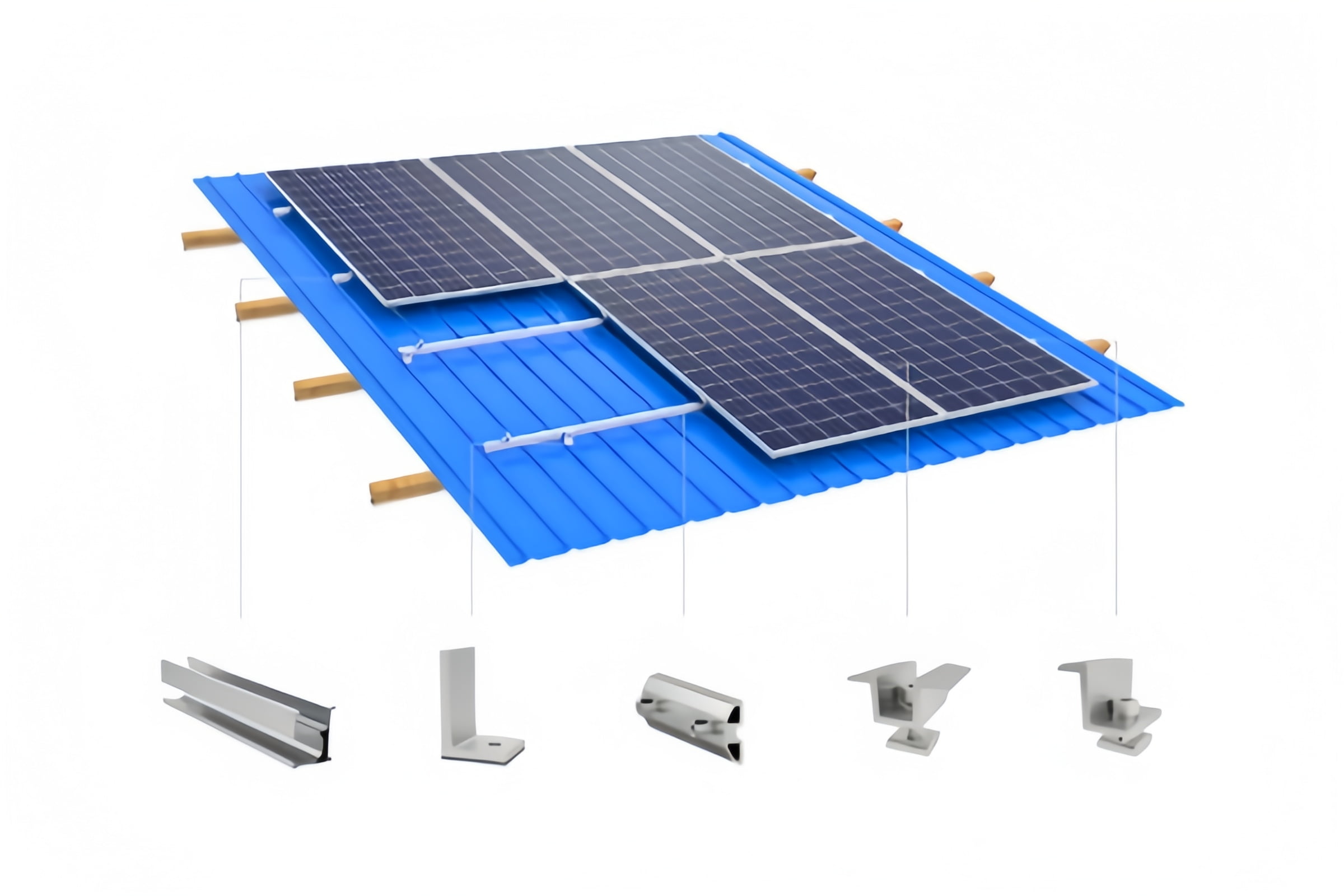

PV Mounting System

* Mounting Type: Tile Roof, Tin Roof, Flat Roof, Ground

* Metarial: Aluminum alloy, hot dip galvanized steel

* Wind Speed: 80M/S

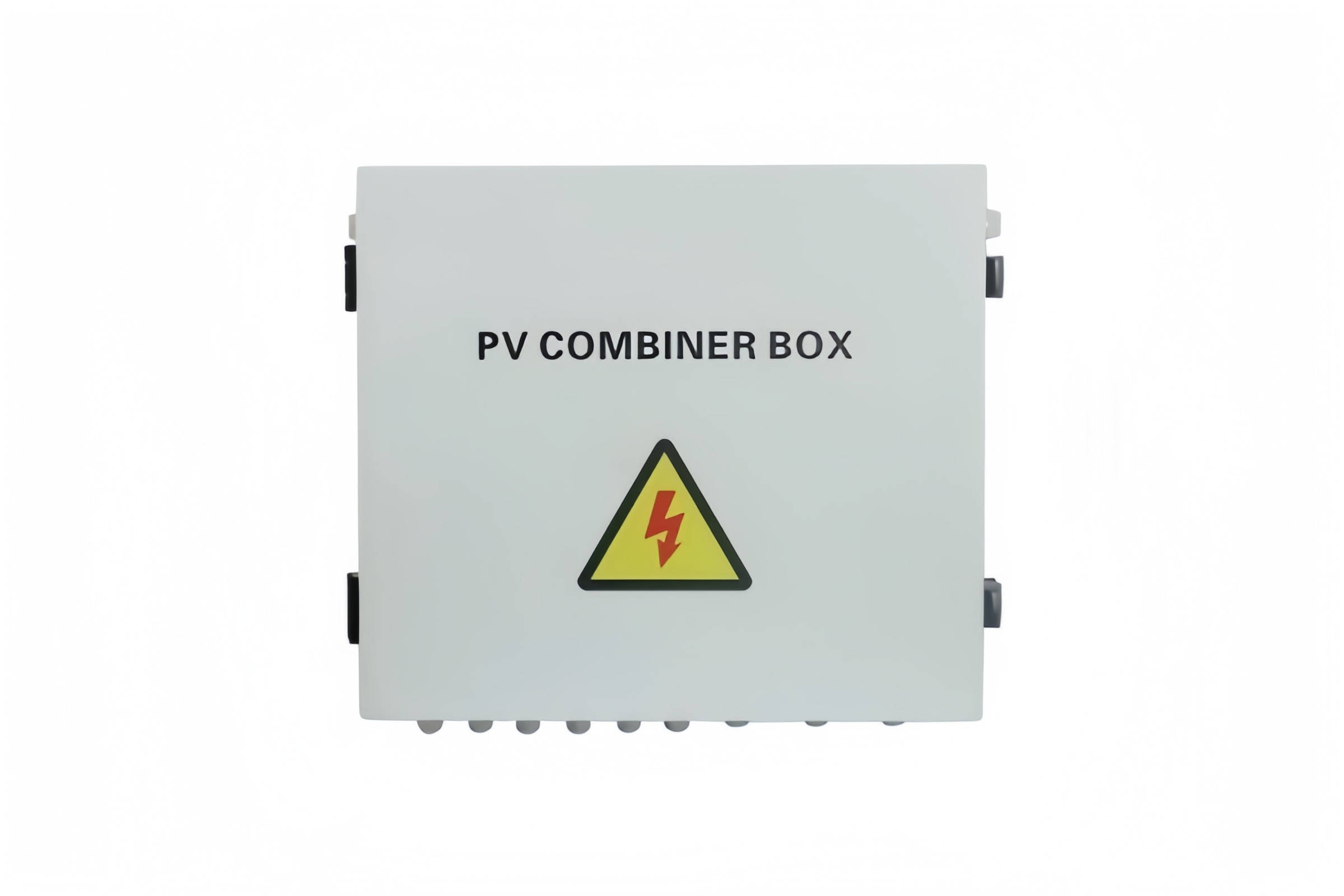

PV Combiner Box

* IP Rating: IP66
* Rated Voltage: 1000VDC
* Connection Type: M20,M25,MC4
* Rated Current: 16A,20A

Online Monitoring System

* Open station supports one-click installation and registration

* Problem support one-click dispatch and navigation

* Support full lifecycle data storage to ensure data security and reliability

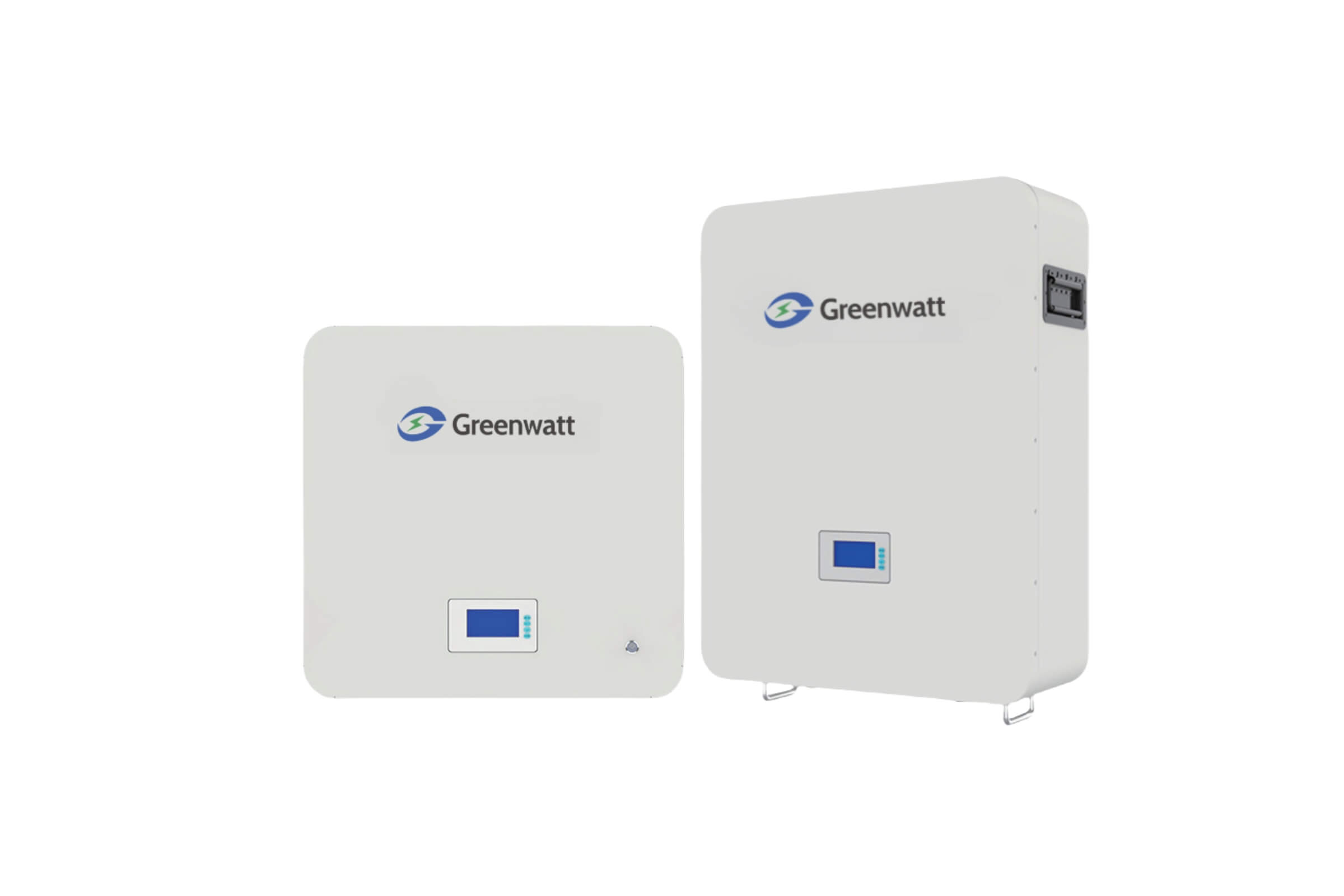

Long Life Lithium Battery

* LiFePO4: Higher Safe Performance and Longer Cycle Life

* Integrated Advanced BMS

* Parallel Connection to expand capacity

* Wide Compatibility: Compatible with Leading Inverter brands

* Design Lifespan: 15 Years

* Warranty: 10 Year

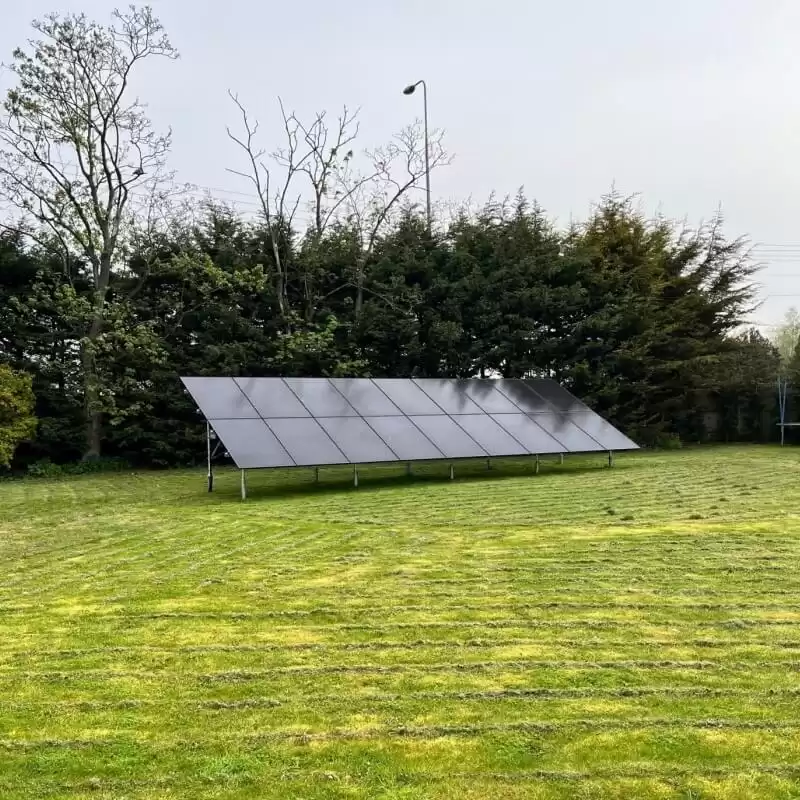

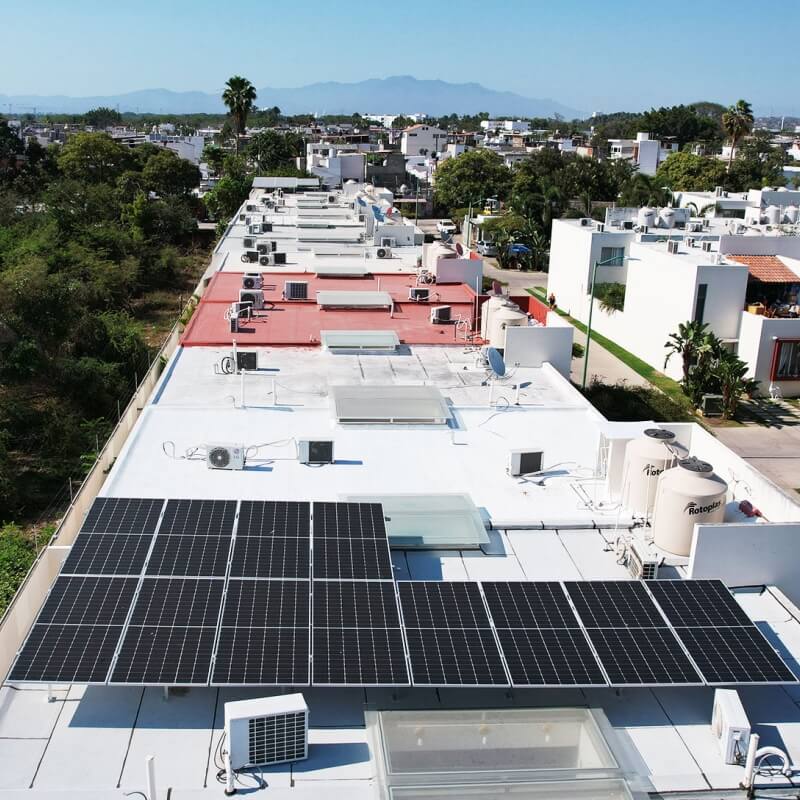

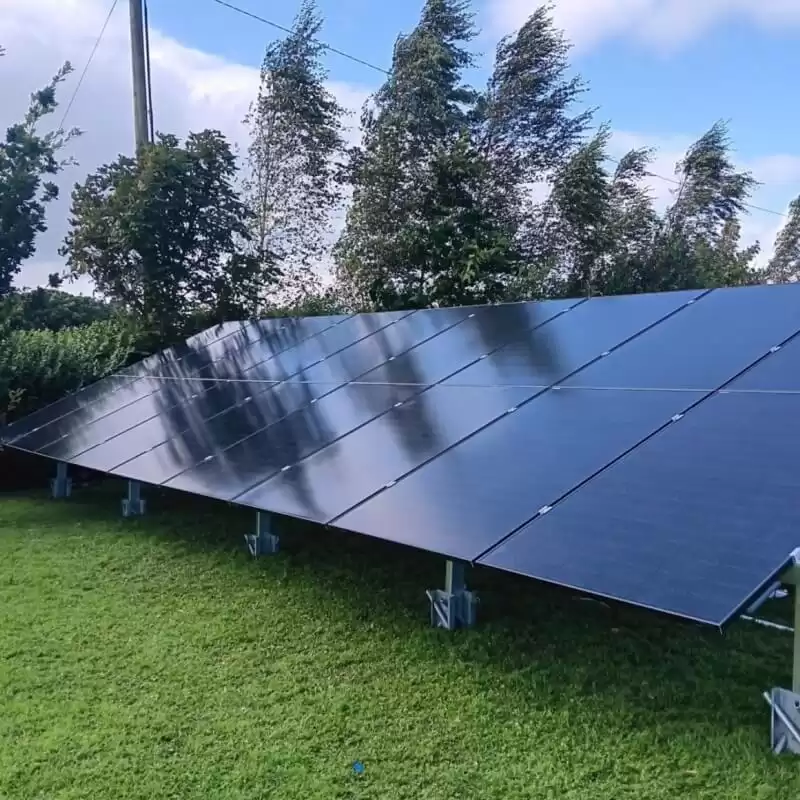

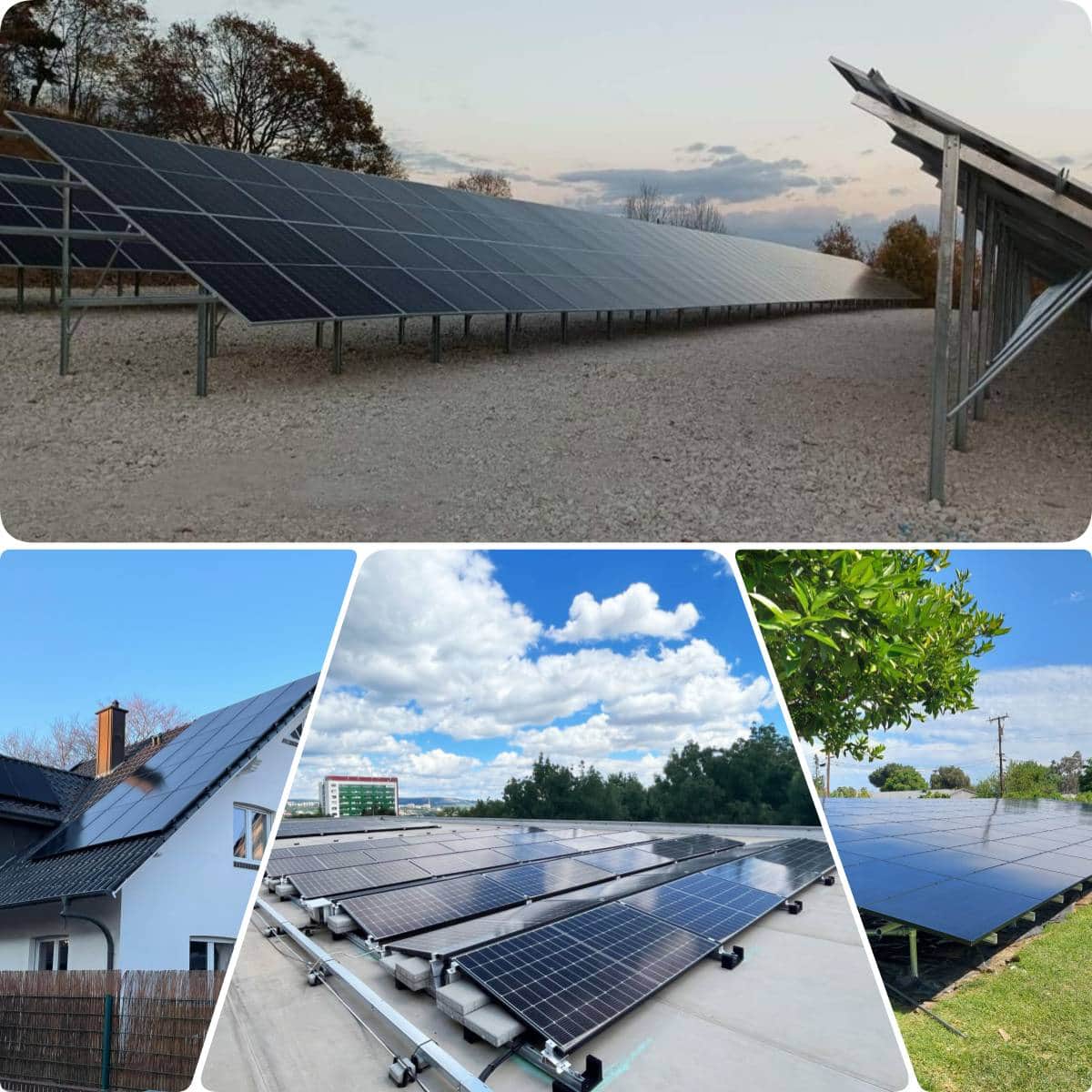

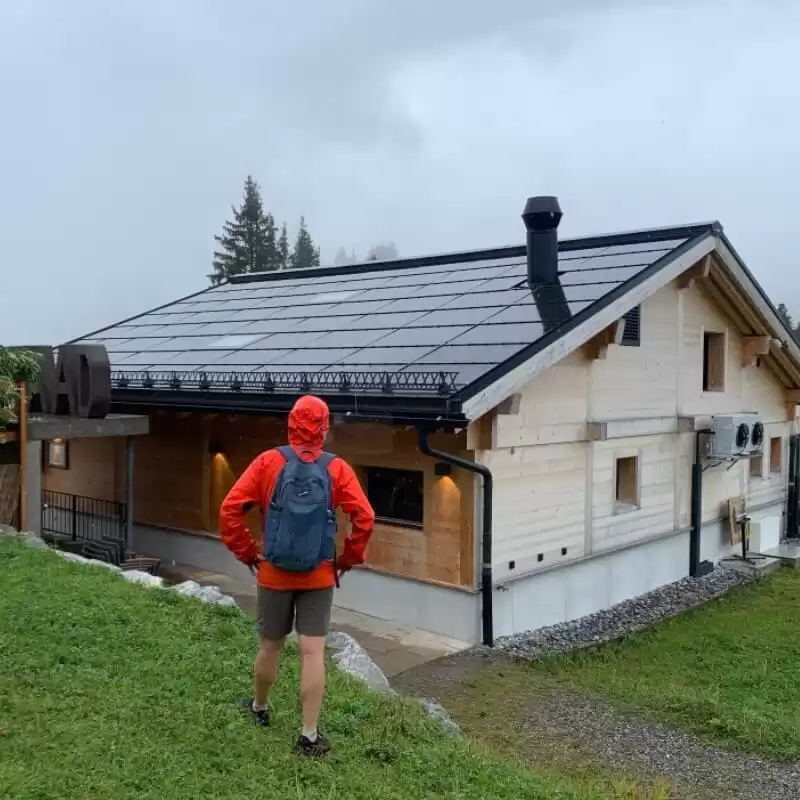

Project
