30mil

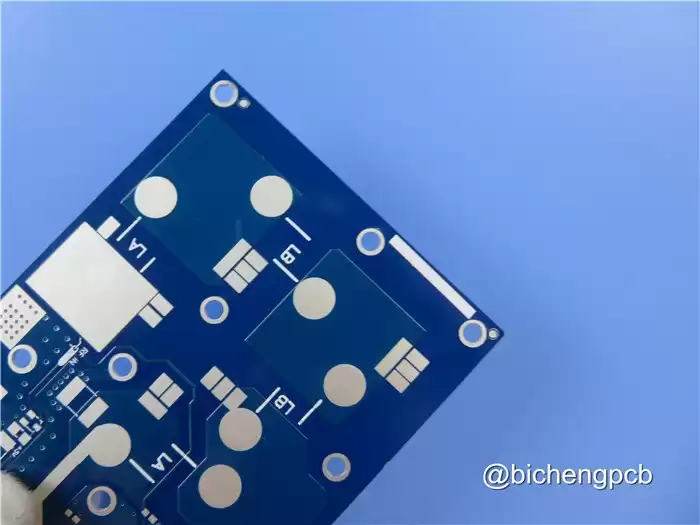

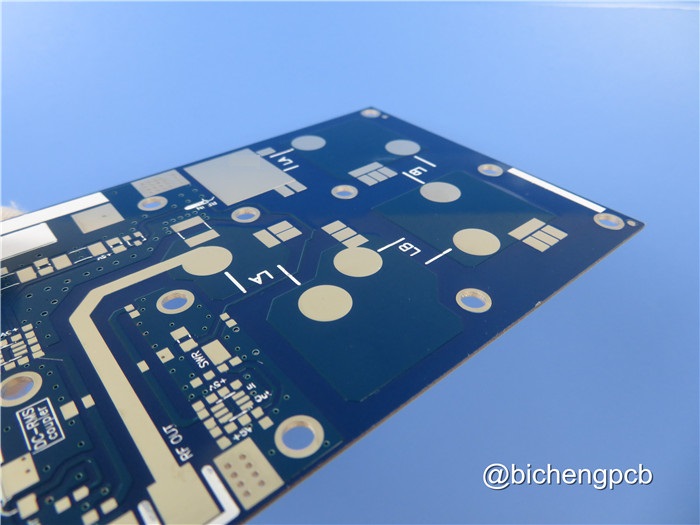

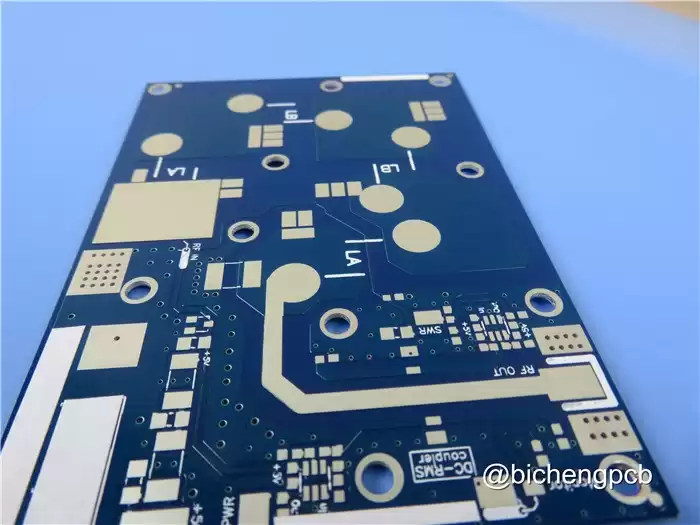

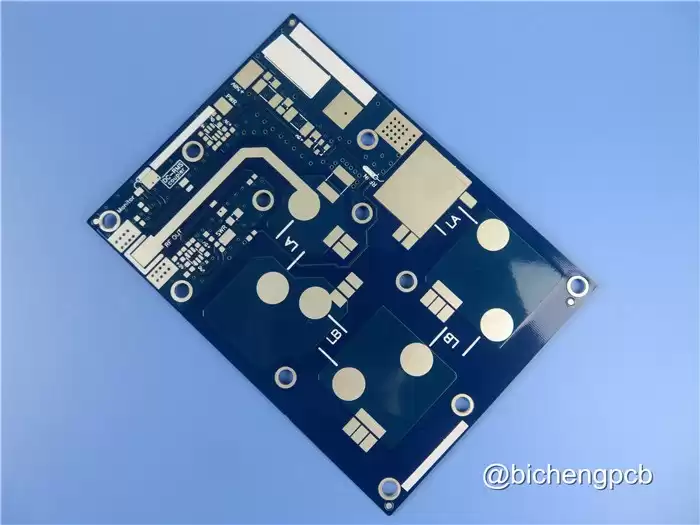

RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver on Pads
(Printed
Circuit Boards are custom-made products, the picture and parameters shown are
just for reference)
Brief
Introduction:
This
type of RF PCB with Solder mask and silkscreen overlay are on top layer only. The bottom layer is
fully exposed covered with immersion silver as the shield function. It’s 0.8mm
thick and 50 boards are vacuum packed for shipment.
PCB
Specifications:
|
PCB SIZE
|
70 x 55mm=1up
|
|
BOARD TYPE
|
Double
sided PCB
|
|
Number
of Layers
|
2 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 17um(0.5 oz)+plate TOP layer
|
|
RF-45 0.787mm
|
|
copper ------- 17um(0.5 oz) + plate BOT Layer
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
4.0
mil / 5.0 mil
|
|
Minimum
/ Maximum Holes:
|
0.4
mm / 6.0 mm
|
|
Number
of Different Holes:
|
1
|
|
Number
of Drill Holes:
|
3
|
|
Number
of Milled Slots:
|
1
|
|
Number
of Internal Cutouts:
|
no
|
|
Impedance
Control:
|
no
|
|
Number
of Gold finger:
|
0
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
RF-45
|
|
Final
foil external:
|
1.0
oz
|
|
Final
foil internal:
|
N/A
|
|
Final
height of PCB:
|
0.8
mm ±0.1
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion
silver, 39%
|
|
Solder
Mask Apply To:
|
Top Layer
|
|
Solder
Mask Color:
|
Blue
|
|
Solder
Mask Type:
|
Kuangshun
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
Top
Layer
|
|
Colour
of Component Legend
|
White
|
|
Manufacturer
Name or Logo:
|
N/A
|
|
VIA
|
Plated
through hole(PTH), minimum size 0.4mm.
|
|
FLAMIBILITY RATING
|
94V-0
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
|
|
Board
plating:
|
0.0029"
|
|
Drill
tolerance:
|
0.002"
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
Other
Available RF PCB Material:
FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M,
TU-872 SLK, TU-768, IT-180A etc.)
Rogers RO4350B, RO4003C, RO4730G3,
RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.
Rogers RT/duroid 5880, RT/duroid 5870,
RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.
Rogers
TMM4, TMM10, Kappa 438 etc.
PTFE F4B DK2.2, DK2.65
Taconic
TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35,
RF-60A, RF-45, TRF-45 etc.
AD450,
AD600, AD1000, TC350 etc.
Metal core PCB, 1W/MK-3W/MK material
Flexible PCB
Megtron 6 (M6) R-5775G
Our PCB Services:
PCB prototypes
Mass volume production
Single sided PCB
Double sided PCB
Multilayer PCB up to 32 layers
Heavy copper PCB
Hybrid PCB
Impedance controlled PCB
Via in pad PCB
Ball grid array (BGA) PCB
Blind via PCB
Countersink holes, half hole, press-fit hole
Quick turn-around (QTA) Delivery
No Minimum Order Quantity (MOQ)
Door to Door shipment service
CAPABILITY:
2500-3000 types each month.
SERVICE AREA:
North America, Oceania, Southeast Asia, Eastern
Europe, Africa, Latin America, Western & Southern Europe, Northern Europe,
Central & South Asian, Middle East.
Typical
Applications:
Manufacturing Process of Dual Layer PTH PCB:
BICHENG PCB WORKSHOP:
BICHENG PCB CERTIFICATE:
BICHENG MAIN COURIERS:
We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
