Key Features

·  Compatible with CL7206D2 and CL7206D3

·  Communication Interface: RS232, RS485, Ethernet, USB

·  IO interface: 1 for IO input, 2 for IO output, 1 for wiegand output, IO out and wiegand is same port.

·  IO interface's level fluctuation trigger the reading function(Response time: <10ms)

·  Power by adapter or USB

·  RJ45 interface including network cable, 5V power cable and ground cable, RS485 signal interface.

Parameter

·  Ethernet speed rate: 10M/100M automatic.

·  RS232 serial rate: 115200bps (default), 19200 bps, 9600bps

·  RS485 rate: 115200bps (default), 19200 bps, 9600bps

·  Reading tags under low temperature -20±3℃ for 48hours, back to indoor temperature read tags normally.

·  Reading tags under high temperature +70±3℃ for 48 hours, back to indoor temperature read tags normally.

·  Working temperature range:-20℃～+70℃

·  Relative humidity: 5%RH～90%RH（+25℃）

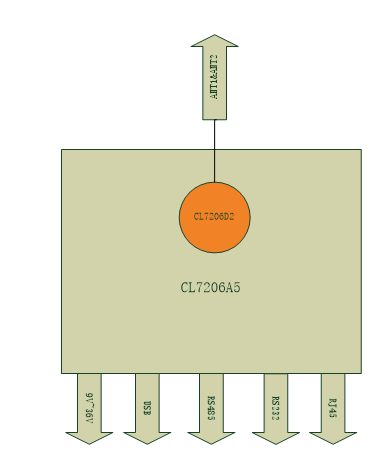

 Interface Photograph
