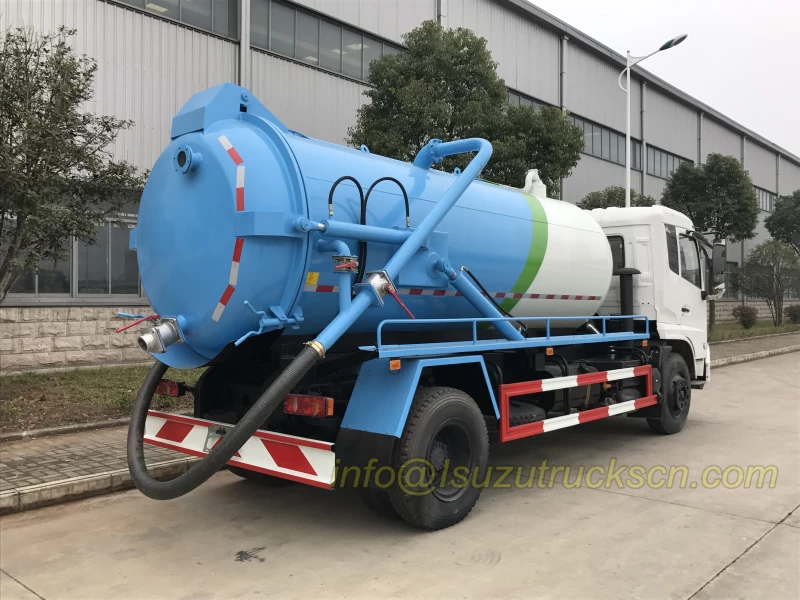

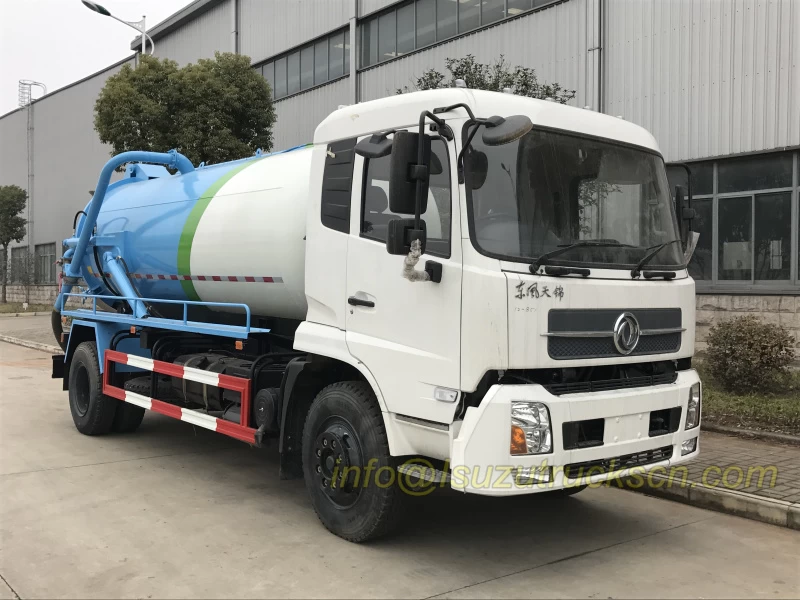

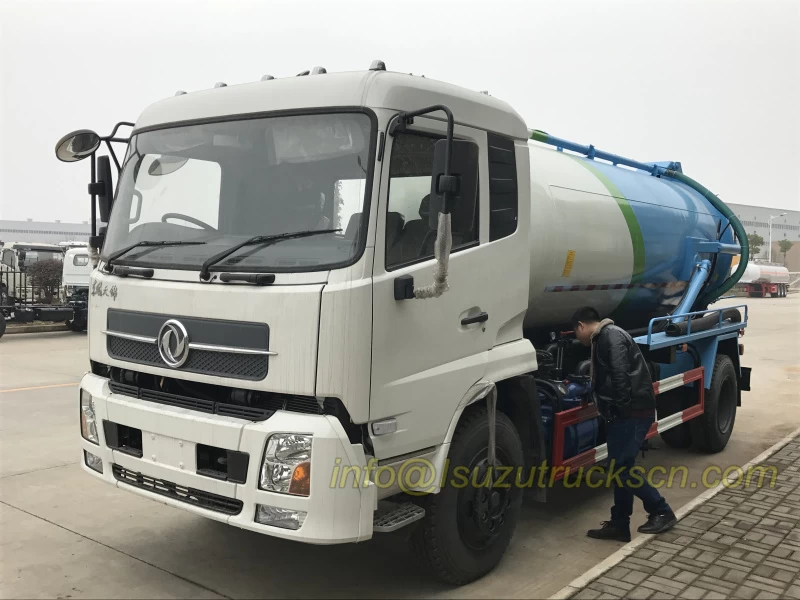

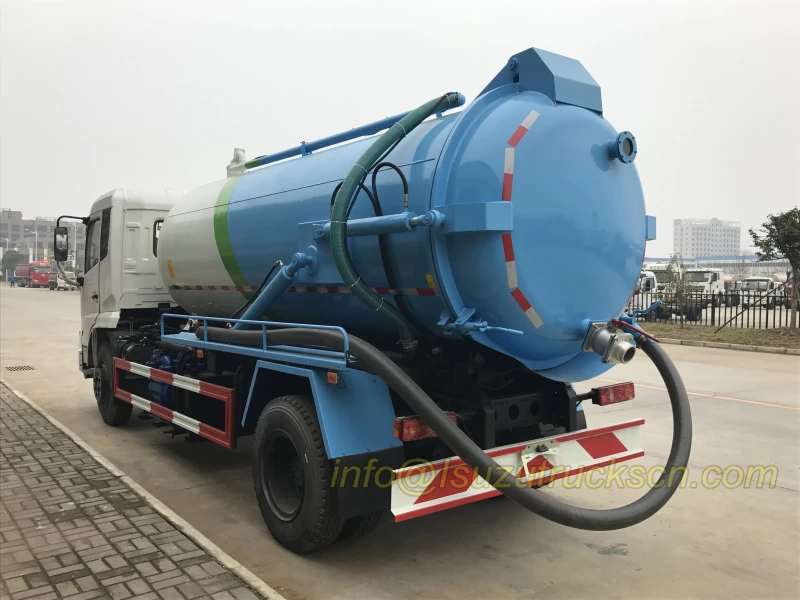

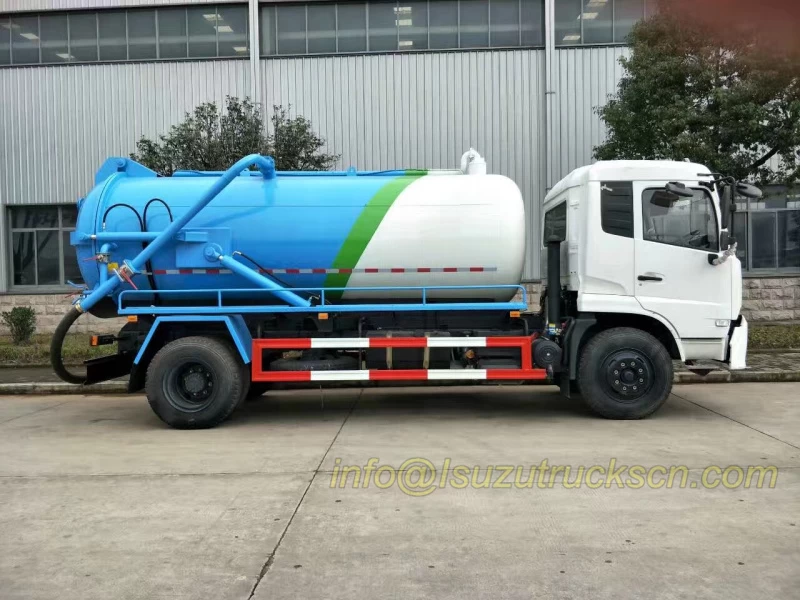

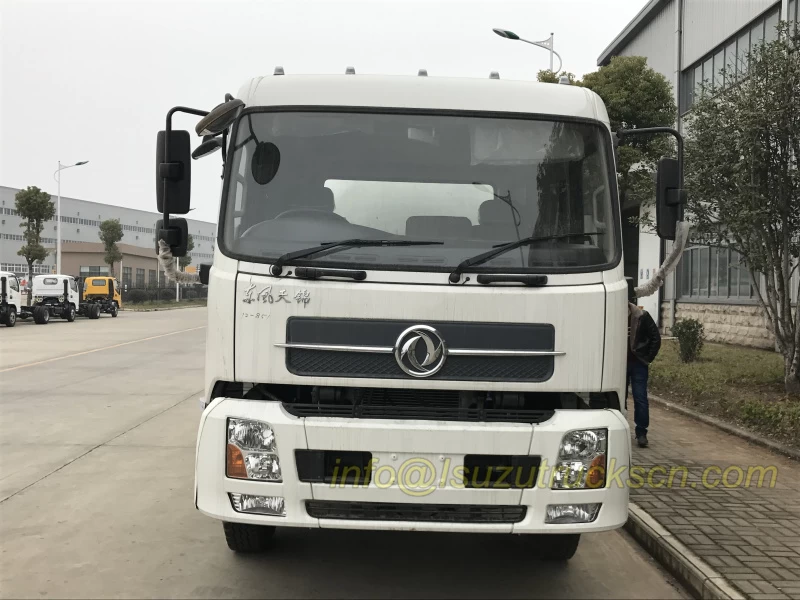

RHD Dongfeng Vacuum Tanker Trucks
Function:
RHD Vacuum Suction Truck Dongfeng (also called Vacuum truck China, Sewer tanker truck, Sewage vacuum trucks, Cesspit Emptier, Gully Emptier, Sewage Vacuum Tank Truck, Vacuum Suciton vehicle, waste vacuum tanker, Vacuum Trucks, vacuum sewage trucks) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
The tank could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
Features:
---- Dongfeng chassis, perfect performance.
---- Cummins engine(American Brand), super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Vacuum pump super powerful, highly efficient.
---- Massive, durable, long service life.
Specification:
| Vacuum Suction Truck Dongfeng (10,000 Litres) |
| General |
Vehicle Brand |
POWERSTAR |
| Chassis Brand |
Dongfeng |
| Overall Dimension |
7700 * 2500 * 3200 mm |
| GVW / Kerb Weight |
15,500 kg / 6,500 kg |

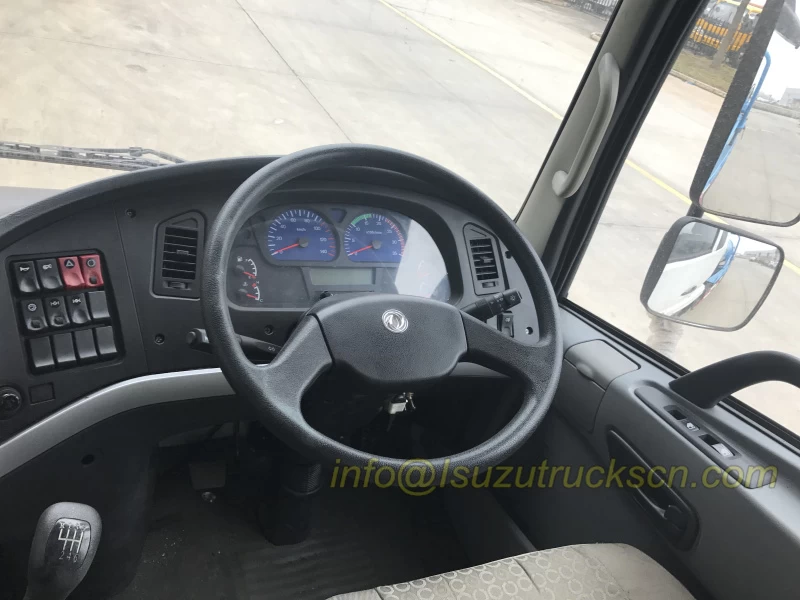

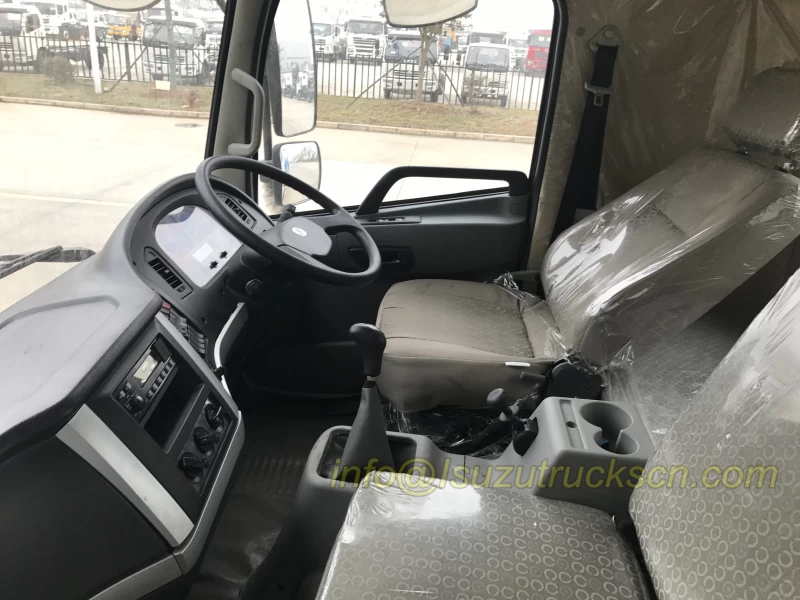

| Cab |
Cab Capacity |
3 person's seat |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
Cummins engine(American Brand) |
| Power |
170 Ps (125 KW) |
| Displacement |
4500 ml |
| Emission Standard |
Euro III |
| Chassis |
Drive Type |
4X2, left hand or right hand drive |
| Transmission |
6-speed foward, 1 reverse |
| Wheelbase/No. of axle |
4500 mm / 2 |
| Tyre Specification |
9.00-20 |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
100 km/h |
| Paint |
Metallic paint |

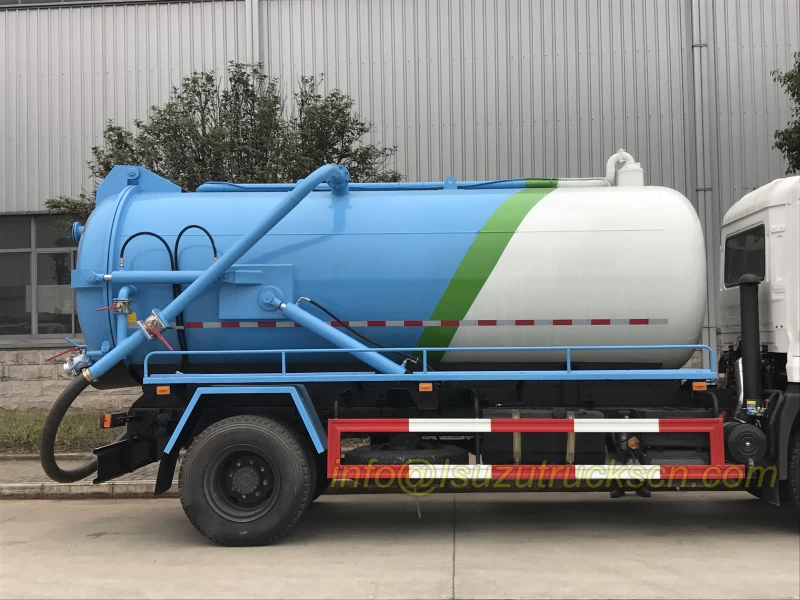

| Superstructure |
Tank Capacity |
10,000 Litres (about 2,300 gallons) |
| Tank Material |
Carbon steel |
| Suction Head |
7 m |

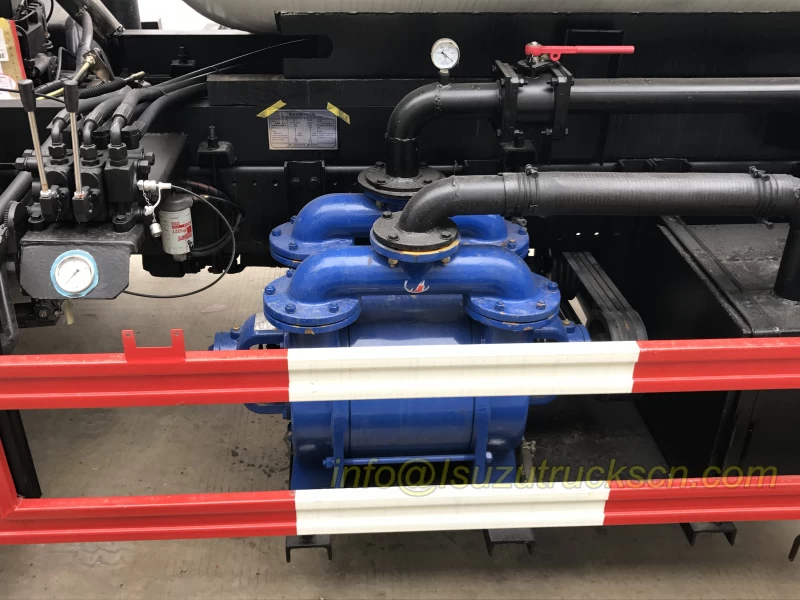

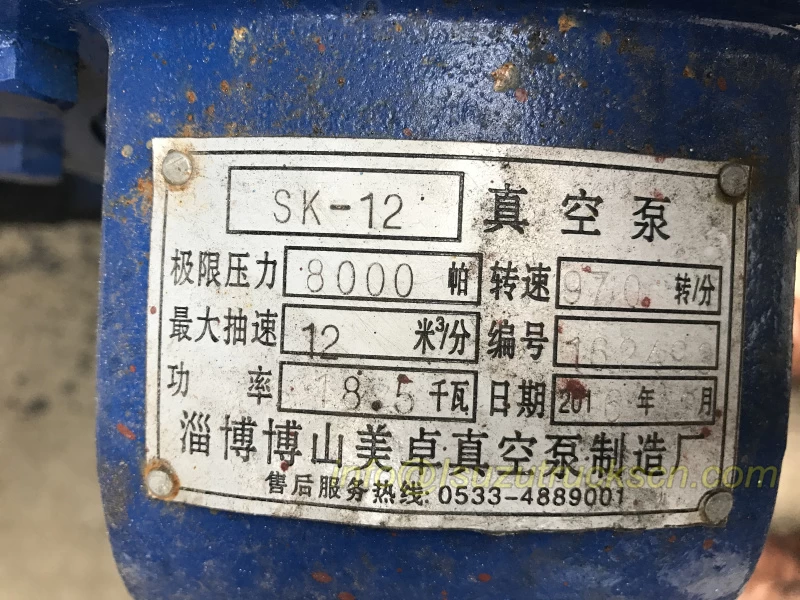

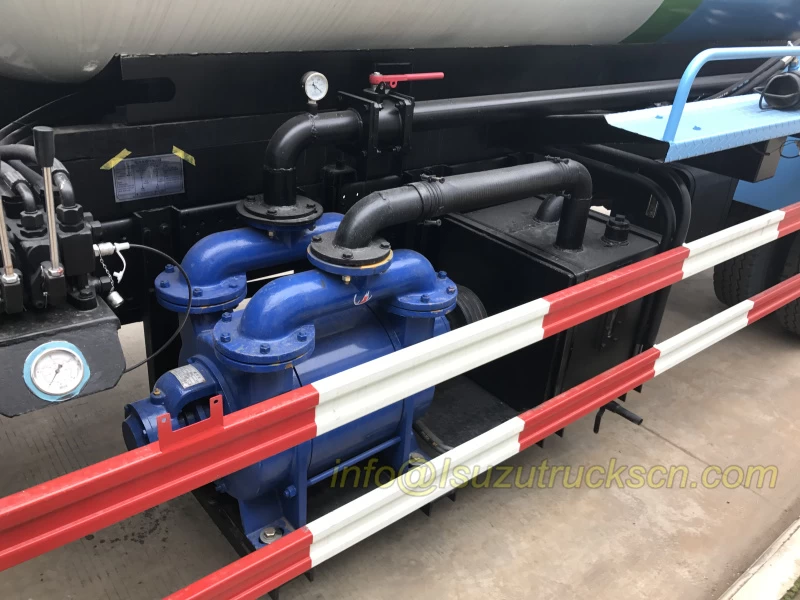

| Vacuum Pump |
Highly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m. |
| Hose |
High quality, wire strengthened hose |

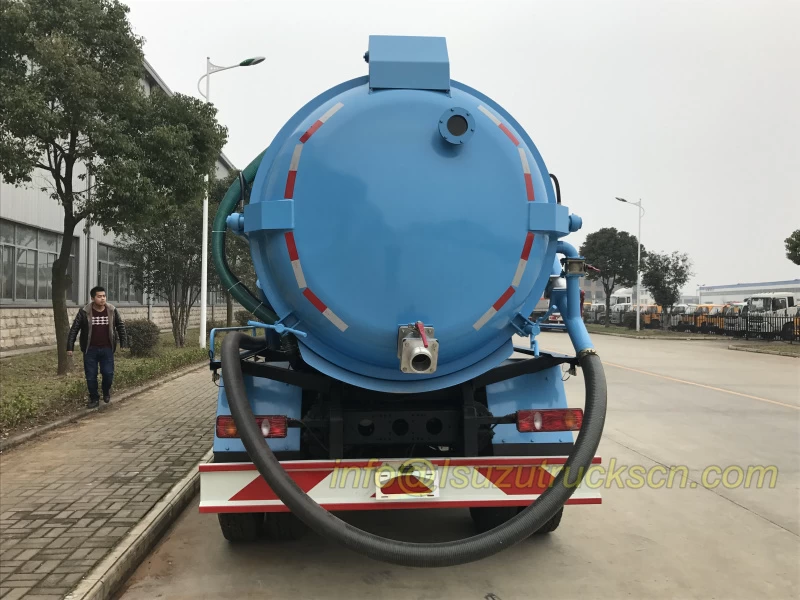

| Rear door can be hydraulic opened for complete discharge of solid stuff. |
| All standard accessories: inlet, discharge, antifill valve…….. |
| Optional |
** Tank material could be carbon steel, stainless steel..…..
** Vacuum pump could be imported brand…… |
