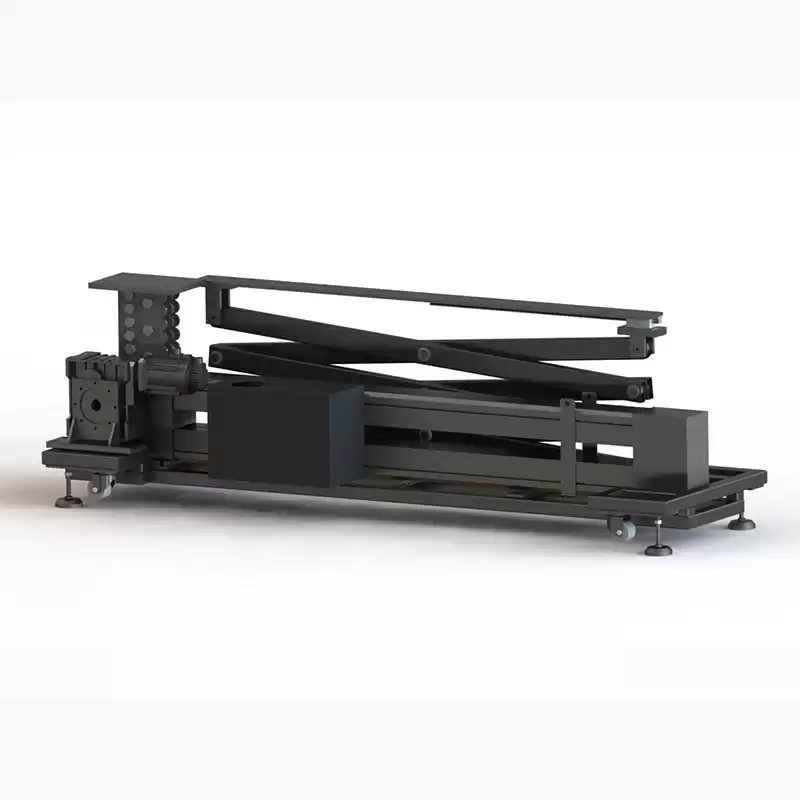

Rigid lift stage unit

Key Features

Category Specification
Safety • Encoder positioning
• Anti-collision sensors
• Travel limit switches
Mobility • Wheels + fixed feet
• Easy disassembly for transport
Performance • Long lift distance (max 4m, customizable)
• Voltage input AC 3 phase 380V

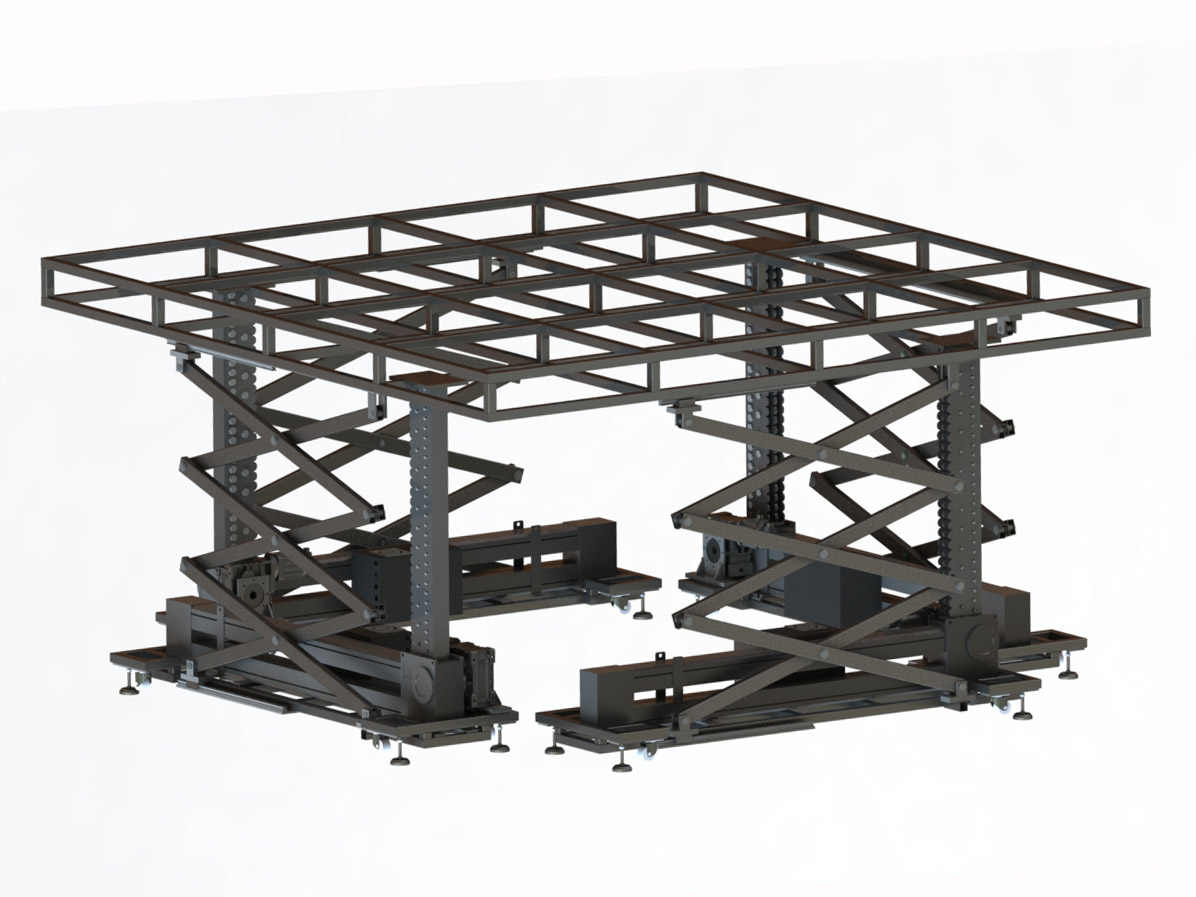

Design Modular units combine for custom stage shapes

Facebook Twitter Pinterest LinkedIn 分享

Technical Specifications

Parameter Specification Standard
Drive System AC Servo (2.9kW) Q/YZKJ001-2023
Load Capacity 450kg WH/T36-2009
Speed 0.3m/s (adjustable) EN 17206
Travel 4m
Control system BW- Console + Main Controller YZ DITEC Servo system
Power Supply 3-phase 380V, 50/60Hz
Unit Dimensions 2600×700×600mm (L×W×H)
Unit Weight 350kg



System Capabilities:


✔ Flexible Configuration

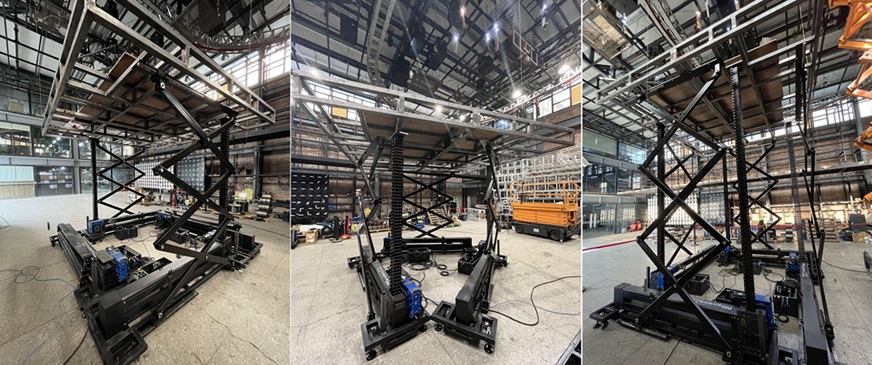

  • Combine multiple units for larger platforms

  • Create custom shapes (L/T/U configurations)

✔ Smart Control

  • Individual or synchronized operation

  • Programmable movement sequences

✔ Certified Safety

  • Meets Chinese (WH/T36) and European (EN17206) standards

  • Redundant braking system
