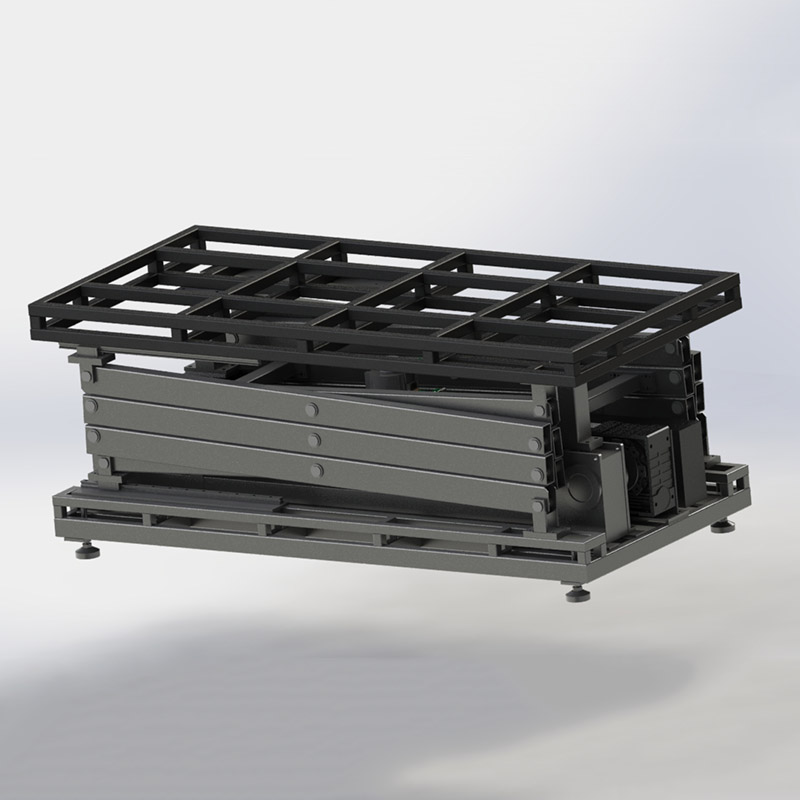

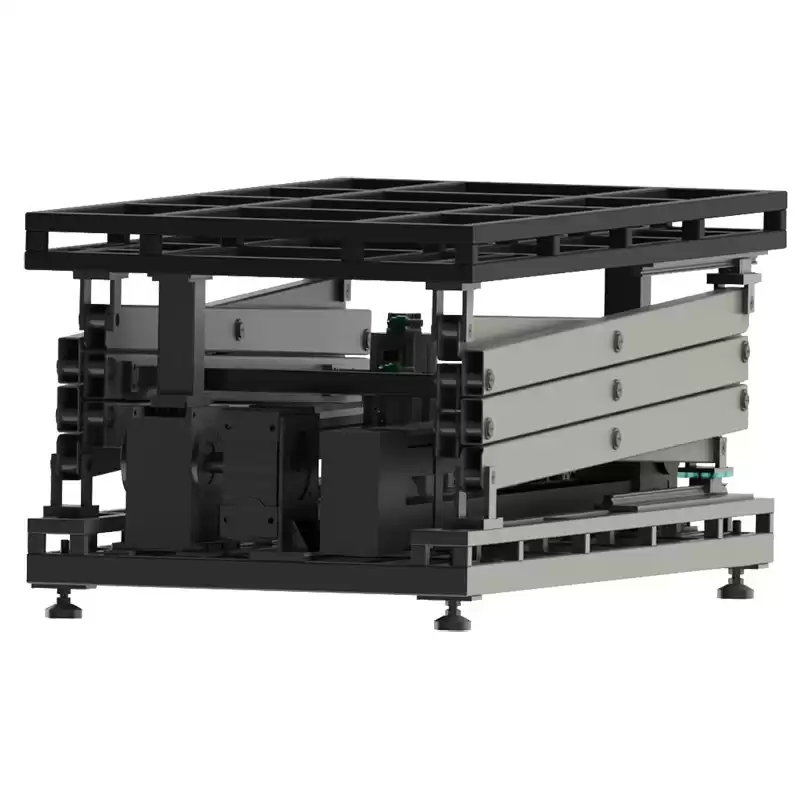

Rigid lift stage

Key Features

Category Specification
Safety • Encoder positioning
• Anti-collision sensors
• Travel limit switches
Mobility • Wheels + fixed feet
• Easy disassembly for transport
Performance • Long lift distance (max 4m, customizable)
• Voltage input AC 3 phase 380V
Design Modular units combine for custom stage shapes

Facebook Twitter Pinterest LinkedIn 分享

Heavy-Duty Stage Lift Specifications

Parameter Specification
Drive System AC Servo Motor
Power 2.9kW
Load Capacity 1600kg
Speed 0.3 m/s (adjustable)
Control BW Console & Main controller
Travel Range 0-4m (customizable)
Dimensions 1220×2600×1100mm (W×L×H)
Power Supply 3-phase 380V, 50/60Hz
