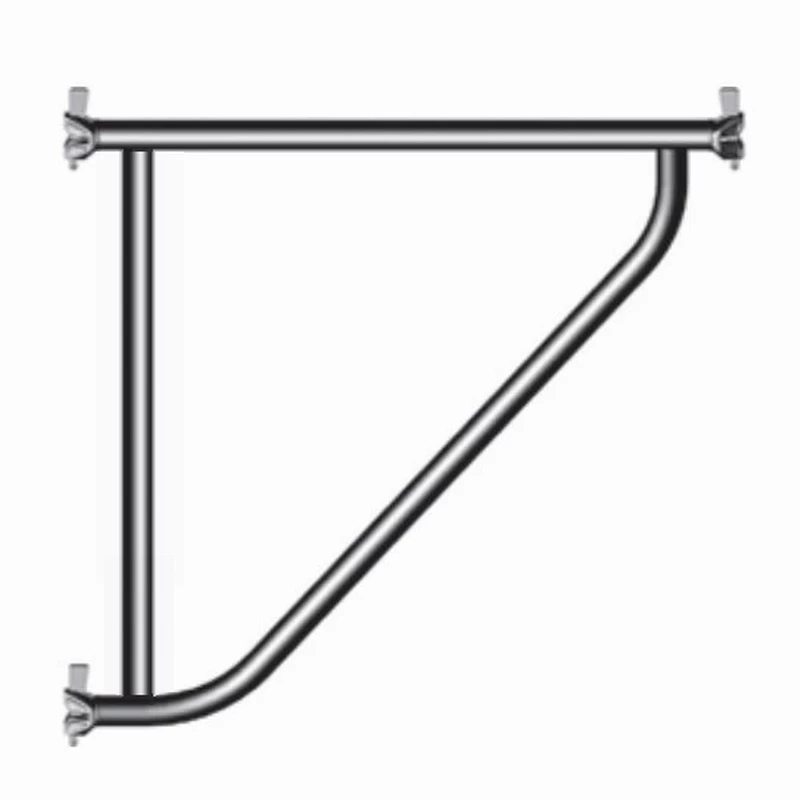

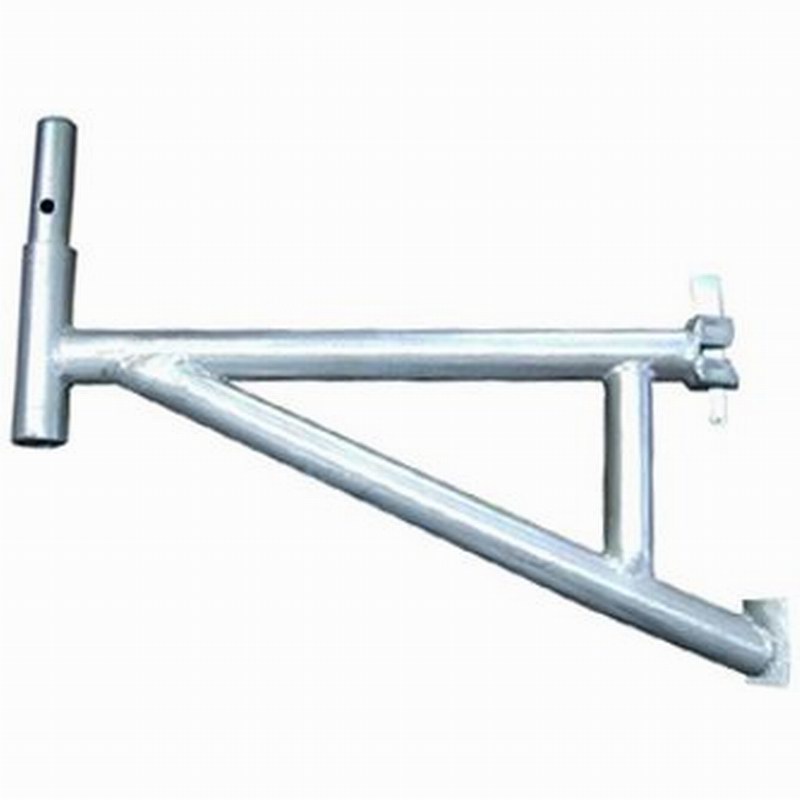

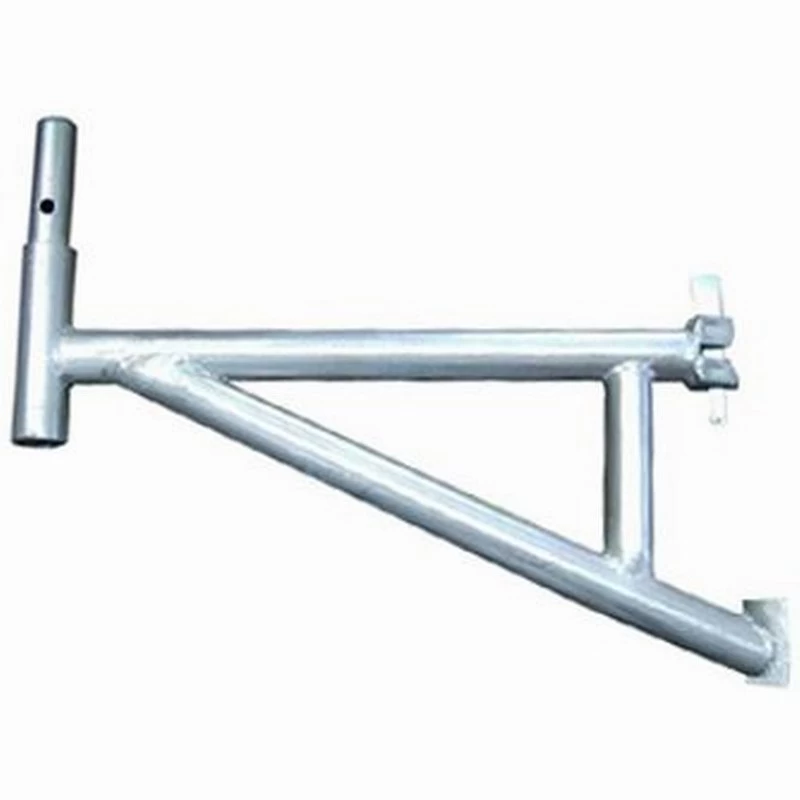

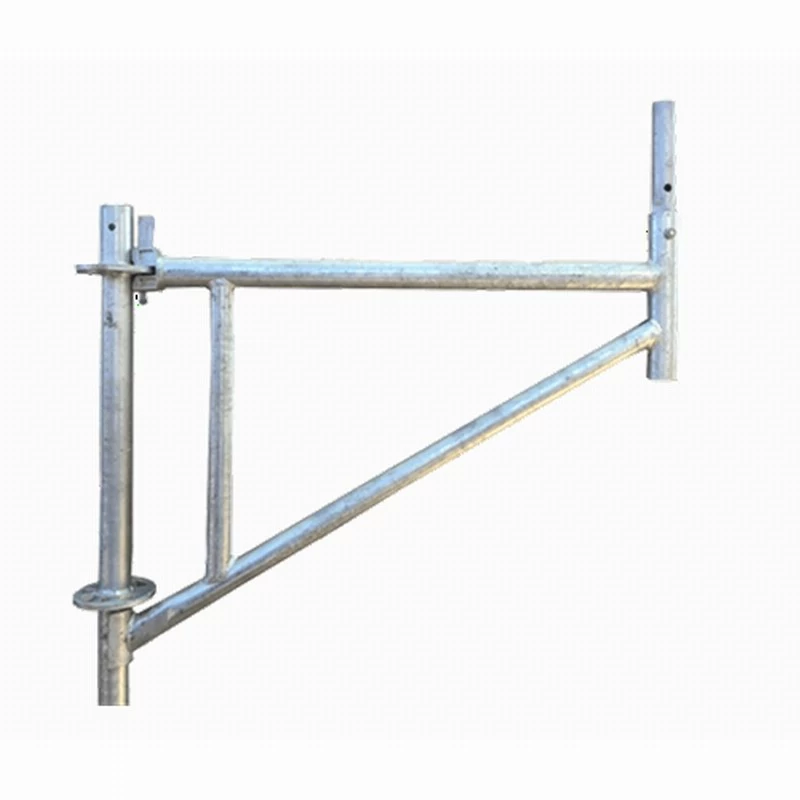

Ring Lock Scaffolding Side Bracket / Board Bracket / Consloe Bracket
Product Details:
|
Code
|
Description
|
Material
|
Size
|
Weight(kg)
|
Weight(lbs)
|
|
RS.SB.040
|
0.40M Side Bracket
|
Ø48.3x3.25mm; Q235-Q355
|
400mm (1'4")
|
4.90
|
10.80
|
|
RS.SB.065
|
0.65M Side Bracket
|
650mm (2'2")
|
6.67
|
14.71
|
|
RS.SB.088
|
0.88M Side Bracket
|
880mm (2'11")
|
8.02
|
17.68
|
|
RS.SB.115
|
1.15M Side Bracket
|
1150mm (3'10")
|
12.30
|
27.12
|
|
RS.SB.039
|
0.39M Side Bracket
|
390mm (1'3")
|
4.14
|
9.13
|
|
RS.SB.073
|
0.73M Side Bracket
|
732mm (2'5")
|
6.68
|
14.73
|
|
RS.SB.109
|
1.09M Side Bracket
|
1088mm (3'7")
|
13.43
|
29.61
|
Features:
Tube Dimension: O.D 48.3x3.25mm. Other tube thickness 3.5mm/3.0mm/2.75mm/2.5mm is also available by request.
Spigot Size: O.D 38x3x220mm
Steel Tube Grade: Q235-Q355
Surface Finishing: Hot dip Galvanized; Powder Coated, Painted
