1 Product Parameters
|
Specifications
|
|
Type
|
Rock wool Sandwich Roofing Panel with PU Sealing
|
|
Density
|
Rock wool: 50~200 kg/m³, PU Sealing: 40 kg/m³
|
|
Thickness
|
50/75/100/120/150mm
|
|
Metal skin thickness
|
0.4~0.8mm
|
|
Panel Effective Width
|
1000mm for wall and 950/1000mm for roof
|
|
Skin material
|
PPGL, PPGI, Stainless, Steel, Aluminum coil
|
|
Pre-painted
|
PE/SMP/HDP/PVDF etc.
|
|
Fireproof Grade
|
A
|
|
Thermal Conductivity
|
0.04~0.055
|
|
Temperature Range
|
800℃
|
|
Length
|
Max 11.9m or Customized.
|
|
Customized design is welcomed.
|
2 Product Features
Rock Wool Sandwich Roofing Panels with PU Sealing deliver a high-performance roofing solution, blending durability, insulation, and visual appeal. Designed for versatility, these panels excel in challenging environments while simplifying construction.
- Corrosion Resistance: The inner panel can use aluminum foil instead of steel, offering a smooth, attractive surface that withstands high temperatures and corrosive conditions. This makes it perfect for industrial or harsh settings.

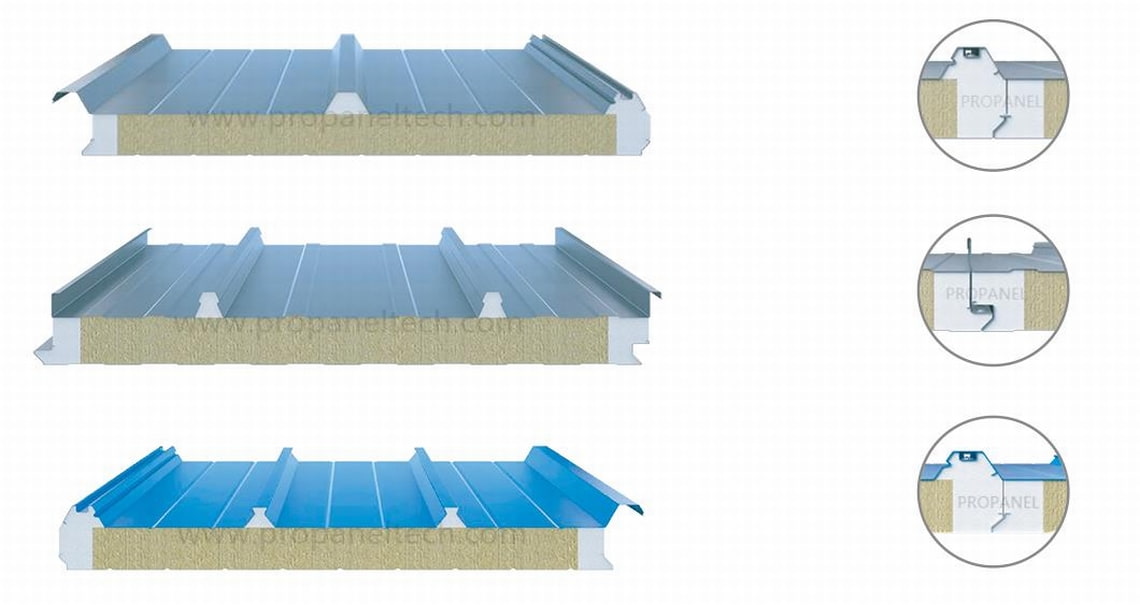

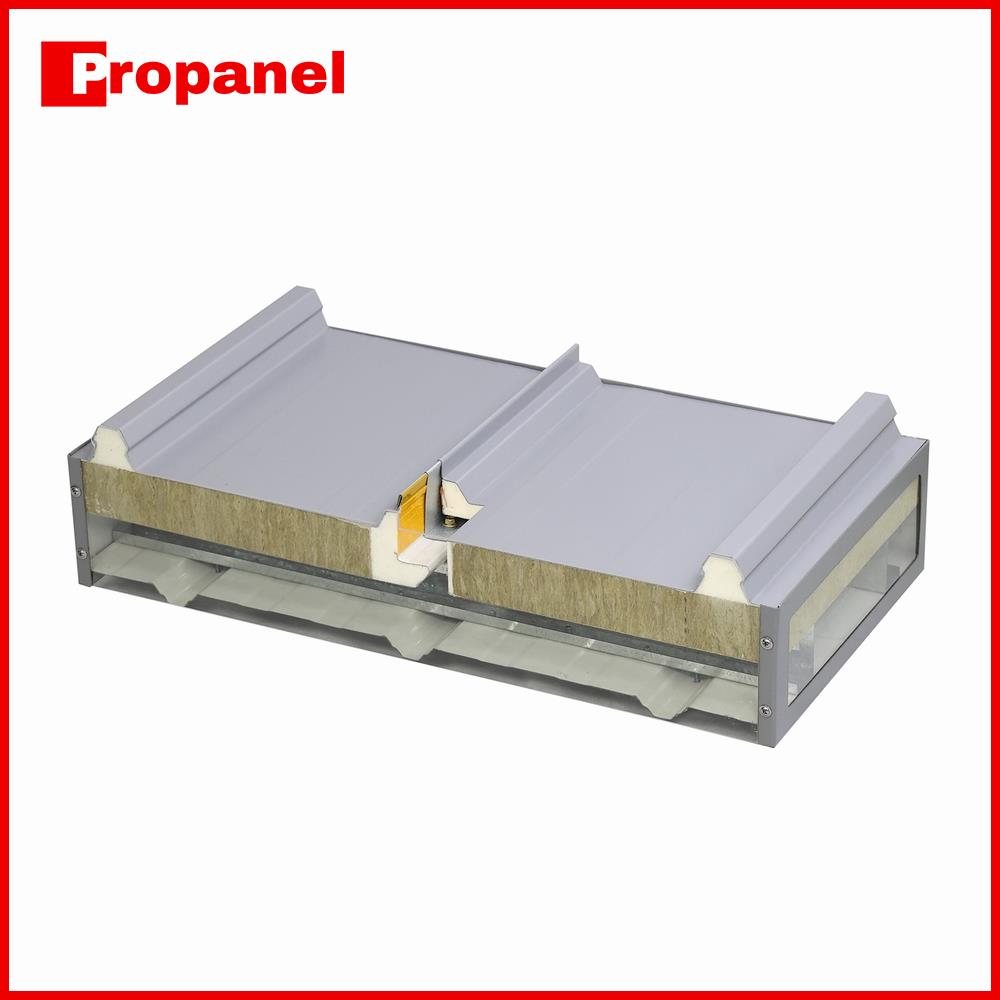

- Smart Joint Design: The panels feature a sloped edge at the joints, ensuring a strong, tight fit. This enhances structural integrity and prevents leaks, boosting long-term reliability.
- Thermal Insulation & Fire Safety: With a rock wool core, these panels provide excellent heat insulation and fire resistance. The PU sealing amplifies energy efficiency, delivering a complete, energy-saving roofing option in one installation.
- Superior Strength: The four-wave corrugated design increases resistance to bending and deflection. This allows for fewer purlins, reducing material costs and speeding up construction without sacrificing durability.
- Aesthetic & Cost-Effective: Boasting a bold structural look and a variety of rich colors, these panels enhance building exteriors. Their efficient design cuts material waste, offering an economical yet stylish choice.
Allowable vertical load and heat transfer coefficient of PROPANEL new model fireproof rock wool sandwich roof panel with pu sealing (allowable deflection f ≤ L/240)
|
Thickness (mm)
|
Heat transfer (W/m2k)
|
Weight (kg)
|
Load P=KN/m2
|
0.60
|
0.80
|
1.00
|
1.20
|
1.50
|
|
50
|
0.75
|
15.74
|
L(m)
|
3.78
|
3.31
|
2.98
|
2.71
|
2.41
|
|
75
|
0.53
|
18.68
|
L(m)
|
4.83
|
4.21
|
3.76
|
3.42
|
3.01
|
|
100
|
0.41
|
21.62
|
L(m)
|
5.77
|
5.02
|
4.47
|
4.04
|
3.55
|
|
150
|
0.31
|
27.51
|
L(m)
|
7.53
|
6.54
|
5.82
|
5.26
|
4.61
|
Note:0.5mm outer steel sheet and 0.4mm inner steel sheet.
3 Advantages of Propanel's Rock Wool
Non-Combustible with A-Grade Fire Resistance: Rock Wool boasts an A-grade fire rating, making it non-combustible. This ensures exceptional safety by halting fire spread, ideal for high-risk environments.
Superior Hydrophobic Properties and Aging Resistance: Its excellent water-repellent nature prevents moisture damage, while its resistance to aging guarantees consistent performance over decades.
Outstanding Thermal Insulation: With superior heat retention, Rock Wool minimizes energy loss, keeping spaces warm in winter and cool in summer, thus slashing energy bills.
Sound Absorption and Noise Reduction: Its fibrous structure excels at absorbing sound, delivering quieter interiors—perfect for homes, offices, or schools where peace is paramount.
Biodegradable and Eco-Friendly: Made from natural, sustainable materials, Rock Wool is fully biodegradable, reducing environmental footprints and aligning with green building standards.
High Acidity Coefficient Reduces Metal Corrosion: A high acidity coefficient protects metal frameworks from corrosion, enhancing structural longevity and reliability.
Ours' rock wool combines fire-resistant insulation, energy efficiency, and environmental sustainability into one robust package. Whether you’re insulating a home or a commercial space, its advanced properties make it a smart, long-term investment. Opt for Rock Wool to elevate safety, comfort, and eco-consciousness in your next project.
4 Project cases of Rock wool Sandwich Roofing Panel with PU Sealing

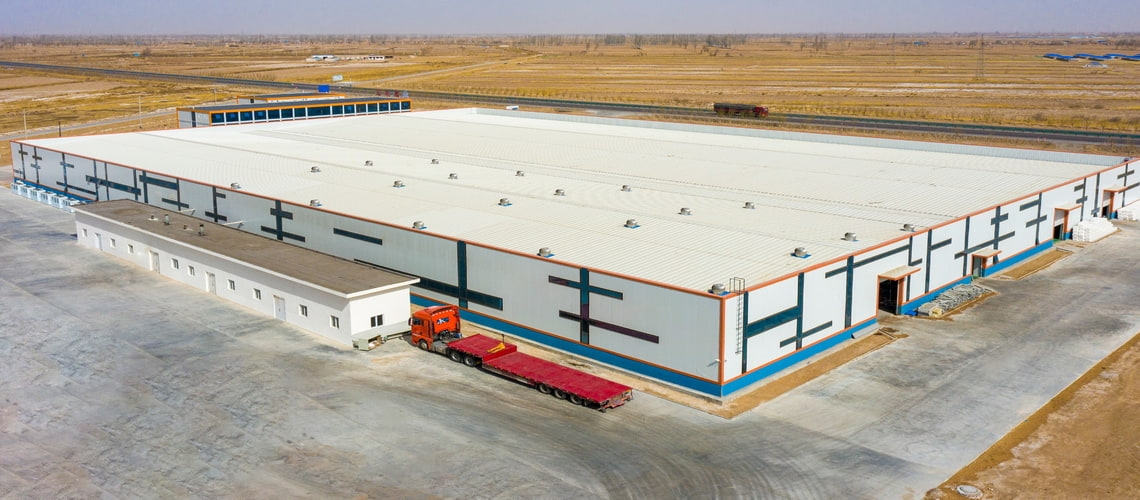

Project cases of Rock wool Sandwich Roofing Panel with PU Sealing--Canadian Logistics Warehouse 2000 square meters 2017
5 RFQS of Rock Wool Sandwich Roofing Panels with PU Sealing
ⅠQ: What thickness options are available for Rock Wool Sandwich Roofing Panels with PU Sealing?
A: Our panels come in 50mm, 75mm, 100mm, and 150mm thicknesses, with custom sizes available to optimize insulation and structural needs.
Ⅱ Q: How does the thermal insulation of Rock Wool Sandwich Roofing Panels with PU Sealing compare to other materials?
A: These panels offer excellent thermal insulation, better energy efficiency than traditional panels, ideal for extreme climates.
Ⅲ Q: What is the installation process for Rock Wool Sandwich Roofing Panels with PU Sealing?
A: Featuring a tongue-and-groove design with PU sealing, these lightweight panels install quickly, cutting labor costs by up to 40% versus traditional roofing.
Ⅳ Q: What fire safety ratings do Rock Wool Sandwich Roofing Panels with PU Sealing have?
A: Achieving an A-grade fire rating, these non-combustible panels with PU sealing prevent flame spread, ensuring top-tier safety.
Ⅴ Q: What is the weight difference between Rock Wool Sandwich Roofing Panels with PU Sealing and traditional materials?
A: At 120 kg/m³, these panels are 50-60% lighter than concrete or metal roofing, maintaining strength with less structural load.
