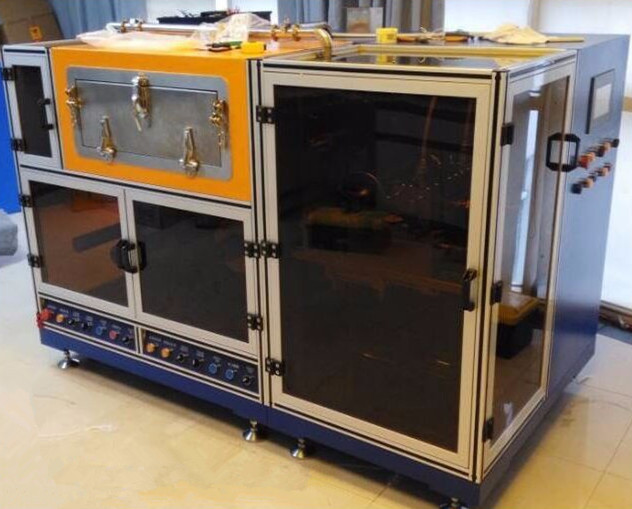

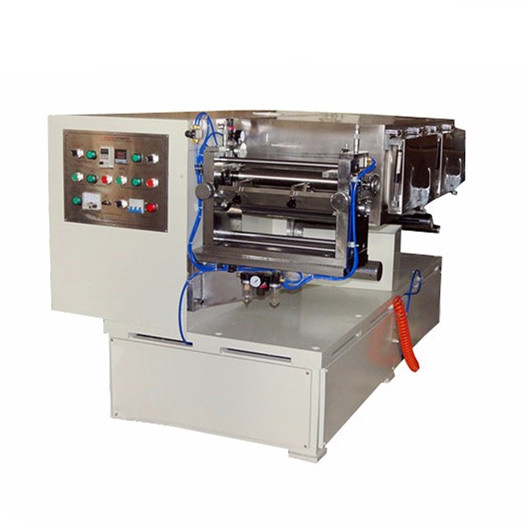

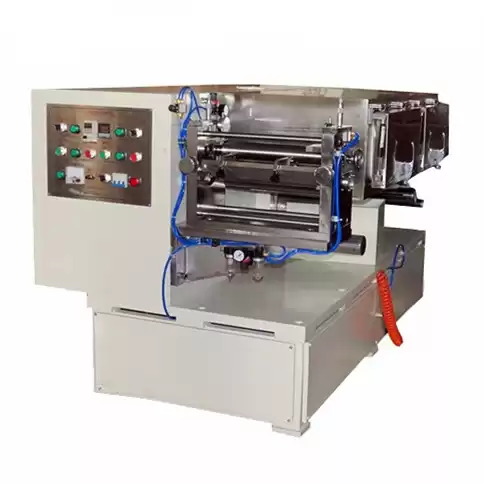

Roll To Roll Transfer Coating System With Drying Oven For Battery Electrodes
TMAX-TB300 is a CE Certified and UL ready automatic battery electrode coating system. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scalestudies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in)together with touch screen operation for customer's utmost convenience. Get expert advice about Roll to Roll Coater here.
Specifications：
|
Working Voltage
|
208 - 240 V AC, 50/60Hz, Single Phase
|
|
Max. Power Consumption
|
Max15KW
|
|
Max. Coating Width
|
280mm
|
|
Coating Speed
|
0-1000 mm / minute
|
|
Thickness Precision
|
± 3µm (± 5µm at edges)
|
|
Max. Drying Temperature
|
150°C max
|
|
Temperature Accuracy
|
±1°C
|
|
Heating Zone Length
|
1600mm
|
|
Reeling/Unreeling Shaft
|
75mm (ID)
|
|
Max. Reeling/UnreelingDiameter
|
250mm (OD)
|
|
Max. Coating Length
|
1. Depending on the coating and substrate thickness.
2. Typically, 10um thick foil with 100um coating can get 600 meters of electrodelength coated per run
|
|
Coating Modes
|

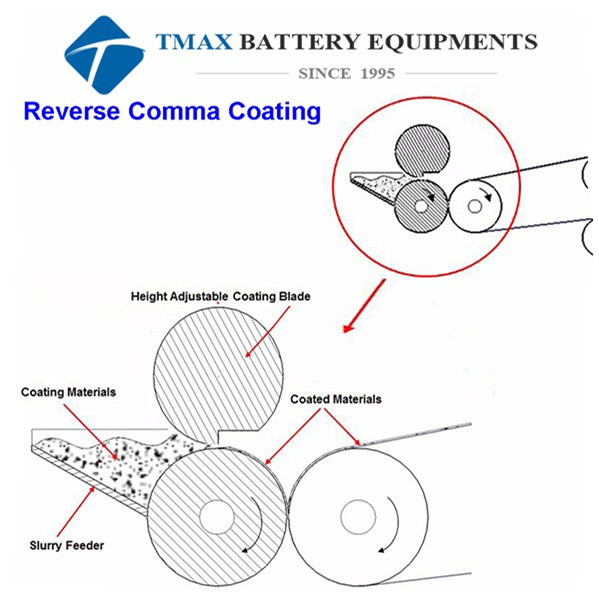

3. Using transfer coating technique (Doctor Blade Coating) for better uniformity
4. Two available coating modes selectable on the control panel.
1. Continuous mode
2. Intermittent coating ( system performs coating, stops, coats again and so on.The length of the coating and break segments can be specified by the user ).
|
|
Slurry Stirring
|
SS316 Moving Rod
|
|
Exhaust Port Size
|
100mm O.D
|
|
Compressed Air
|
0.5-0.8 MPa
|
|
Product Dimensions
|
2500*1060*1200mm
|
|
Net Weight
|
1300kg
|
|
Compliance
|
CE Certificate
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Application Notes
|
Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller toavoid rusting
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
