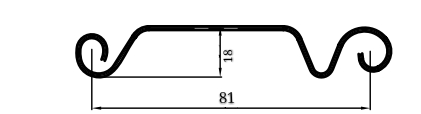

Roller Shutter Door Roll Forming Machine For YX18-81 Profile

Roller Shutter Door Roll Forming Machine with Taiwan Quality,China Price.Made by BMS with 20 years professional experience.

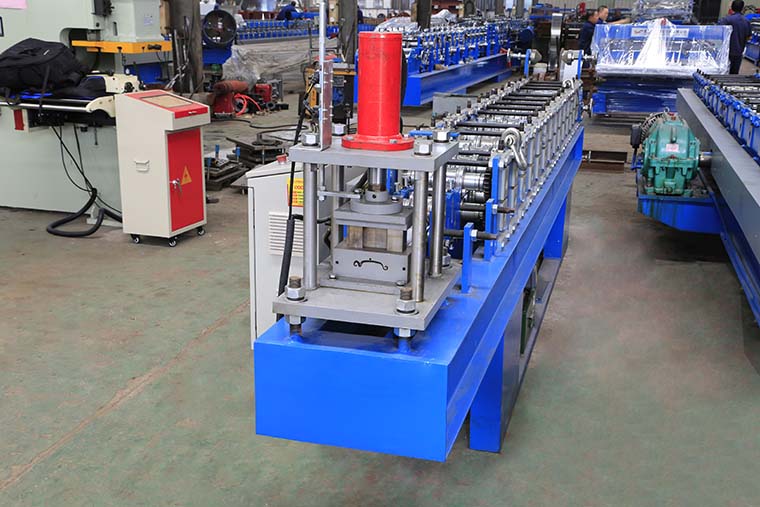

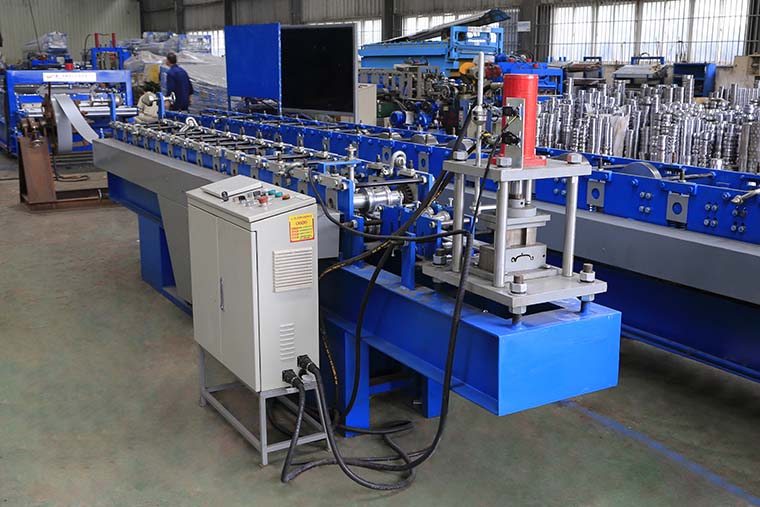

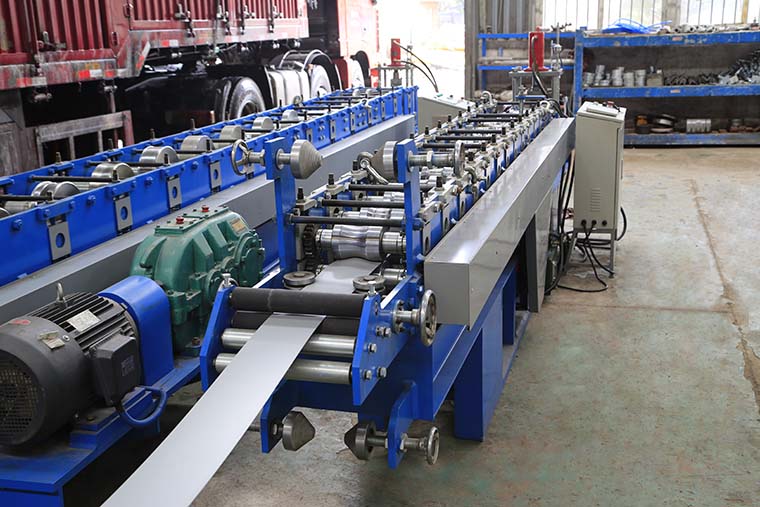

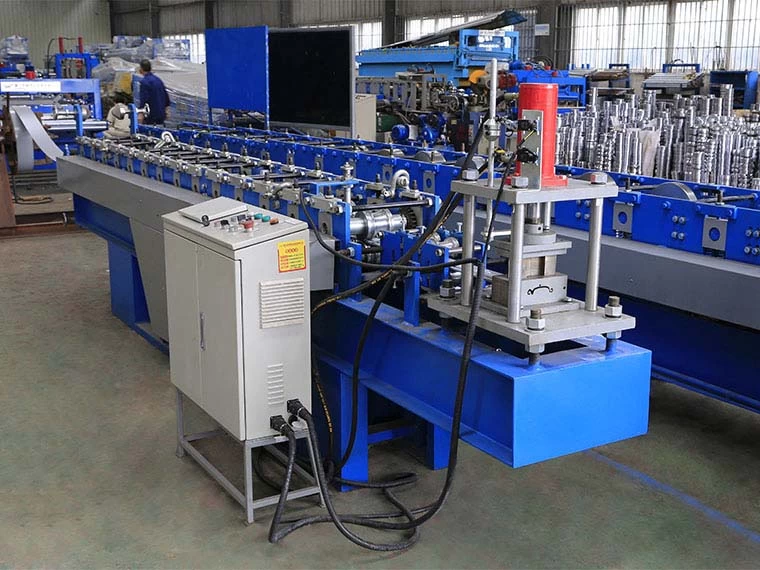

Roller Shutter Door Roll Forming Machine



 Roller Shutter Door Roll Forming Machine


  Roller Shutter Door Roll Forming Machine



1.Main features of Roller Shutter Door Roll Forming Machine


    The advantages of Roller Shutter Door Roll Forming Machine are as follows:

    1.Three types of material thickness for options:0.4-0.6mm for single phase power supply machine,

       0.7-1.2mm even 1.5mm for 3phase power supply machine.

    2.Save space,more convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable


2.Detailed Images of Roller Shutter Door Roll Forming Machine


    Machine Parts

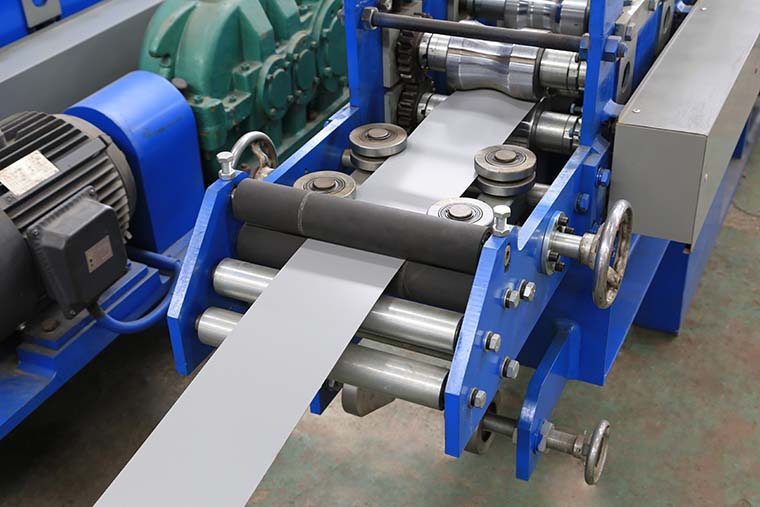

        1) YX18-81 Roller Shutter Door Roll Forming Machine arc guiding

        Brand: BMS    Original: China



 Roller Shutter Door Roll Forming Machine

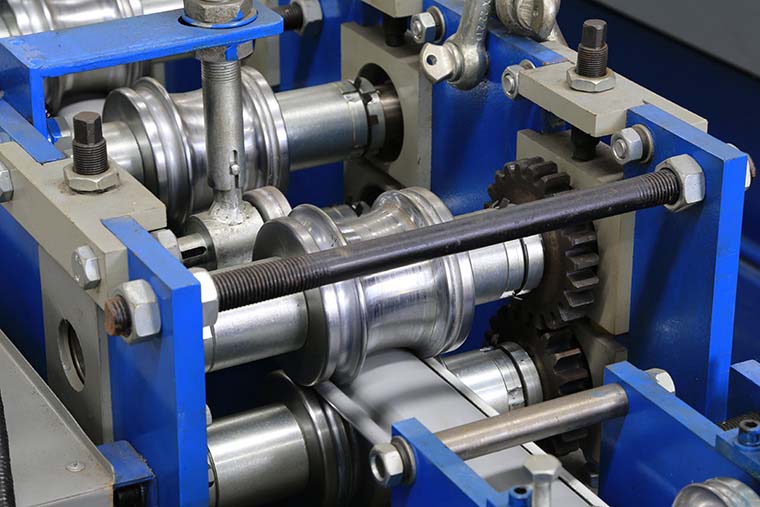

        2) Roller Shutter Door Roll Forming Machine  rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        With black treatment or Hard-Chrome Coating for options.

        Body framemade from 300# H type steel by welding



 Roller Shutter Door Roll Forming Machine

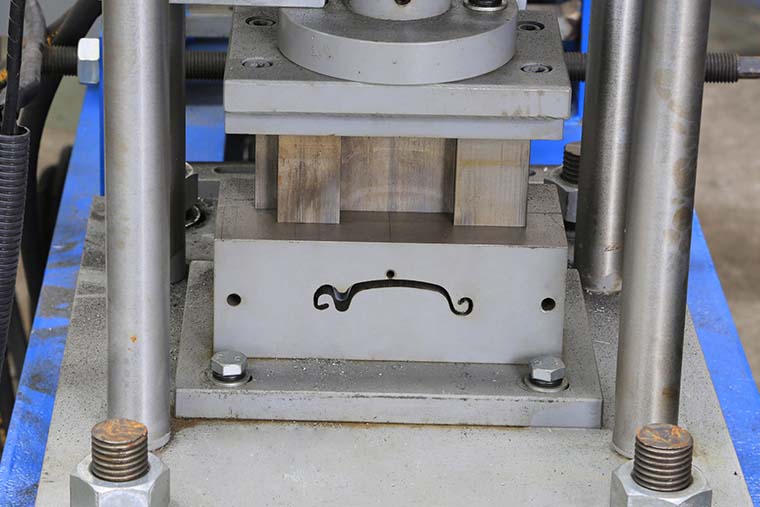

       3) Roller Shutter Door Roll Forming Machine  post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding


  Roller Shutter Door Roll Forming Machine



 Roller Shutter Door Roll Forming Machine

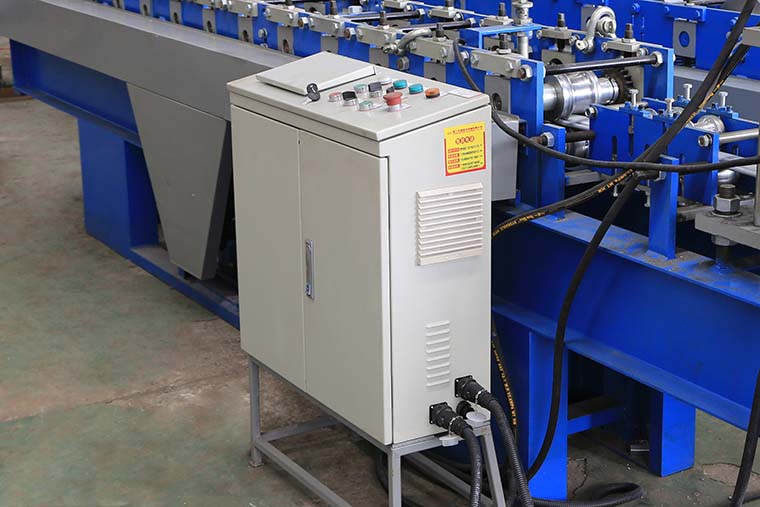

        4) Roller Shutter Door Roll Forming Machine PLC control cabinet



  Roller Shutter Door Roll Forming Machine



        5) Roller Shutter Door Roll Forming Machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop


        Max. feeding width: 300 mm, coil ID range 470mm±30mm

        Capacity: Max. 1.5 Ton





        6)Roller Shutter Door Roll Forming Machine  run out table

        Un-powered,one unit



Other detailes of YX18-81 Rolling Shutter Door Machine



Shafts manufactured from 45#,Main shaft diameter=φ45/57mm,precision machined

Motor driving,Gear chain transmission,14/19 steps to form

Main motor: 4KW/5.5KW ,Hydraulic motor :2.2KW/3.75 KW

Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail  see the video:



After-sale service of Roller Shutter Door Roll Forming Machine



1. The warranty of YX18-81 Rolling Shutter Door Machine

    is 18months after the client receives the machine.

    Within the 1.5 years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
