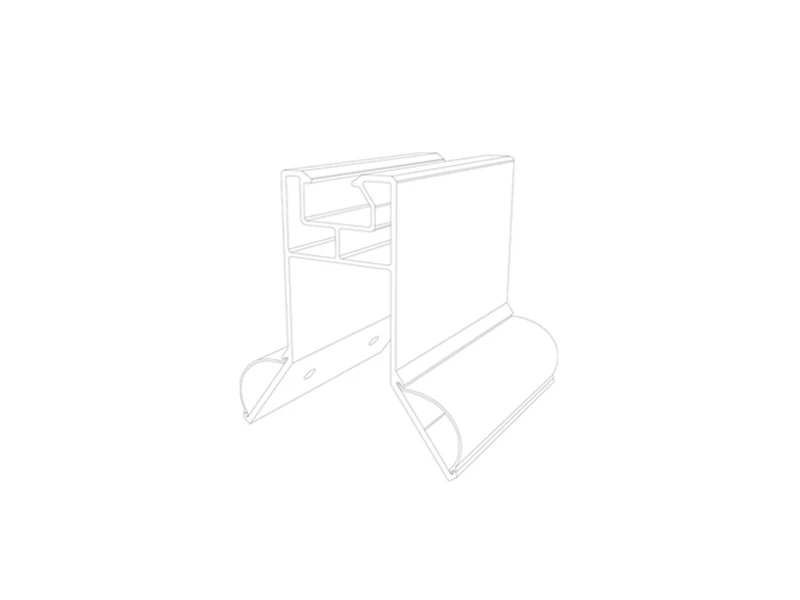

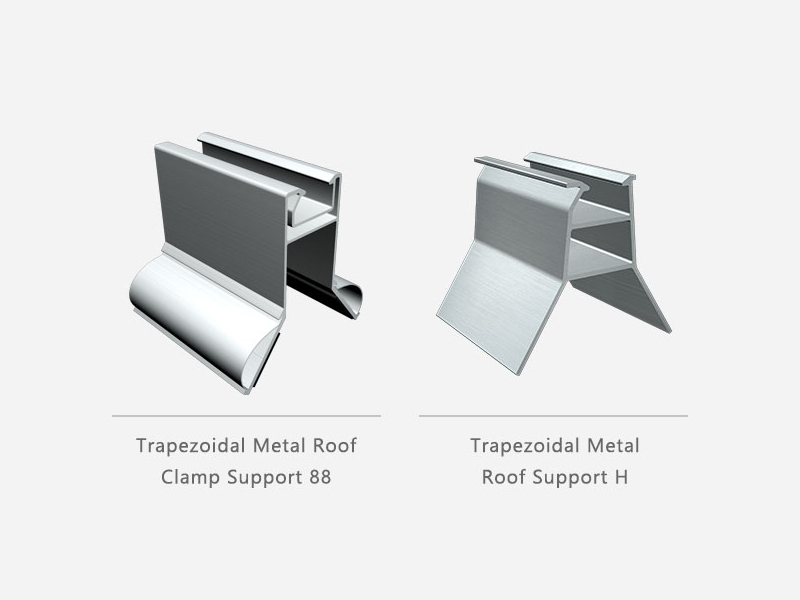

MRac Trapezoidal Metal Roof Support  is mainly applied to Trapezoidal Metal Roof, and its material is Al6005-T5.



Overview

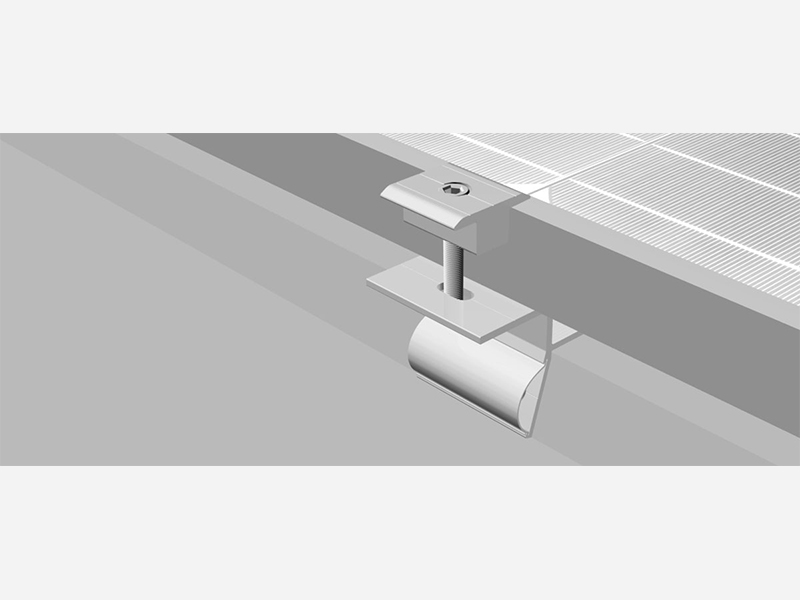

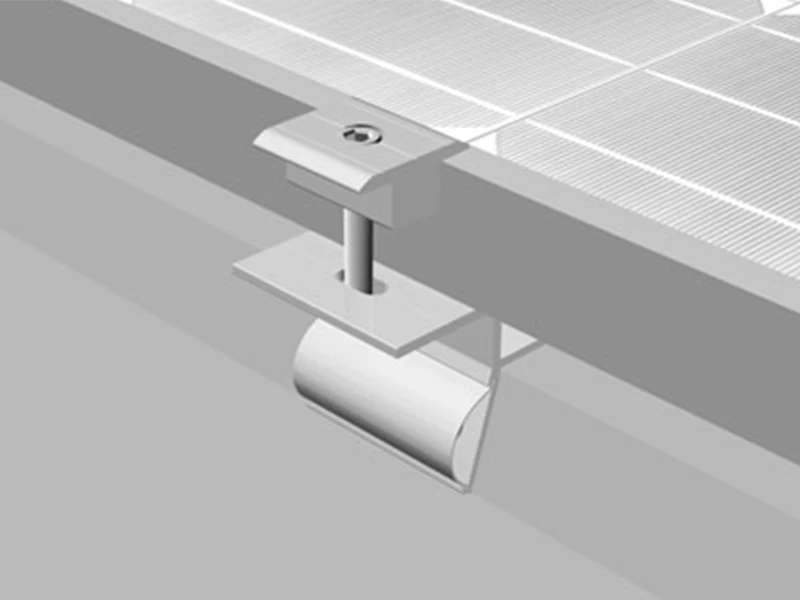

MRac Trapezoidal Metal Roof Support  is mainly applied to Trapezoidal Metal Roof, and its material is Al6005-T5. With its professional design, it can realize the perfect connection between roof support and roof to meet customer installation requirement. Professional solution and structure design can save your installation time and cost. Moreover, Patented and unique design can bring you a good installation experience.





Technical Parameter

Installation Site

  Pitched Roof

Roof Type

  Trapezoidal Metal Roof Support

Tilt Angle

  0-15°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

System Name

  MRac Standing Seam Roof Support

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty


Solar panel brackets tile roof

Features

Applicable for different metal roofs

According to customer requirement, choose different roof mounting system flexibly


Save Installation Time and Cost

Save the installation time and cost by offering installation manual and solution


Compatible to Different Types of Solar Modules

Free and flexible to choose different types of solar modules





Technology Certification
