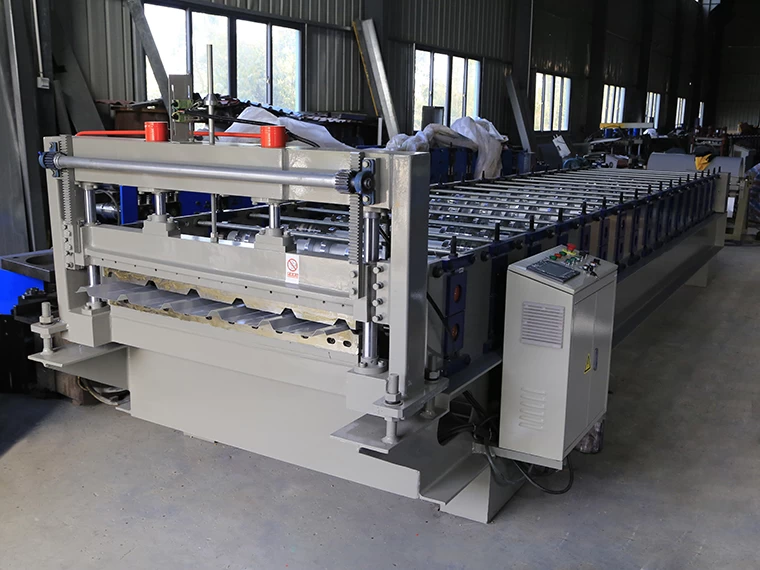

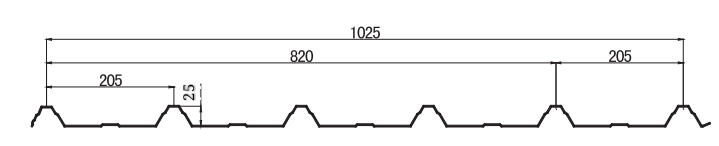

Roof Panel Roll Forming Machine For YX25-205-1025 Profile

Low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength.





          YX25-205-1025 Roof Panel Roll Forming Machine



Roof Panel Roll Forming Machine



1.Main features of YX25-205-1025 roof panel machine




    The advantages of roof panel machine are as follows:

    1.Able to produce two different profiles.

    2.Save spacemore convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable




2.Detailed Images of YX25-205-1025 klip-lok roof panel forming machine




    Machine Parts

        1) YX25-205-1025 roof panel machine pre-cutter

        Brand: BMS    Original: China





      Roof Panel Roll Forming Machine

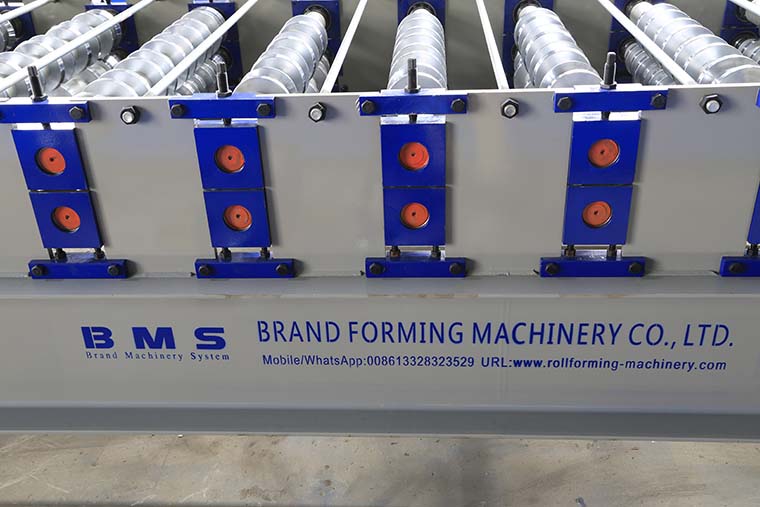

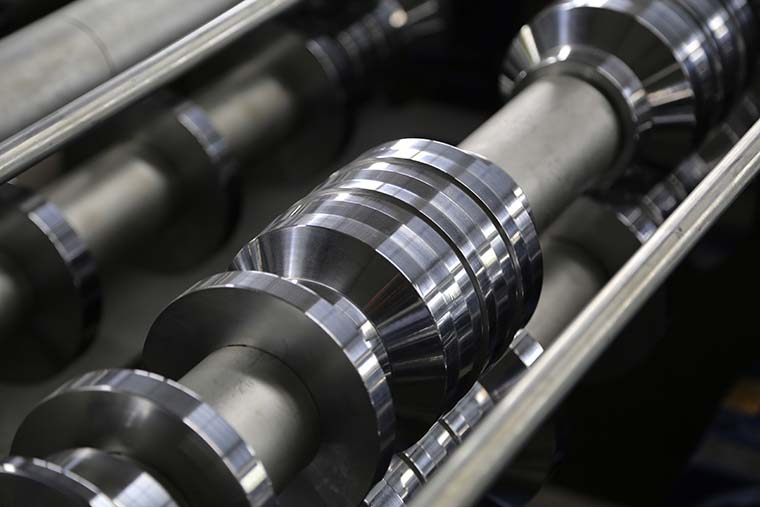

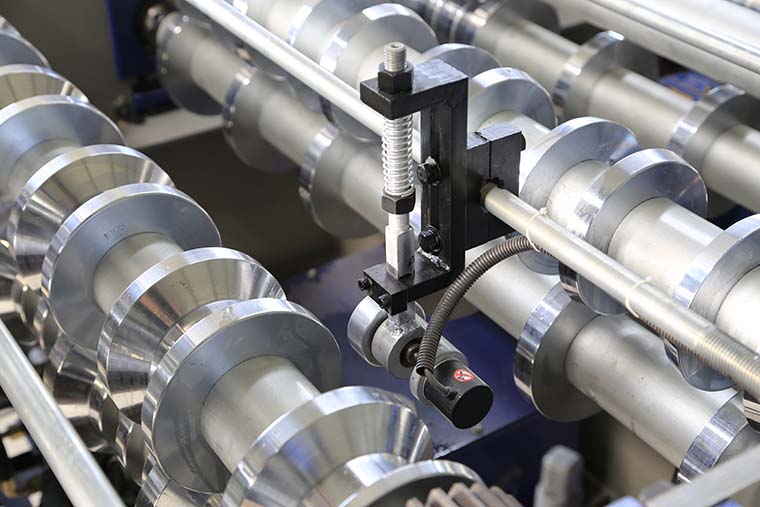

        2) YX25-205-1025 roof panel machine rollers

        Rollers manufactured from high quality 45# steel , CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding



Roof Panel Roll Forming Machine

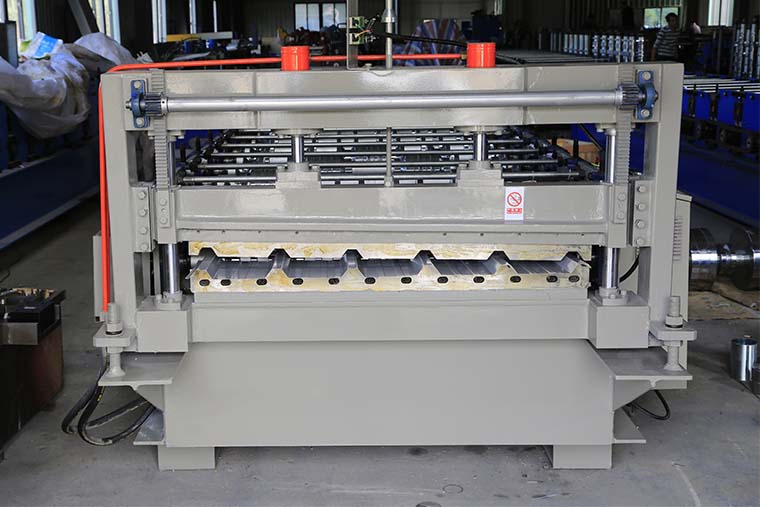

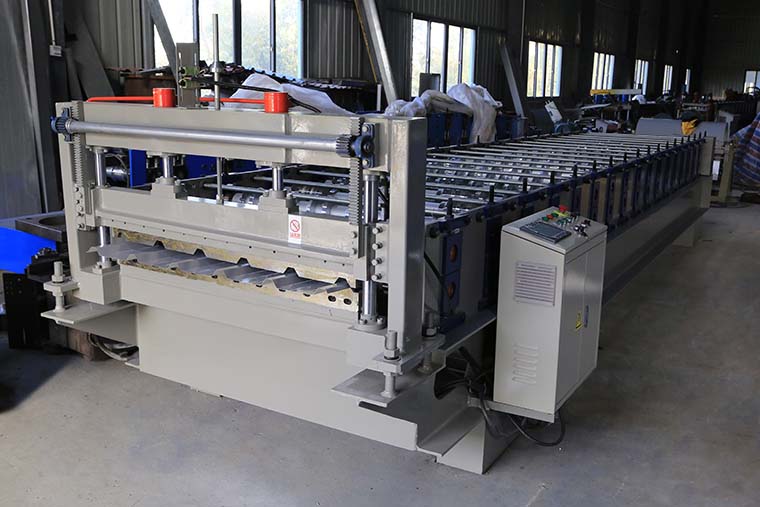

       3) YX25-205-1025 roof panel machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding
        Hydraulic motor:2.2KW, Hydraulic pressure range: 0-16Mpa



Roof Panel Roll Forming Machine

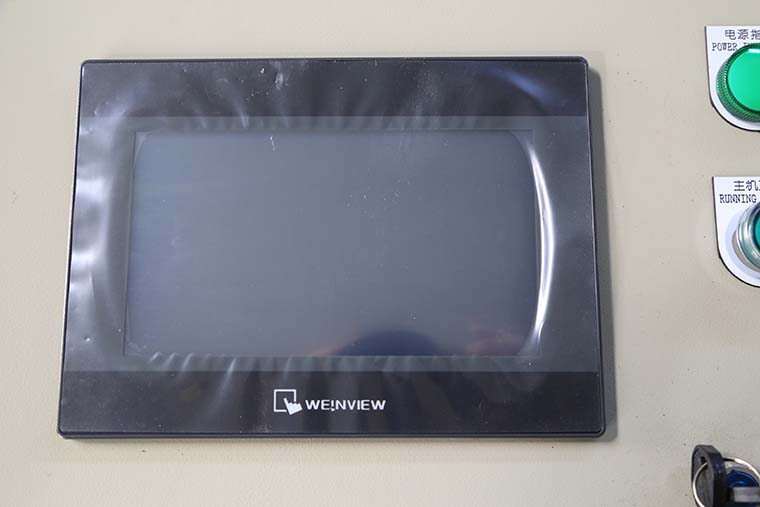

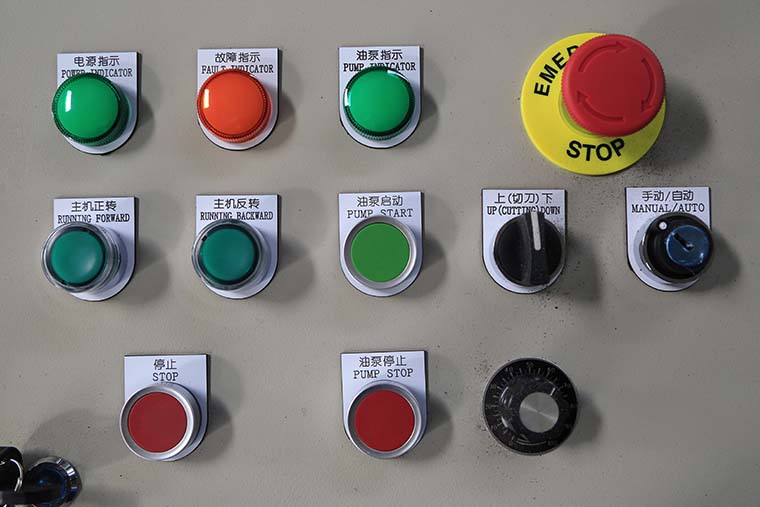

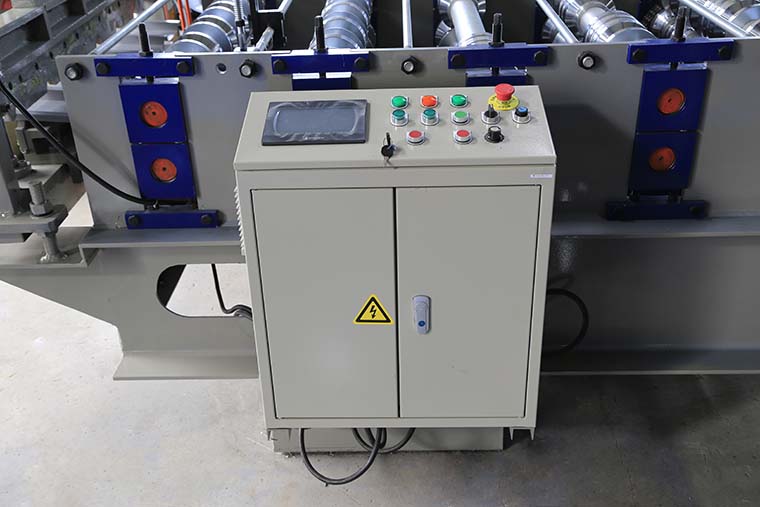

        4) YX25-205-1025 roof panel machine touching screen and control panel

        Easy to operate



Roof Panel Roll Forming Machine


Roof Panel Roll Forming Machine


        5) YX25-205-1025 roof panel machine control cabine

        PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

        Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Roof Panel Roll Forming Machine


Roof Panel Roll Forming Machine


        6) YX25-205-1025 roof panel machine decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 8 Ton



        With 6 tons hydraulic decoiler for option

Roof Panel Roll Forming Machine

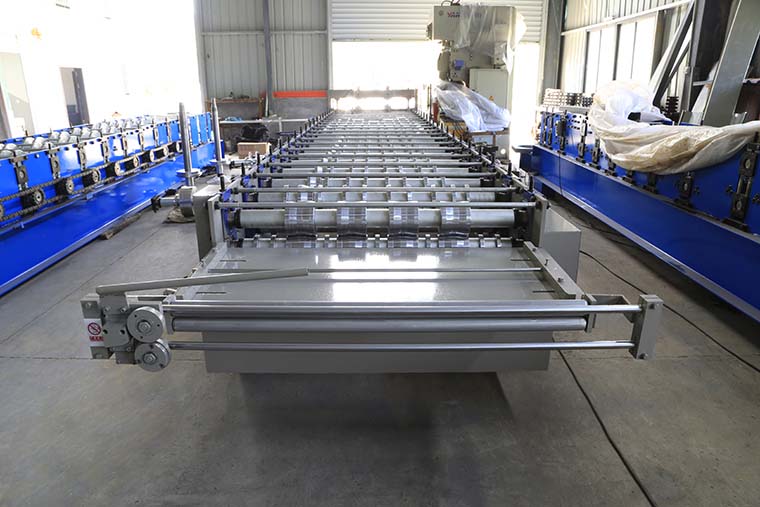

        7) YX25-205-1025 roof panel machine exit rack

        Un-powered,one unit

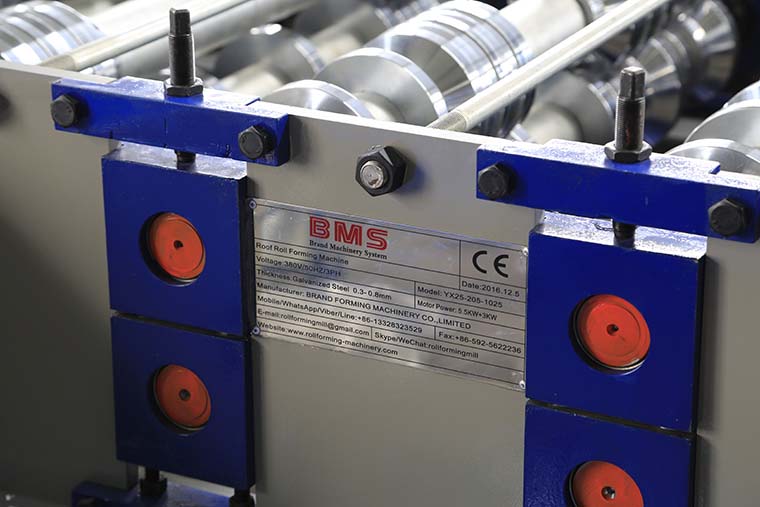

Other detailes of YX25-205-1025 roof panel machine

 Roof Panel Roll Forming Machine


Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission,20 steps to form

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min


Roof Panel Roll Forming Machine


Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail click here to see the video:

http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26



After-sale service of roof panel machine



1. The warranty of YX25-205-1025 roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
