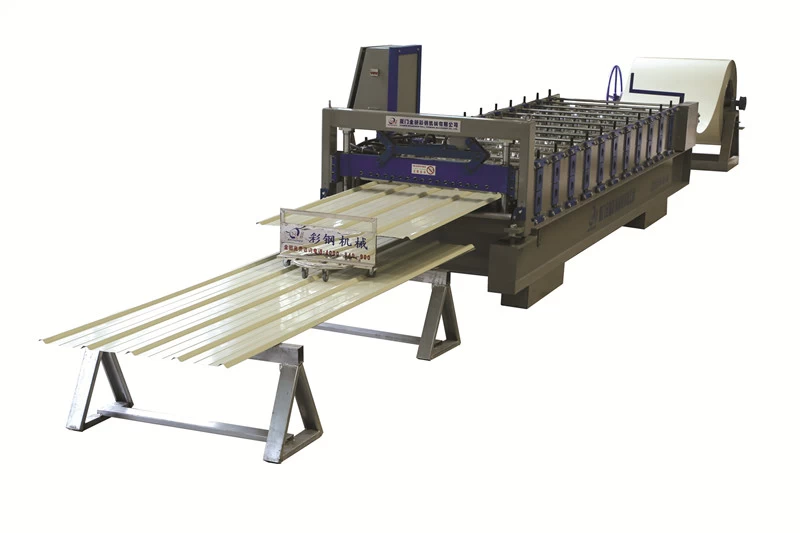

Roof Sheet Roll Forming Machine

These roofing sheets are commonly use as impervious material to roof large-scale buildings, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, and so on.



The advantage of roof panel machine are as follows:
1.We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts
2.Low cost, light weight but high strength, short building period, and re-cycle use
3.With computer controlled system which easy to operate and save time and material
4.Metal roof panel or sheeting features light weight, durability, recyclability, etc.


Profile drawing


Machine parts

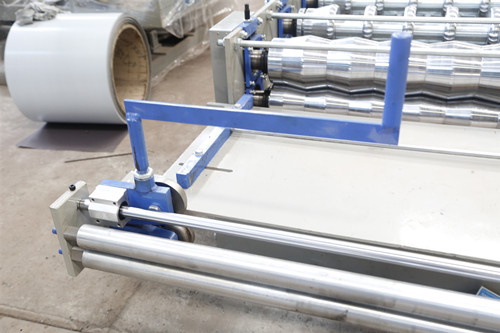

1.Roof panel machine pre-cutter
Each of our roof panel machine has a feeding material guide which can level the material before rolling it.

And the pre-cutter can avoid wasting material.


2.Roof panel machine rollers
All the rollers manufactured from high quality 45# steel, CNC lathes, heat treatment.
You can choose black treatment or hard-chrome coating for your machine rollers.
Body frame made from H350# type steel by welding.

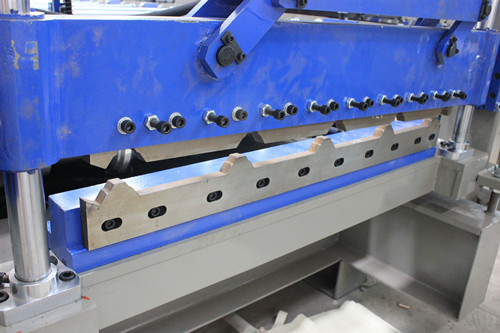

3.Roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 4KW
Hydraulic pressure range: 1-16Mpa


4.Roof panel machine protection cover

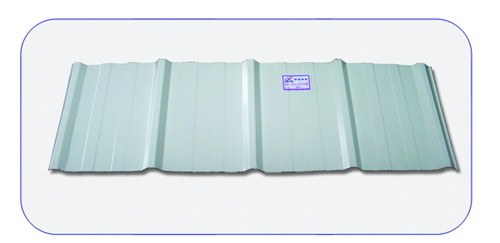

5.Product show


6.Uncoiler
One manual dedoiler
Manually control steel coil inner bore shrinkage and stop, Un-power.
Max.feending width: 1200mm, coil id range 508mm±30


With hydraulic uncoiler for option


7.Exit rack
Un-powered, three units
