Overview

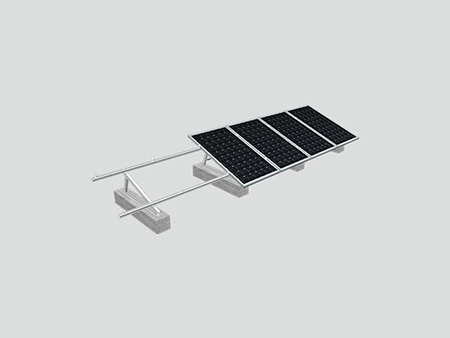

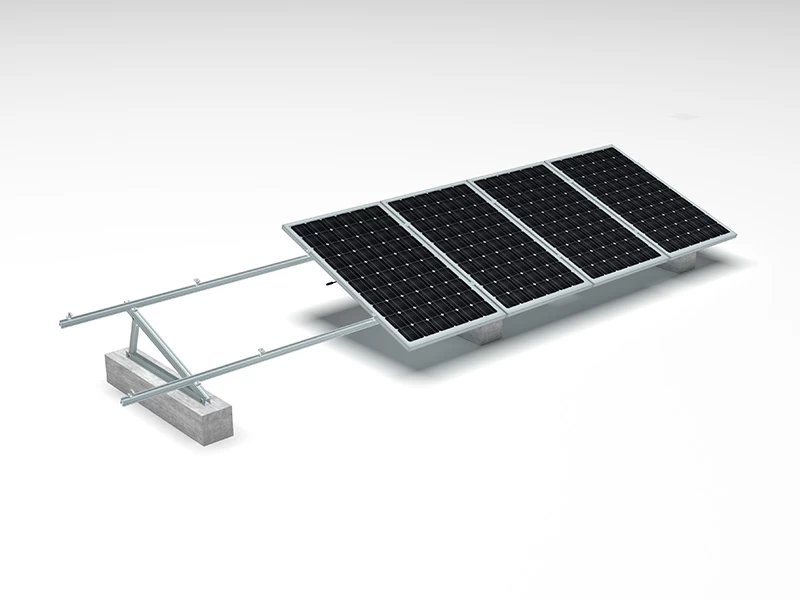

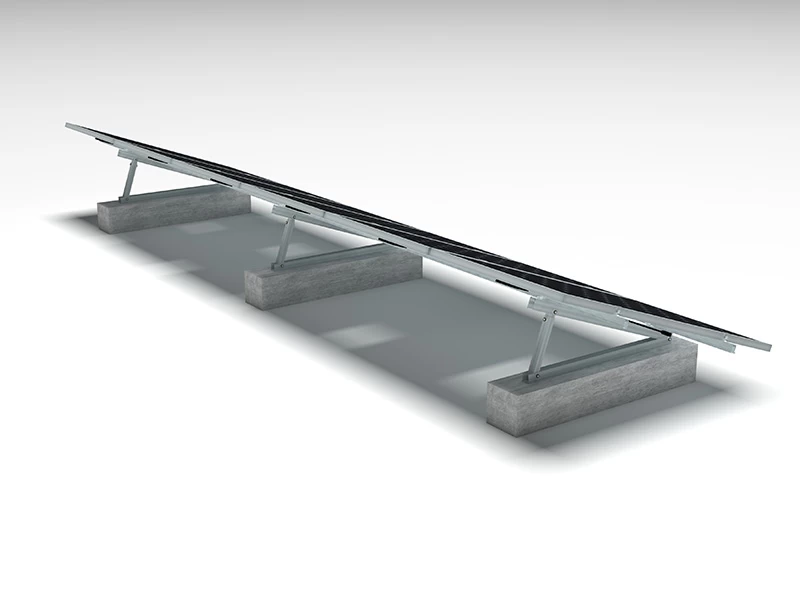

MRac Roof Solar PV Mounting System Matrix II is derived from RM I to meet different roof projects demands. Solar modules can be arranged with single or double rows of landscape or portrait orientation. Quick installation and stable structure are assured by the modular Patented design.
|
Technical Parameter
|
|
System Name
|
MRac RMI
|
|
Installation Site
|
Flat Roof
|
Roof Type
|
Concrete Base
|
|
Tilt Angle
|
5°,10°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Applicable Solar Module
|
Framed
|
|
Panel Layout
|
Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Fastener
|
SUS304, Hot Dip Galvanized, Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
System Compatibility
Components mostly pre-assembled in factory to assure quick and reliable installation on site. Suitable for different flat rooftop, and compatible to different types of solar modules.
Unique Mudsill Design

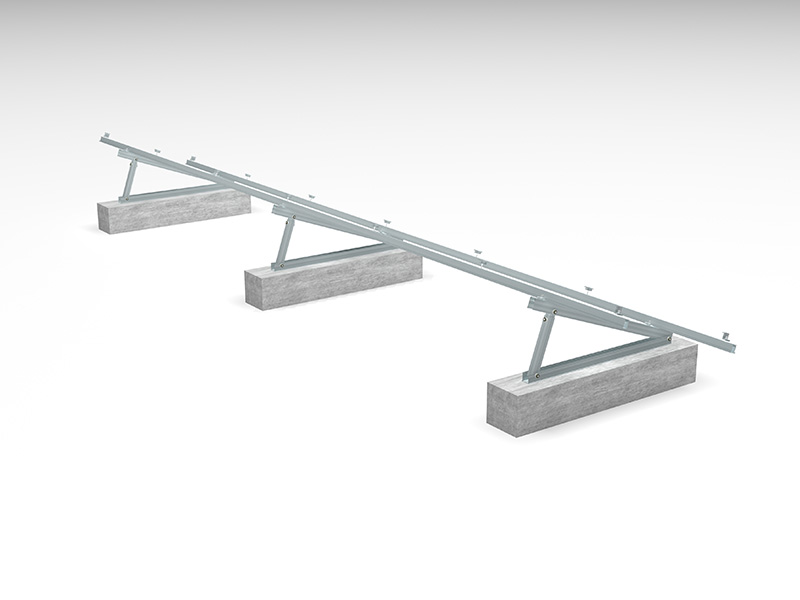

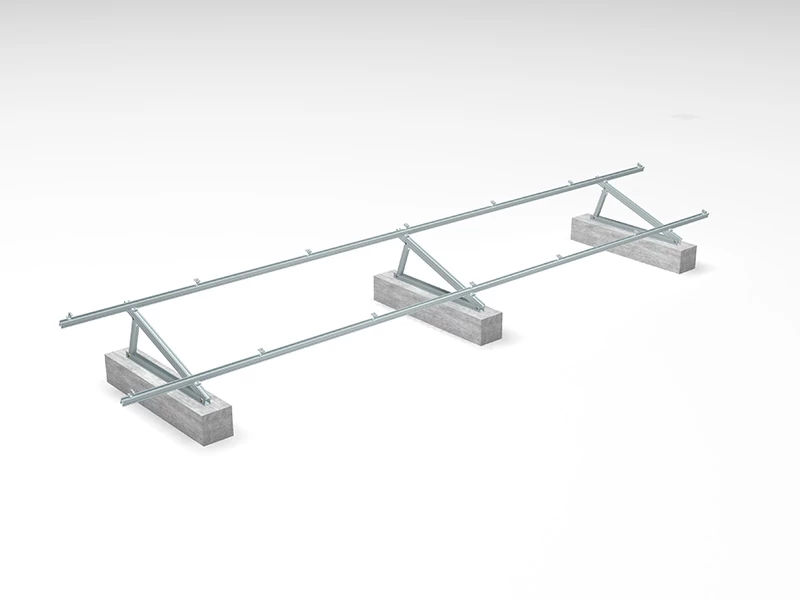

The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation.
Solar Module Layout Flexibility

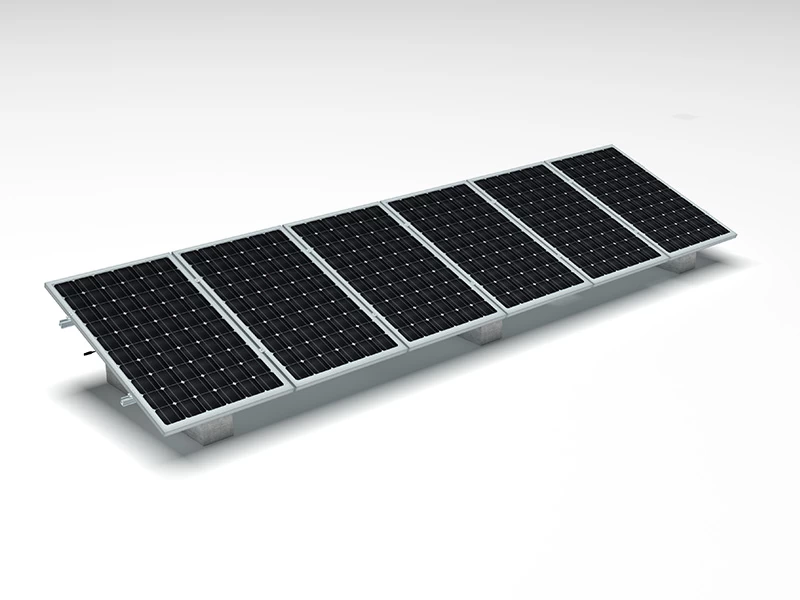

Both landscape and portrait solar module layout are suitable. Both single row and double rows layout can be achieved, separately or combined
Adjustability
Tilt angle can be adjustable
Technology Certification
