Bonve rotary Lobe Pumps for the Sugar
Industry

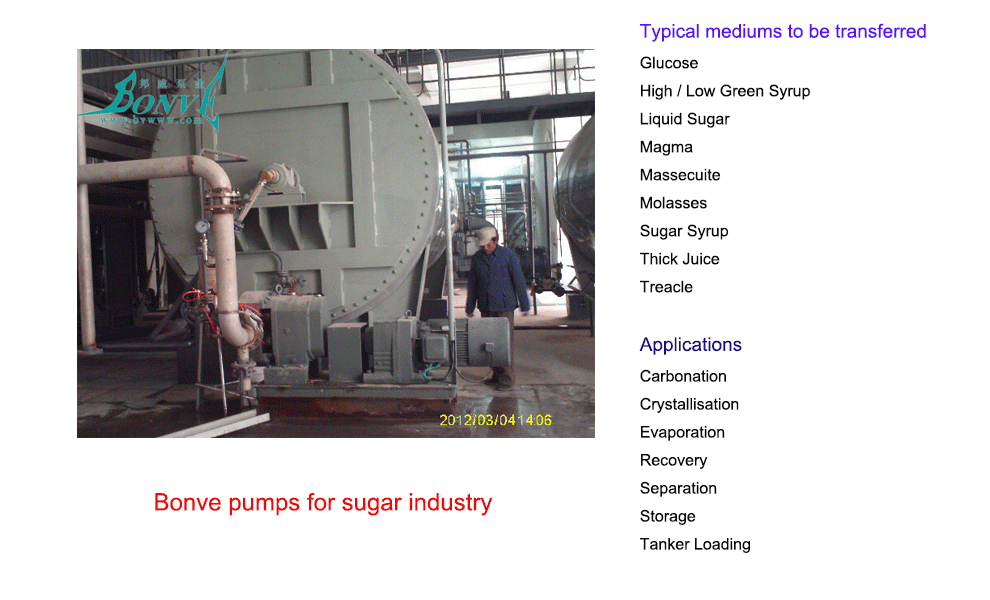

Bonve sugar pumps are to be found in
numerous processes, where their reliable low shear flow characteristics are
ideally suited to the transfer of media such as unrefined sugar, sugar solution
and molasses. We select the pump according to your characteristics of medium
and condition of the technological requirements, bring you the best pump for
your critical process, satisfied by you and your customers.

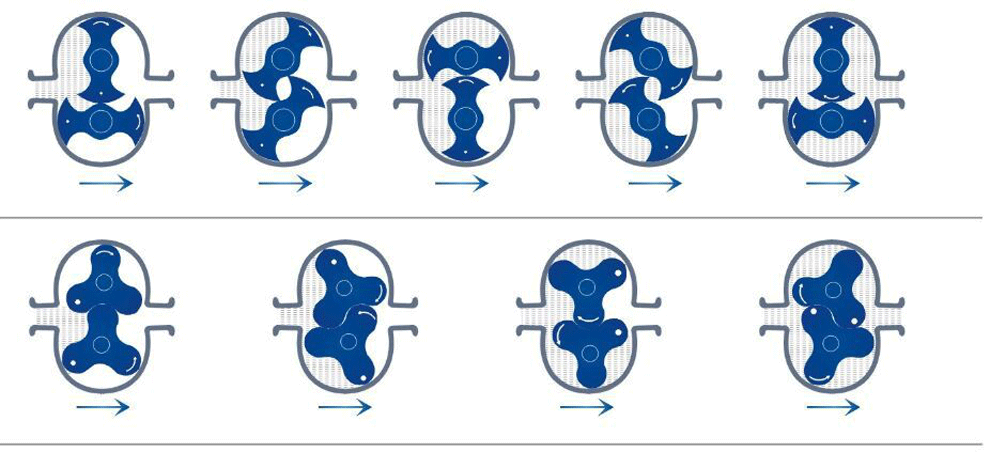

How pump works?
The even rotation of the rotor pair creates a vacuum on the
priming side of the pump, which can be defined by the direction of rotation of
the drive. This vacuum draws the liquid into the pump chamber. With further
rotation, the pumped medium is conveyed past the pump wall into the pressure
area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a
standstill, the pump seals off almost
completely.

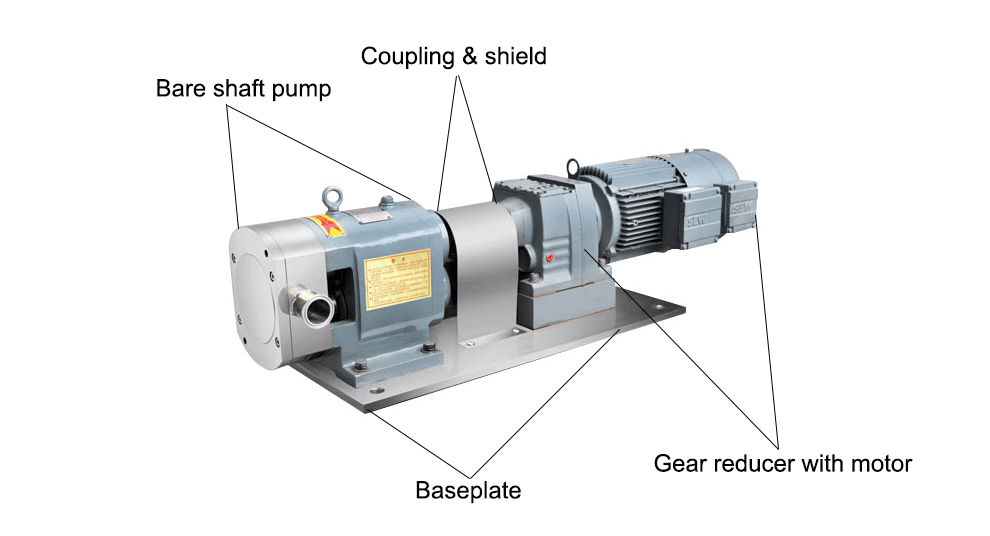

Pump
main structure
Pump
structure advantage
How
our pump help your production?
· Ability to pump abrasive media
Non-contacting pump head design enhances the pump's ability to handle abrasive crystalline slurries, whilst minimising product damage
and raise production
· Cost effective easy maintenance
Low running and maintenance costs and easy accesstopump head minimising downtime, results in a reduced life cycle cost.
· Low energy consumption
Lower power requirements than other pump technologies.
· Compactdesign
Occupies considerably less floor space than other pump technologies.
Who
used our pumps?
Pump main technical parameters
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia.
of inlet
and
outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
|
150BV6 /12-120
|
11.56
|
20-420
|
120
|
0.1-1.2
|
22-90
|
-0.095
|
150
|
|
150BV6 /12-150
|
14.22
|
20-420
|
150
|
0.1-1.2
|
37-110
|
-0.095
|
150
|
|
200BV6 /12-200
|
18.10
|
20-420
|
200
|
0.1-1.2
|
45-132
|
-0.095
|
200
|
|
250BV6 /12-250
|
22.92
|
20-420
|
250
|
0.1-1.2
|
55-160
|
-0.095
|
250
|
|
300BV6 /12-300
|
32.00
|
20-420
|
300
|
0.1-1.2
|
75-200
|
-0.095
|
300
|
How
to choose our pump?
|
Selection Guideline
|
|
Liquid
name:___________
|
|
Viscosity:_______ cp Density:_______ Temperature:_____ ℃ PH
value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Connection type required: Thread[ ] Clamp[ ]
|
|
Installation type: Fixed [ ] Movable[ ]
|
|
Voltage:____ V Frequency: _____Hz
|
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ]
|
|
Special
request_____________________________________
|
|
Order qty.
|
Thanks
for your interest into our rotary lobe pump, hope we can solve your pumping
problem during your sugar application. Contact our sales engineer - Mr. Andre
Chen for a pump solution.
