Rotary Type Electric Heating Small Flower Herbal Tea Drying Machine 6CHZ-9

DL-6CHZ-9 small flower tea drying machine has 16 layers drying plates, the diameter of each plate is 90cm, and the total drying area is 8.7m².


  • Efficiency110 kg/h
  • Drying layer16
  • Total drying area8.7 m2
  • Rotary typeRound
  • Rotary speed6 rpm
  • Total power/Group13.5kw / 3 group
  • Heating elementElectric heating wire
  • Voltage380/50 V/Hz

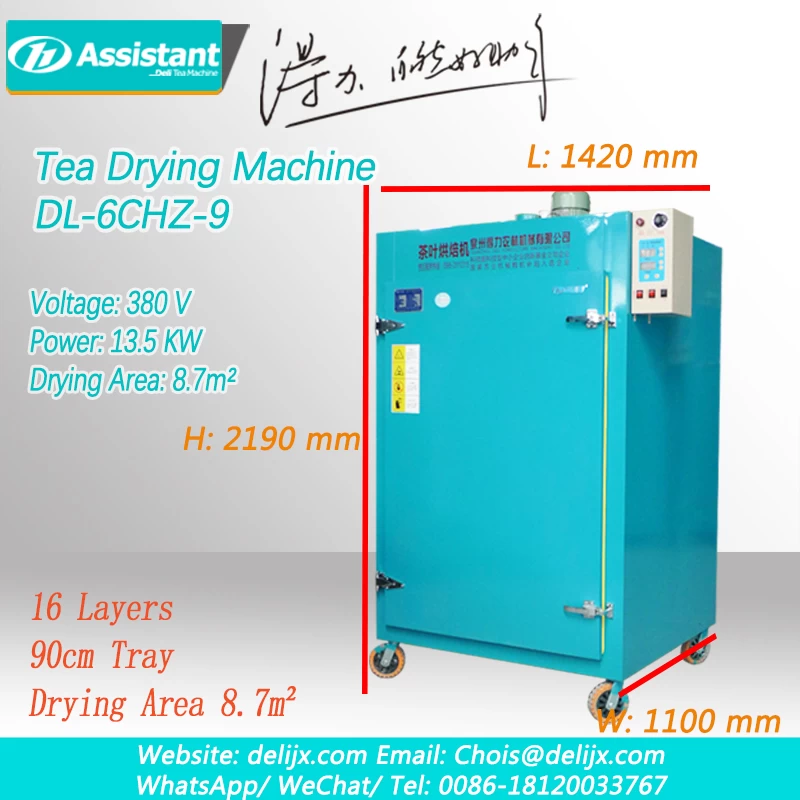

  • Dimension1420×1100×2190 mm

Description:
Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, herbal tea, flower tea and so on.


For herbal tea: Evaporate water, tighten flowers and plants, and keep the original color and original aroma


For fermented tea such as black tea: the activity of the enzyme is destroyed by high temperature, the enzymatic oxidation is interrupted, and the quality of the tea is maintained.

Evaporate the water in the tea leaves, so that the tea leaves are fully dried, divergent to remove the grassy taste, and enhance the aroma of the tea leaves.


For non-fermented tea such as green tea: evaporate water, tighten the tea, make the tea fully dry, divergent to remove the grassy taste, enhance the aroma of the tea.

Parameter:
DL-6CHZ-9 small flower tea leaf drying machine specification:

Model DL-6CHZ-9
Dimension 1410×1100×2190 mm
Voltage 380/50 V/Hz
Heating element Electric heating wire
Total heating power 13.5 kw
Heating element group 3 Group
Fan motor Power 0.55 KW
Speed 1400 rpm
Rated voltage 380 V
Pallet rotary motor Power 40 W
Speed 1250 rpm
Rated voltage 220 V
Pallet rotary speed 6 rpm
Pallet type Round
Drying pallet diameter 90 cm
Effective drying area 8.7 m2
Number of drying pallet 16
Efficiency 110 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Deatails:

DL-6CHZ-9 tea drying machine decomposition diagram:

Rotary Type Electric Heating Small Flower Herbal Tea Drying Machine 6CHZ-9

Exhaust vent

Hinge

Door

Nylon wheel

Drive motor

Electric control panel

Tank body

Sealing strip

Open Handle

Advantage:

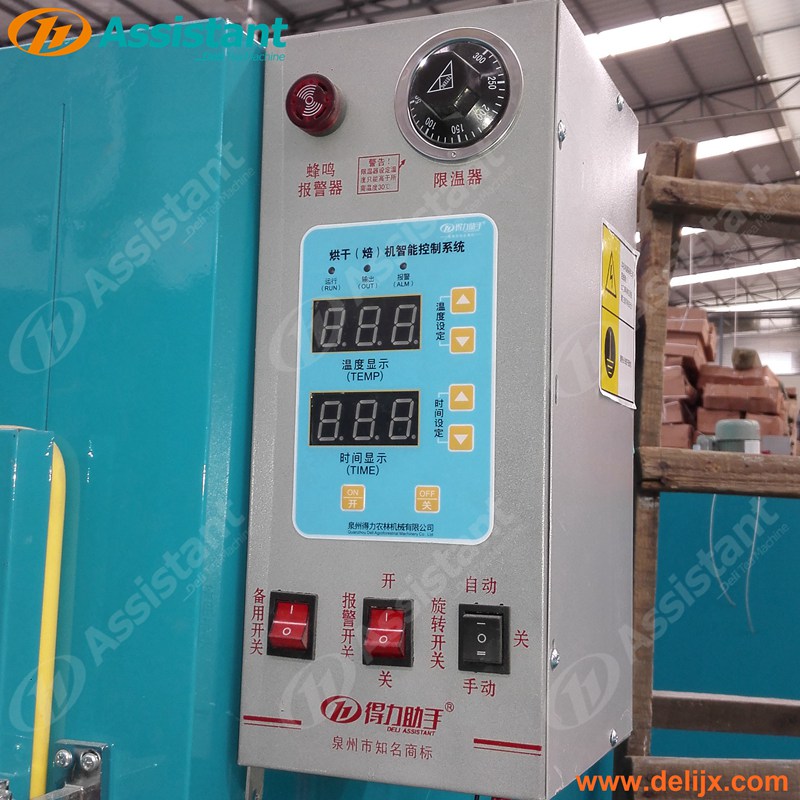

Intelligent temperature and time control system

Add mechanical temperature limiting module to ensure precise temperature control.
Rotary Type Electric Heating Small Flower Herbal Tea Drying Machine 6CHZ-9

1. The design of the wind tunnel has got the national patent, which makes the heat more uniform, the drying is more efficient and the noise is lower.

2. Copper core motor is used to ensure smooth operation of the machine, ensure heat transfer and moisture vapor emission.

3. The metal plate inside the machine is coated with special coating, which reflects the heat inside the machine. The heat loss is small and the drying speed is faster.

4. The whole tea drying equipment adopts modular design, and after-sales service is more convenient.

5. Tea drying machine using rotary drying design, the tea is heated more evenly and has better quality.

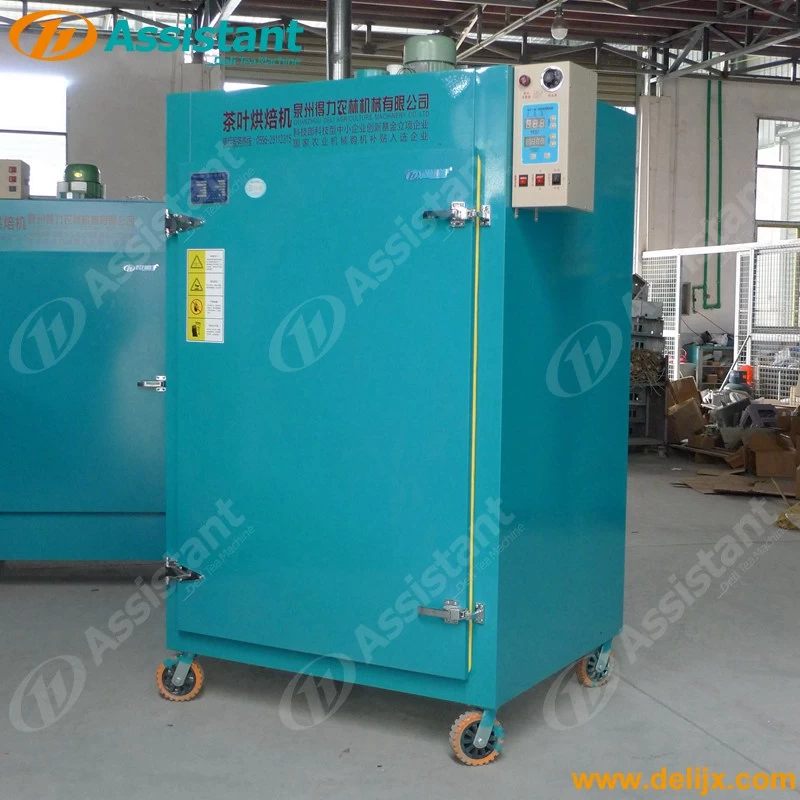

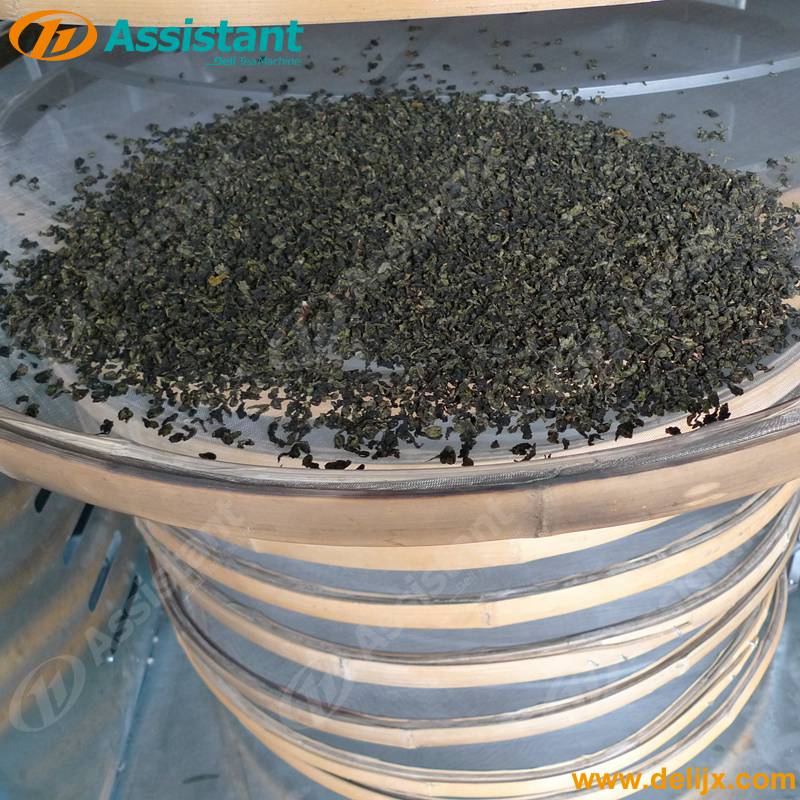

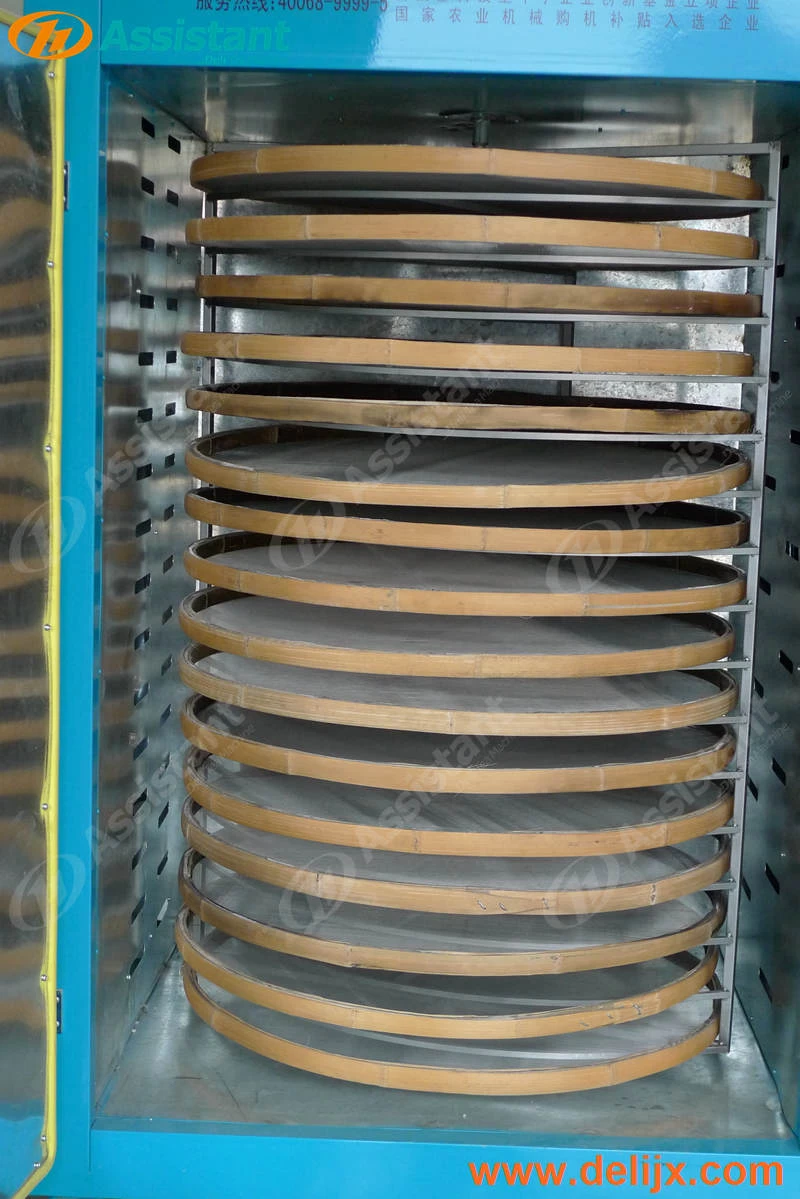

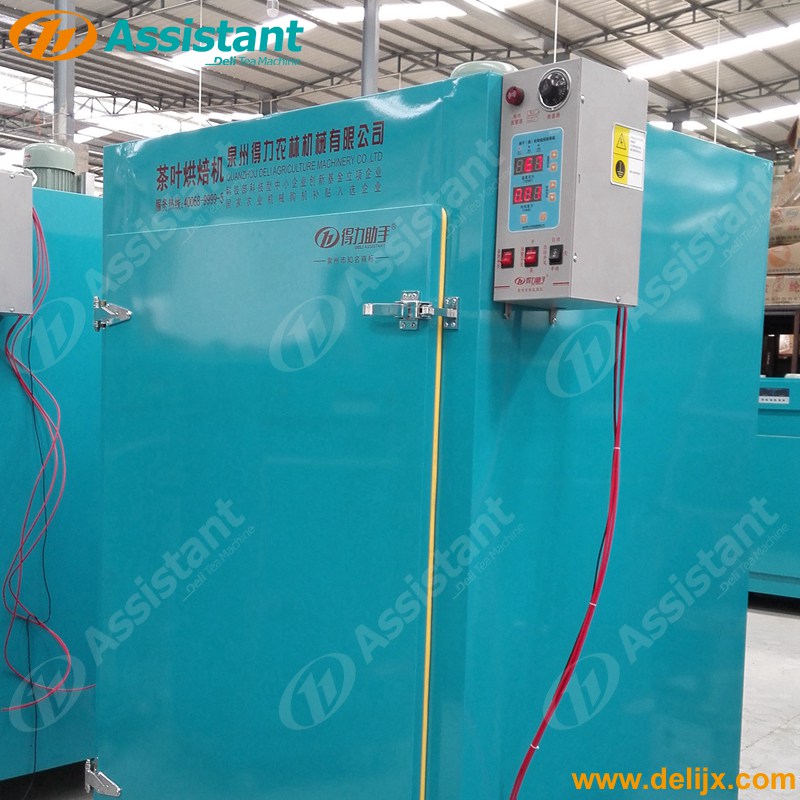

DL-6CHZ-9 small flower tea leaf drying machine photos:

Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
Flower/Green/Black/Herbal Tea Leaf Drying Machine Small Tea Leaves Dryer Machine China Factory 6CZH-9
