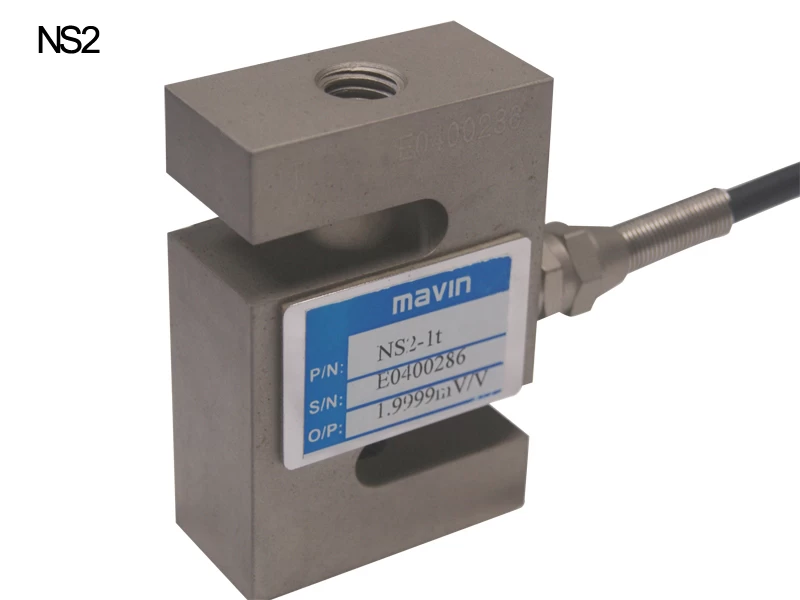

S Type Load Cell 1-2t for Crane Scale NS2

NS2 S Type Load Cell is applied with "S" appearance, high accuracy, good stability and made of best alloy steel. This force transducer is suitable for crane scale, hopper scale, hock balance, burden balance, building machinery fields and so on.


  • Protection ClassIP67 / IP68
  • Rated Output2.0 or 3.0mV/V
  • Dimension76*50.8*29.5mm
  • MaterialSteel Alloy
  • Capacities1-2t

Alloy steel S type Load Cell NS2 (1-2T)

NS2 S Type Load Cell is applied with "S" appearance, high accuracy, good stability and made of best alloy steel. This force transducer is suitable for crane scale, hopper scale, hock balance, burden balance, building machinery fields and so on.


Key Features

Good stability

Alloy steel construction with nickel plated treatment
Capacity: 1-2T

Easy to install, stable & reliable


Usage & Applications
Hopper scales
Crane scales

Tension control and machine testing

Batching systems, blending & mixing systems, belt scales,etc

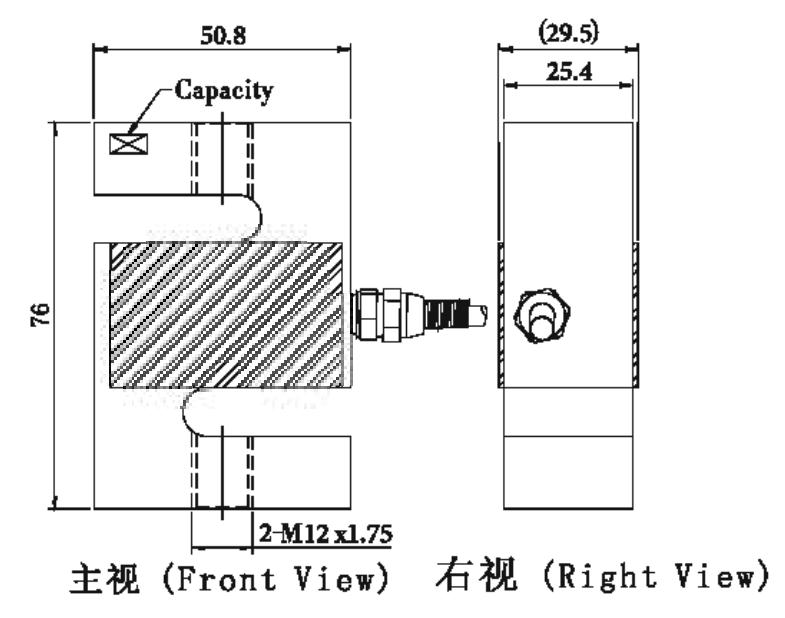

Dimension

S type NS2

NS2 Specification

Rated Capacities

11.52 (t)

Rated Output

2.0 mV/V±0.25%3.0 mV/V±0.25%

Zero Balance

±0.0200 mV/V

Non-linearity

0.03 %R.O.

Hysteresis

0.03 %R.O.

Repeatability

0.03 %R.O.

30mins Creep

0.03 %R.O.

30mins Return

0.03 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

390±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Steel Alloy

Protection Class

IP67 / IP68

Cable

φ5×3 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
