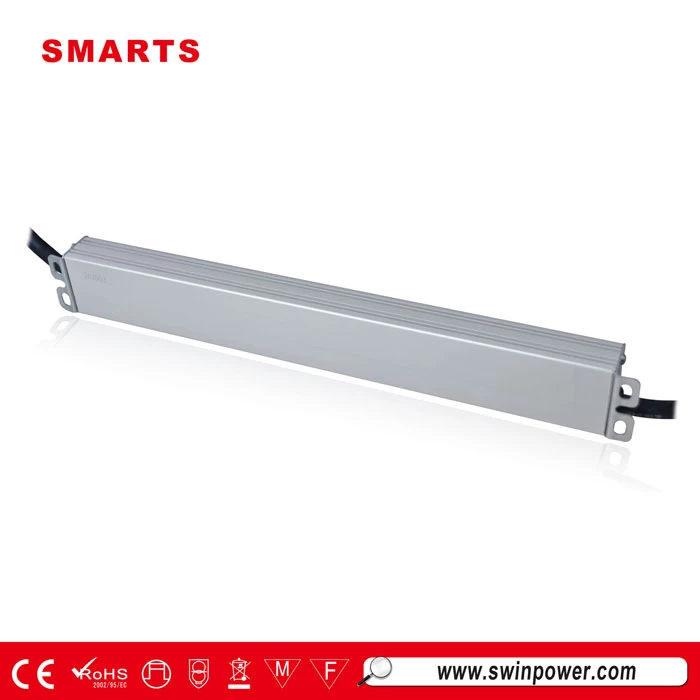

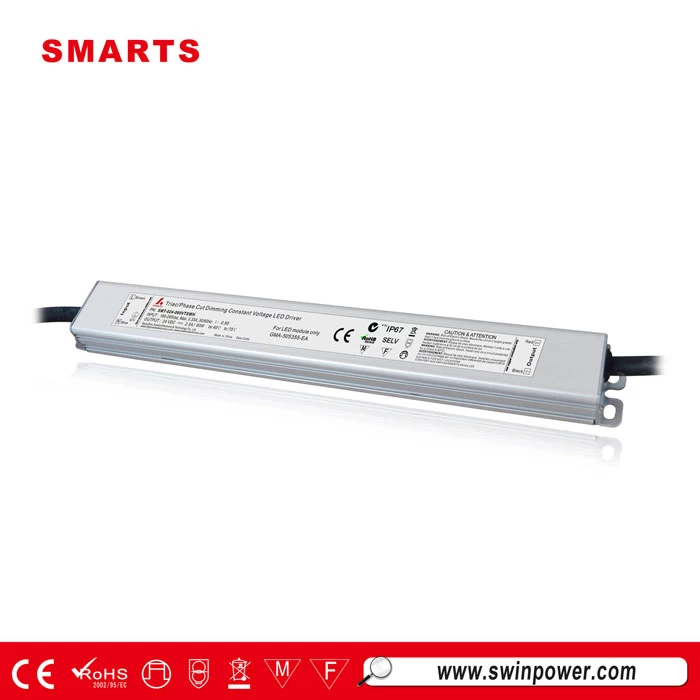

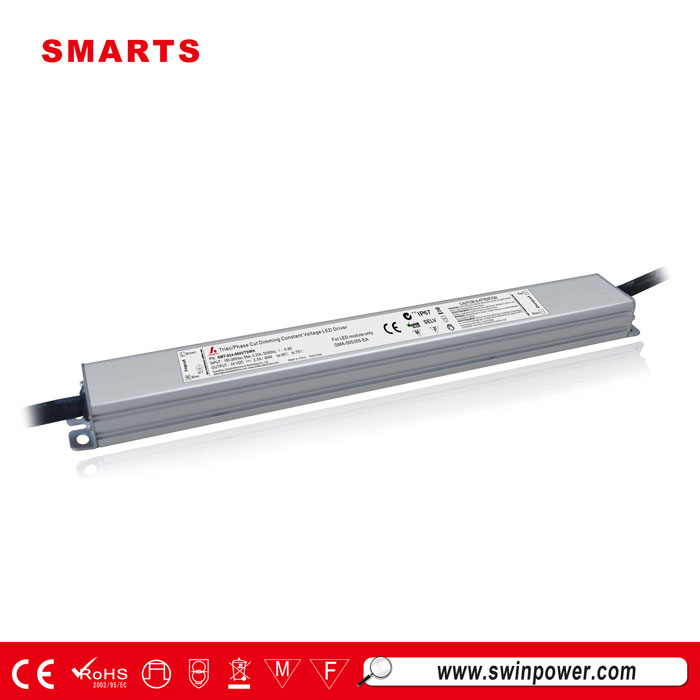

SAA Slim size triac dimmable 24v 60w led driver for led panel light
A series of slim shape triac dimmable led driver divide 12v triac dimmable constant voltage led driver & 24v triac dimmable constant voltage led driver. Our 24v 60w slim type triac dimmable constant voltage led driver are 7 years warranty
Specification
|
model
|
SMT-012-060VTSWH
|
SMT-024-060VTSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≥0.99/200V ; PF≥0.98/240V
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>84%
|
|
AC Current(Typ.)
|
0.5A/200VAC / 0.13A/240VAC
|
|
Inrush Current(Typ.)
|
6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC
|
|
Leakage current
|
<0.74mA/200VAC; <0.25mA/240VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P: 2KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.45Kg
|
|
Size
|
300*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. can you please confirm lead time?
Answer: Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order. It depends on the quantities.
|

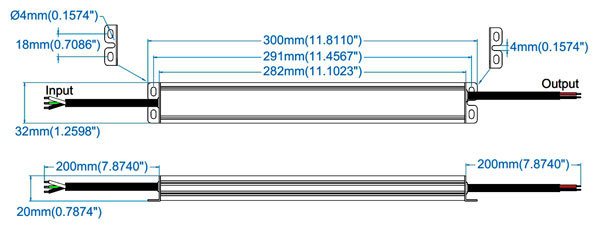

Mechanical Specification
Certifications
