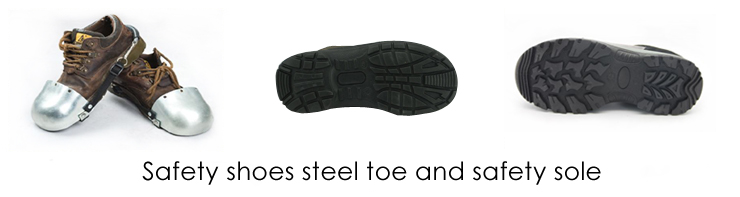

To determine the compression strength of safety shoe steel toecap

and resistance to puncture property for safety shoes’ sole.

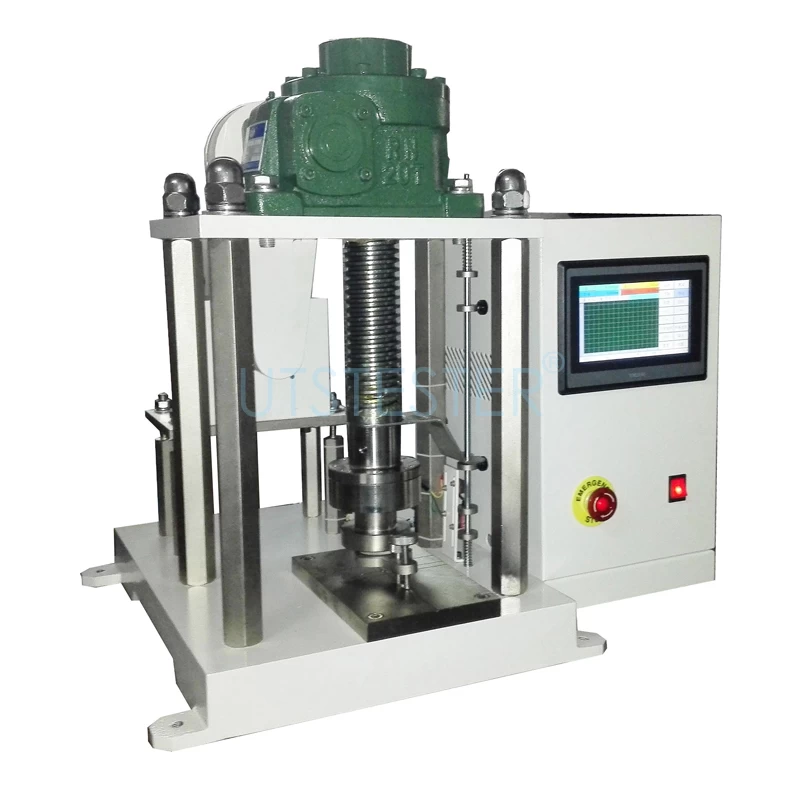

The steel head of the safety shoe is placed between the upper and

lower pressure plates, and then the specified pressure is applied to

detect the degree of sinking of the steel head so as to ensure the

safety of the toes when wearing.

EN ISO 20344 , EN12568 , EN 344-1 , EN 388

ASTM F2412 , ASTM F2413

ANSI Z41, LD50, AS/NZS2210.2

GB/T 20991 , GB/T 12017

BS-953

1. With the function of limit protection of mechanical beam.

2. The stress - strain, stress - time, intensity - time and other data

can be selected according to the requirements.

3. Potentiometer speed regulation, can be controlled quickly, realizing

the positioning function of various clamping displacement.

4. Adopt the famous brand load cell, repeatability error is 0.01%,

allowable temperature range - 20 ~ 70 ℃, 100% safety coefficient ,

120% ultimate overload.
