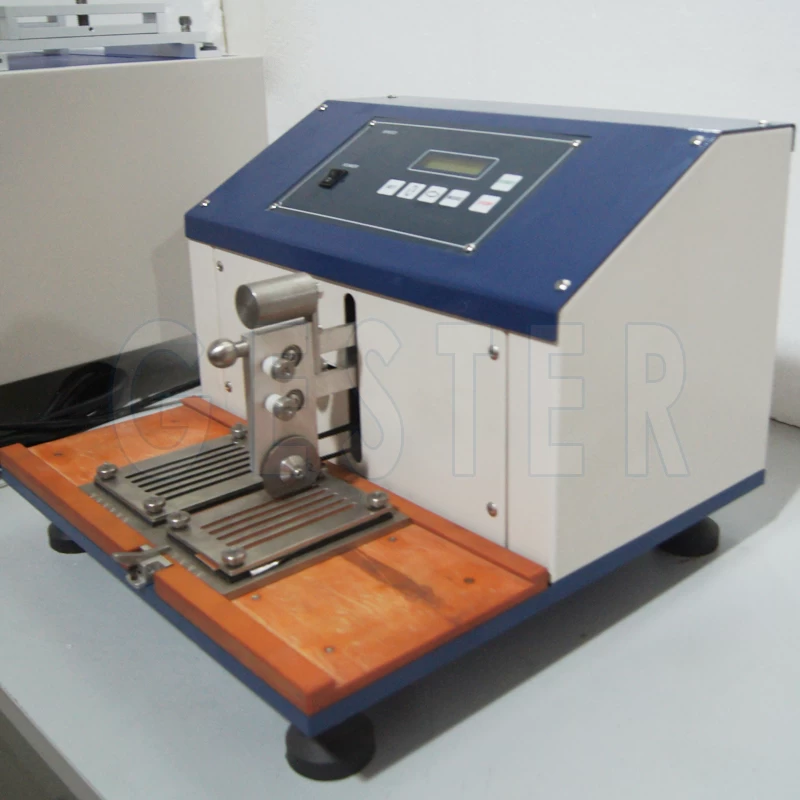

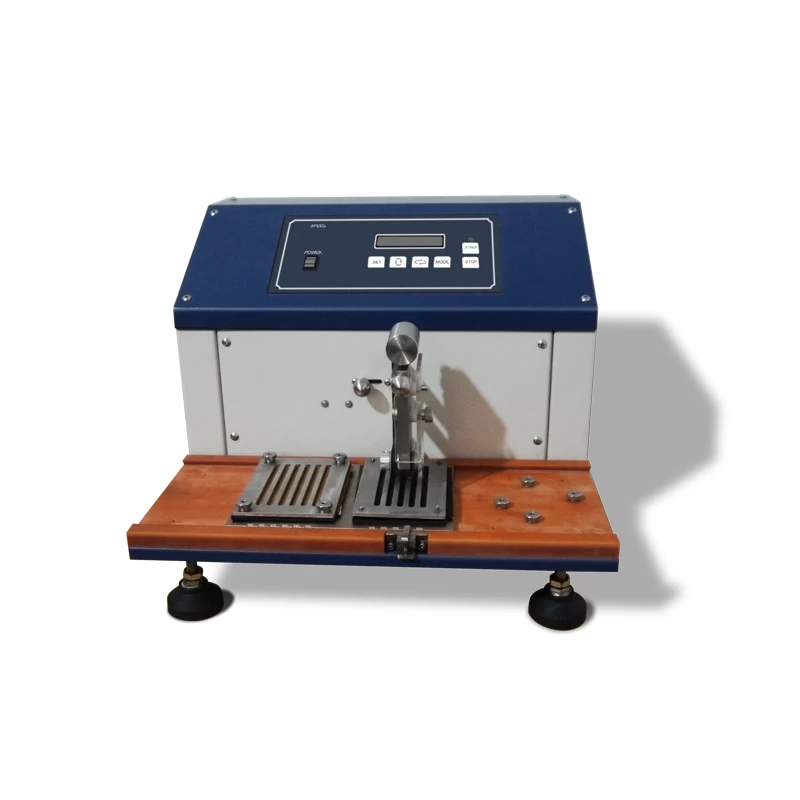

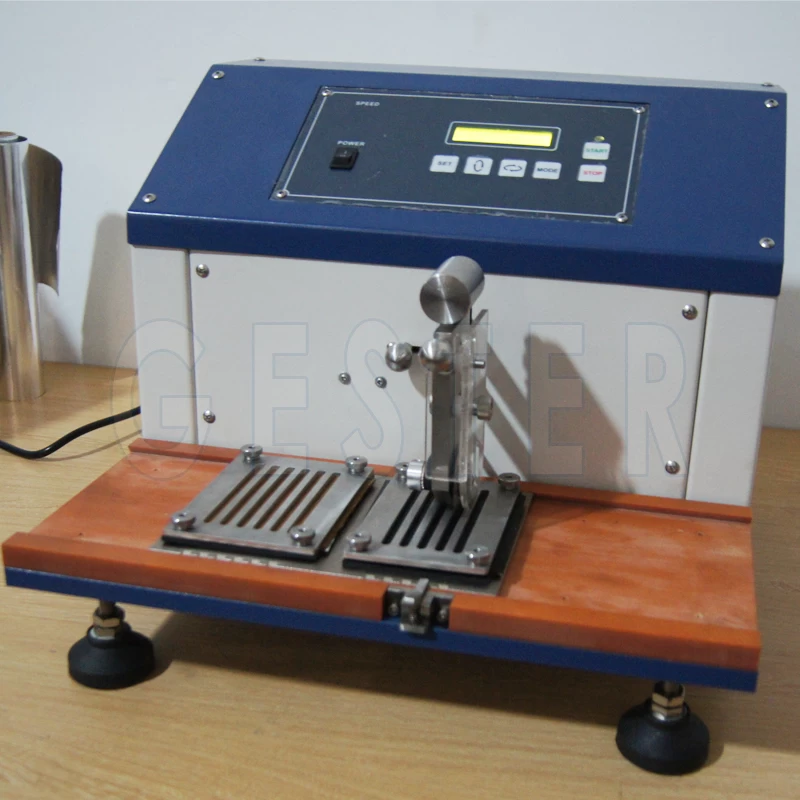

Safety Glove & Shoe Upper Cutting Tester GT-KC29

Cutting tester,Cutting test for shoe upper,Cutting test for safety glove This machine is used for safety glove protect area and shoe upper cutting testing, but it is not suitable for the glove made of hard materials.



Safety Glove & Shoe Upper Cutting Tester GT-KC29


Product Introduction

Application:

This Safety Glove Cutting Tester is used for safety glove protect area and shoe upper cutting testing, but it is not suitable for the glove made of hard materials.


Standards:

EN 388 section 6.2

ISO 20344 section 6.14

GB/T 20991 section 6.14

AS/NZS 2210.2 section 6.14

AQ 6102 section 4.3.2

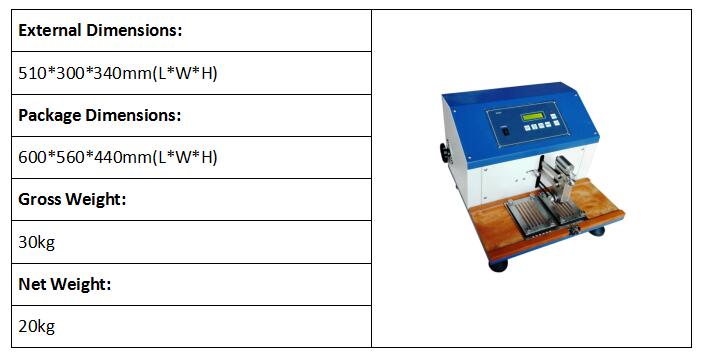

Dimensions
Safety Glove Cutting Tester

Principle

To cut the sample placed on the specified sample device by a spinning round cutter, make a reciprocating motion under a required loading, enclosed the auto-counted device, it has automatic shop function as soon as the testing over. To get the result by contrast the difference before and after the testing.


Key Specifications


Model

GT-KC29

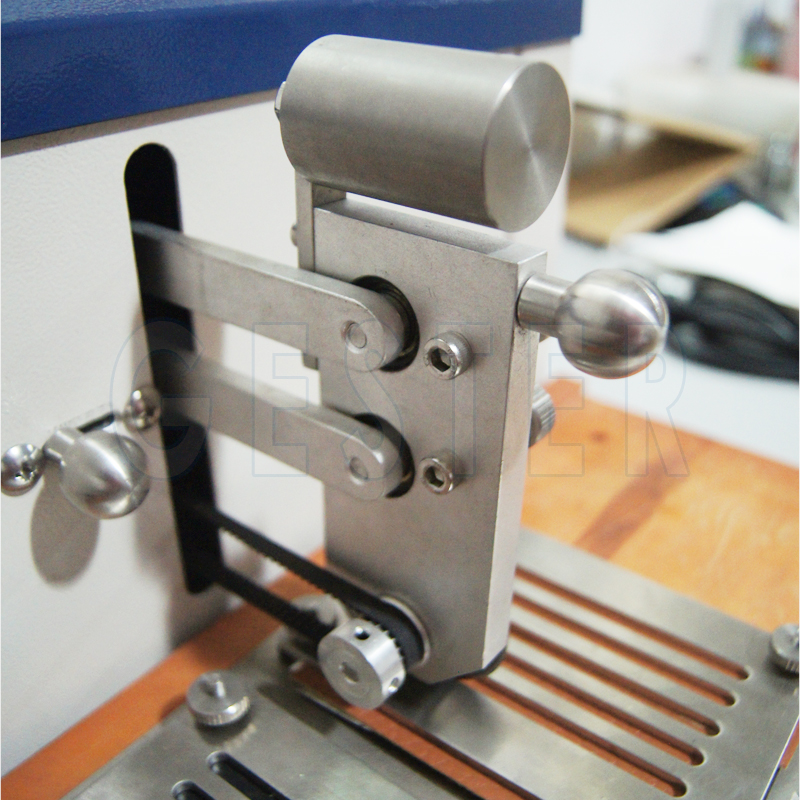

Circular blade

Diameter 45±0.5mm

Thickness 0.3mm

Cutting angle 30o ~35o

Stroke

50 mm

Load

5±0.05 N

Max. Cutting Speed

10 cm/s linear speed

Counter

LCD display, 0-99,999,999

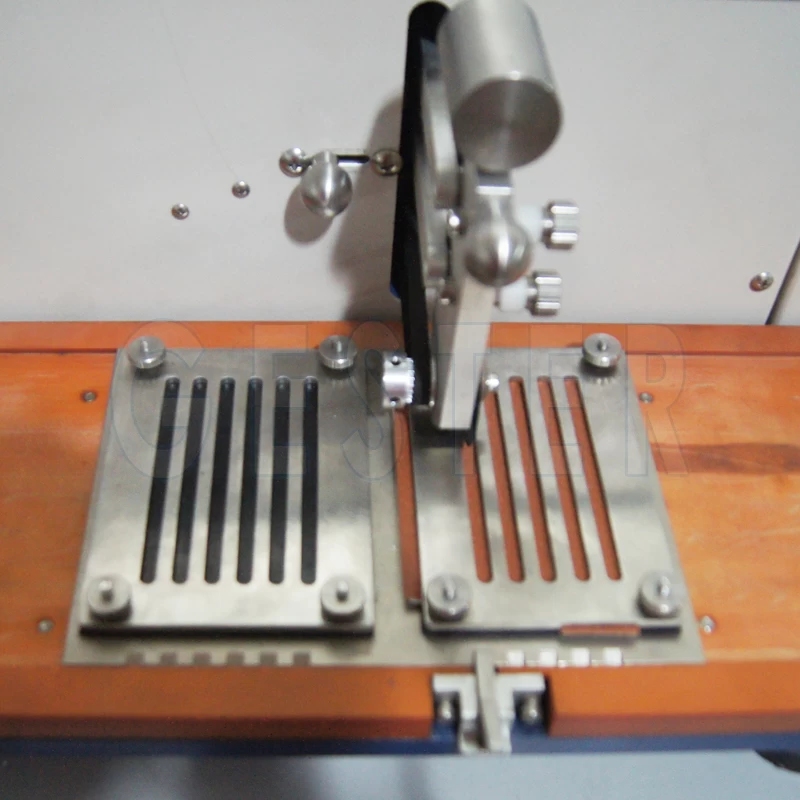

Specimen holder

2 sets

Power Supply

1∮AC 220V 50/60HZ

Dimension (W×D×H)

45×45×44cm

Weight

Approx 25kg

Accessories

Standard Accessories

2sets

Specimen holder

1pc

Circular blade

1roll

Aluminium Foil

1pc

Filter paper

1pc

Power line

Optional accessories

1meter

Canvas
