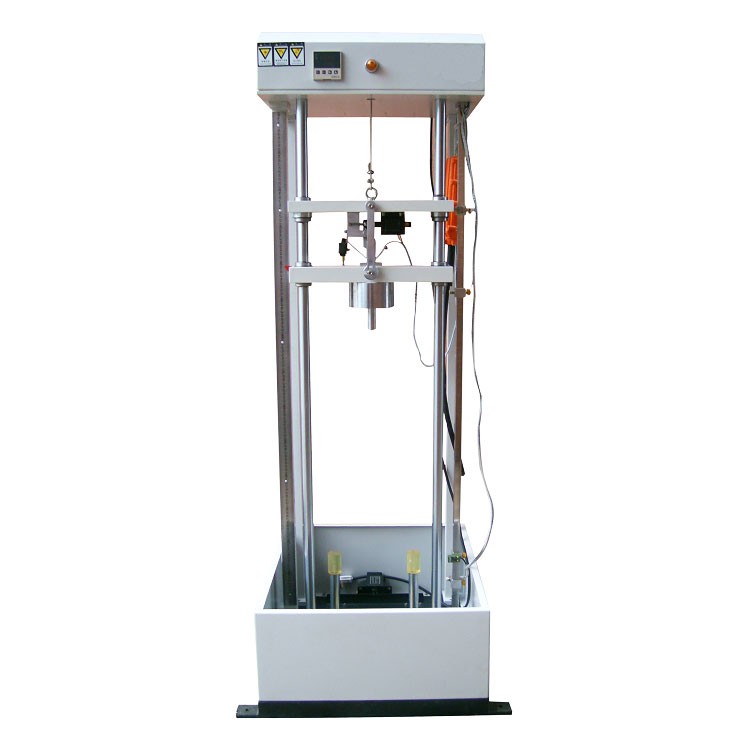

Safety Shoe Impact Tester

Safety Shoe Impact Tester is used to determine the impact resistance of safety shoes under specified conditions.

Standards

EN ISO 20344
AS/NZS 2210.2
CSA-Z195
ANSI-Z41
ASTM F2412
ASTM F2413, etc.

Parameters

Model AT-F3010
Impact striker EN 12568, ISO 20344
Mass of (20±0.2)kg, made of steel
Rockwell hardness: 60HRC
Wedge: at least 60mm long, at 40mm height
Corner radius R3mm
Angle: (90±1)°
ASTM F-2413  ANSI-2413
Mass of (22.7±0.23)kg, made of steel
Dia. 25.4mm, Length: 51mm
Cylinders of modelling clay EN 12568 Dia: (25±2)mm, height: (28±2)mm≤ size 5, Height: (30±2)mm ﹥size 5
ISO 20344 Dia: (25±2)mm, height: (20±2)mm≤ size 40, Height: (25±2)mm ﹥size 40
ANSI-Z41  Dia: 25.4mm
Impact height 0~1100mm adjustable
Impact energy 200J. 100J
Standard accessories Toecap clamp device  1set
Power line  1pc
Optional accessories Metatarsal protective test clamp device for ISO 20344-5.16
