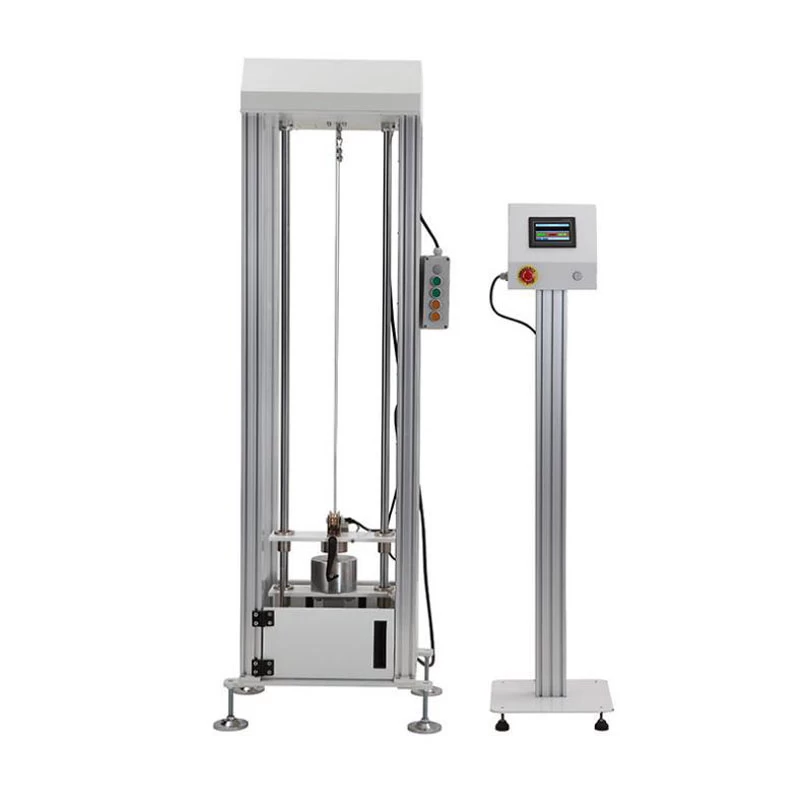

AF03 Safety Shoes Impact Tester
Application Of Safety Shoes Impact Tester
Safety Shoes Impact Tester is used to test the impact resistance of safety shoe. Heavy hammer at a certain height free fall to impact the steel head, then according to the degree of subsidence to check the quality of safety shoes.
Standards Of Safety Shoes Impact Tester
EN ISO 20344, ANSI-Z41, BS EN-344, CSA-Z195, LD50-1994, AS/NZS 2210.2, GB/T 20991, GB 4014-1983, BS-953, EN 12568, ASTM F2412, ASTM F2413-11, LD-50, CNS 6863-82, JIS-T8101:2000
Key Specification Of Safety Shoes Impact Tester
|
Model
|
AF03 Safety
Shoes Impact Tester
|
|
Impact hammer
|
20±0.2kg, 22.7±0.23kg, 5±0.1kg(optional)
|
|
Impact energy
|
10-200J(optional)
|
|
Impact height range
|
0-1100MM adjustable
|
|
Falling weight
|
20±0.2 kg ; 22.7±0.23 kg;5±0.1kg, option
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimensions
|
Main unit: 80x80x210 cm
Control cabinet: 27 cm ×27 cm ×115 cm
|
|
Weight
|
300kg
|
