This Saudi Arabia Isuzu FVR foam fire truck is a firefighting weapon designed to meet the special environmental needs of the region. It is equipped with a high-efficiency pump room system and an advanced control panel, which makes it easy and fast to operate and can respond quickly in emergency situations. The compact and sturdy body adapts to the complex and changing terrain and climatic conditions in Saudi Arabia. Whether it is a city street or the desert hinterland, it can flexibly shuttle and quickly reach the fire scene. Its 6 cubic meters of water and foam capacity is enough to cope with most fire scenarios, effectively extinguish flames, and protect people's lives and property.
● China best Isuzu foam water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu FVR 6CBM foam fire truck
|
|
Vehicle Parameters
|
|
General
|
Vehicle brand
|
POWERSTAR
|
|
Chassis brand
|
Isuzu
|
|
Overall dimension
|
8110*2540*3600mm
|
|
GVW/Curb weight
|
18000/11250kg
|
|
Max speed
|
105Km/h
|
|
Chassis Parameters
|
|

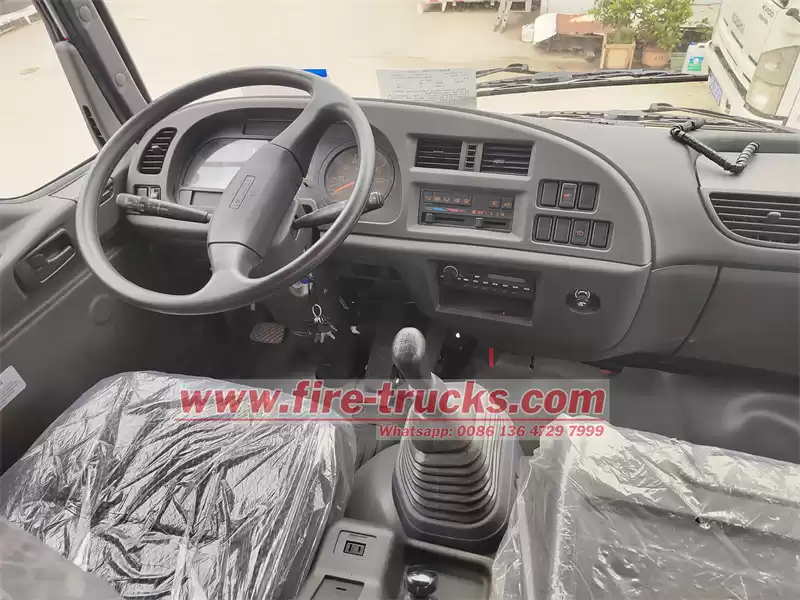

Cab
|

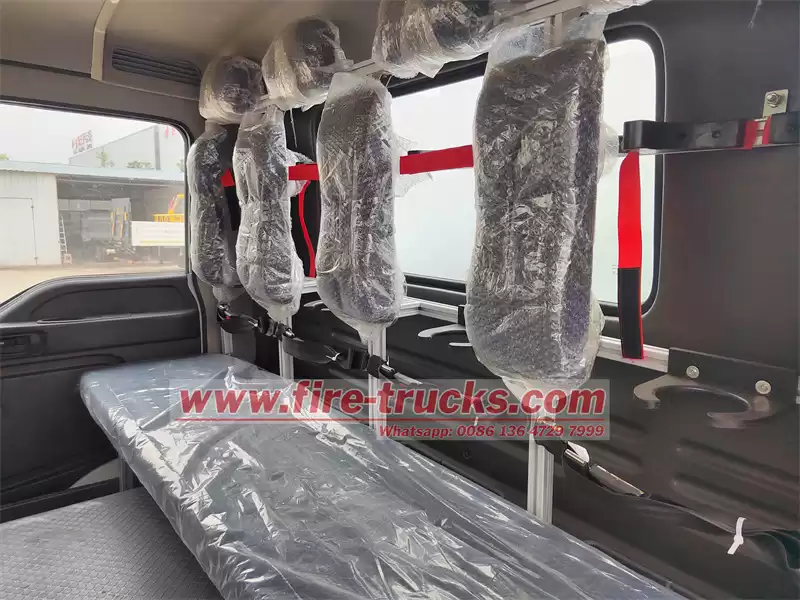

Seat capacity
|
2+4
|
|
A/C
|
Have
|
|
Engine
|
Fuel type
|
Diesel
|
|
Engine type
|
6 cylinder inline
|
|
Brand
|
Isuzu
|
|
Model
|
6HK1-TCG61
|
|
Power
|
240HP/177Kw
|
|
Displacement
|
7790ml
|
|
Emission standard
|
Euro 6
|
|
Chassis
|
Drive type
|
4x2,LHD
|
|
Wheelbase
|
4500mm
|
|
Axle loading
|
6500/11500kg
|
|
Front/rear overhang
|
1335/2275mm
|
|
Gearbox
|
FAST 8-shift,manual
|
|
Tire specifications
|
295/80R22.5
|
|
Tire No.
|
6+1
|
|
Structure Parameters
|
|
Tank
|
Capacity
|
5cbm water tank
|
|
1cbm foam tank
|
|
Material
|
Carbon steel water tank(Anticorrosion treatment)
|
|
304 stainless steel
|
|
Fire pump
|
Model
|
CB10/40
|
|
Pressure
|
1MPa
|
|
Max work pressure
|
1.144MPa
|
|
Flow
|
40L/s
|
|
Fire monitor
|
Model
|
PL8/32
|
|
Pressure
|
0.8MPa
|
|
Flow
|
32L/s
|
|
Range
|
Water≥60m
|
|
Foam≥48m
|
|
Pitch rotation
|
-45～+70°
|
|
Horizontal rotation
|
360°
|
|
Suction Head
|
7m
|
|
Fire Accessories
|
Suction hose, water strainer, water segregator, water collector fire hose, hose patch, hose bridge, hydrant wrench, fire gun portable fire extinguisher, fire axe, 30m medium pressure fire hose reel etc.
|

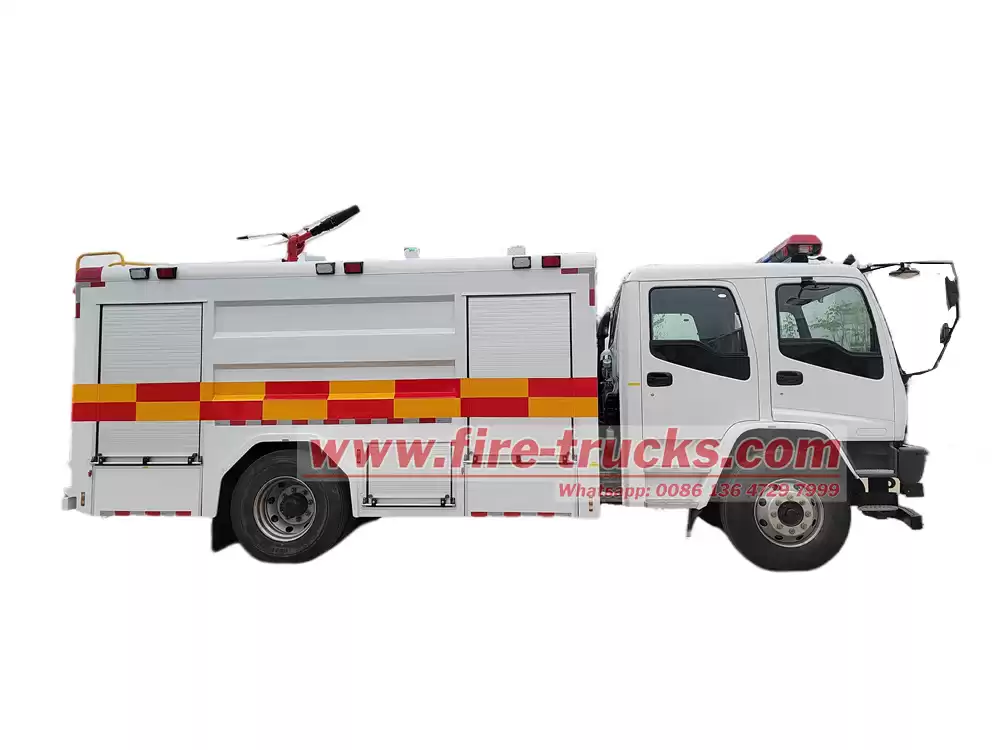

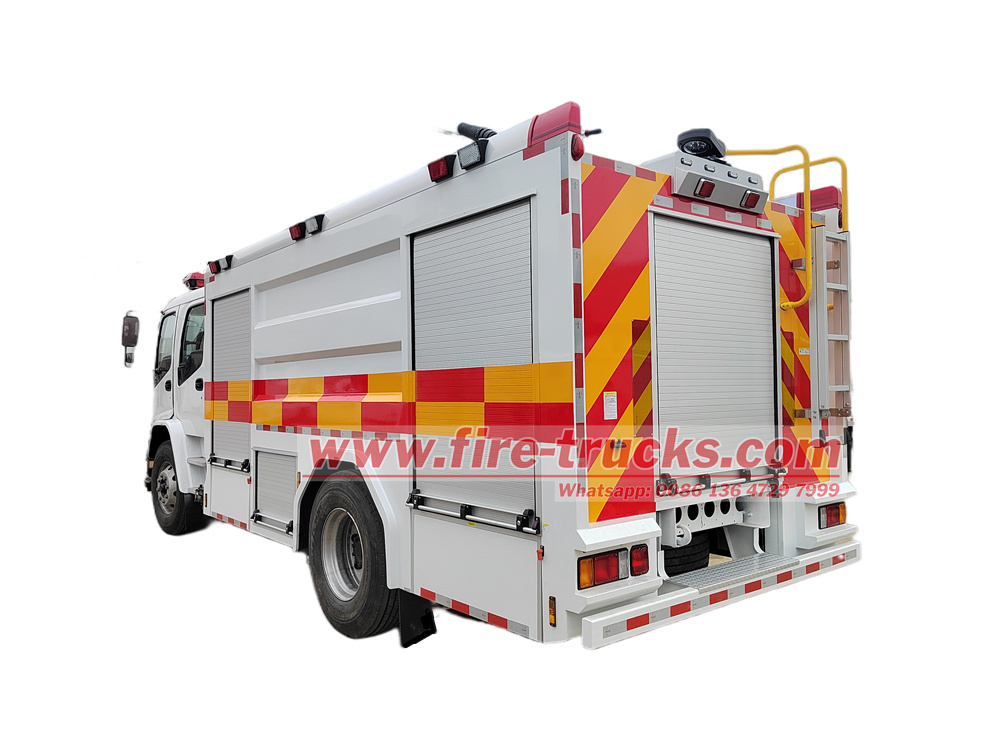

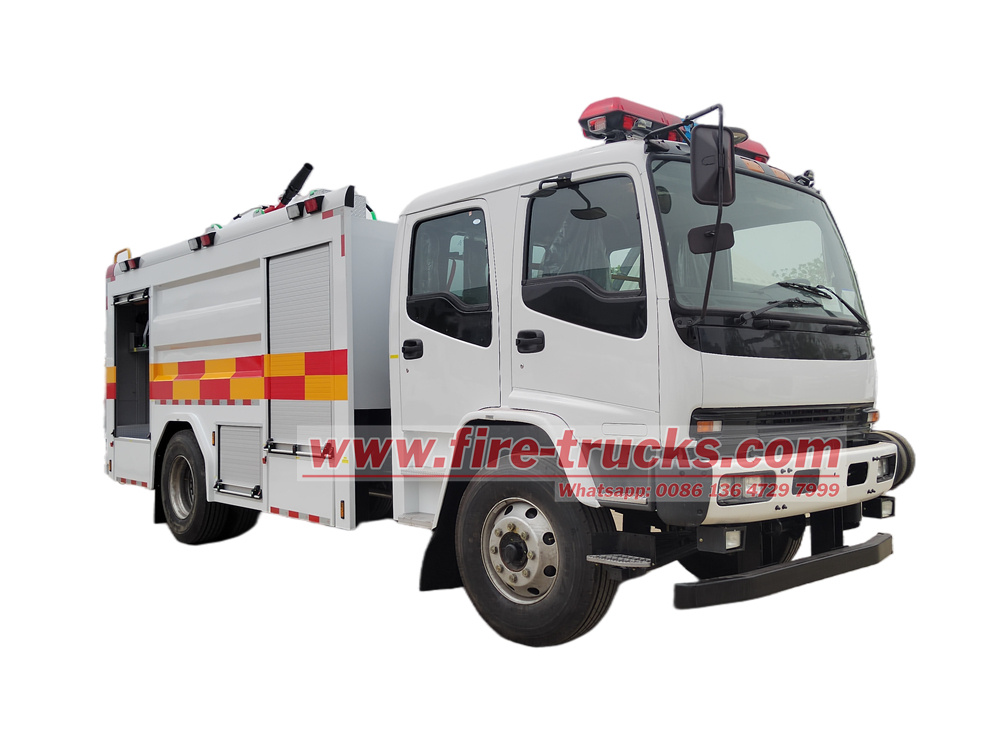

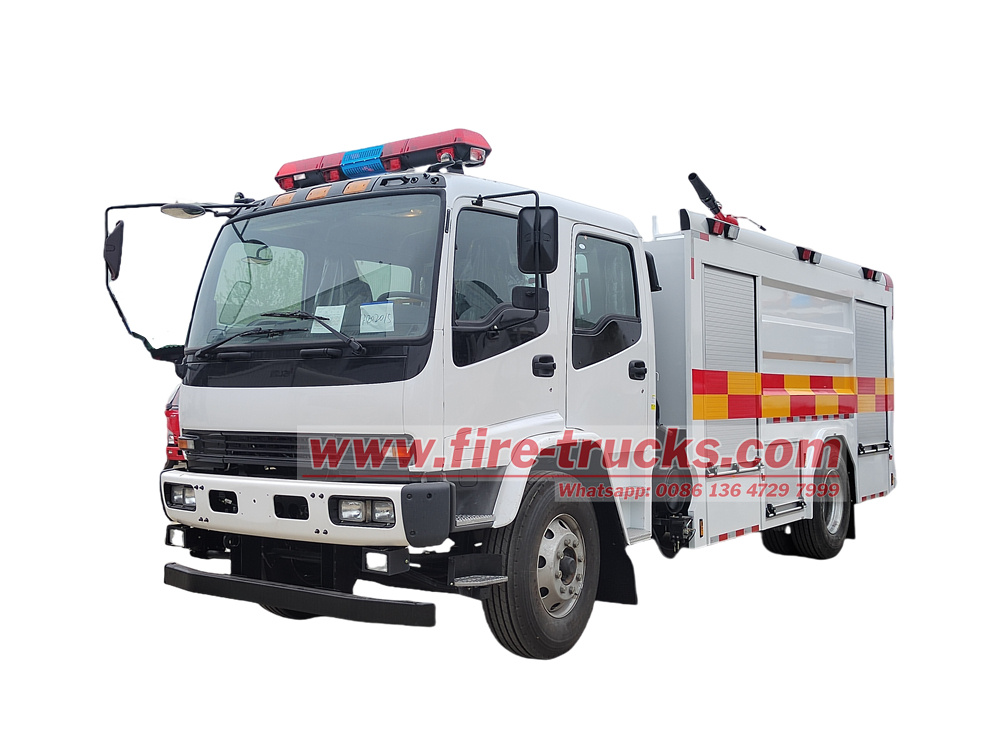

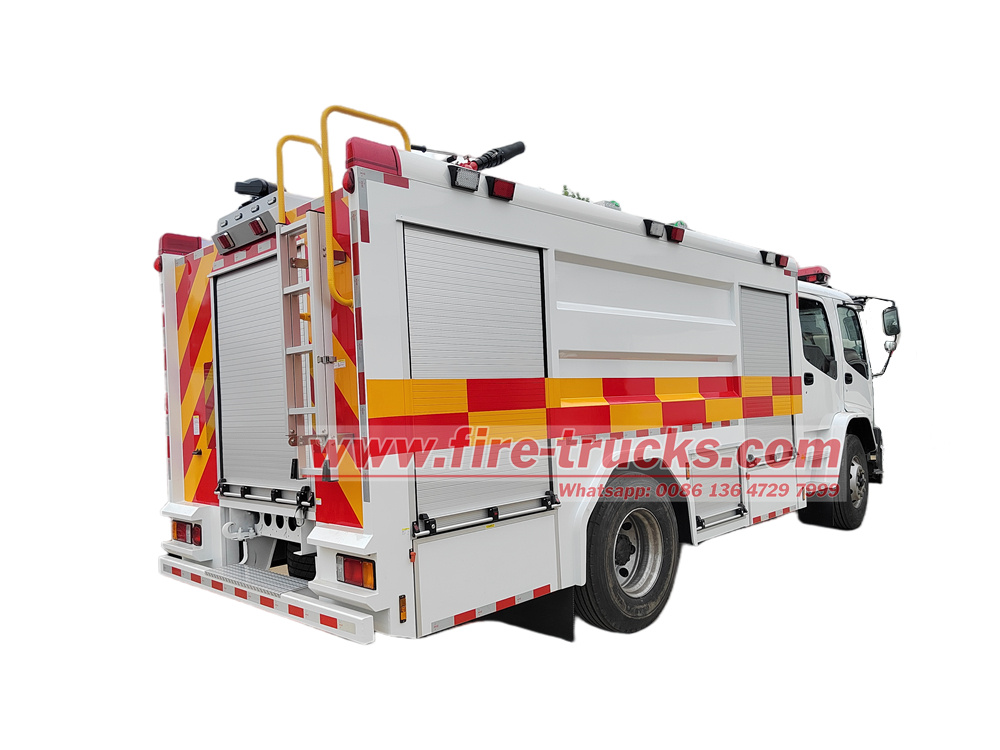

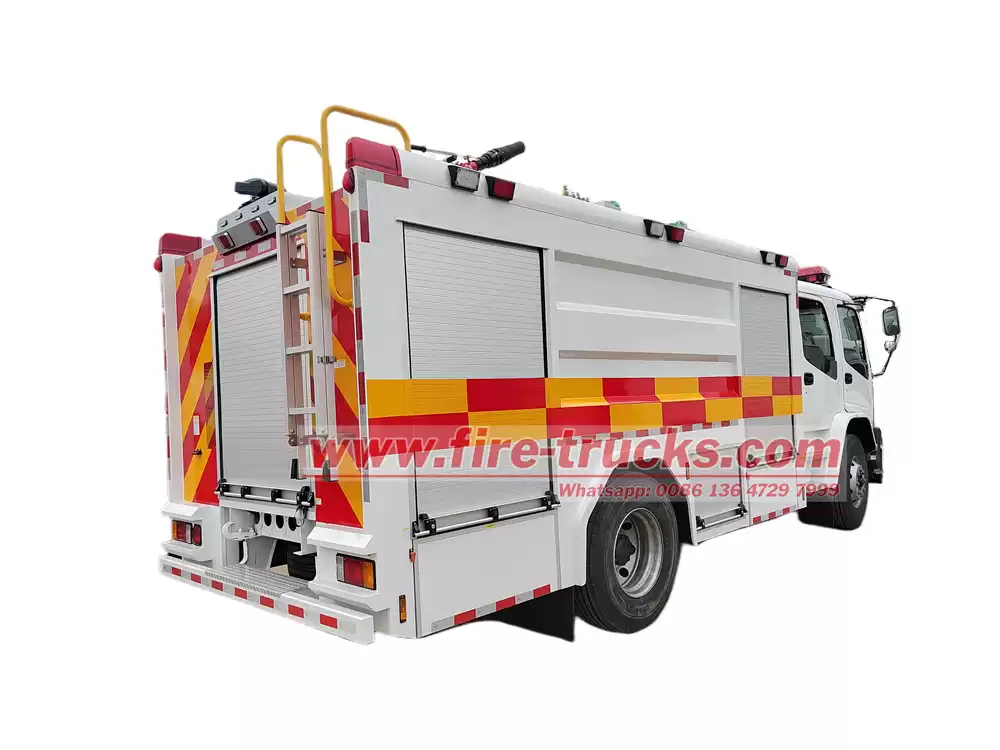

The Saudi Arabia Isuzu FVR 6cbm foam fire truck is a robust and reliable fire-fighting vehicle designed to meet the demanding needs of emergency services. It is built on the classic Isuzu FVR half-row cab chassis, known for its durability and performance.
Chassis and Performance:
Chassis Model: Isuzu FVR half-row cab
Wheelbase: 4500mm, providing stability and maneuverability in various terrains.
Maximum Speed: 105Km/h, ensuring rapid response to emergencies.
Engine: Equipped with the powerful Isuzu 6HK1-TCG61 240HP diesel engine, known for its fuel efficiency and reliability.
Transmission: FAST 8-speed gearbox, offering smooth and efficient shifting.
Fire-Fighting Equipment:
Water Tank: A 5-ton carbon steel water tank, treated with anticorrosion materials to ensure longevity and resistance to harsh environments.
Foam Tank: A 1-ton 304 stainless steel foam tank, providing corrosion resistance and durability.
Front Equipment Compartment: Features a through-compartment design with aluminum alloy equipment racks, maximizing storage space and organization.

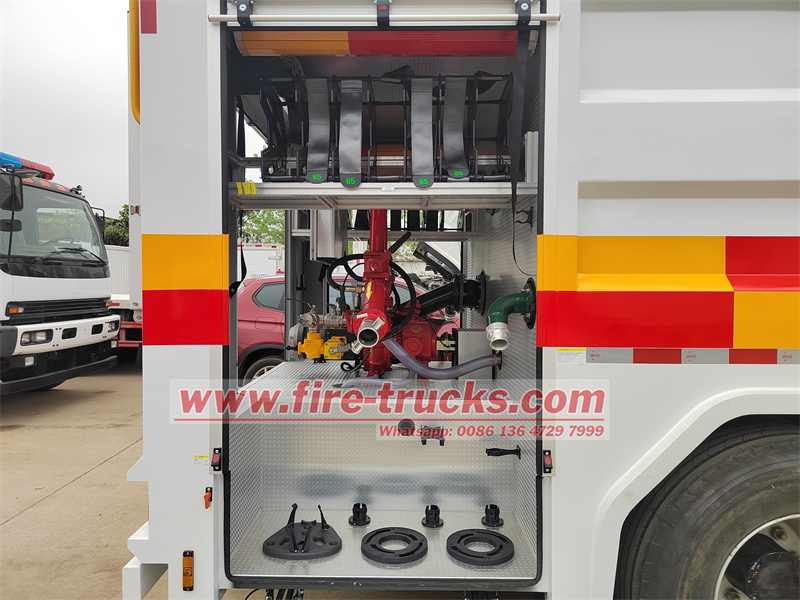

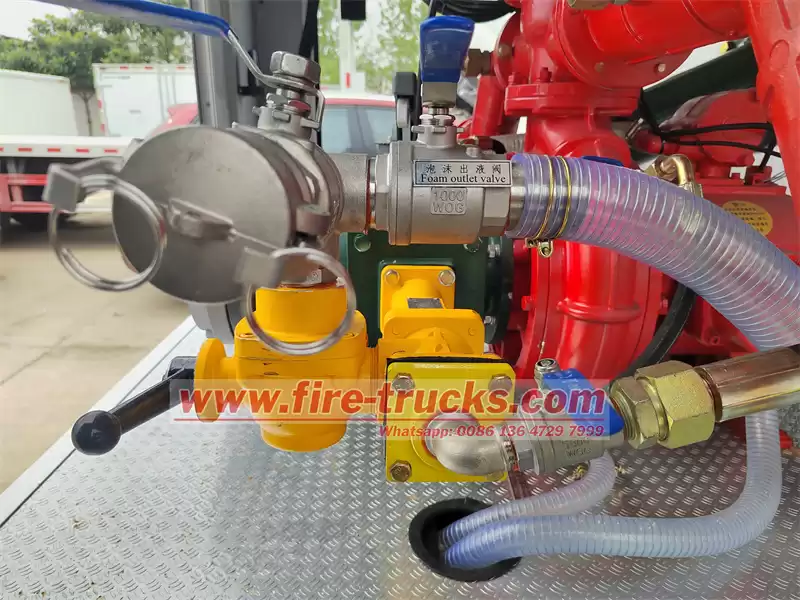

Pump Room: Located at the rear, equipped with the CB10/40 low-pressure fire pump, ensuring efficient water and foam delivery.

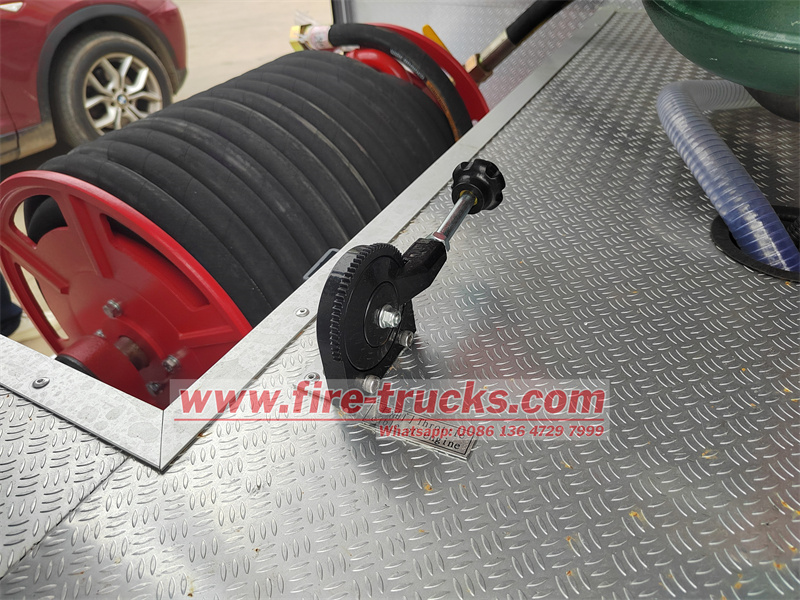

Hose Reel: Includes a 30-meter medium-pressure hose reel for versatile fire-fighting capabilities.
Exterior Features:

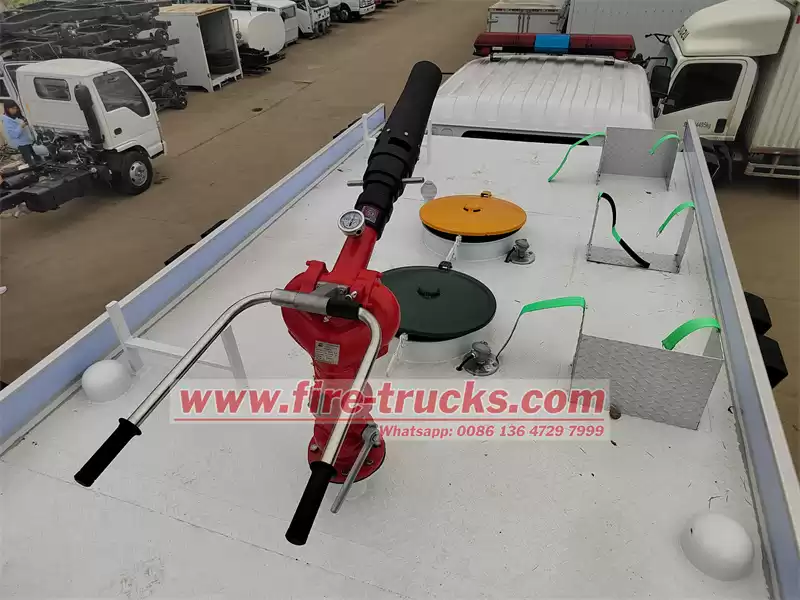

Roof-Mounted Fire Monitor: Equipped with the PL8/32 fire monitor, providing precise control and reach in fire-fighting operations.

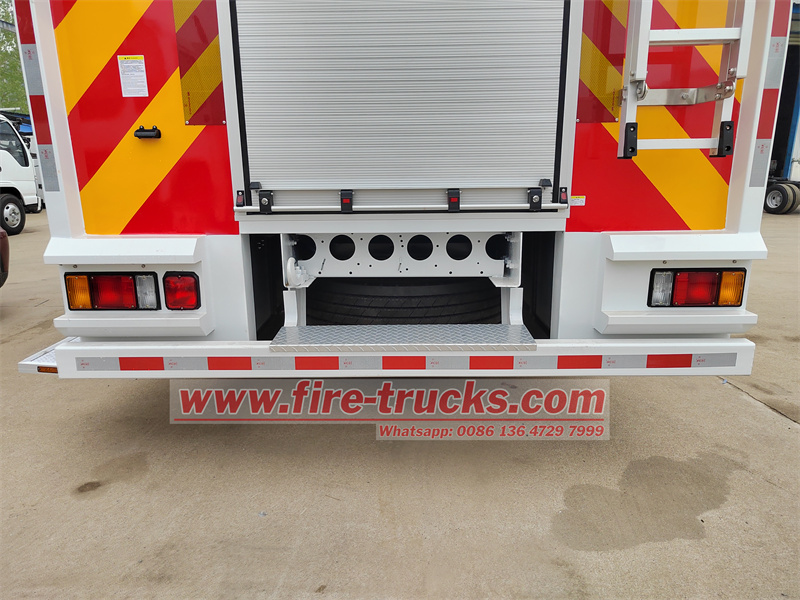

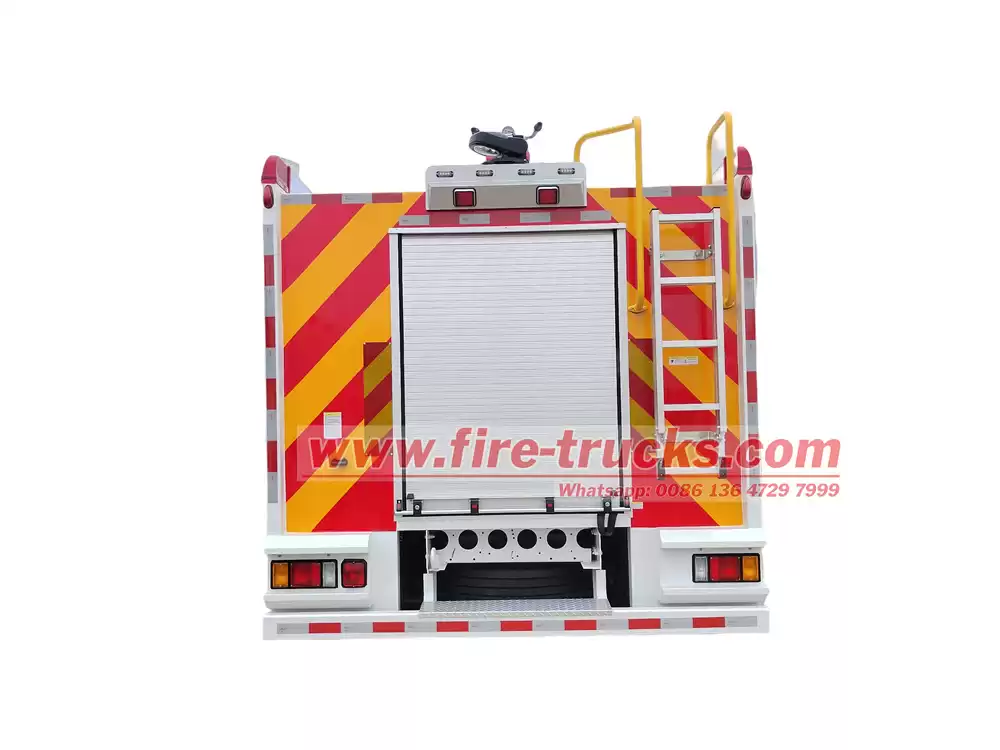

Lighting and Warnings: Features red warning lights, full red flashing lights, and a 360-degree rotating light at the rear for enhanced visibility and safety during emergencies.
Detachable Components: The warning lights, fire monitor, and ladder are detachable, allowing for easy maintenance and customization.

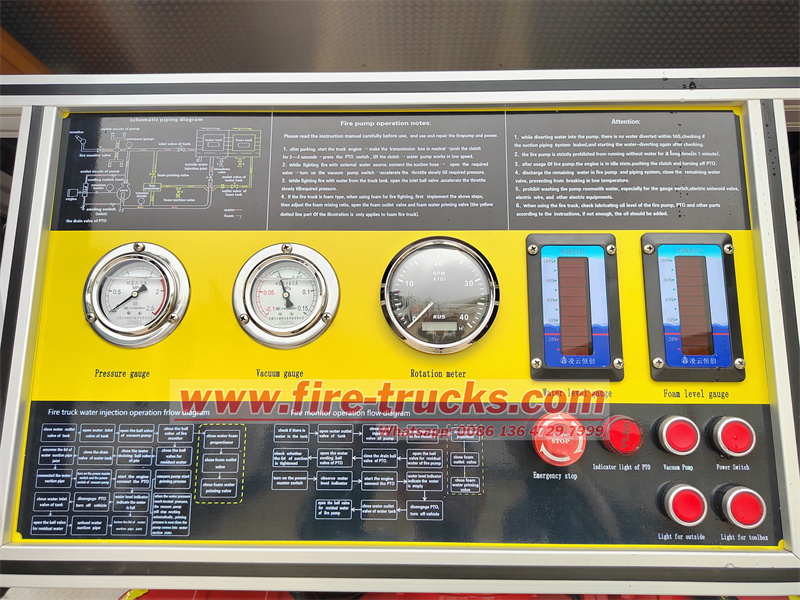

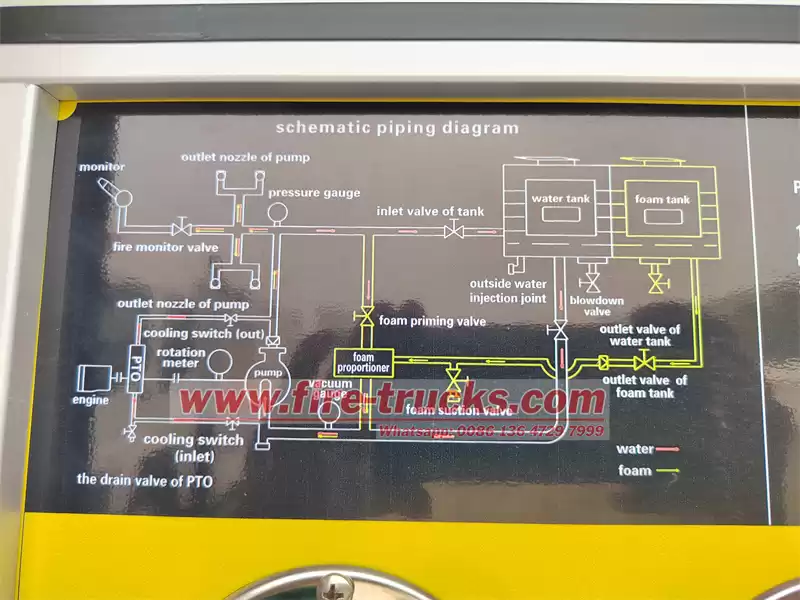

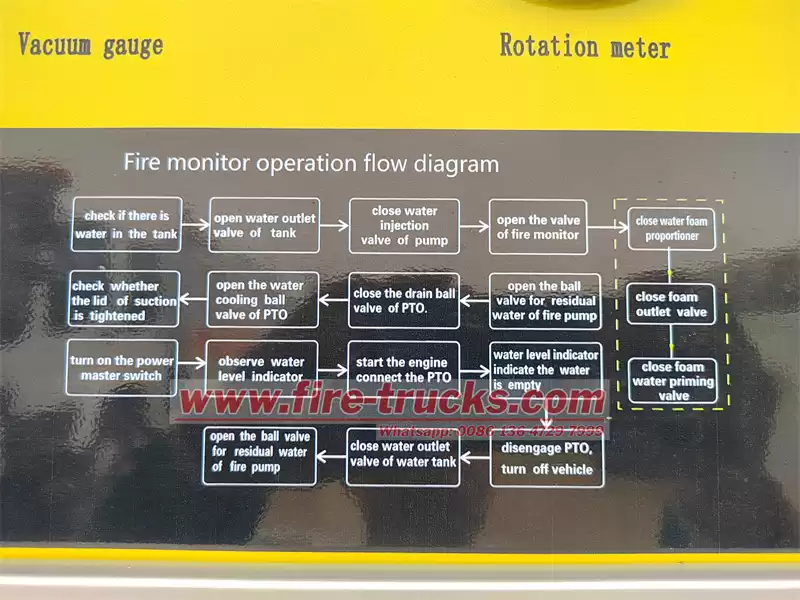

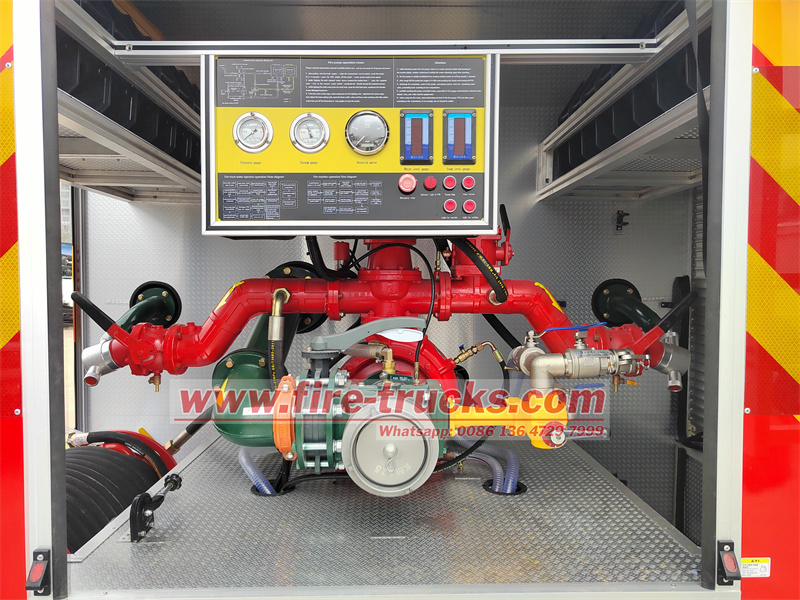

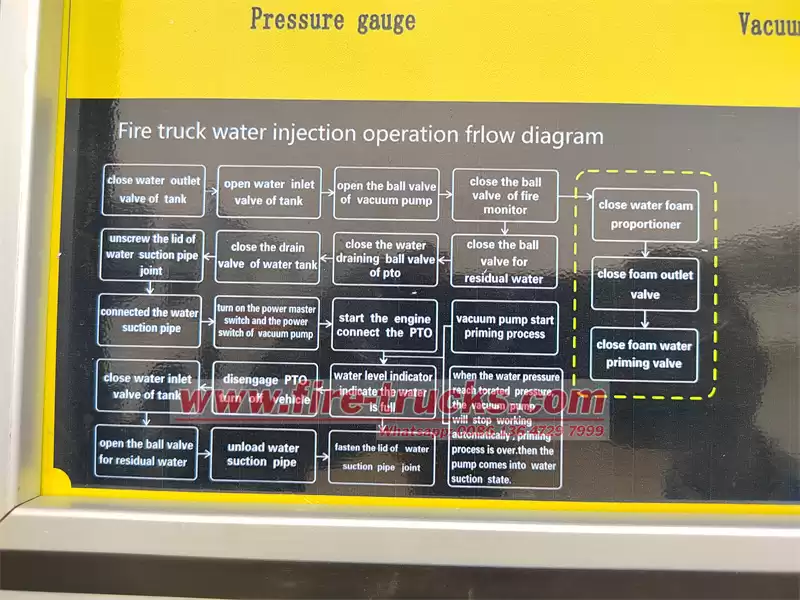

The control panel in the pump room is simple in design and fully functional, integrating a variety of operating instructions and monitoring equipment. The panel is equipped with a schematic piping diagram and fire pump operation notes, which makes it easy for operators to quickly understand the system structure and operation process. In addition, the panel is marked with attention to remind operators to operate safely. The fire truck water injection operation flow diagram and fire monitor operation flow diagram further simplify the operation steps to ensure efficient firefighting operations. The pressure gauge, vacuum gauge, rotation meter, water level gauge and foam level gauge are also installed on the panel to monitor the vehicle operation status and fire extinguishing agent reserves in real time.
The operation area of the control panel is humanized and equipped with emergency stop, which can quickly cut off the system operation in an emergency. Indicator light of PTO and vacuum pump intuitively display the working status of the equipment, which is convenient for operators to monitor. Power switch and light of outside, light of toolbox are convenient for operators to control the vehicle lighting system. The overall design takes into account both practicality and safety to ensure that fire trucks can operate stably in various complex environments.
This Saudi Arabian Isuzu FVR 6cbm water foam fire truck plays an important role in the local area. Its pump room control panel is simple and clear, allowing operators to quickly and accurately operate various functions in emergency situations. In the hot and dry environment of Saudi Arabia, the fire truck's efficient firefighting ability is particularly important. Whether it is a commercial district in the city center or a remote desert area, it can quickly arrive at the scene and effectively control the fire with the foam and water resources on board. The reliability and adaptability of this fire truck make it an indispensable equipment for the Saudi Arabian fire department, providing strong protection for the safety of life and property of local people.
