Scaffolding Board Steel Roll Forming Machine(quick-change type)

Scaffolding Board Steel Roll Forming Machine(quick-change type) can produce different scaffolding board size without changing rollers or spacers.

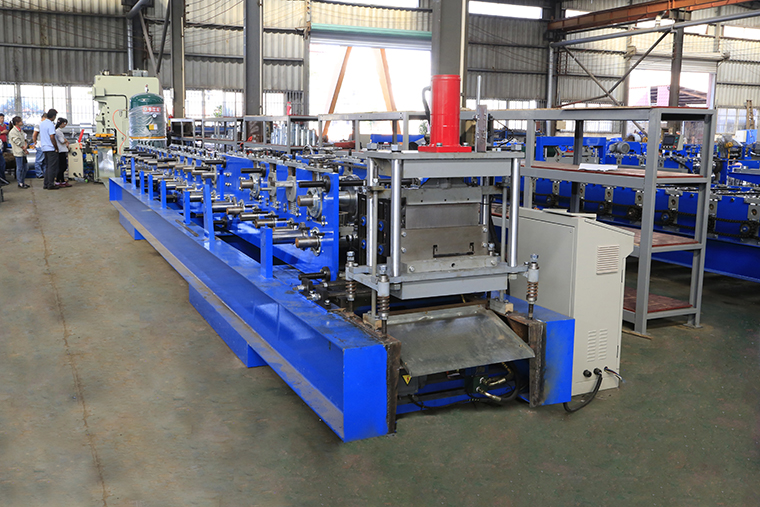

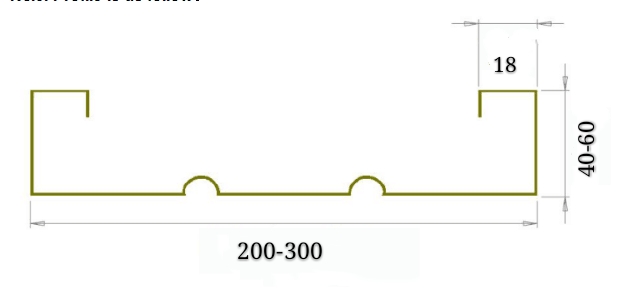

Scaffolding Board Steel Roll Forming Machine(C200-300 quick-change type)

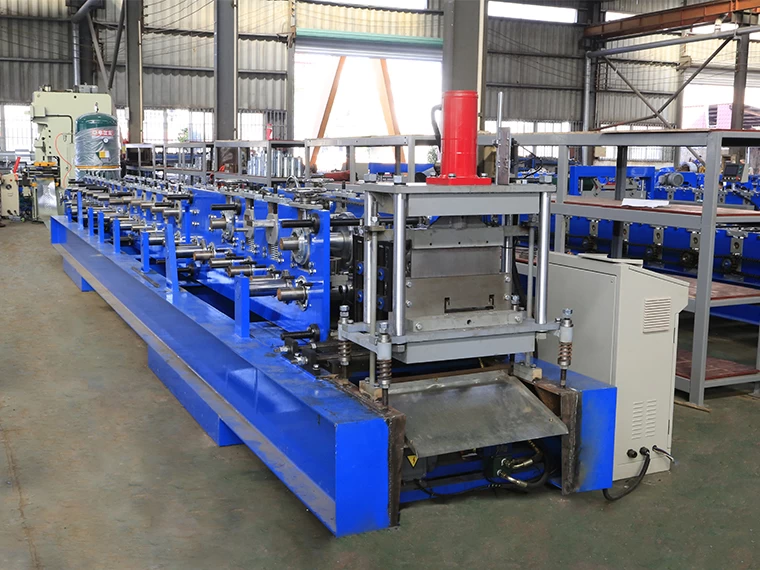

Scaffolding Board Steel Roll Forming Machine



1.Main features of Scaffolding Board Steel Roll Forming Machine(quick-change type)



    The advantages of Scaffolding Board Steel Roll Forming Machine(quick-change type) are as follows:

    1.Produce different purlin size without changing rollers or spacers.

    2.No need changing cutter for different size.

    3.Easy operation, low maintenance cost

    4.Infinite sizing(any size within machine range),help to save material

    5.Optional Punch hole at any position of scaffolding web side



2.Detailed Images of Scaffolding Board Steel Roll Forming Machine(quick-change type)



    Machine Parts

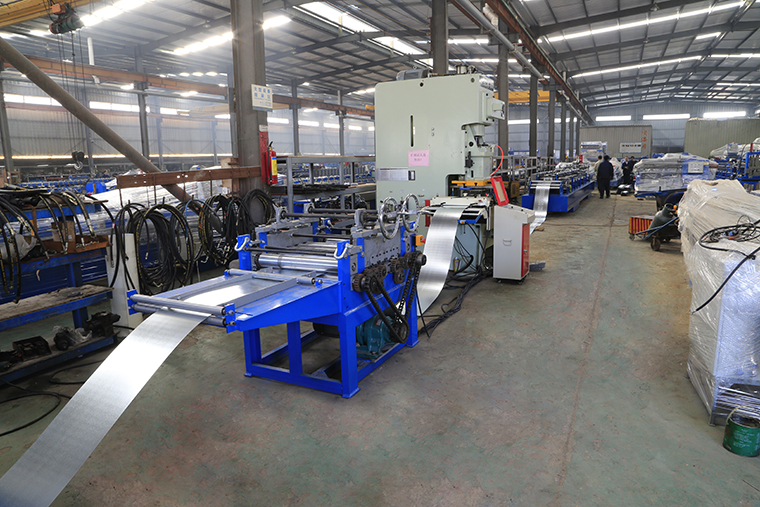

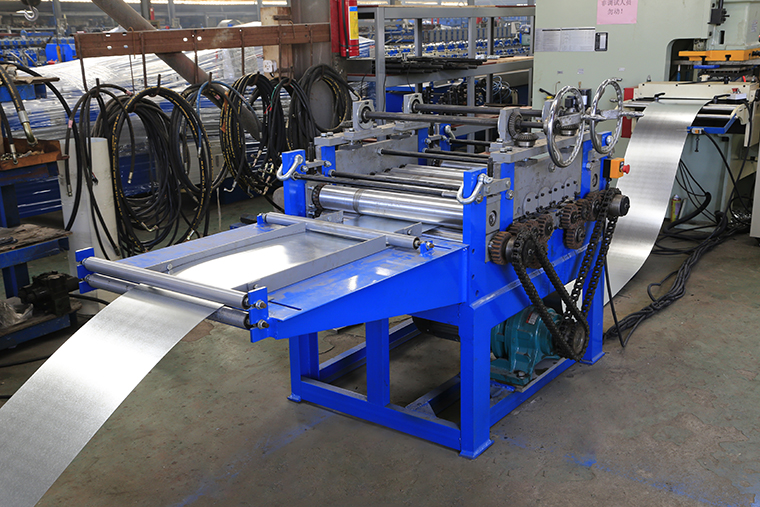

        1) C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) leveling device

        Brand: BMS    Original: China





      Scaffolding Board Steel Roll Forming Machine

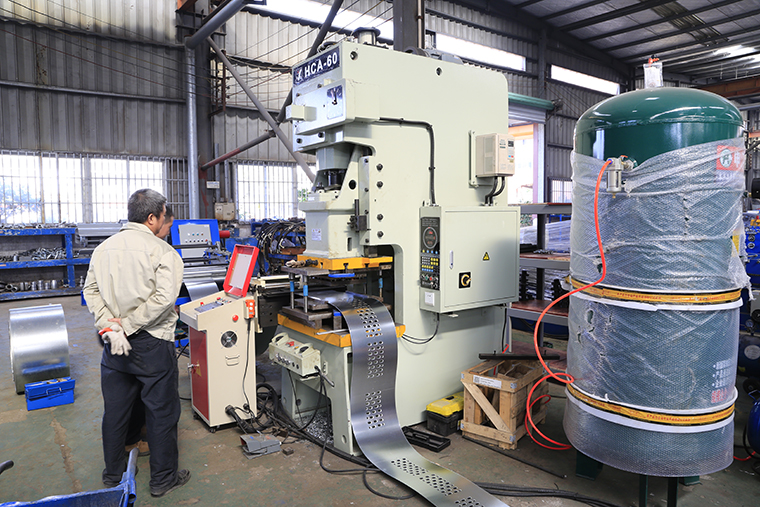

        2)  C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) puncher

        Capacity:63 tons

 Scaffolding Board Steel Roll Forming Machine

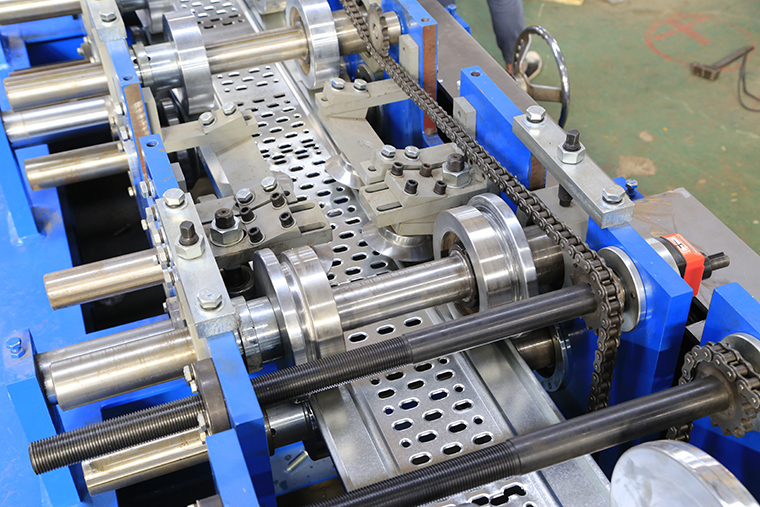

        3)  C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) roll forming mill


Scaffolding Board Steel Roll Forming Machine

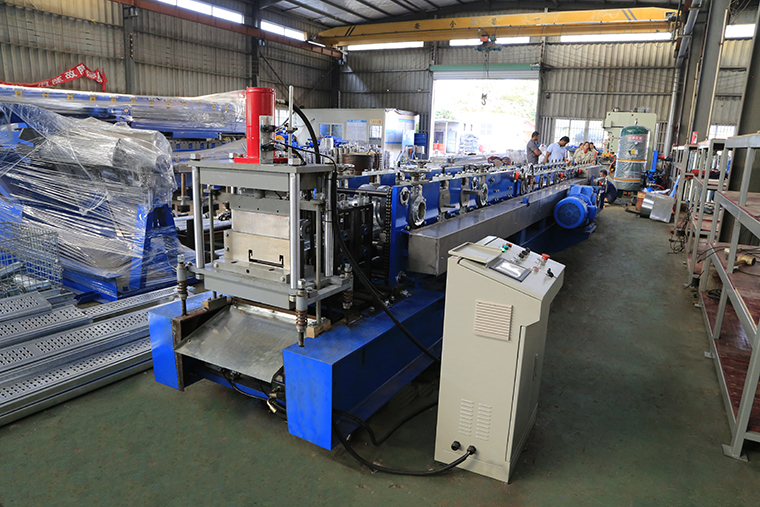

        3)  C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) PLC control cabinet


Scaffolding Board Steel Roll Forming Machine


        3)  C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) rollers

        Rollers manufactured from high quality bearing steel GCr15(EN31 steel), CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for long life.

        With feeding material guide, body framemade from 400# H type steel by welding



Scaffolding Board Steel Roll Forming Machine



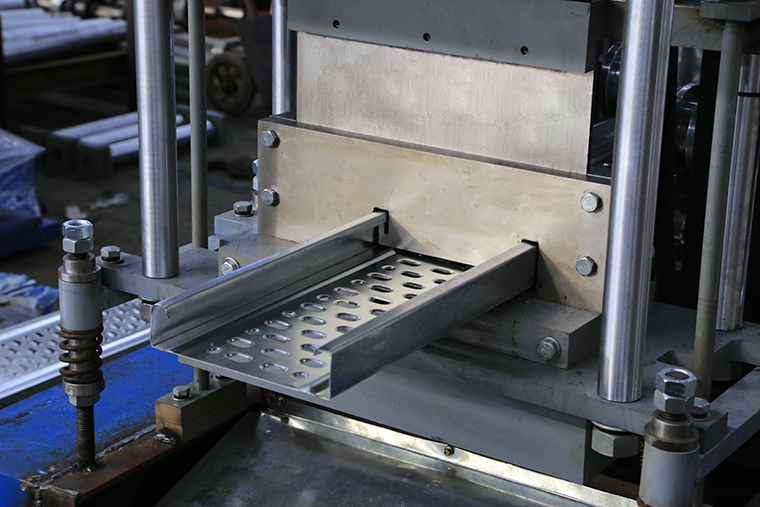

       3) C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) post cutter

        No need to change cutter for different size,

        made by high quality mold steel Cr12(D3 steel) with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching,post-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa



Scaffolding Board Steel Roll Forming Machine

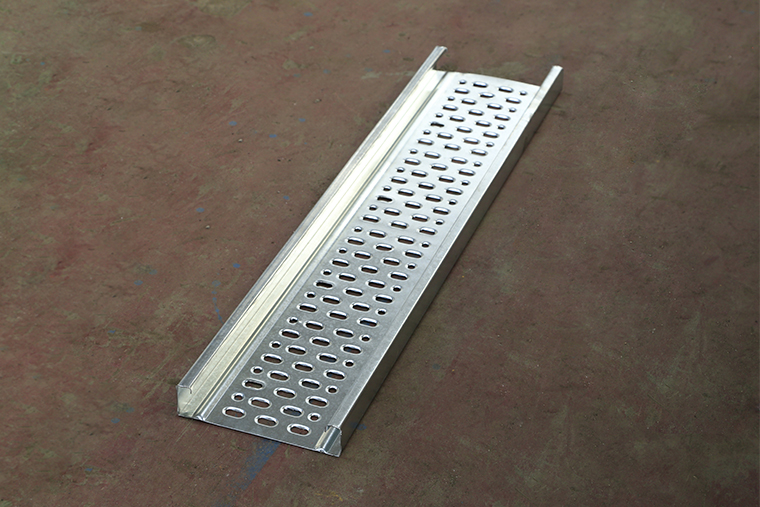

   4) C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type) product show



Scaffolding Board Steel Roll Forming Machine



        5) Scaffolding Board Steel Roll Forming Machine(quick-change type) decoiler

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton





        With 3-5 tons hydraulic decoiler for option




        6) Scaffolding Board Steel exit rack

        Un-powered,one unit

Scaffolding Board Steel Roll Forming Machine


Click here for Scaffolding Board Steel Roll Forming Machine Video



Other detailes of C200-300 Scaffolding Board Steel Roll Forming Machine(quick-change type)



Suitable for material with thickness 1.5-2.5mm

Shafts manufactured from 45#,Main shaft diameter=φ90(bigger shaft to ensure stable working for long time and no transforming after long time running),precision machined

Motor driving,Gear chain transmission, 15 rollers to form and 4 rollers for straightening and levelling

Main motor=18.5KW(bigger power for higher speed) , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Schneider Electric/Taiwan DELTA/SHILIN,Encoder brand:Japan Koyo/OMRON)



Just input required WEB,HEIGHT and required production data on the touch screen.

It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters

like traditional old style machine  (which takes over 45 minutes for each production size changing).



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Scaffolding Board Steel Roll Forming Machine(quick-change type)



1. The warranty of Scaffolding Board Steel Roll Forming Machine(quick-change type) C200- 300

    is 18MONTHS after the client receives the machine.

    Within the 1.5 years, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
