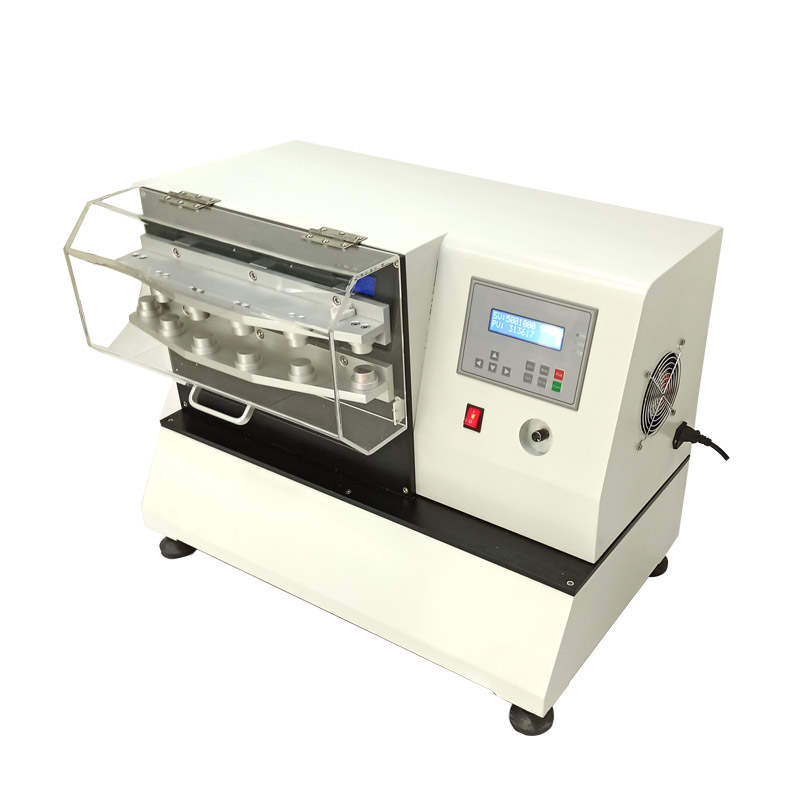

Schildknecht Flexing Tester

Schildknecht Flexing Tester is intended to determine the flexing resistance of rubber or plastic coated fabrics to flexural damage.

Test Standards

ISO 7854
EN 14325
BS 3424-9 Method B

Parameters

Model AT-T4008
Test Pieces 6 or 10 (customizable)
Flexing Frequency 8.3 Hz ± 0.4 Hz
Cylinder Outer dia. 25.4 ± 0.1 mm
Stroke length 11.7 ± 0.35 mm
Hose clips Width 10 mm±1 mm
Distance between the inside faces of clips 36 mm ± 1 mm
Sample Size 105 mm x 50 mm or 105 mm x 65 mm
Power Supply 1 phase AC 220 V 3A or specified
