SCHNEIDER 140AMM09000 analog mixed module

PLC Autocontroller |20 years of experience specializing in automation equipment

140AMM09000 | analog mixed module

PLC Autocontroller| Sales Manager May

analog mixed module

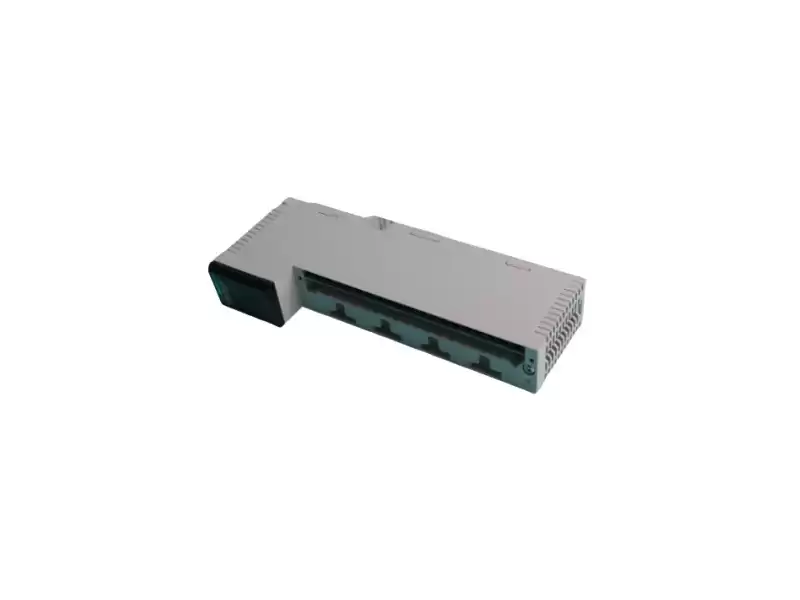

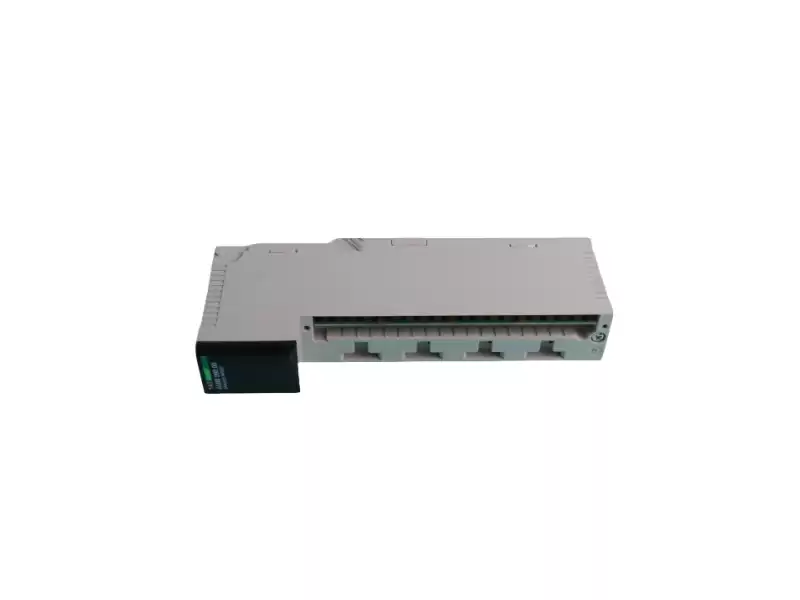

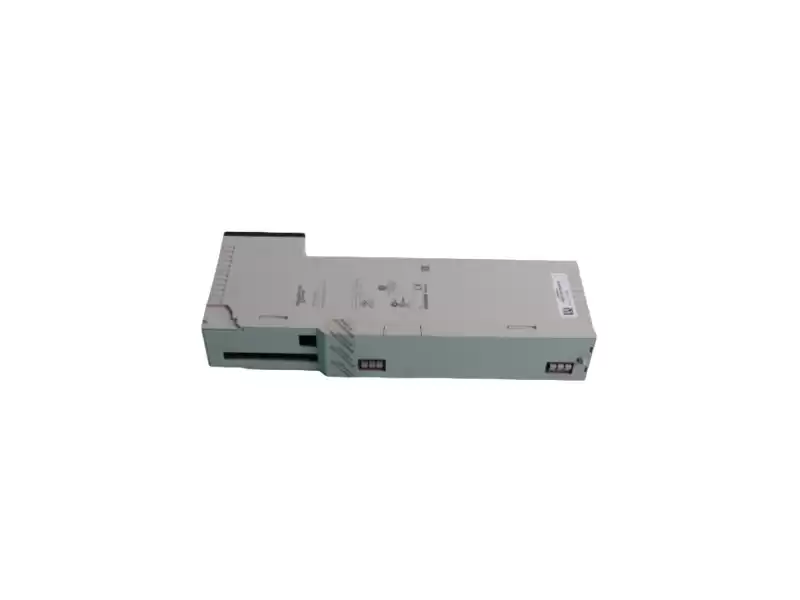

The Schneider Electric 140AMM09000 is an analog mixed module in the Modicon Quantum series, integrating 8 analog inputs and 8 analog outputs.

This module is compatible with a variety of input/output signal types (voltage and current) and is suitable for process control, signal conditioning,

and field monitoring systems. Its high resolution, low noise design, and excellent electrical isolation make it an excellent choice for industrial

control scenarios requiring multi-signal integration.

Key parameters and specifications

Module Type: Analog Mixed Module

Module Number: 140AMM09000

Analog Input Channels: 8 differential inputs

Analog Output Channels: 8 voltage/current outputs

Input Signal Range: 0–10 V DC, ±10 V DC, 0–20 mA, 4–20 mA

Output Signal Range: 0–10 V DC, ±10 V DC, 0–20 mA, 4–20 mA

Resolution: 13 bits

Input Accuracy: ±0.1% of full scale

Output Accuracy: ±0.1% of full scale

Current Consumption: Approximately 450 mA (5 V DC bus)

Module Power Consumption: Approximately 2.5 W

Operating Temperature: 0°C – 60°C

Storage Temperature: -40°C – 85°C

Application Areas

The 140AMM09000 module is widely used in various industrial automation and process control applications, including:

Process monitoring systems in the chemical and energy industries

Process control systems in power plants and water treatment plants

Integrated temperature, pressure, and flow control for mechanical equipment

Production line automation in the food and pharmaceutical industries

Remote Supervisory Control and Data Acquisition (SCADA) systems

Schneider Electric 140AMM09000 is an analog hybrid module that integrates input and output, providing

efficient signal acquisition and control capabilities for industrial automation systems.

Order & ship

u Xiamen stock, 1 Year Warranty

u 100% Original Package

u UPS/ DHL/ FEDEX / TNT
