140ATI03000 | analog input module
Sales Manager: May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
Industrial Power Supply Module | Global 3-day DHL | 12-month warranty
What it is

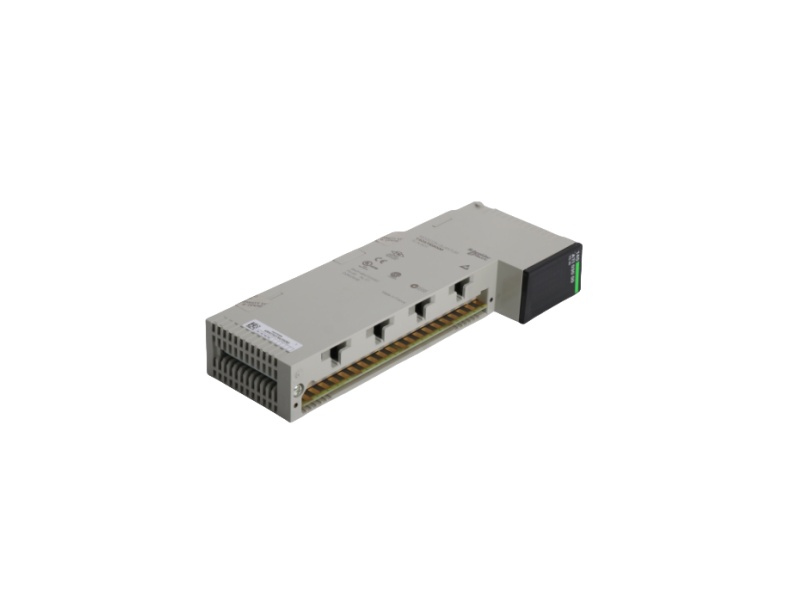

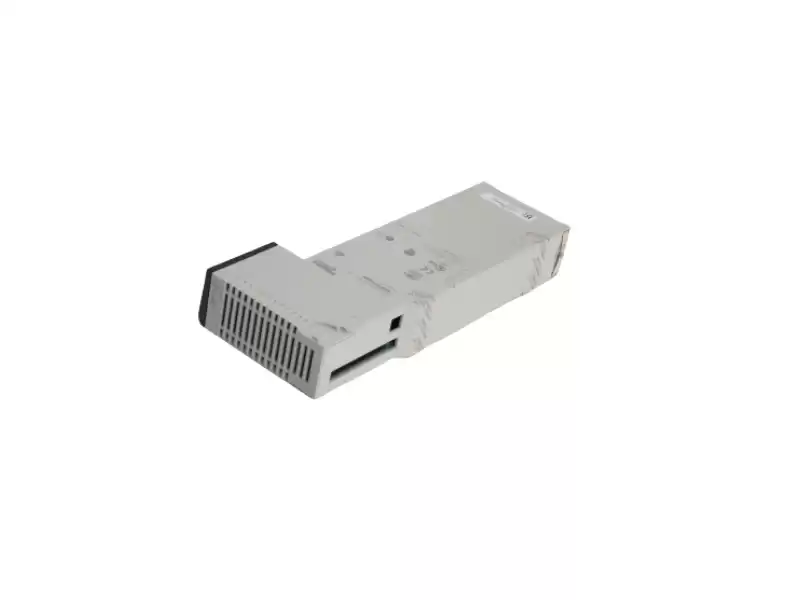

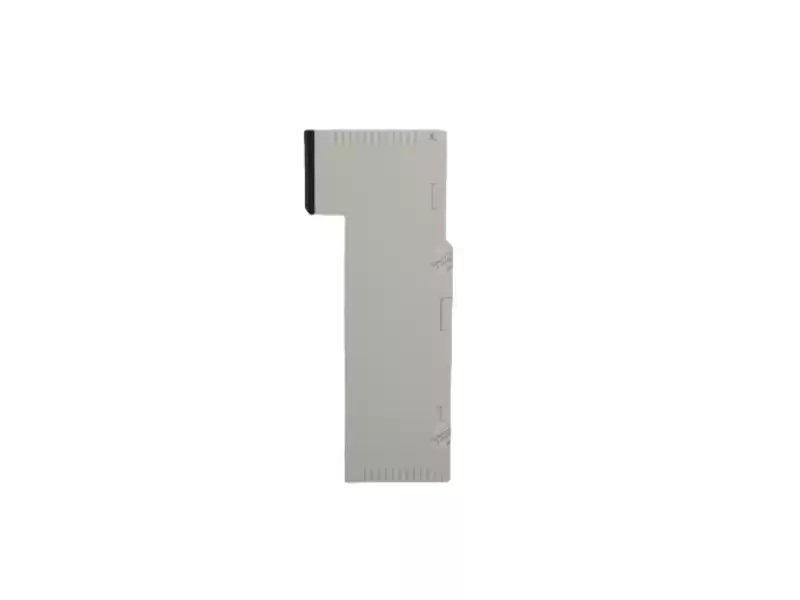

The 140ATI03000 is a Modicon Quantum analog input module from Schneider Electric, designed specifically
for thermocouple signal acquisition in industrial automation systems. It provides high-precision temperature monitoring
and powerful diagnostic capabilities, making it suitable for demanding industrial environments.
Technical Specifications
Number of Input Channels: 8 thermocouple input channels
Input Type: Thermocouple (supports multiple types)
Input Range: Supports different temperature ranges depending on the thermocouple type
Resolution: 16 bits
Absolute Accuracy: ±2°C + 0.1% of reading (E, J, K, T types); ±4°C + 0.1% of reading (R, S types)
Linearity: ±1°C, ±0.1°C
Filters: Low-pass filter (3 dB @ 20 Hz), notch filter (3 dB @ 50/60 Hz)
Power Consumption: 1.5 W
Bus Current Requirement: 280 mA
Operating Temperature Range: 0 to 60°C
Storage Temperature Range: -40 to 85°C
Relative Humidity: Up to 95% non-condensing
Why choose the 140ATI03000?
Ø High-Precision Input: Provides 16-bit resolution, ensuring accurate acquisition of thermocouple signals.
Ø Multiple Thermocouple Support: Compatible with a variety of thermocouple types to meet diverse measurement needs.
Ø Powerful Filtering: Built-in low-pass and notch filters effectively suppress noise interference and improve signal quality.
Ø High Reliability: High accuracy and low drift ensure stable system operation.
Application Scenarios and Compatibility
The 140ATI03000 module is suitable for the following industrial automation systems:
Modicon Quantum series: Provides high-performance control functionality for complex automation tasks.
Modicon X80 series: Provides higher processing power and a richer range of communication interfaces for modern automation systems.
This module is compatible with ProWORX 32 NXT V2.0 and Concept V2.0 and higher software versions. It supports multiple programming
languages, including IEC and LL984, to meet diverse user needs.
