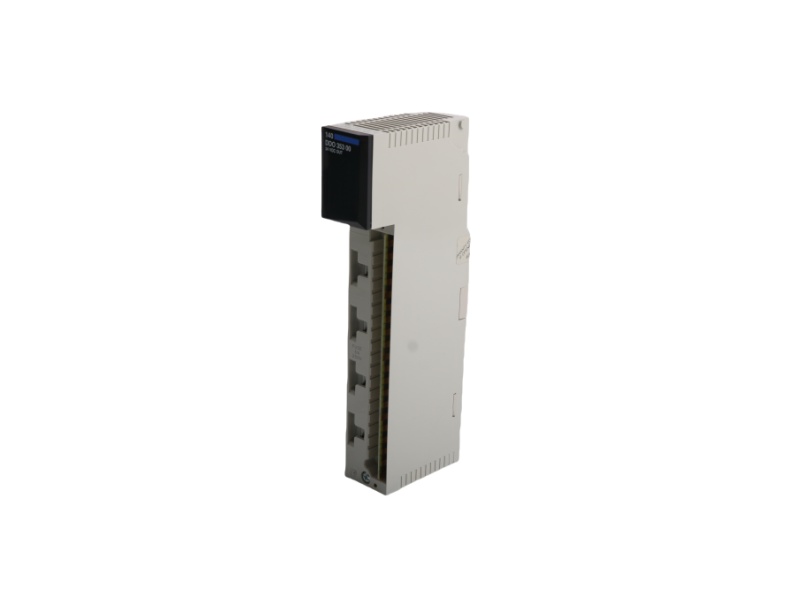

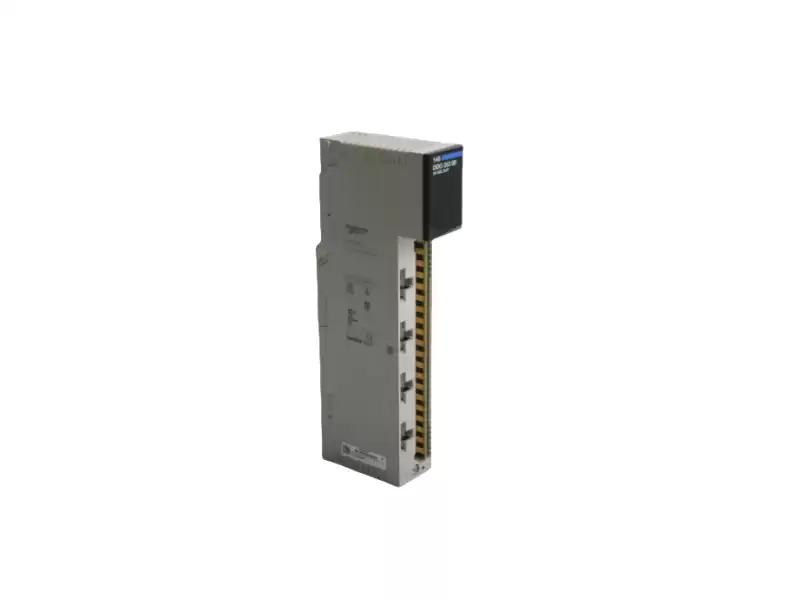

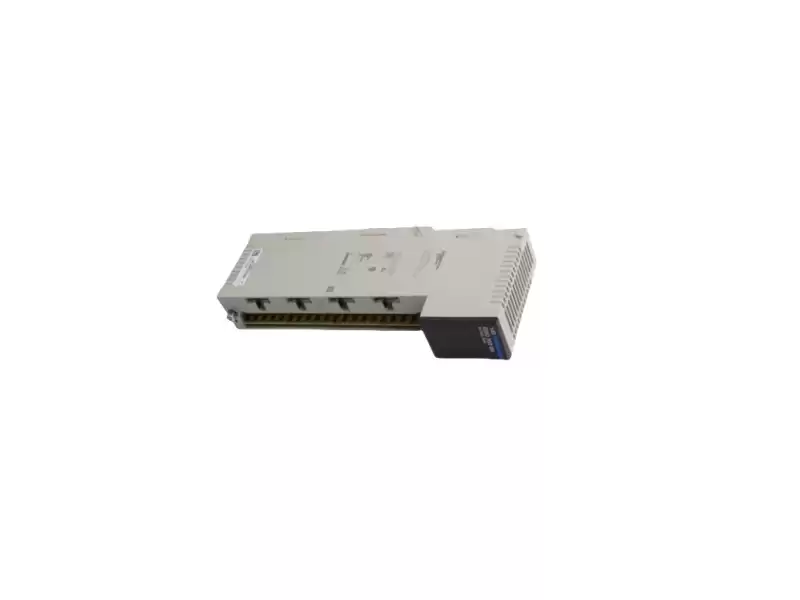

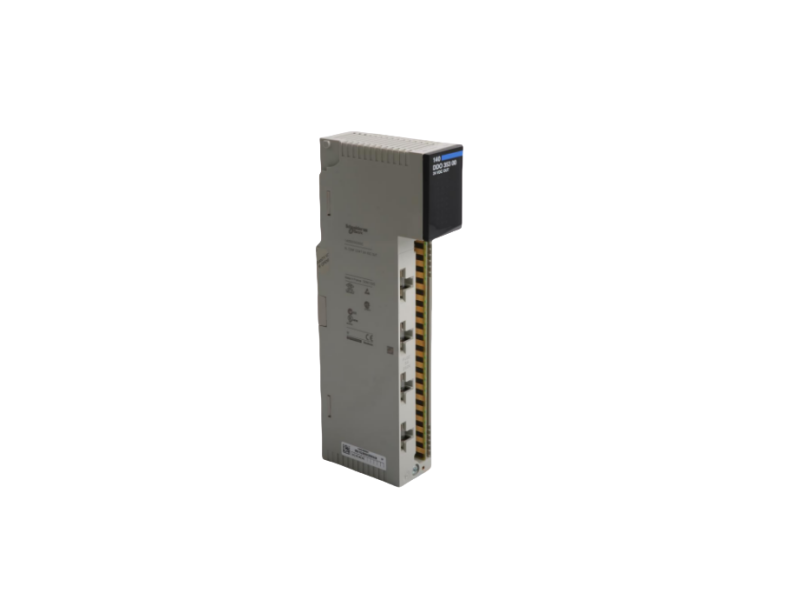

140DDO35300C |digital output module

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Identification

Model: 140DDO35300C

Manufacturer:Schneider

Type/Function: digital output module

140XBP00600 —  backplane expander module

The 140DDO35300C is a high-performance DC digital output module for Schneider Electric's Modicon

Quantum automation platform. This module is designed for industrial automation systems, providing reliable

control signal output and is widely used in various automation control systems.

Key Technical Specifications

Number of outputs: 32

Output voltage: 24 V DC (range: 19.2–30 V)

Output logic type: Positive logic output (Source)

Address requirements: 2 output words

Maximum output current per point: 0.5 A

Peak current: 5 A (for 0.0005 seconds)

Output voltage drop: <0.4 V (0.5 A)

Response time: 0 → 1 state: ≤1 ms

1 → 0 state: ≤1 ms

Leakage current: 0.4 mA (30 V)

Short-circuit protection: Supported

Module format: Standard module format

The140DDO35300C is suitable for a variety of industrial automation applications, including:

Ø High-density output: Provides 32 independent digital outputs to meet the needs of large-scale automation systems.

Ø Fast response: Output state changes respond quickly, ensuring real-time system performance.

Ø Strong compatibility: Seamlessly integrates with the Modicon Quantum series controllers and supports multiple industrial protocols.

Ø High reliability: Short-circuit protection enhances system stability.

Ø Easy maintenance: The module design takes field maintenance needs into consideration, supporting fault indication and status monitoring.
