u Product Overview

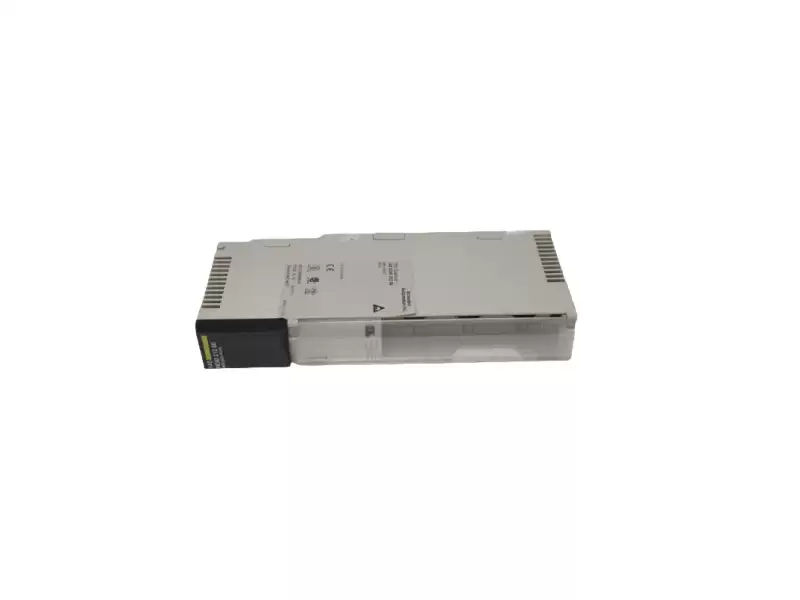

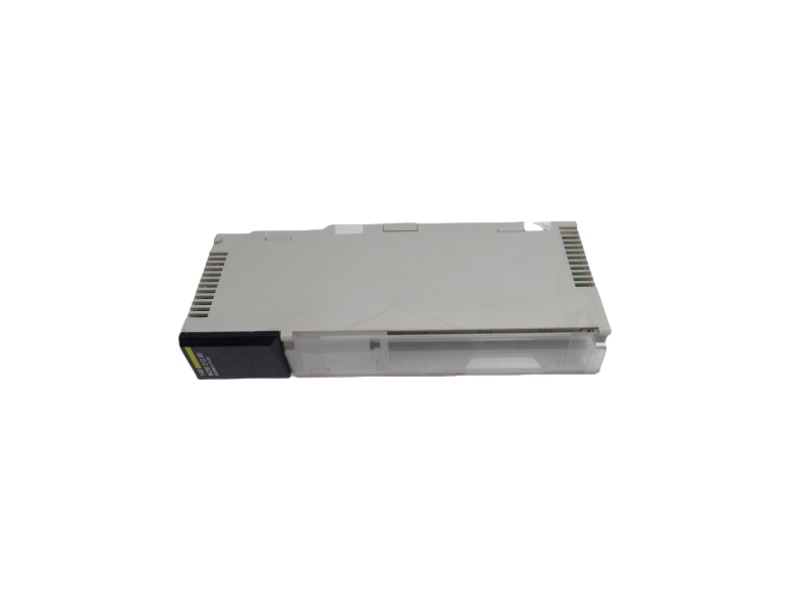

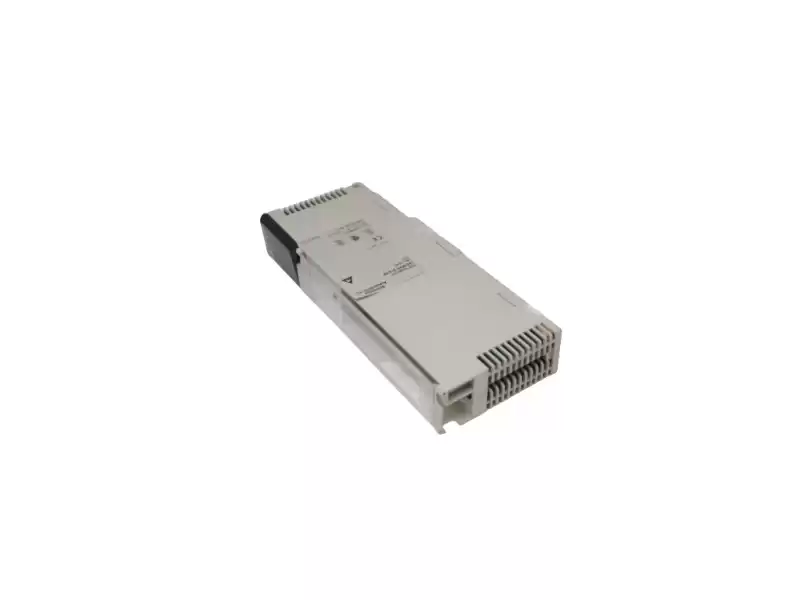

Schneider Electric's 140NOM21200 is a DIO Head-End adapter designed for the Modicon Quantum series.
This module is designed to connect the digital input/output (DIO) in the system to the Modbus Plus/RS485
communication network, ensuring data exchange efficiency and reliability in large automation systems.
Spec-Snapshot Table
|
Attribute
|
Field Value
|
|
Part Number
|
170MCI00702
|
|
Type
|
DIO Head-End Adapter
|
|
Communication Ports
|
2 Modbus Plus RS485 (redundant twisted-pair copper) + 1 Modbus RS232 (redundant twisted-pair copper)
|
|
Transmission Rate
|
1 Mbit/s
|
|
Power Consumption
|
4 W
|
Product Advantages
n In the Modicon Quantum series control systems, this module aggregates and transmits data from field digital I/O modules via a Modbus Plus/RS485 network.
n It supports dual-channel redundancy (two RS485 channels + one RS232 channel), making it suitable for critical industrial control systems requiring high reliability.
n It is typically used in large-scale production lines, packaging systems, chemical plants, process control systems, and other scenarios requiring large-scale digital I/O and network communication.
n Due to our long-term sales experience, we also recommend this module for retrofitting/expanding legacy systems and replacing outdated communication modules to improve system responsiveness and reliability.
Application Areas
Highly efficient communication: Supporting 1 Mbit/s transmission rates, it's ideal for fast communication with large I/O volumes.
Redundant design: Dual RS485 + RS232 channel redundancy enhances system stability and fault tolerance.
High compatibility with the Modicon Quantum platform facilitates integration with existing systems.
Proven experience: With 20 years of experience supplying automation equipment, we offer comprehensive selection, support, and service support.
