Product Identification

Model: 140XBP00600

Manufacturer:Schneider

Type/Function: backplane expander module

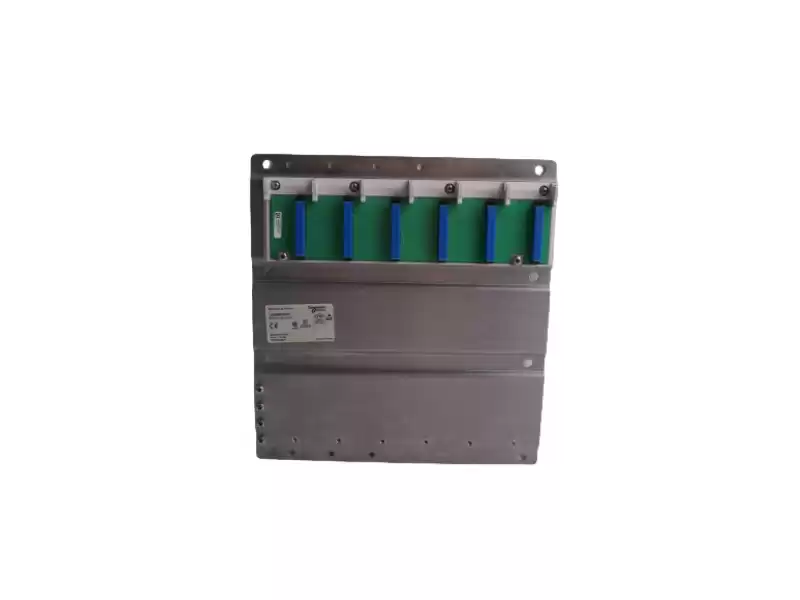

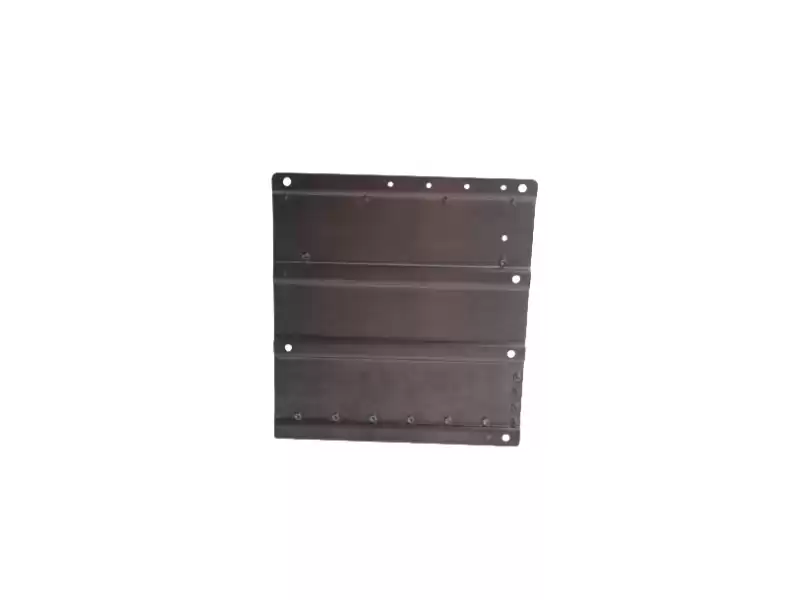

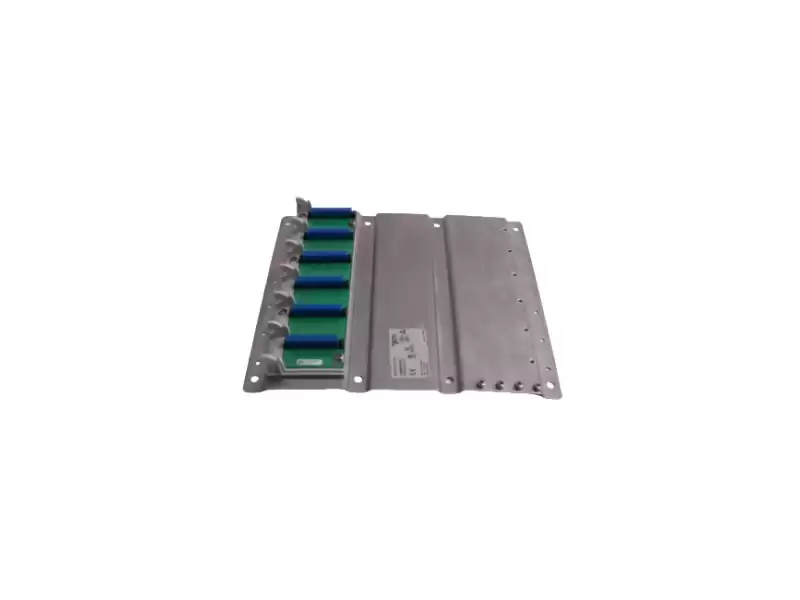

140XBP00600 —  backplane expander module

Schneider Electric's 140XBP00600 is a backplane expander module designed specifically for the Modicon

Quantum series programmable logic controller (PLC). This module provides additional I/O (input/output)

expansion capabilities within Quantum series PLC systems, meeting the high I/O capacity demands of large-scale

industrial automation projects.

Key Technical Specifications

Model 140XBP00600

Type: Backplane Expander Module

Compatible with Modicon Quantum Series PLCs

Number of slots: 6

Power input: 24V DC

Weight: 0.64 kg

Dimensions (L x W x H): Approximately 265 mm x 104 mm x 290 mm

Mounting method: Screw-on

Ambient temperature range: 0°C to 60°C

Environmental protection: IP20

The140XBP00600 is suitable for a variety of industrial automation applications, including:

Ø I/O Expansion: Provides additional I/O expansion capabilities to meet the high I/O capacity demands of large-scale industrial automation projects.

Ø Modular Design: The modular design facilitates installation and removal, allowing users to flexibly configure the PLC system as needed.

Ø High Reliability: As a key component of industrial automation systems, backplane expanders must offer high reliability and stability to ensure long-term, stable system operation.

Ø Compatibility: Compatible with the Modicon Quantum series PLCs, ensuring system compatibility and stability.

More options

Power Module: TSXPSY2600 / TSXPSY5500: Provides 5V DC power

Input Module: TSXDEZ32D2K / TSXAEY1600: Digital and analog input

Output Module: TSXDSY16T2K / TSXASY4100: Digital and analog output

Communication Module: TSXETY4103 / TSXCPP110: Ethernet and communication expansion

Memory Card: TSXMRPC001M: Program and data storage expansion
