About 170ADI35000

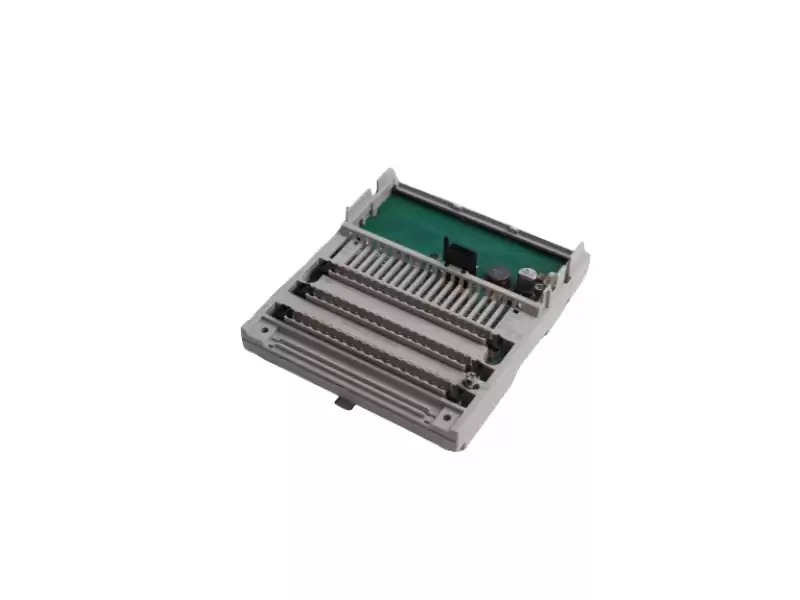

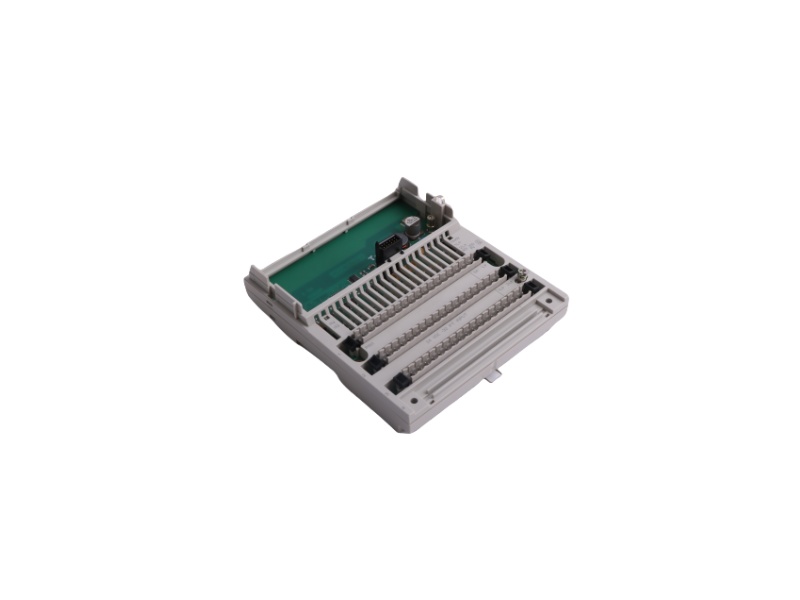

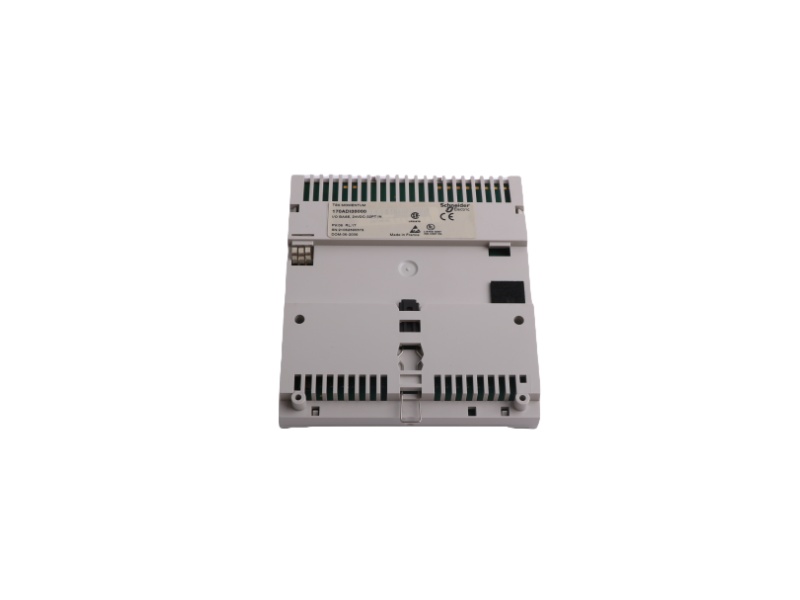

The 170ADI35000 is a 32-continuous discrete input module designed specifically for the Modicon Momentum
automation platform. It supports 24 V DC input voltage and features 32 discrete inputs, providing a reliable
solution for I/O expansion in industrial control systems.
Key Specifications
|
Electrical
|
Value
|
|
Model Name:
|
170ADI35000
|
|
Module Type:
|
discrete input module
|
|
System Platform:
|
Modicon Momentum
|
|
Number of Input Points:
|
32 (2 groups of 16 points each)
|
|
Input Voltage Range:
|
–3…30 V
|
|
Input Logic:
|
Positive Logic
|
|
Channel-to-Bus Isolation:
|
500 V AC
|
|
Response Time (0 → 1):
|
Approximately 2.2 ms
|
Module features and advantages
|
High-Density Input: Supports 32 discrete inputs, making it suitable for systems requiring extensive digital signal monitoring.
|
|
Fast Response: A 2.2 ms response time adapts to high-speed logic changes.
|
|
Excellent Isolation: Channel-to-bus isolation reaches 500 V AC, enhancing system immunity to interference.
|
|
Clear Local Status Indication: Each input channel features an LED indicator for easy diagnosis and maintenance.
|
|
Rugged and Reliable, Suitable for Industrial Environments: CE, CSA, and UL certified, suitable for a wide range of operating environments.
|
The TSXMFPP004M is widely used in industrial scenarios requiring stable data storage and fast recovery, including:
l Industrial Automation Control Systems: Serves as an I/O expansion module for the master PLC, enabling connection to a large number of sensors or switching devices.
l Process Monitoring and Data Collection: Suitable for scenarios requiring equipment status monitoring, signal acquisition, and condition assessment.
l Fast Production Line Changeover or Modification: With a high input count and relatively simple installation and maintenance, it's ideal for equipment upgrades and modifications.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
