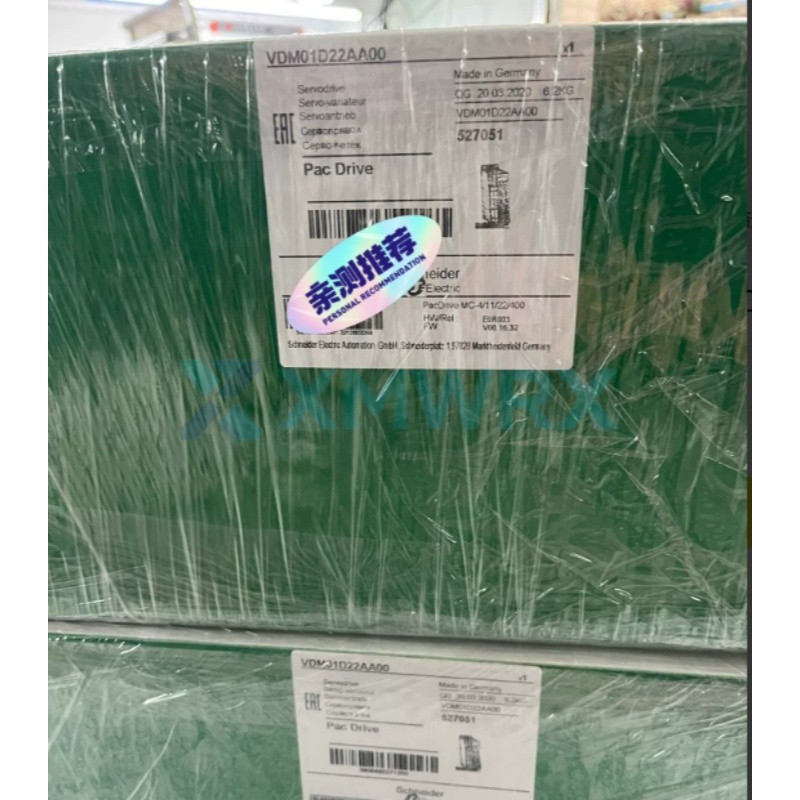

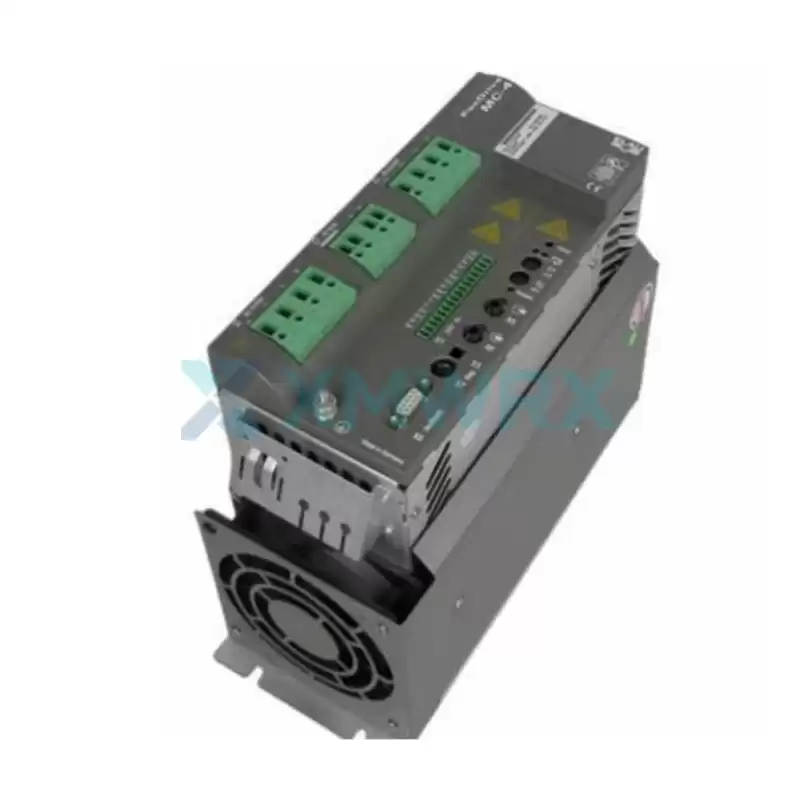

VDM01D22AA00 is a Schneider Electric ELAU PacDrive MC-4 series single-phase 230V compact servo drive, featuring an original German module. It is paired with a C400 motion controller to form a complete motion control system. Its compact size and DIN rail mounting save cabinet space. It is compatible with small to medium power servo motors and is widely used in packaging, printing, and pharmaceutical equipment feeding, traction, and labeling processes. It utilizes the SERCOS III bus to achieve high-precision synchronous control of multiple axes.
100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Frequently Asked Questions
Q: What is the output current of VDM01D22AA00, and what power servo motor is it compatible with?
A: Rated output current 2.2A, can drive ELAU synchronous servo motors up to 1.1kW, suitable for medium load auxiliary drive workstations.
Q: What communication bus does the VDM01D22AA00 use, and what motion functions can it perform?
A: It is equipped with a SERCOS III real-time bus, which can interface with a C400 controller and network with multiple servos for synchronous operation, supporting precise synchronous movements such as electronic cams, electronic gears, and synchronous tracking.
Q: What hardware protection functions does the VDM01D22AA00 have?
A: It integrates multiple protections against overcurrent, overvoltage, undervoltage, overheating, motor short circuit, and encoder disconnection. The machine's fault indicator light provides real-time feedback on any abnormalities to prevent hardware damage.
