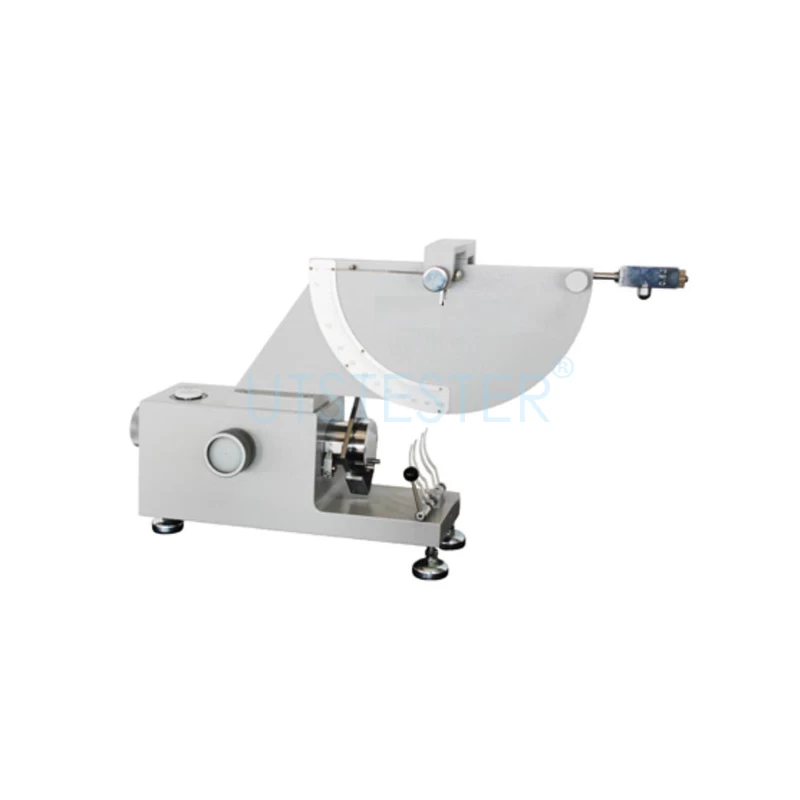

Schob Type Pendulum Tester for evaluating impact resilience and penetration of rubber by means of a pendulum rebound, as described in ASTM D7121, “Standard Test Method for Rubber Property-Resilience Using Schob Type Rebound Pendulum.”
Feature
Manual operations and the mechanical mechanism greatly simplifies the testing procedure, reducing technician intervention and producing accurate, precise and reliable results.
The resilience measurements are accurate, reliable, repeatable, reproducible and as easy as 1—2—3!
1. Insert the specimen,
2. Release the Pendulum Arm,
3. Remove the specimen.
Standards
ASTM D 7121, ISO 4662, DIN 53512, DIN53573, GB/T 1681

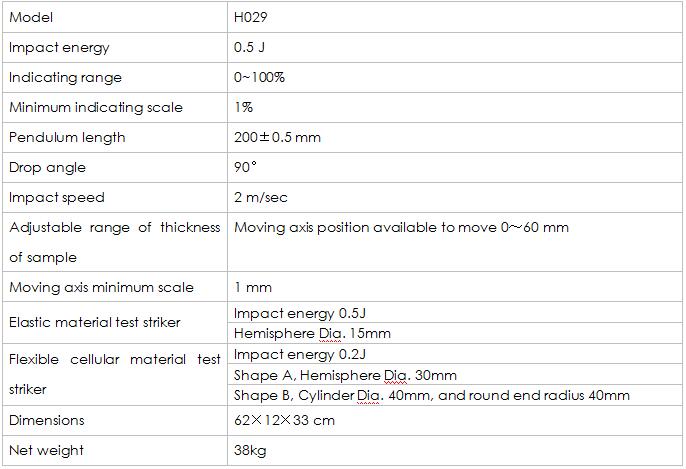

Key Parameters
Applications
