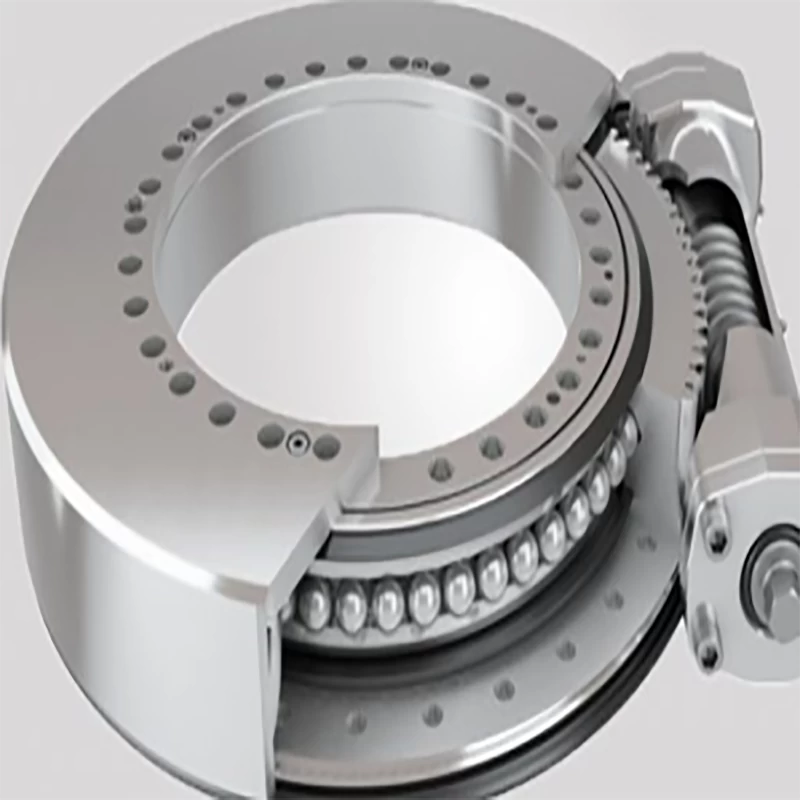

Se5 slewing bearing is an honorary product of Maanshan Jingwei.

the Data Model is se5

theOutput Torque is 600N.m

the Tilting Moment Torque is 1800 N.m

the Holding Torque is 5000 N.m

the Static Axial Load is 76KN

the Static Radial Load is 22.6KN

the Dynamic Axial Load is 13.8KN

the Dynamic Radial Loadis is 11.8KN

the Speed reducing ratio is 62:1

the Tracking Precision is 0.2°

the Self-lock is YES

the Weight is 12KG

The advantages of using turbine type slewing drive:

1. It can realize large transmission ratio, less transmission parts and compact structure.

2. More meshing teeth, higher coincidence degree, less impact load and smoother .

3. Self-locking function.
