Product Name:Seated rider electric tow tractor 48V
Product Advantages:
Emergency power off switch, to ensure the safety of driving.
Compact structure, with beautiful appearance and good mobility and no pollution.
Low center of gravity of vehicle, with high stability in turning and driving.
Spacious operation space and reasonable ergonomic design let operator work more comfortable and convenient.
Specification:
|
Name
|
Seated Type Electric Tow Tractor（48V）
|
|
Operation type
|
Seated Type
|
|
Model No.
|
Unit
|
EPQ40A
|
EPQ60A
|
|
Power type
|
|
Electric
|
Electric
|
|
Wheel type
|
|
Rubber
|
Rubber
|
|
Maximum traction weight
|
KG
|
4000
|
6000
|
|
Max. traction
|
N
|
2050
|
2300
|
|
The instantaneous maximum traction
|
N
|
4000
|
4000
|
|
The vehicle height
|
H2(mm)
|
1420
|
1420
|
|
Overall length
|
L(mm)
|
2010
|
2010
|
|
Overall width
|
S(mm)
|
985
|
985
|
|
Max. Travel speed
|
Km/h
|
8/12
|
16/10
|
|
Wheelbase
|
mm
|
1357
|
1357
|
|
Turning radius
|
Wa(mm)
|
1705
|
1705
|
|
Battery weight
|
KG
|
355
|
550
|
|
Steering type
|
|
EPS
|
EPS
|
|
Parking brake type
|
|
Manual operation/Pedal type
|
Manual operation/Pedal type
|
|
Body weight
|
KG
|
1020
|
1200
|
|
Front wheel
|
mm
|
Ø295*96
|
Ø295*96
|
|
Rear wheel
|
mm
|
Ø415*112
|
Ø415*112
|
|
Battery capacity
|
V/Ah
|
24/350
|
48/280
|
|
Charger-intelligent
|
V/Ah
|
24/50
|
48/40
|
|
Drive motor
|
Kw
|
3
|
4
|

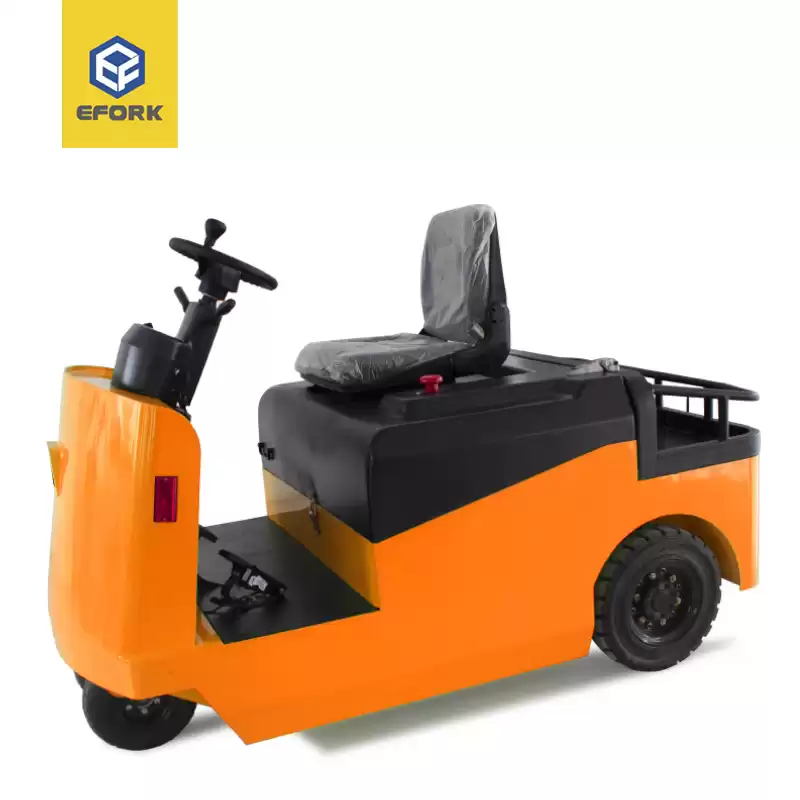

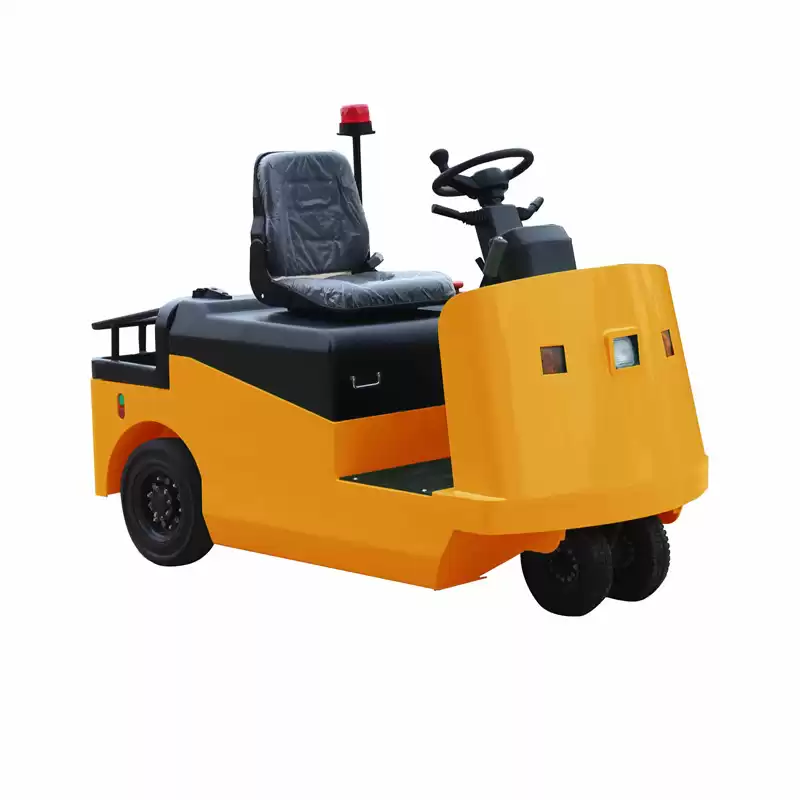

Product Display:
